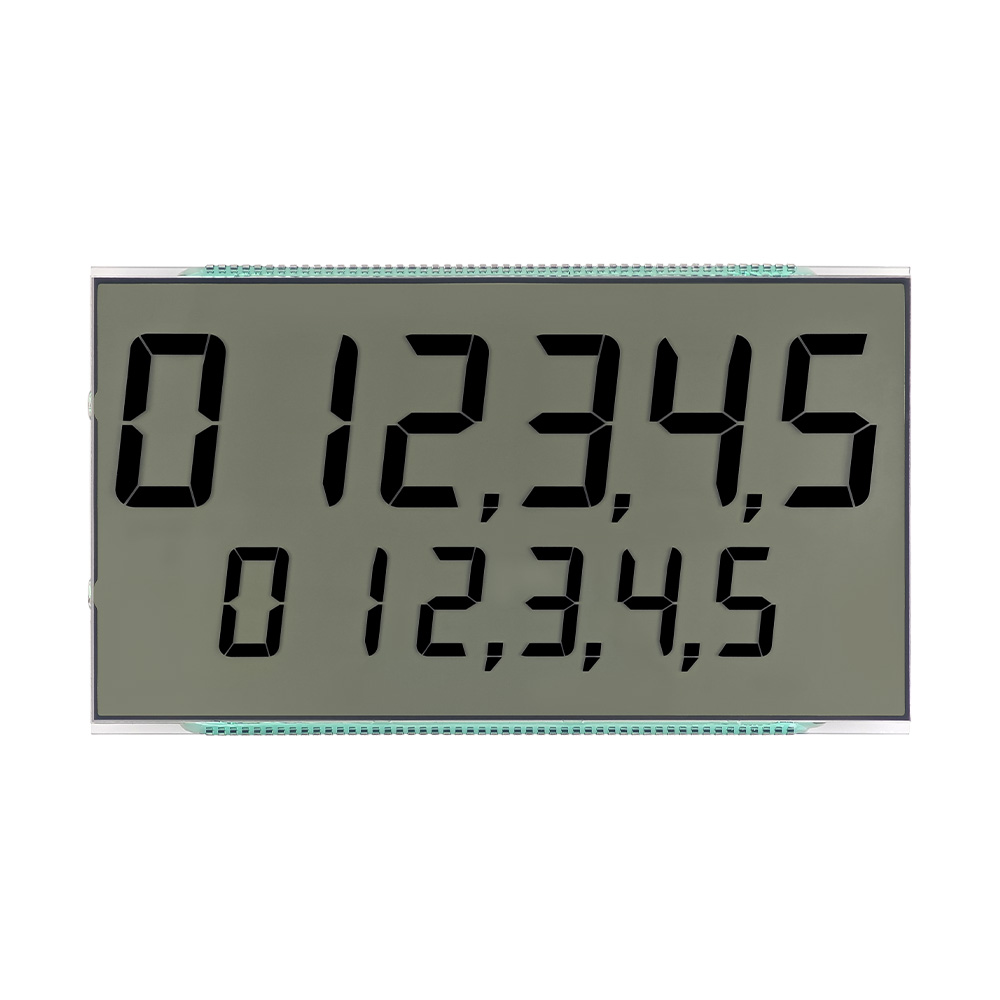

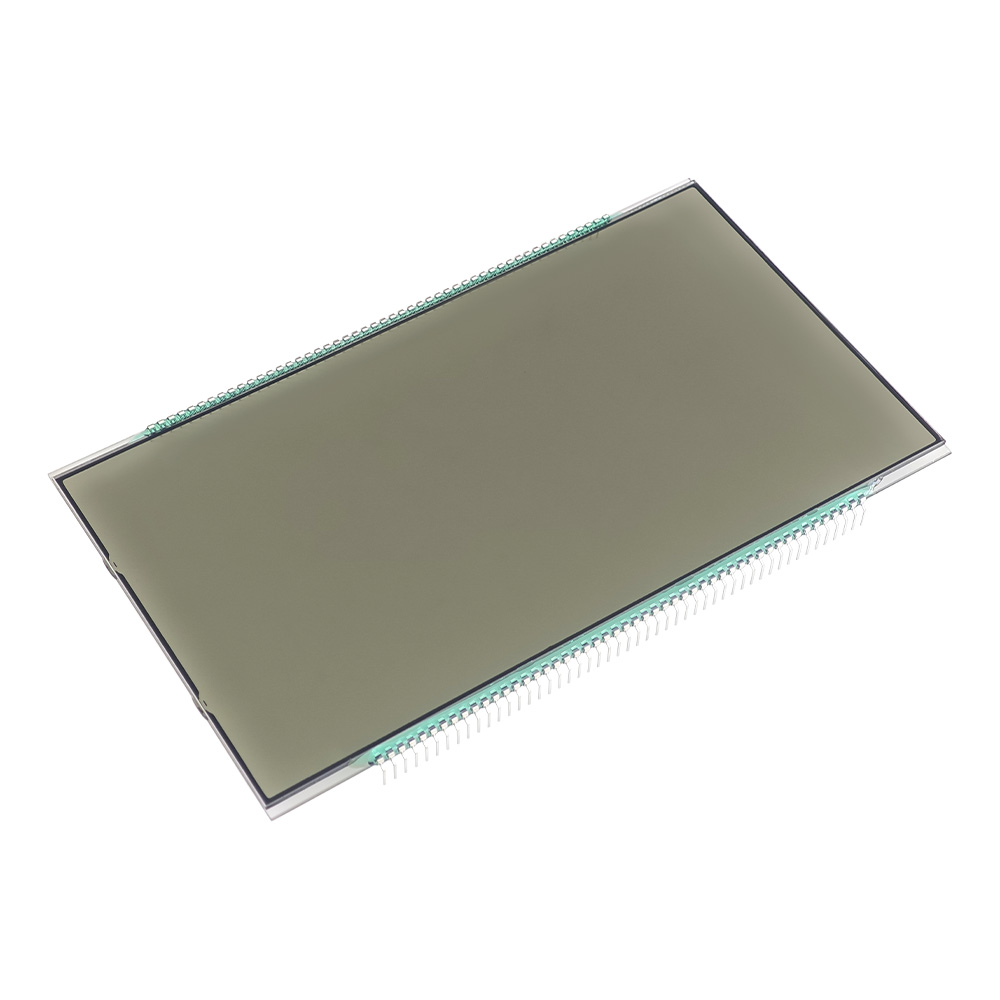

The Arduino Custom LCD Segment Displa SJXDGN036 is a flexible segmented display solution designed for Arduino-based development and embedded prototyping projects. It is engineered to support customized segment configurations, allowing developers to create tailored visual interfaces for a wide range of DIY electronics and smart control systems. This module provides a practical bridge between microcontroller output and clear human-readable visual data, making it ideal for experimental, educational, and prototype applications.
Parameters:
| Character Type | Customized |
| Model | SJXDGN036 |
| Model Size | 175.0×102.0×2.8mm |
| VA Size | 171.0×93.0mm |
|
Connector
|
Metal pins |
|
LCD Type
|
HTN Positive |
|
Drive Conditions
|
1/4D 1/3B
|
|
Working Temperature
|
-20°C TO +70'C
|
| Storage Temperature |
-30'C TO +80'C
|
|
Working Voltage
|
3.0 V |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- In stock, fast delivery
Key Specifications
This Arduino Custom LCD Segment Displa features a configurable segmented LCD architecture optimized for microcontroller integration. It supports custom segment definitions, enabling the display of numeric values, symbols, and application-specific indicators based on Arduino control logic. The screen delivers strong contrast performance for clear visibility in indoor environments and controlled lighting conditions. It operates at low voltage, making it fully compatible with Arduino boards and other embedded development platforms. The module is designed for low power consumption, supporting continuous operation in battery-powered or energy-efficient systems. It maintains stable performance across a standard operating temperature range, ensuring reliable function in various experimental environments. Its compact structure allows easy mounting on development boards, prototypes, and custom electronic assemblies. The fast response of segment activation ensures real-time reflection of programmed data without delay.
Design Standards
The module is manufactured according to prototyping-oriented display design standards that emphasize flexibility, durability, and consistent optical performance. High-quality liquid crystal materials are used to ensure stable segment definition and long-term visual clarity. Circuit design is optimized to reduce interference and ensure stable signal communication with Arduino and compatible microcontrollers. The structure is reinforced to support repeated testing, development iterations, and experimental usage conditions. Each unit is evaluated for segment accuracy, electrical stability, and display uniformity to ensure dependable performance in development environments. Low power engineering principles are applied to extend operational life in portable and embedded applications.
Applications
The Arduino Custom LCD Segment Displa is widely used in Arduino projects, DIY electronics, educational kits, smart prototypes, sensor interfaces, and embedded system development. It is also suitable for hobbyist instrumentation, experimental dashboards, and custom control panels requiring flexible segmented display output. Its combination of customization capability, low power consumption, and ease of integration makes it an ideal solution for developers building interactive and functional electronic display systems.

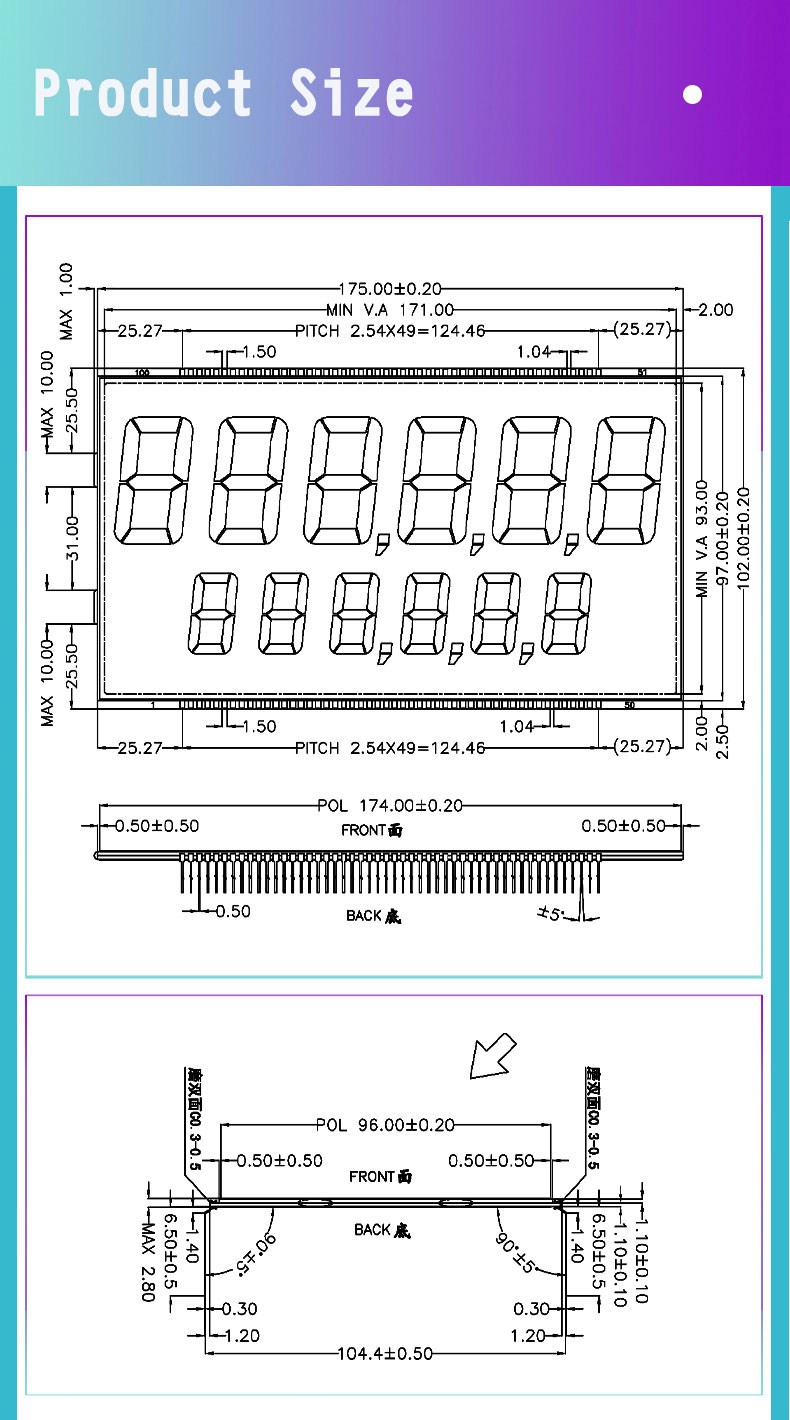

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
