Basic Information

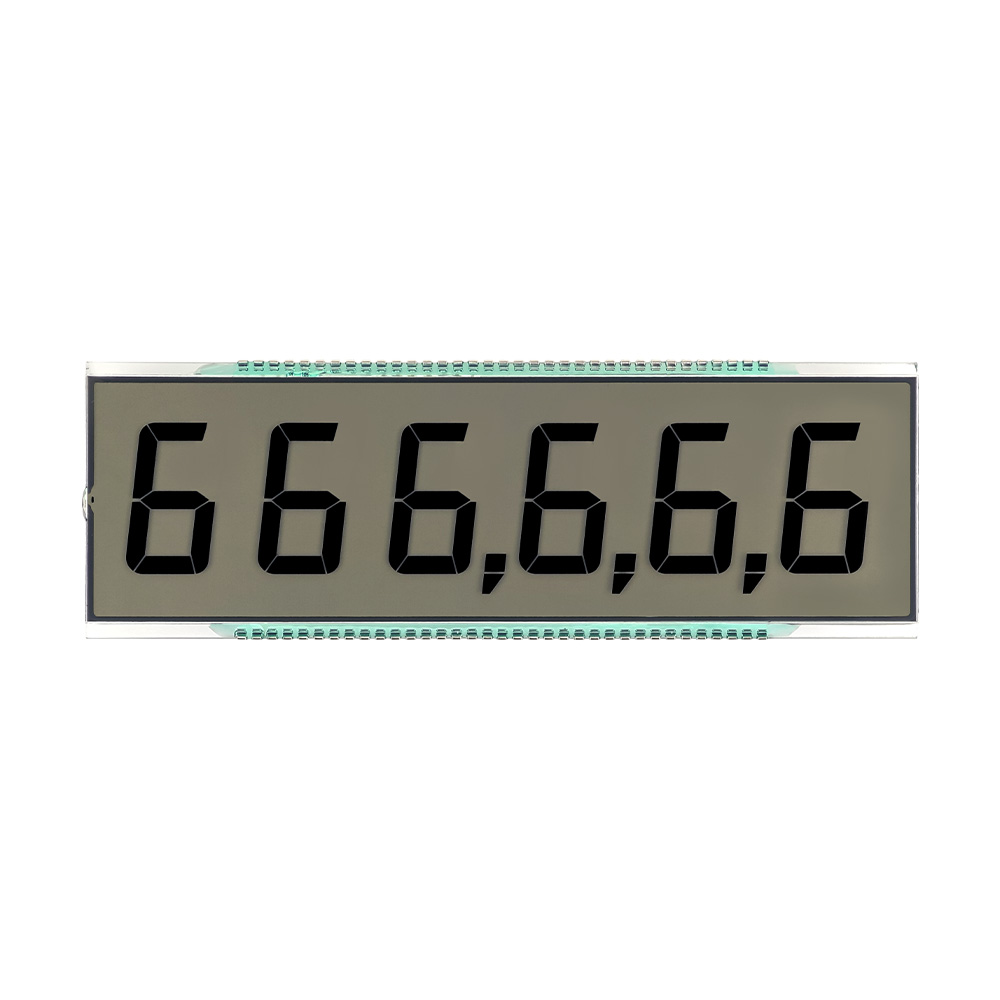

The Transparent LCD Segment Display SJXDGN033 is an advanced display solution designed to combine segmented LCD functionality with transparent visual characteristics. It enables information to be displayed while allowing background visibility, creating a unique integration of data presentation and environmental context. This makes it suitable for modern electronic systems that require both functional display output and enhanced visual design aesthetics. The module is engineered for stability, clarity, and innovative interface applications across multiple industries.
Parameters:
| Character Type | Customized |
| Model | SJXDGN033 |
| Model Size | 137.0×47.0×2.8mm |
| VA Size | 134.0×39.0mm |
|
Connector
|
Metal pins |
|
LCD Type
|
HTN Positive |
|
Drive Conditions
|
1/4D 1/3B
|
|
Working Temperature
|
-20°C TO +70'C
|
| Storage Temperature |
-30'C TO +80'C
|
|
Working Voltage
|
3.0 V |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- In stock, fast delivery
Key Specifications
This Transparent LCD Segment Display utilizes a specialized transparent LCD structure that allows segmented information to be viewed while maintaining partial transparency of the background. It provides clear and stable segment rendering for numeric and symbolic data, ensuring accurate visual communication. The display supports high contrast performance to maintain readability under various lighting conditions. It operates at low voltage, making it compatible with energy-efficient systems and embedded electronic devices. The module is designed for low power consumption, supporting long-term continuous use in both static and interactive applications. It maintains stable optical and electrical performance across a wide temperature range, ensuring reliability in different environmental conditions. Its compact and thin structure allows flexible integration into modern electronic products, including smart devices and customized display panels. The segmented layout ensures fast response and accurate real-time data representation.
Design Standards
The module is manufactured according to strict industrial display standards focused on transparency control, optical consistency, and long-term durability. High-quality liquid crystal materials are used to achieve balanced transparency and segment visibility without compromising display clarity. Circuit design is optimized to reduce electromagnetic interference and ensure stable signal transmission in continuous operation environments. The structure is engineered to maintain mechanical stability and resistance to environmental stress such as vibration, temperature variation, and humidity exposure. Each unit undergoes rigorous testing to verify transparency performance, segment accuracy, and electrical reliability under extended usage conditions. Low power design principles are applied to enhance energy efficiency and operational lifespan.
Applications
The Transparent LCD Segment Display is widely used in smart retail systems, automotive dashboards, industrial control interfaces, medical equipment, and consumer electronic devices. It is also suitable for interactive advertising displays, smart home systems, and embedded transparent visualization panels. Its combination of transparency, stability, and low power operation makes it an ideal solution for next-generation display applications requiring both functional data output and enhanced visual integration.
Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
