Basic Information

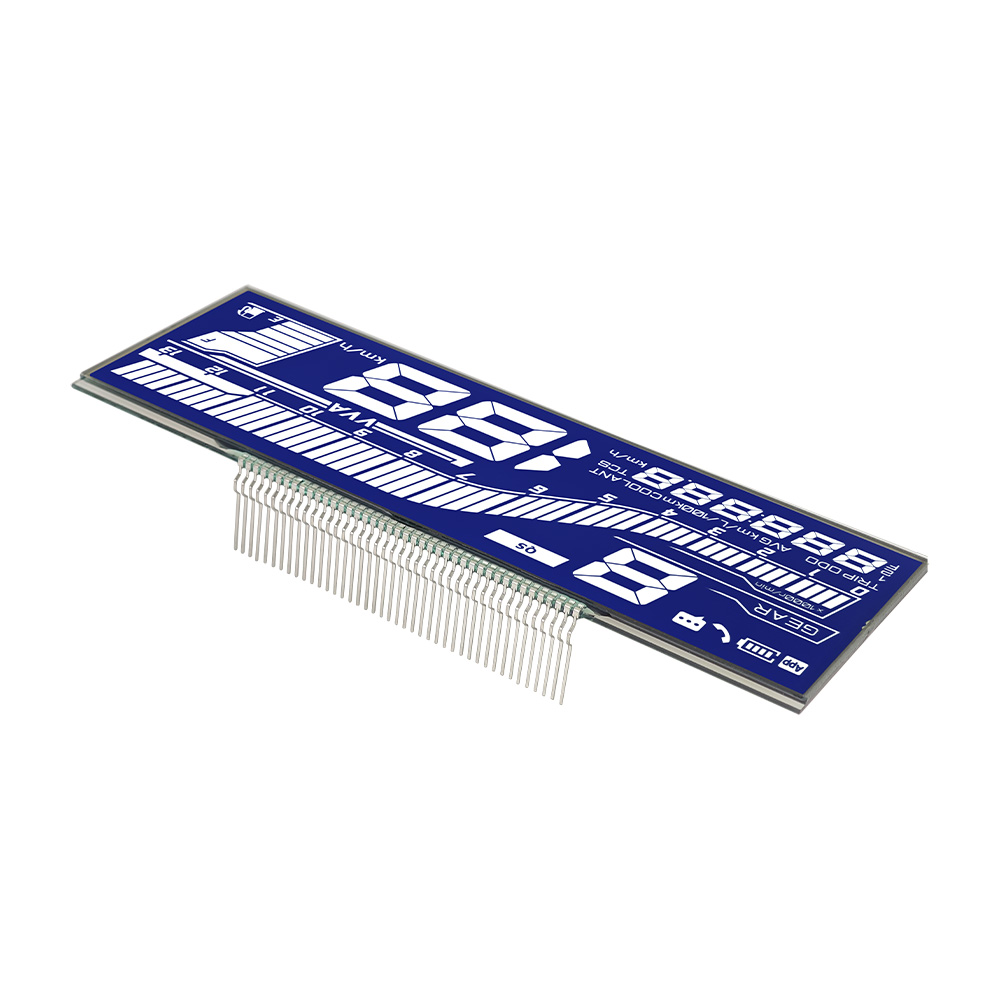

The Anti Glare Segment Screen SJXDGW043 is a specialized segmented display solution designed to deliver clear and stable visual output in high-brightness environments. It is engineered with an anti-glare surface treatment that significantly reduces reflections, ensuring improved readability under direct sunlight or strong ambient lighting. This makes it ideal for outdoor and industrial applications where display clarity is critical. The module combines low power consumption with reliable segmented display performance, making it suitable for a wide range of embedded and electronic systems.
Parameters:
| Character Type | Customized |
| Model | SJXDGW043 |
| Model Size | 157.8×56.0×2.8 mm |
| VA Size | 154.8×50.5 mm |
|
Connector
|
Metal pins |
|
LCD Type
|
HTN Negative |
|
Drive Conditions
|
1/4 D 1/3 B
|
|
Working Temperature
|
-30C TO +80°C
|
| Storage Temperature |
-40°C TO +90°C
|
|
Working Voltage
|
4.5V |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- In stock, fast delivery
Key Specifications
This Anti Glare Segment Screen features a high-contrast segmented LCD structure enhanced with anti-reflective surface technology. It provides improved visibility by minimizing light interference and glare, ensuring that numeric and icon-based information remains legible in bright environments. The display operates at low voltage, making it compatible with battery-powered and energy-efficient devices. It is designed to maintain stable electrical performance with minimal power consumption, supporting long-term operational use. The module functions reliably across a wide temperature range, ensuring consistent performance in both indoor and outdoor conditions. Its compact design allows easy integration into space-limited electronic products and instrumentation systems. The segmented layout ensures fast response and stable visual updates for real-time data presentation.
Design Standards
The module is manufactured according to strict industrial-grade display and optical performance standards to ensure durability, stability, and long-term reliability. The anti-glare treatment is engineered to optimize light diffusion and reduce surface reflection without affecting display clarity. High-quality LCD materials are used to enhance resistance to thermal stress, vibration, and environmental aging. Circuit design is optimized to reduce electromagnetic interference and ensure stable signal transmission during continuous operation. The product follows low power engineering principles to improve energy efficiency and extend device battery life. Each unit undergoes rigorous testing to ensure consistent performance under long-term use and varying environmental conditions, including high-light exposure and temperature fluctuations.
Applications
The Anti Glare Segment Screen is widely used in outdoor industrial equipment, transportation systems, smart meters, medical instruments, and embedded control devices. It is also suitable for portable devices and battery-powered systems requiring clear visibility in bright environments. Its combination of anti-reflection performance, reliability, and low power consumption makes it an ideal solution for modern electronic systems requiring stable segmented display output under challenging lighting conditions.

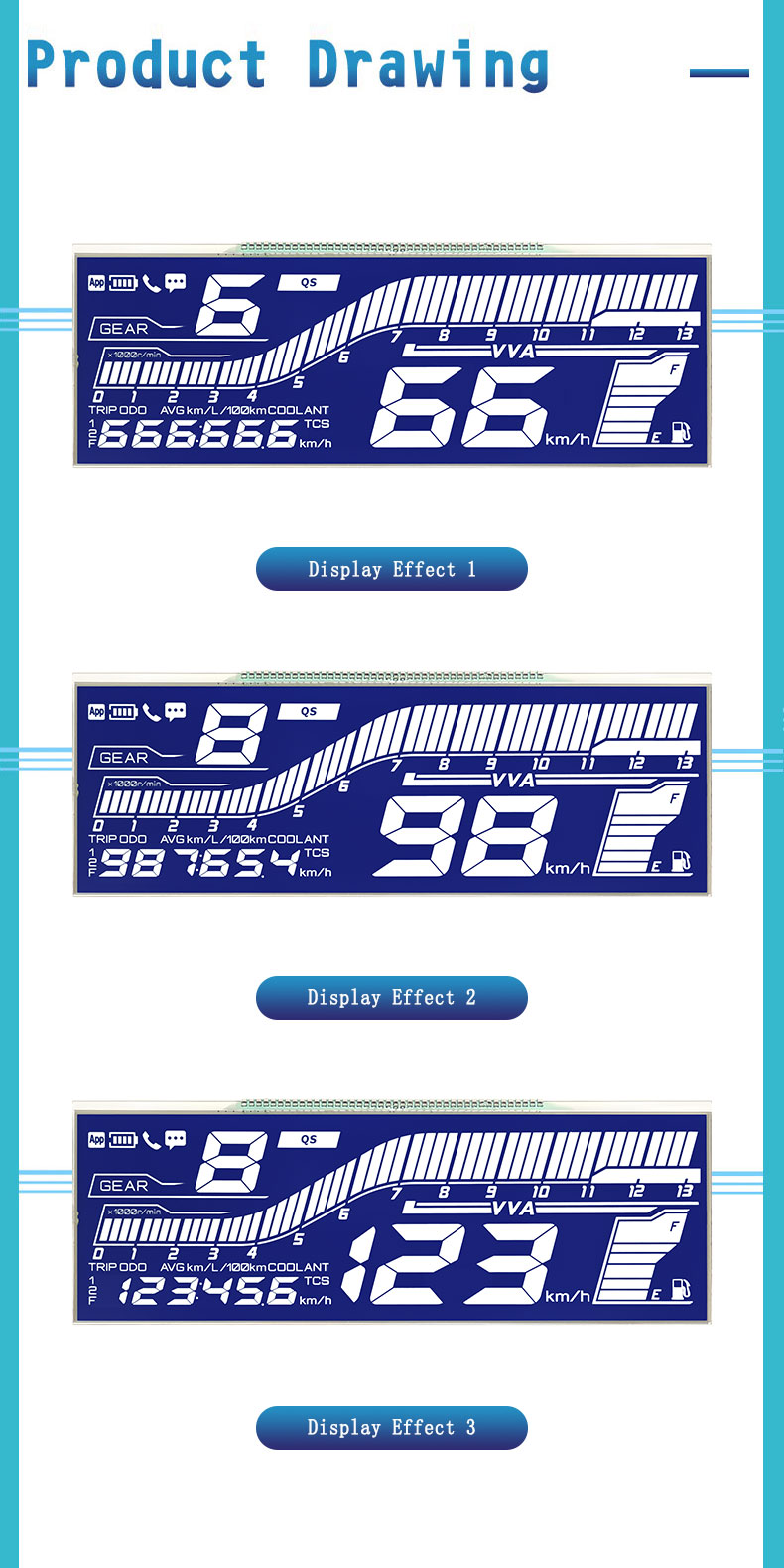

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
