Basic Information

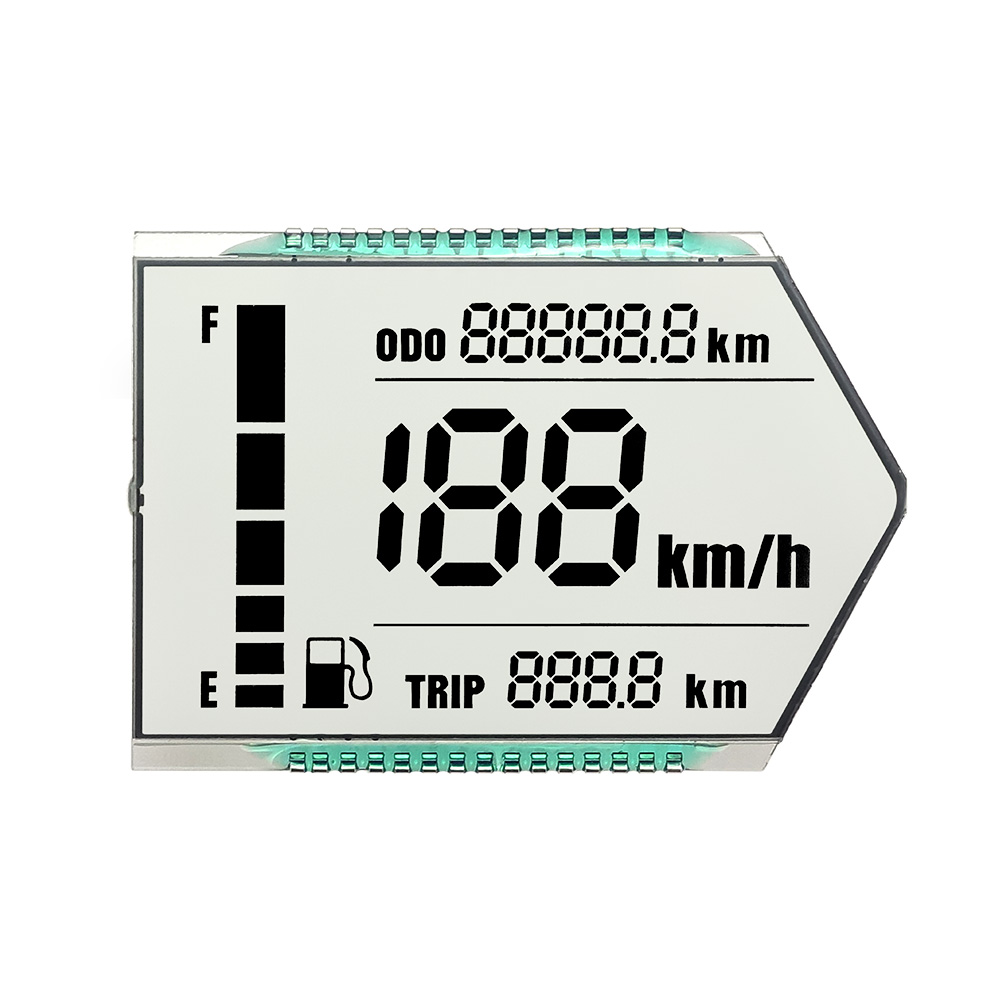

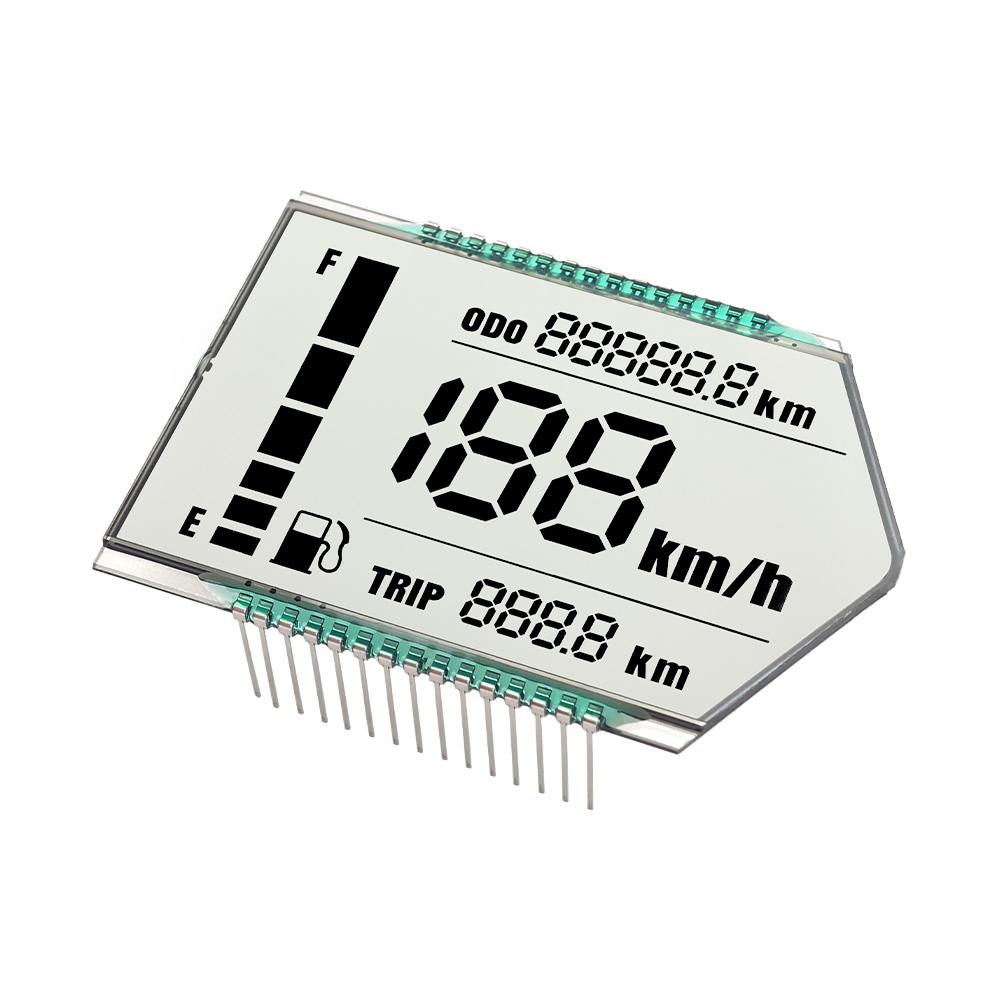

The 7 Segment LCD Display Indi SJXDGW01567163 is a specialized segmented display module designed for clear numeric visualization in electronic instruments and embedded systems. It is engineered to provide stable and easy-to-read digit output using a classic 7-segment LCD structure. This module is suitable for devices that require reliable numerical indication in compact and energy-efficient designs, making it ideal for industrial, commercial, and portable applications.
Parameters:
| Character Type | Customized |
| Model | SJXDGW015 |
| Model Size | 72.0×50.5×2.8mm |
| VA Size | 69.0×42.5mm |
|
Connector
|
Metal pins |
|
LCD Type
|
HTN Positive |
|
Drive Conditions
|
1/4D 1/3B
|
|
Working Temperature
|
-30°C TO +80'C
|
| Storage Temperature |
-40'C TO +90'C
|
|
Working Voltage
|
5.0 V |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- In stock, fast delivery
Key Specifications
This 7 Segment LCD Display Indi utilizes a refined segmented LCD architecture optimized for numeric display applications. It delivers sharp and well-defined digit rendering, ensuring accurate representation of measurement values, counters, and system data. The display provides strong contrast performance, allowing clear readability under standard indoor lighting conditions. It operates at low voltage, making it compatible with battery-powered systems and energy-efficient electronic designs. The module is engineered for ultra-low power consumption, supporting continuous long-term operation without significant energy usage. It maintains stable performance across a wide temperature range, ensuring reliable functionality in different environmental conditions. Its compact design allows easy integration into handheld devices, industrial meters, and embedded control systems. The fast response of segment switching ensures real-time numeric updates without delay or visual distortion.
Design Standards
The module is manufactured according to strict industrial LCD display standards to ensure durability, consistency, and long-term operational reliability. High-quality liquid crystal materials are used to maintain uniform segment clarity and optical stability throughout the product lifecycle. Circuit design is optimized to reduce electromagnetic interference and ensure stable signal transmission in electronic environments. The structure is reinforced to withstand mechanical stress, temperature variation, and continuous operational cycles. Each unit undergoes comprehensive inspection to verify segment accuracy, brightness uniformity, and electrical stability. Low power engineering principles are applied to enhance energy efficiency and extend device lifespan.
Applications
The 7 Segment LCD Display Indi is widely used in digital meters, handheld measuring instruments, industrial control devices, consumer electronics, and embedded systems. It is also suitable for utility monitoring equipment, portable diagnostic tools, and compact measurement interfaces requiring simple and reliable numeric display output. Its combination of clarity, stability, and low power consumption makes it an effective solution for modern electronic applications requiring precise digital indication.
Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
