Basic Information
| Character Type | 20×04 |
| Model | SJXD2004B |
| Model Size | 146.0×62.5×14.0 mm |
| VA Size | 123.5×43.0 mm |
|
Drive Voltage
|
5.0V/3.3V
|
|
Drive IC
|
ST7066/AIP31066
|
|
Backlight
|
white LED backlight
|
|
LCD Type
|
FSTN positive
|
|

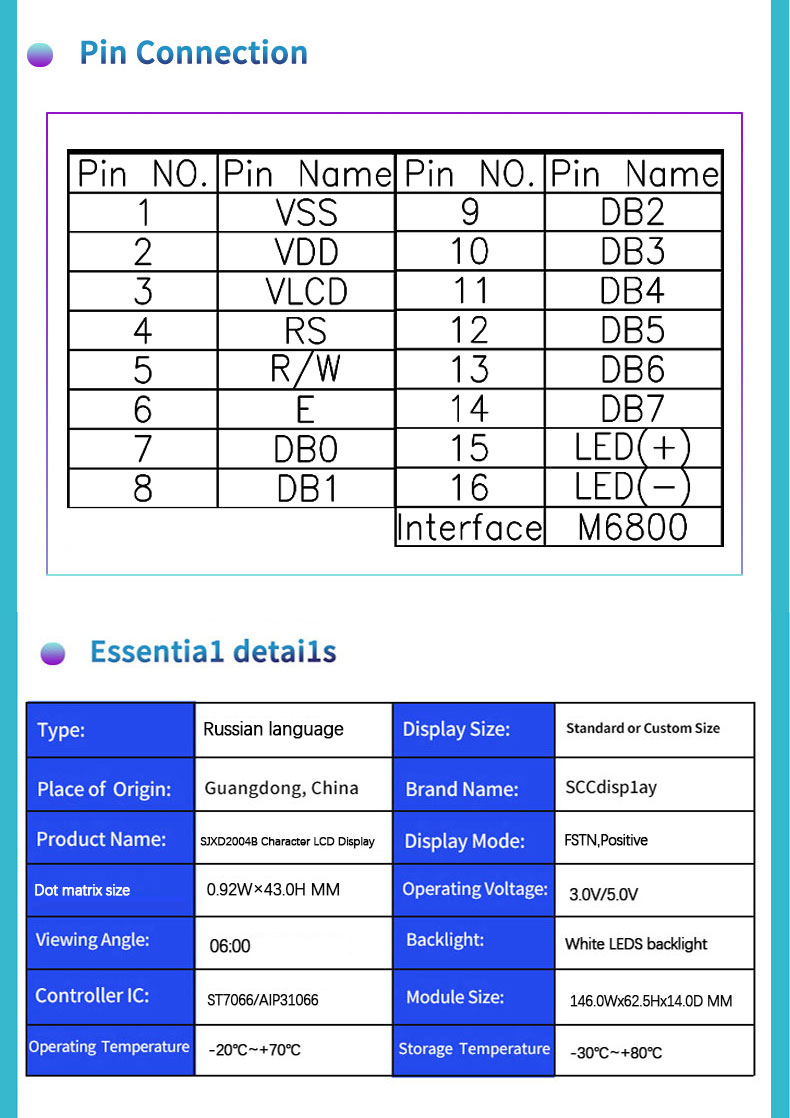

Interface
|
16 single interface
|
| Working Temperature |
-20°C - +70°C
|
|
Storage Temperature
|
-30°C - +80°C |

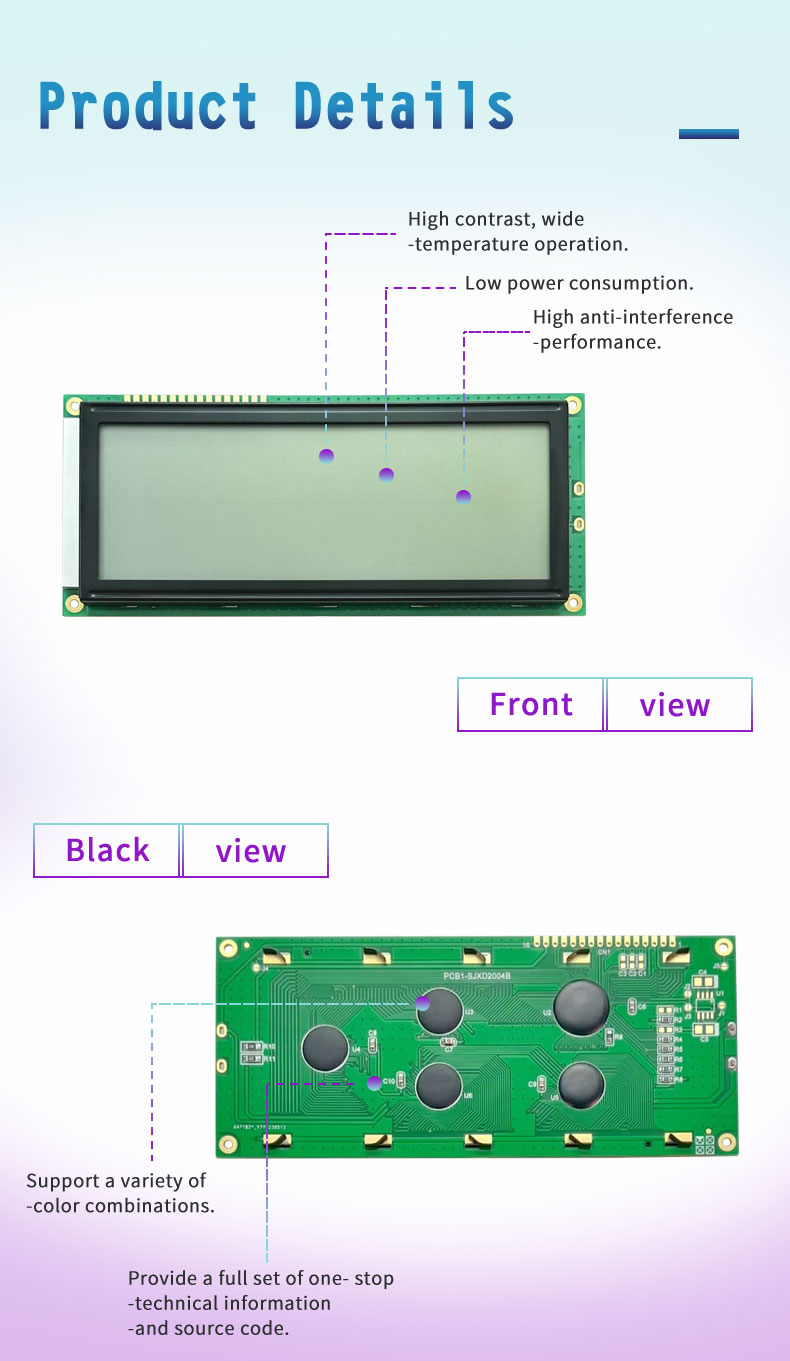

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective

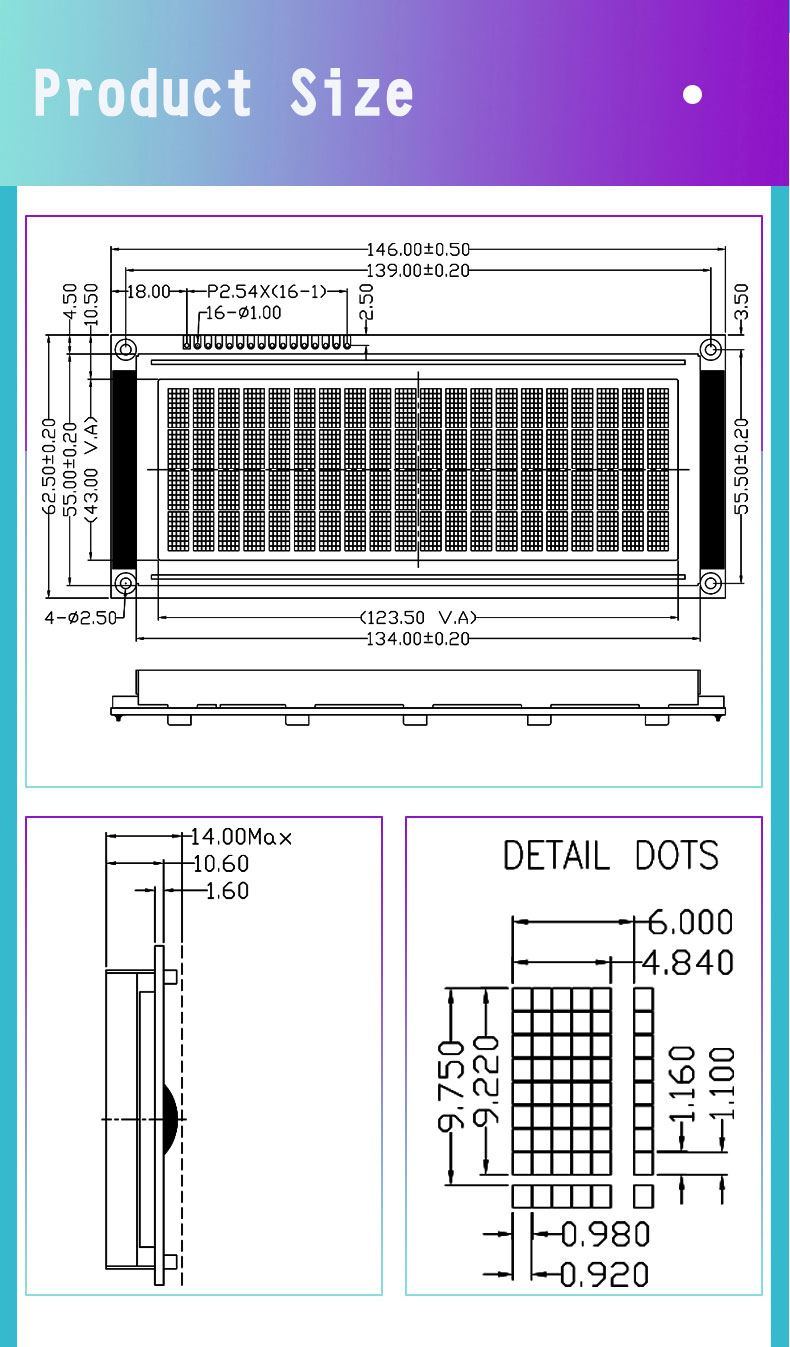

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: When can we start mass customization?
A: Once the samples sent out have been debugged and there are no issues, you can place orders in bulk.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
