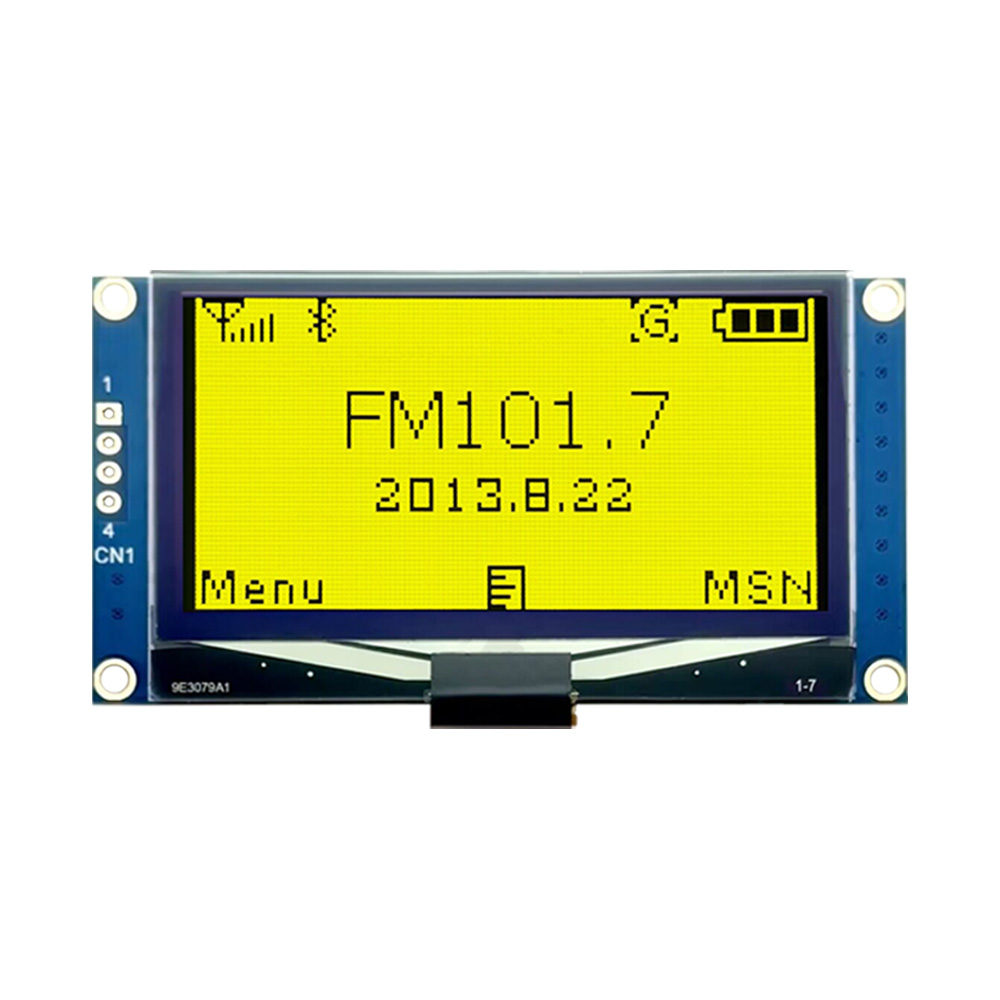

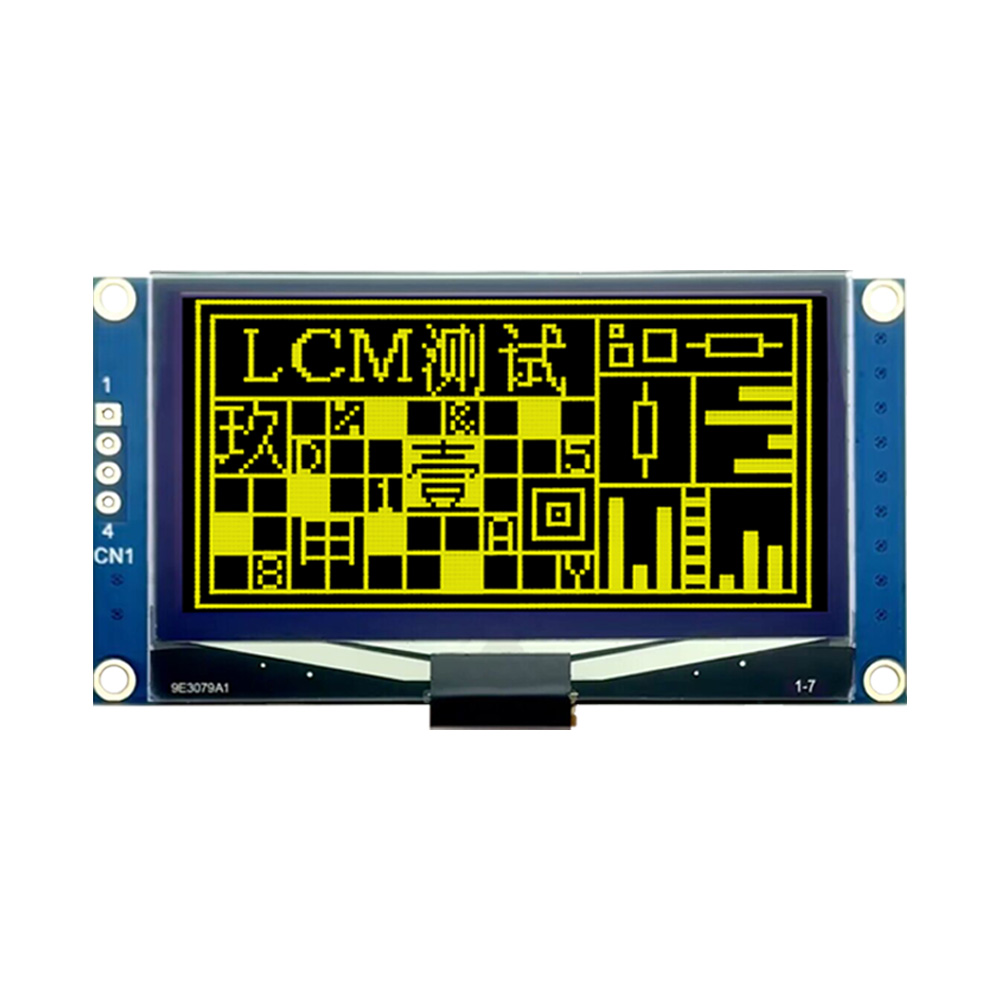

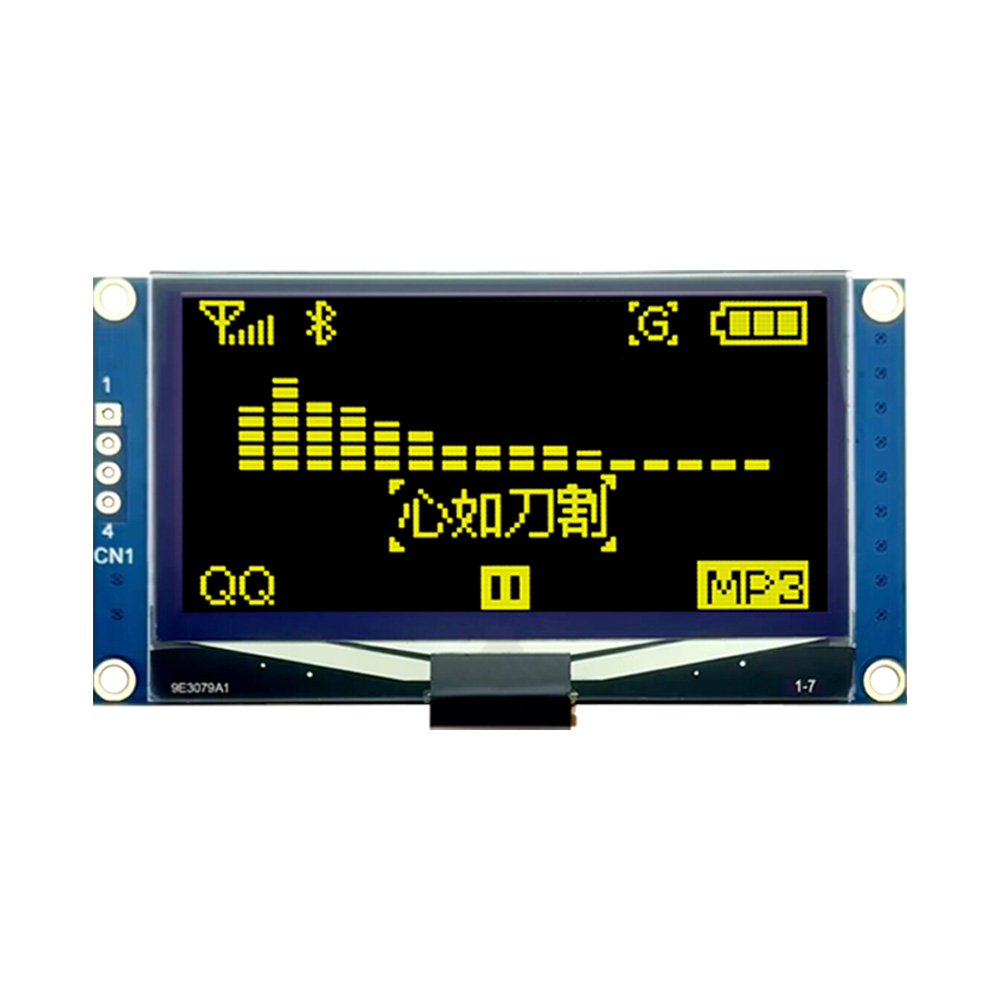

Basic Information
The 2.42 OLED Display SSD1309 SJXD12864-16A is a medium-sized self-emissive graphical display module designed for embedded systems requiring high clarity, stable performance, and efficient power usage. Based on SSD1309 driver technology, it provides reliable control and smooth image rendering for advanced interface applications. The OLED structure ensures sharp visual output without the need for backlighting, making it suitable for modern electronic devices that demand energy efficiency and compact integration.

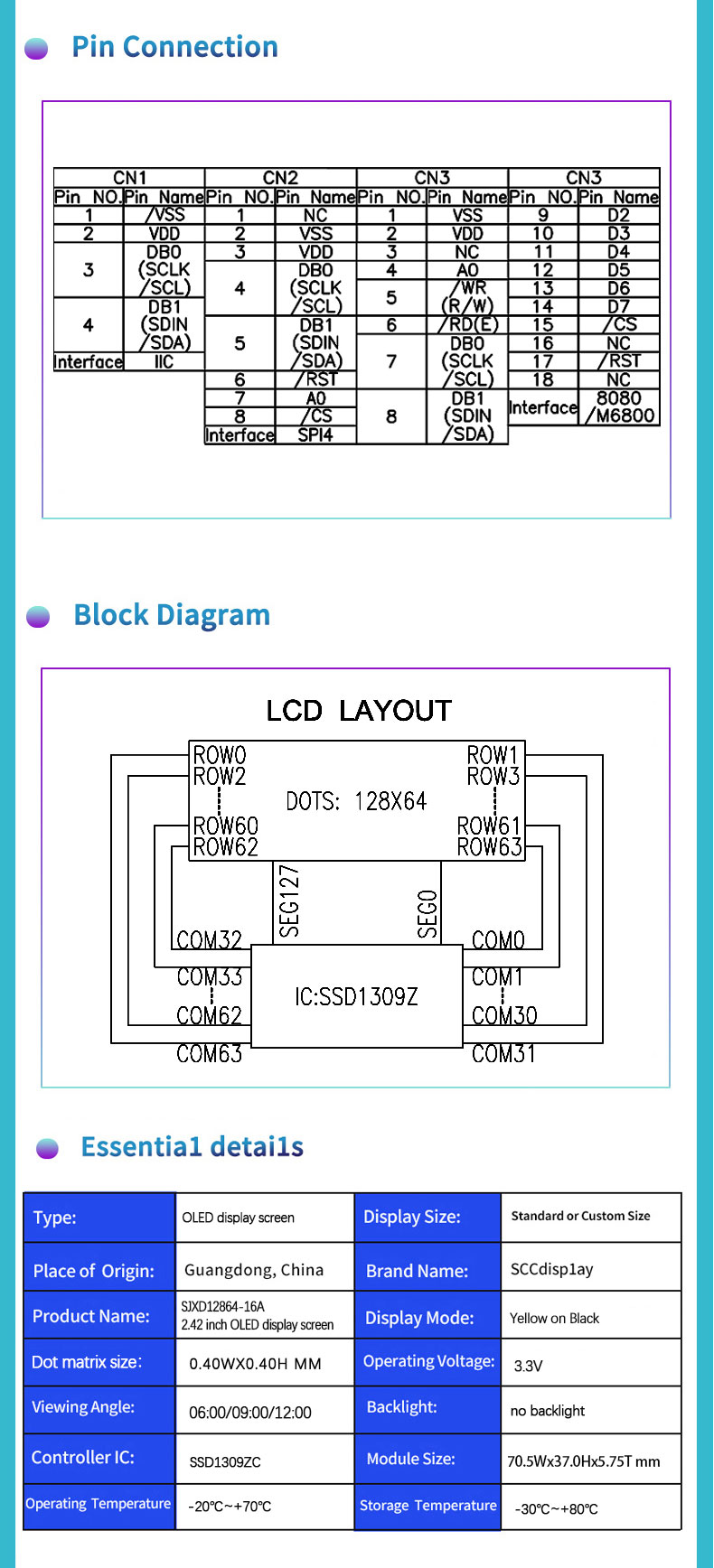

Parameters:
| Type | 2.42 inch OLED |
| Model | SJXD12864-16A |
| Model Size | 70.5×37.0×5.75 mm |
| VA Size | 57.01×29.5mm |
| Working Temperature |
-20°C - +70°C
|
|
Storage Temperature
|
-30°C - +80°C |
|
Drive IC
|
SSD1309Z |
|
Drive Voltage
|
3.3V |
|
Backlight
|
No backlight |
|
Interface
|
4single interfaces / IIC interfaces |

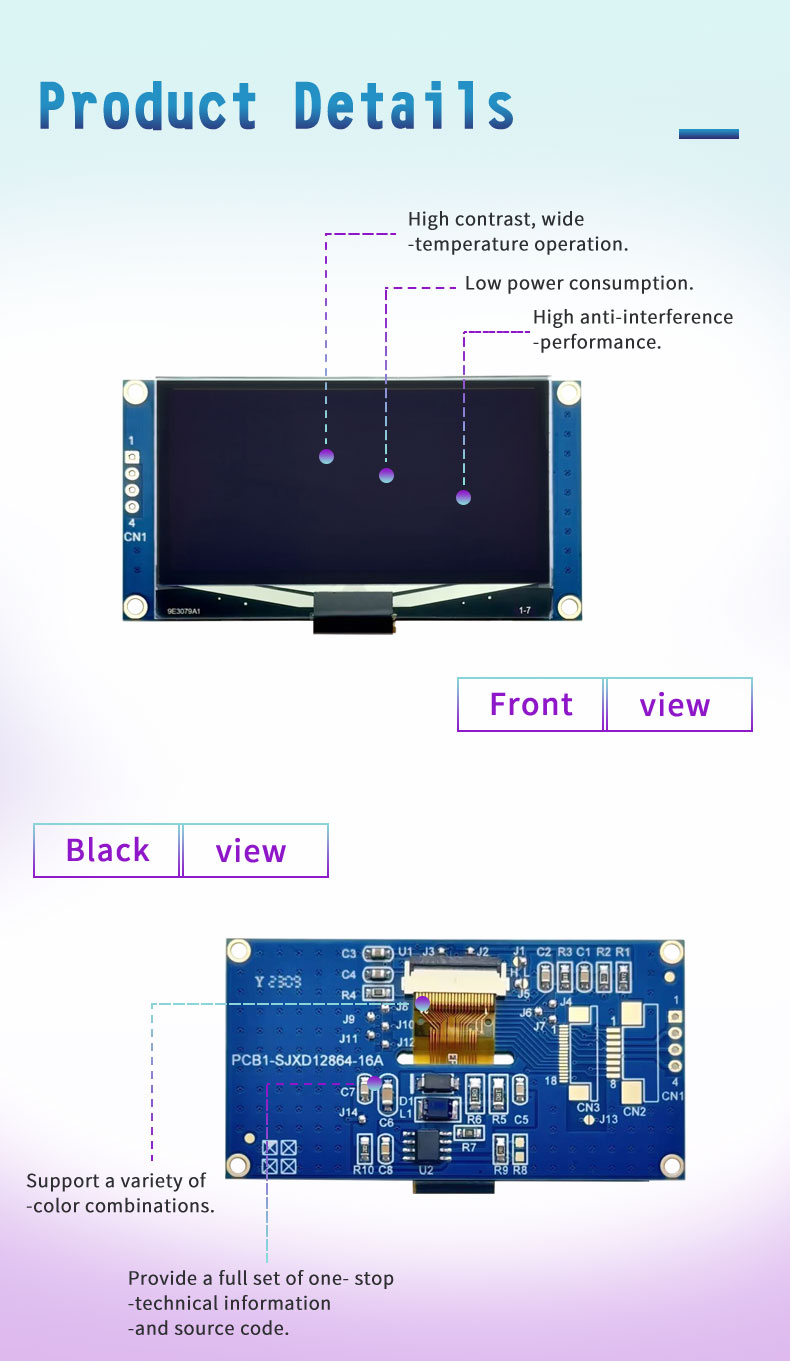

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
This 2.42 OLED Display SSD1309 features a 128×64 pixel resolution, enabling clear display of text, icons, and graphical elements with high contrast and precise definition. The SSD1309 driver IC ensures stable communication and efficient screen control, supporting smooth data refresh and consistent image rendering. Each pixel is self-luminous, providing strong contrast even in low-light environments while reducing overall power consumption. The module operates at low voltage and is optimized for embedded systems and portable electronics. It supports fast refresh response, allowing real-time updates without lag or image distortion. The 2.42-inch screen size offers a larger viewing area compared to smaller OLED modules, improving readability in control panels and instrumentation devices. Stable performance across a wide temperature range ensures reliable operation in industrial and consumer environments.
Design Standards
The module is manufactured under strict OLED and SSD1309 driver integration standards to ensure long-term reliability and consistent performance. High-quality organic emissive materials are used to maintain uniform brightness and stable pixel behavior. Circuit design is optimized to ensure efficient SSD1309 communication and reduce electromagnetic interference. The structural design supports stable mechanical integration while maintaining a compact profile. Each unit undergoes comprehensive inspection for pixel accuracy, brightness consistency, and electrical stability. Energy-efficient engineering principles are applied to extend operational lifespan and reduce power consumption.
Applications
The 2.42 OLED Display SSD1309 is widely used in industrial control systems, smart devices, medical instruments, embedded controllers, and portable electronics. It is also suitable for data visualization modules, instrumentation panels, and human-machine interfaces. Its combination of SSD1309 driver stability, OLED self-emissive technology, and medium display size makes it an effective solution for embedded applications requiring clear, reliable, and efficient visual output.

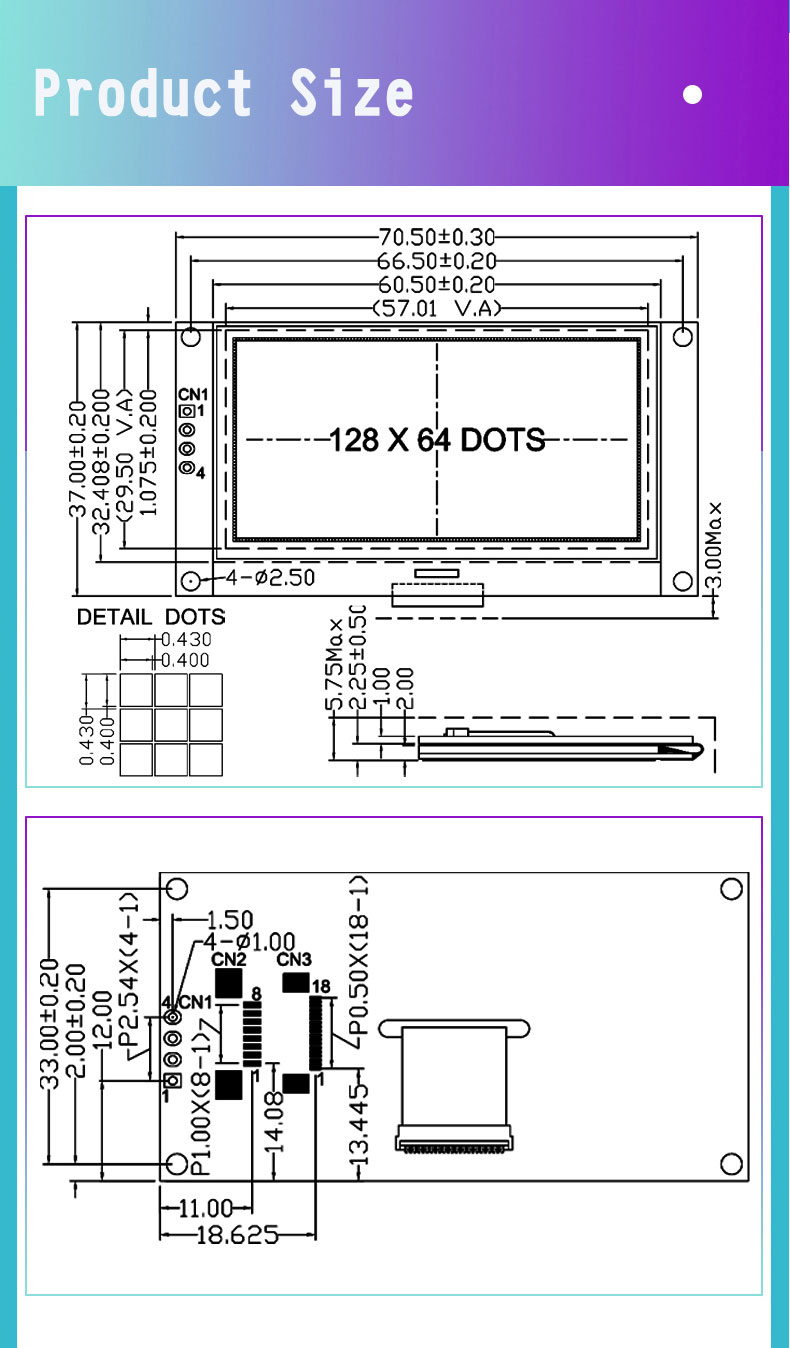

Product Size
