Basic Information

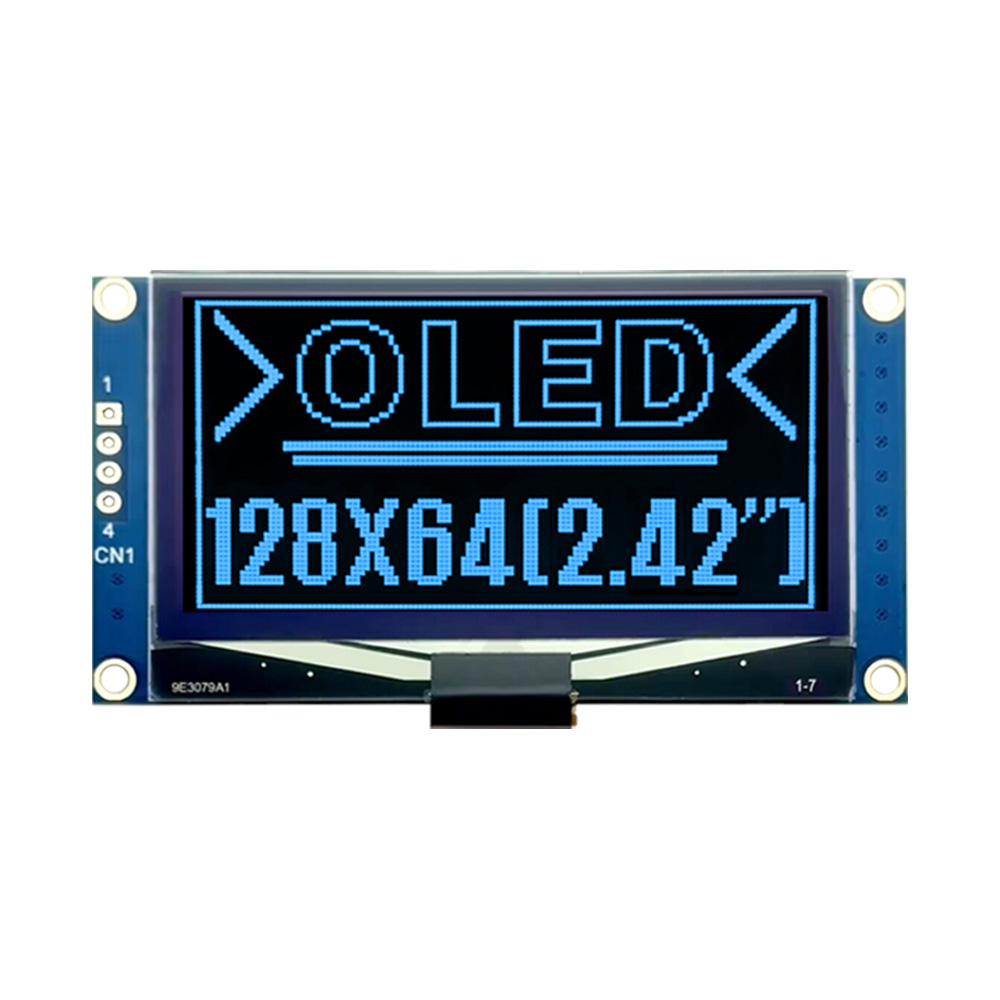

The 128x64 OLED LCD Display SJXD12864-16A is a high-performance graphical display module designed for modern embedded systems and industrial electronic applications. Combining OLED self-emissive technology with LCD-style structural reliability, this module delivers excellent contrast, sharp image quality, and efficient power usage. Its compact design makes it suitable for space-limited devices, while its stable performance ensures long-term operation in demanding environments. The display is ideal for developers seeking a clear and energy-efficient visual interface solution.
Parameters:
| Type | 2.42 inch OLED |
| Model | SJXD12864-16A |
| Model Size | 70.5×37.0×5.75 mm |
| VA Size | 57.01×29.5mm |
| Working Temperature |
-20°C - +70°C
|
|
Storage Temperature
|
-30°C - +80°C |
|
Drive IC
|
SSD1309Z |
|
Drive Voltage
|
3.3V |
|
Backlight
|
No backlight |
|
Interface
|
4single interfaces / IIC interfaces |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
The 128x64 OLED LCD Display features a 128×64 pixel resolution, providing precise control over each pixel for rendering text, icons, and detailed graphics. It offers high contrast ratios with deep black backgrounds and bright foreground elements, ensuring excellent readability in both low-light and high-ambient-light conditions. The module operates at low voltage and consumes minimal power, making it ideal for portable and battery-powered applications. With fast response time and wide viewing angles, the display ensures smooth and consistent visual performance. The integrated driver simplifies system design and supports standard microcontroller interfaces for easy integration.
Technical Design
This display module is engineered for reliability and ease of integration. Its hybrid OLED LCD structure enhances both optical performance and mechanical durability. The module supports efficient communication protocols, allowing seamless connection with embedded systems such as Arduino, STM32, and other microcontrollers. Its compact PCB layout reduces space requirements and simplifies installation in custom electronic designs. The robust construction ensures stable operation even under continuous usage, making it suitable for industrial-grade applications.
Applications
The 128x64 OLED LCD Display is widely used in industrial control panels, medical instruments, handheld devices, smart home systems, automotive dashboards, and IoT products. It is particularly suitable for applications requiring high contrast display, low power consumption, and compact form factor. Engineers and designers use it to build intuitive user interfaces and real-time data visualization systems.
Product Size
FAQ
Q: Can the outer packaging be customized？
A: Can be customized according to needs.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
