Basic Information

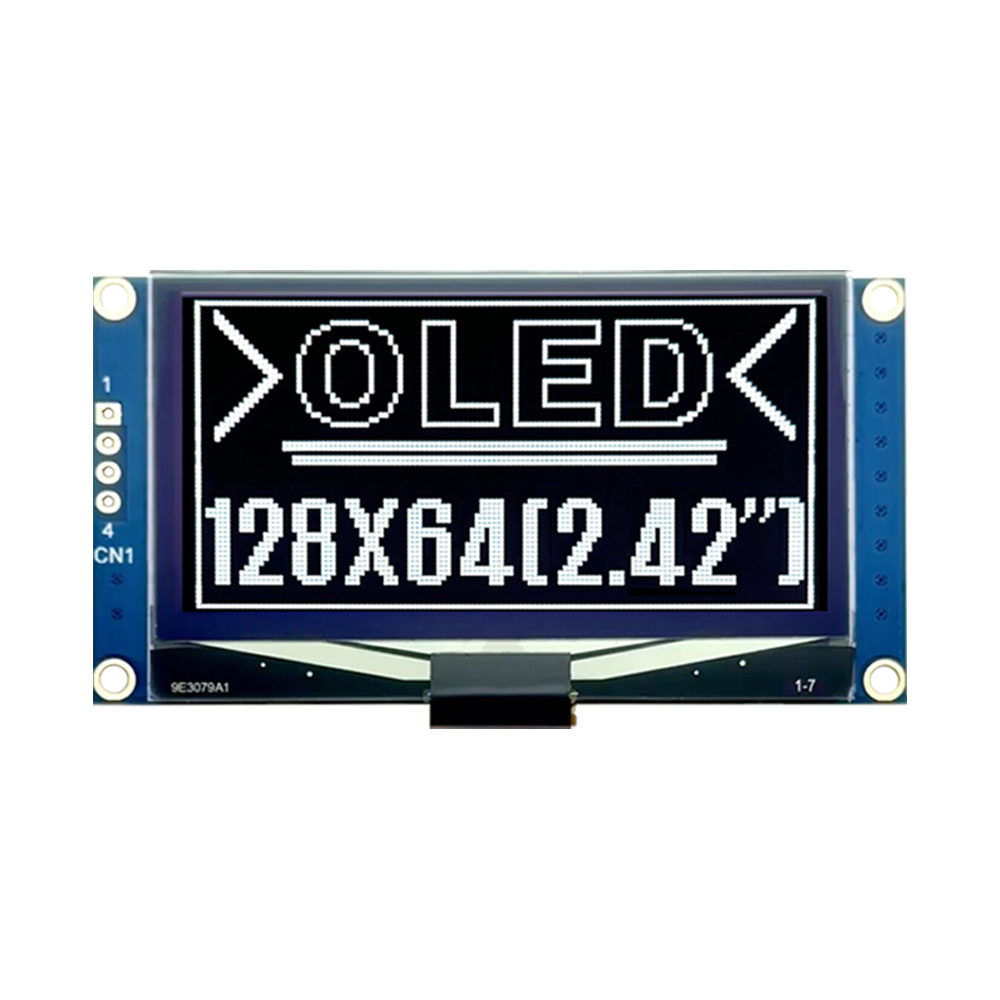

The 2.42 OLED Display SJXD12864-16A is a medium-sized self-emissive display module designed for embedded systems that require clear visual output, stable performance, and efficient power usage. It adopts OLED technology combined with SSD driver architecture to deliver sharp, high-contrast graphics without the need for a backlight. This makes it suitable for modern electronic devices where display clarity and energy efficiency are both essential.
Parameters:
| Type | 2.42 inch OLED |
| Model | SJXD12864-16A |
| Model Size | 70.5×37.0×5.75 mm |
| VA Size | 57.01×29.5mm |
| Working Temperature |
-20°C - +70°C
|
|
Storage Temperature
|
-30°C - +80°C |
|
Drive IC
|
SSD1309Z |
|
Drive Voltage
|
3.3V |
|
Backlight
|
No backlight |
|
Interface
|
4 single interfaces / IIC interfaces |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
This 2.42 OLED Display features a 128×64 pixel resolution, providing sufficient space for text, icons, and graphical interface elements. The OLED structure ensures that each pixel emits its own light, resulting in deep black background levels and bright, clear foreground content. It supports stable display performance with fast refresh capability, enabling smooth updates of dynamic information without lag or flicker. The module operates at low voltage and is optimized for embedded systems and portable devices with strict power requirements. The 2.42-inch screen size offers improved readability compared to smaller OLED modules, making it suitable for interface applications that require clearer visualization. It maintains consistent optical performance across a wide temperature range, ensuring reliable operation in different environmental conditions. The display also provides uniform brightness distribution and stable pixel definition for accurate information presentation.
Design Standards
The module is manufactured under strict OLED engineering standards to ensure durability, consistency, and long-term operational stability. High-quality organic emissive materials are used to maintain uniform light output and stable pixel behavior. Circuit design is optimized to ensure efficient signal transmission and reduce electromagnetic interference in embedded systems. The structural design supports compact integration while maintaining mechanical reliability. Each unit undergoes comprehensive inspection for pixel accuracy, brightness uniformity, and electrical performance. Energy-efficient design principles are applied to extend product lifespan and reduce overall power consumption.
Applications
The 2.42 OLED Display is widely used in industrial automation systems, smart devices, medical instruments, embedded controllers, and portable electronics. It is also suitable for instrumentation panels, data visualization modules, and custom user interface solutions. Its combination of medium size, OLED self-emissive technology, and stable graphical performance makes it an effective solution for embedded display applications requiring clear, efficient, and reliable visual output.

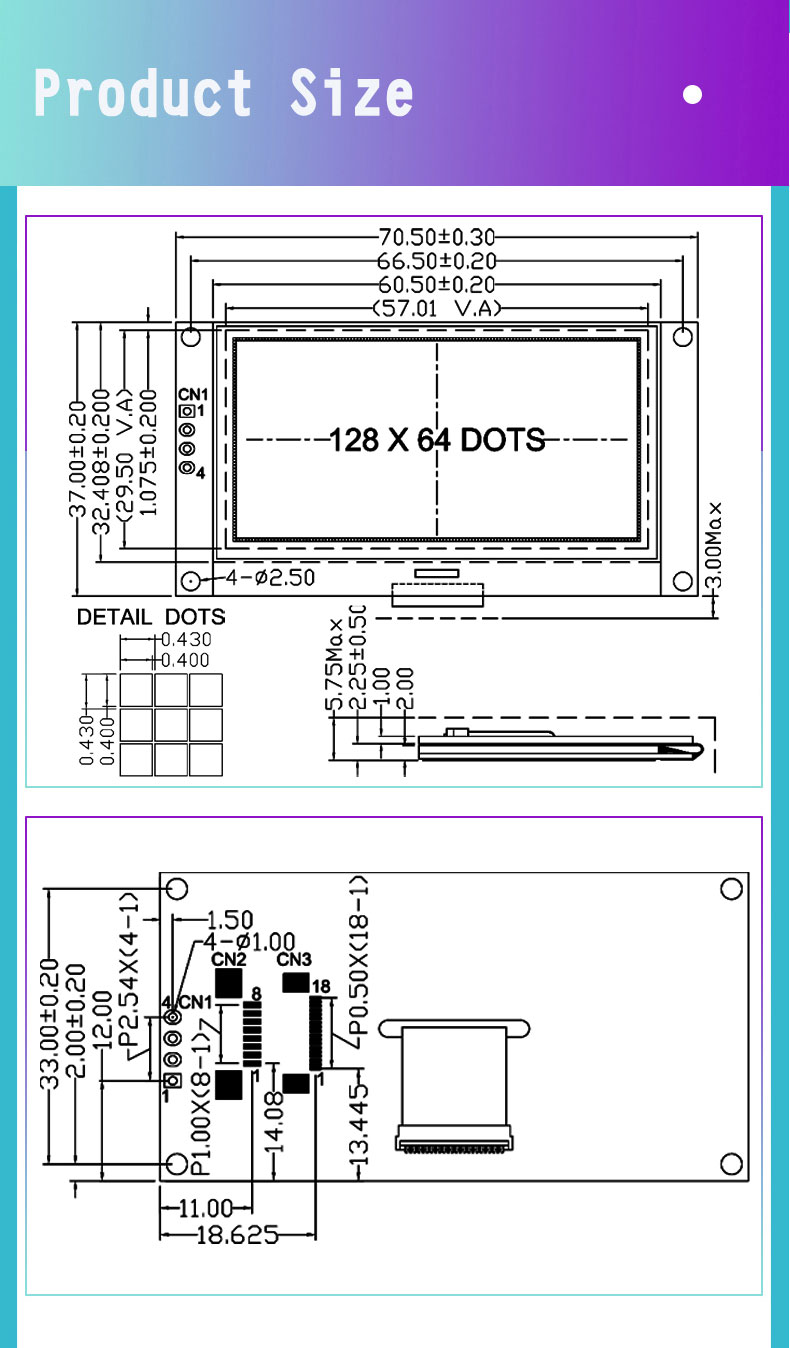

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
