Basic Information

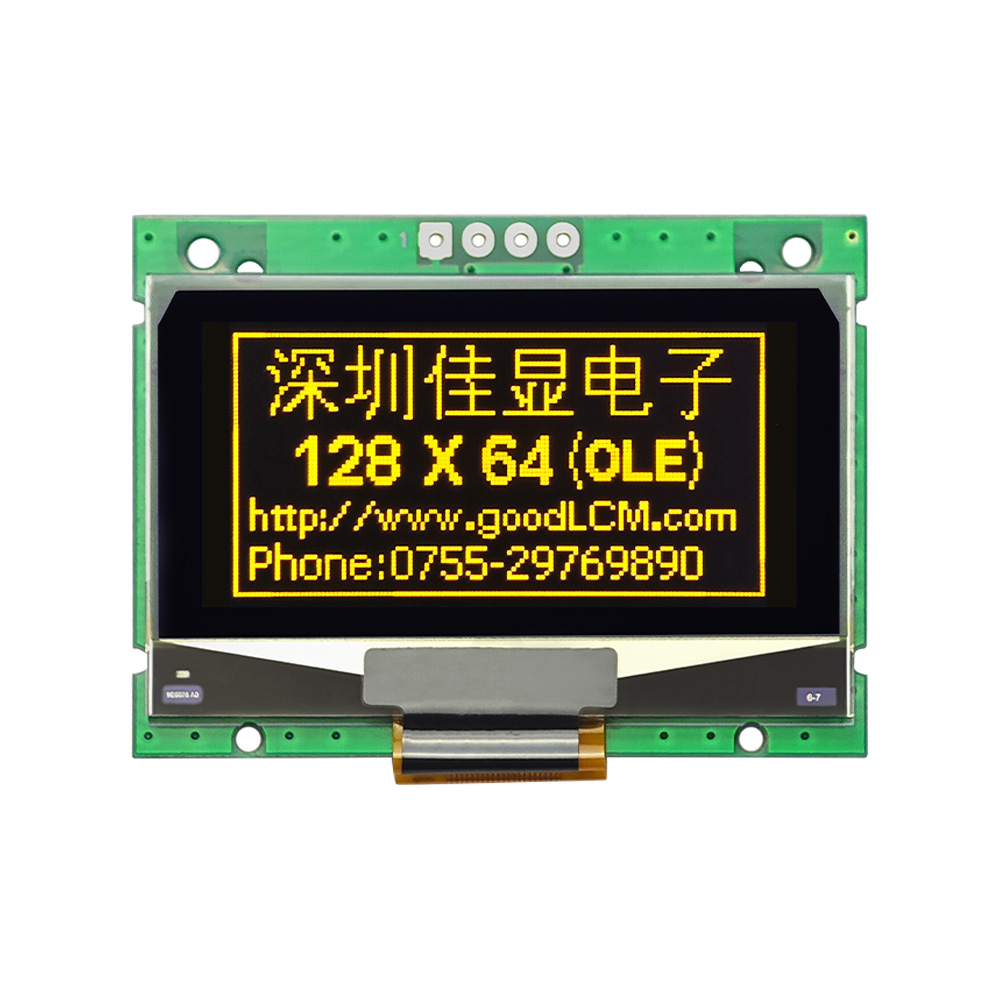

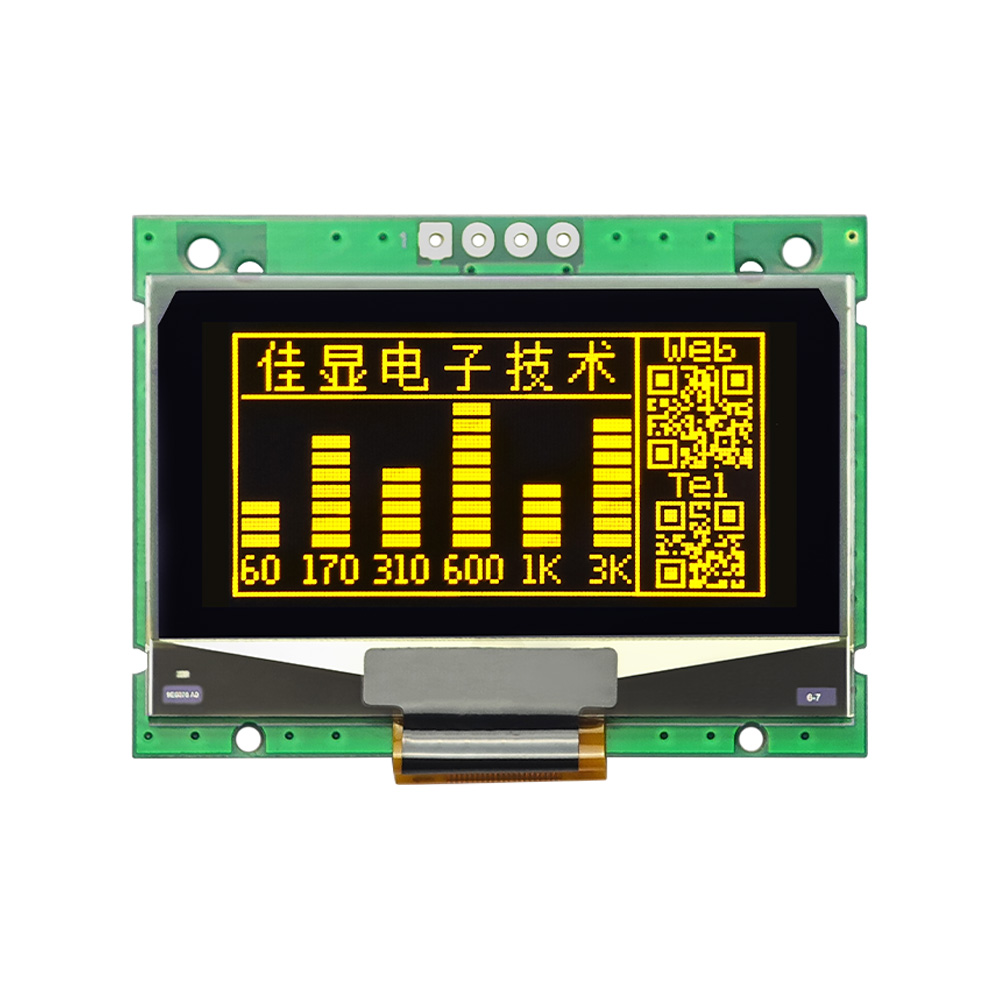

The Small OLED Display SJXD12864-15A is a compact self-emissive screen module designed for embedded electronic systems that require high contrast output, low power consumption, and efficient space utilization. It is built using OLED technology that allows each pixel to emit light independently, eliminating the need for a backlight and delivering sharp visual performance in a small form factor. This module is suitable for modern portable and embedded devices where clear information display and energy efficiency are critical.
Parameters:
| Type | 1.54 inch OLED |
| Model | SJXD12864-15A |
| Model Size | 44.0×33.5×6.95 mm |
| VA Size | 37.04×19.51mm |
| Working Temperature |
-20°C - +70°C
|
|
Storage Temperature
|
-30°C - +80°C |
|
Drive IC
|
SSD1309Z |
|
Drive Voltage
|
3.3V |
|
Backlight
|
No backlight |
|
Interface
|
4single interfaces / IIC interfaces |

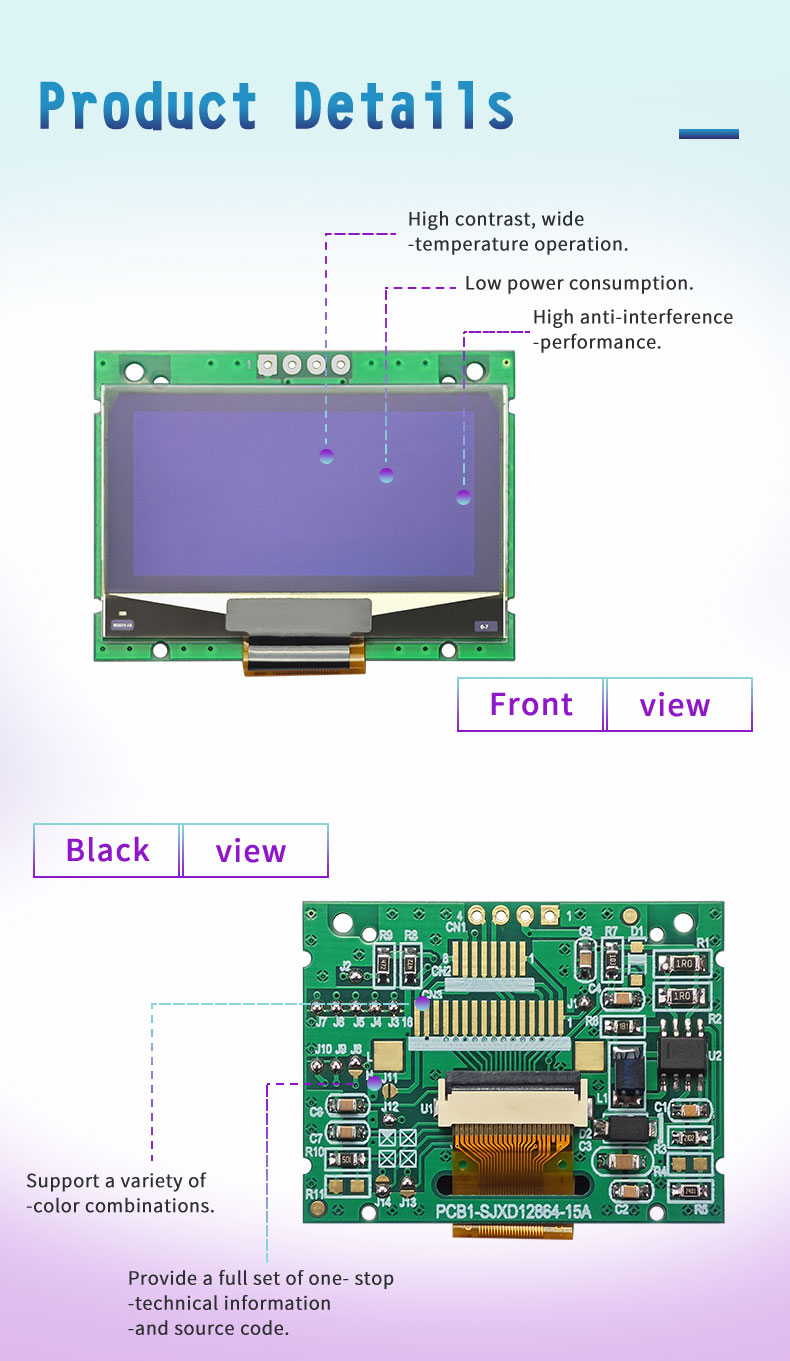

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
This Small OLED Display features a 128×64 pixel resolution, enabling clear presentation of text, symbols, and basic graphical elements. Its self-luminous OLED structure provides excellent contrast with deep black backgrounds and bright pixel output, ensuring strong readability in both low-light and standard environments. The module operates at low voltage and is optimized for energy-efficient embedded systems and battery-powered devices. It supports fast refresh response, allowing smooth updates of displayed content without delay or visual artifacts. The compact size makes it suitable for space-constrained applications such as handheld instruments, wearable electronics, and miniature control panels. The display maintains stable optical performance across a wide temperature range, ensuring reliable operation in different environmental conditions. Consistent brightness and uniform pixel behavior improve overall display quality and usability.
Design Standards
The module is manufactured under strict OLED engineering standards to ensure durability, consistency, and long-term operational reliability. High-quality organic emissive materials are used to achieve stable light output and uniform pixel performance. Circuit design is optimized to ensure efficient signal transmission and reduce electromagnetic interference in embedded systems. The compact structural design supports easy integration while maintaining mechanical strength. Each unit undergoes full inspection for pixel accuracy, brightness consistency, and electrical stability. Energy-efficient design principles are applied to extend operational lifespan and reduce power consumption. Quality control ensures consistent performance across production batches.
Applications
The Small OLED Display is widely used in smart wearable devices, medical instruments, industrial controllers, embedded systems, and portable electronic products. It is also suitable for data display modules, instrumentation panels, and custom interface designs. Its combination of compact structure, OLED self-emissive technology, and stable graphical performance makes it an effective solution for modern embedded display applications requiring clear, efficient, and reliable visual output.

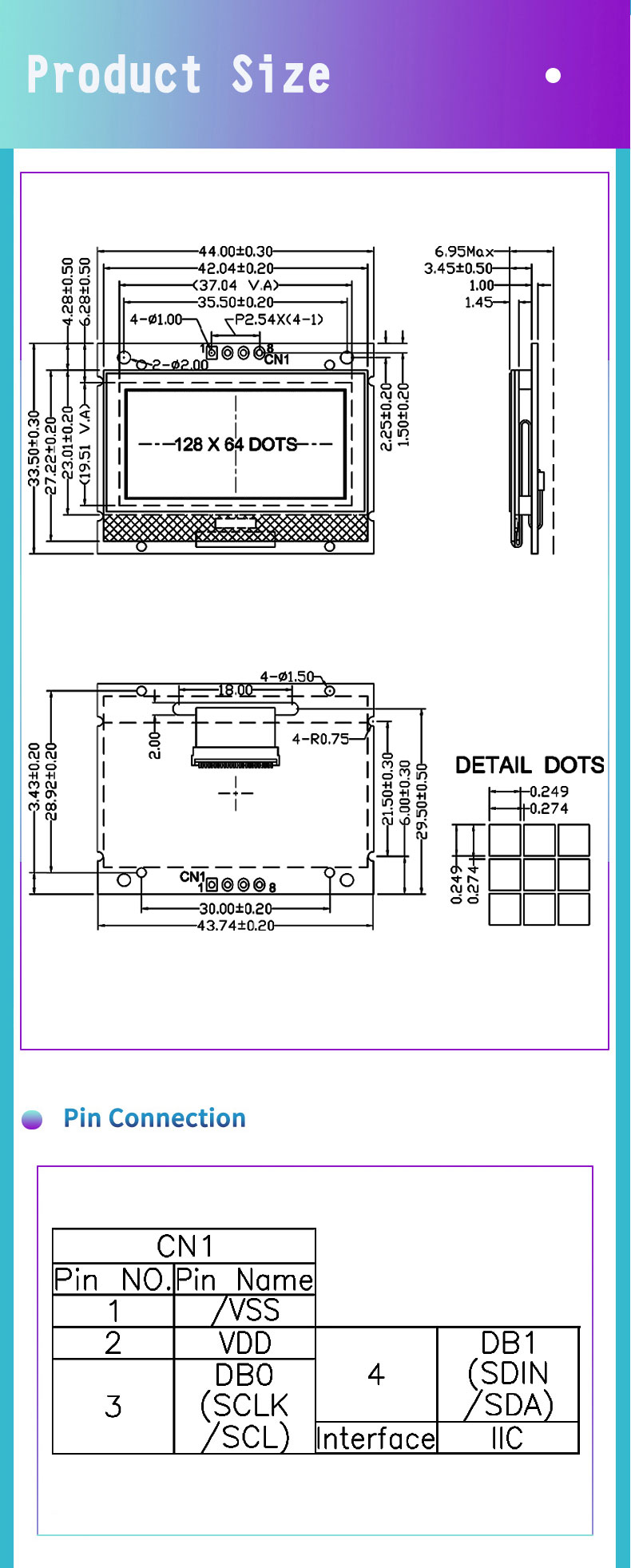

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
