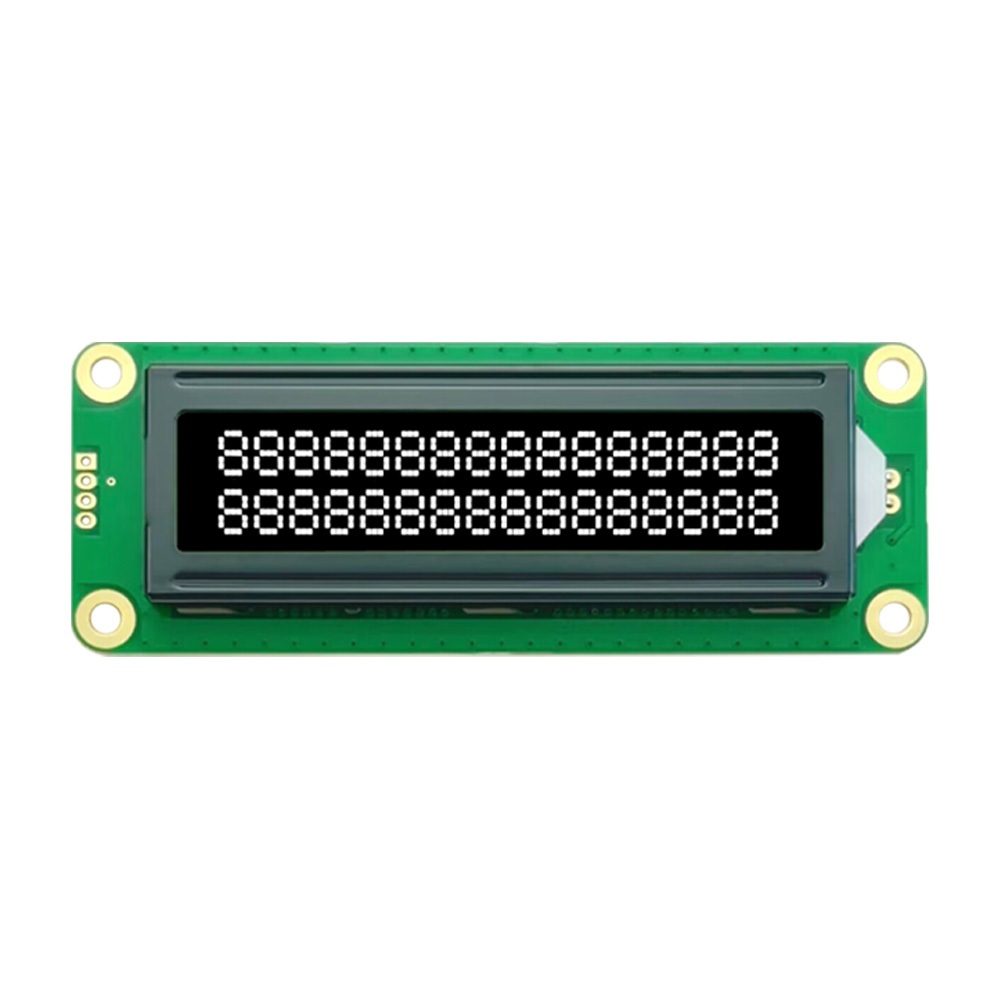

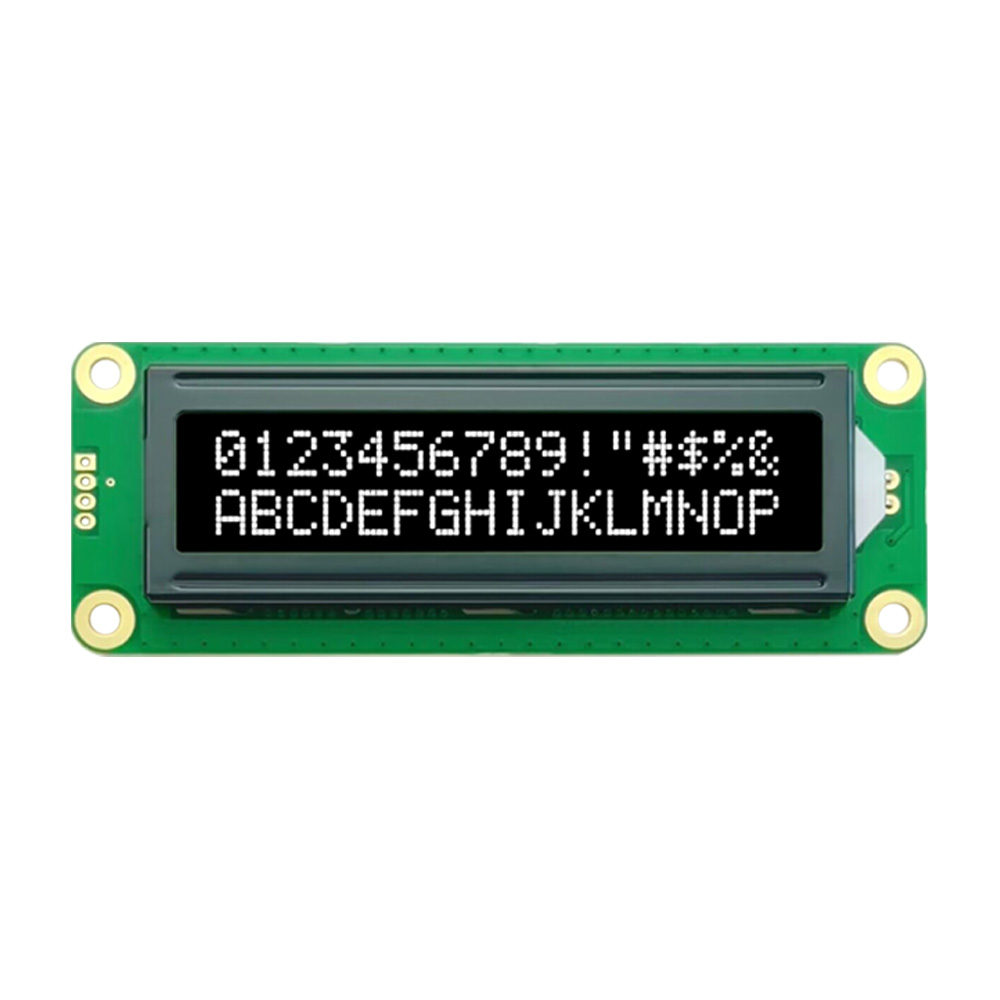

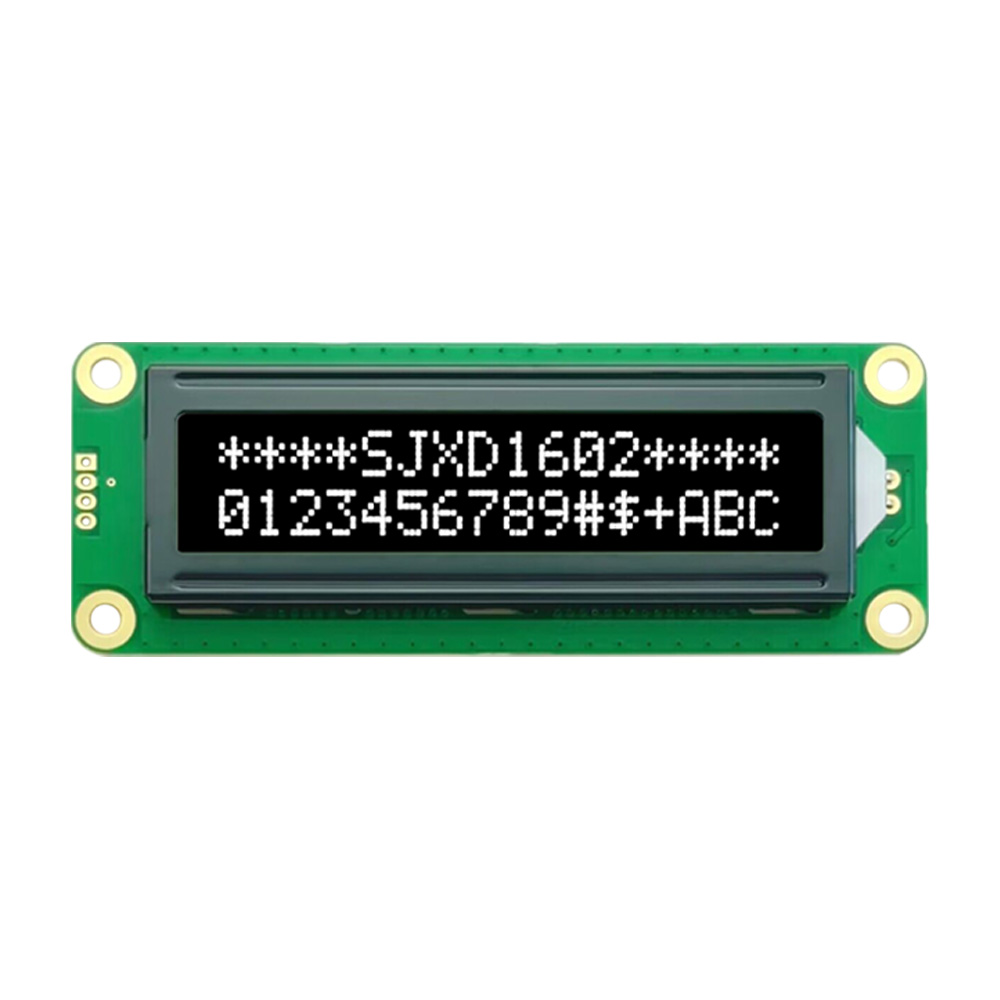

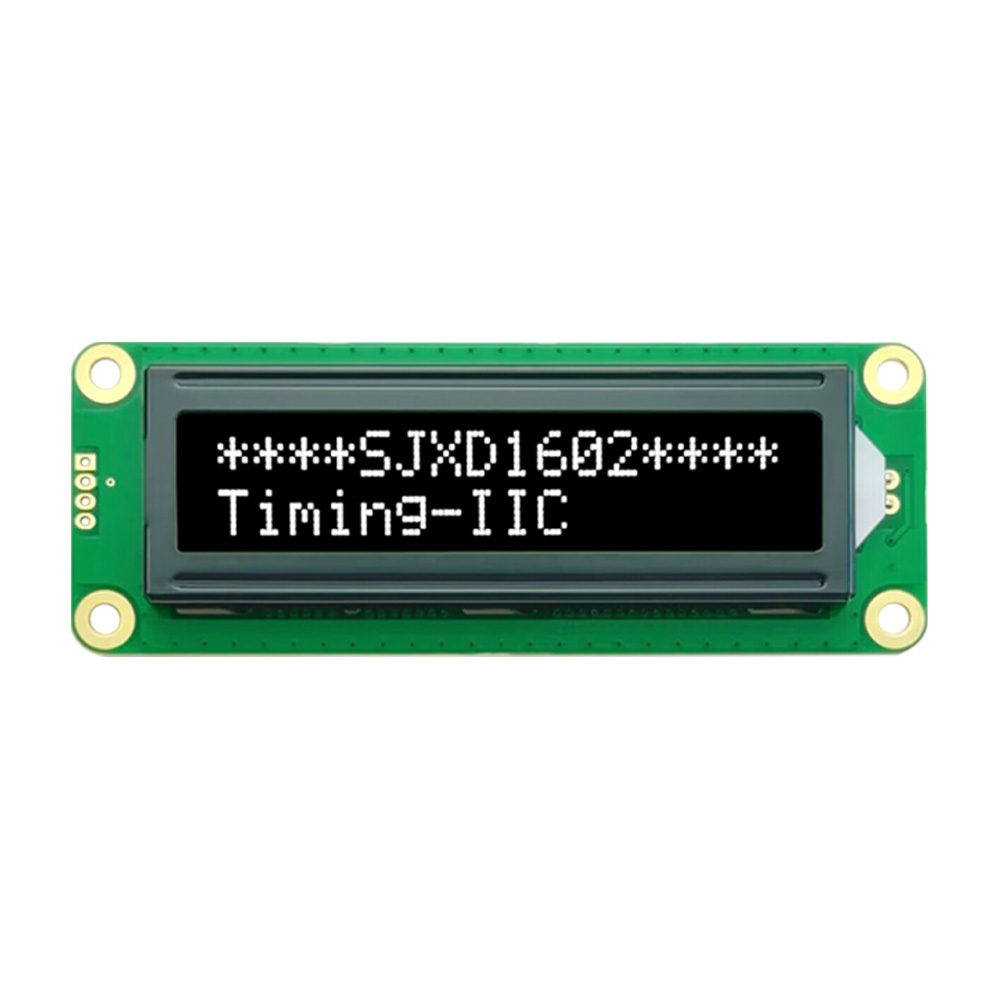

16x2 LCD Display Module-SJXD1602A-I(DFSTN Negative)

16x2 LCD Display Module is a character dot-matrix screen for two-row information output in compact equipment. The SJXD1602A-I model features an 87.0×32.0×13.0mm outline, 64.5×14.5mm viewing area, 3.3V/5V drive support, AIP31068L drive IC, white LED backlight, DFSTN negative LCD type, 16 double interfaces, and 06:00 viewing angle. It can display values, menus, warnings, counters, timers, and device status in meters, control panels, appliances, medical devices, instruments, vending systems, educational kits, and embedded products.

Parameters:

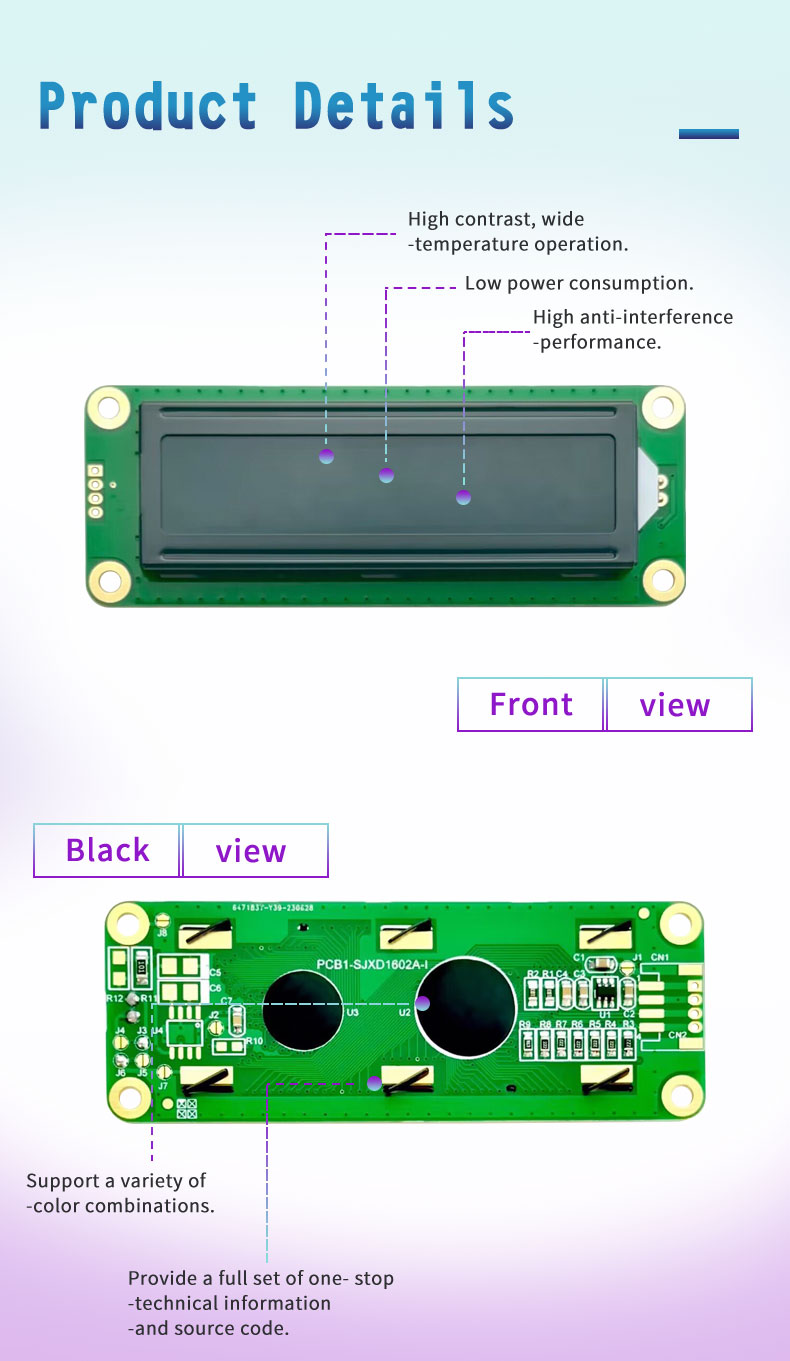

• High contrast, wide-temperature operation
• Low power consumption, high anti-interference performance
• Support for multiple color combinations
• Provide a complete set of one-stop technical information and source code
• Supports customization
• Supports 1-3 day samples
• High quality and cost-effective

Key Specifications

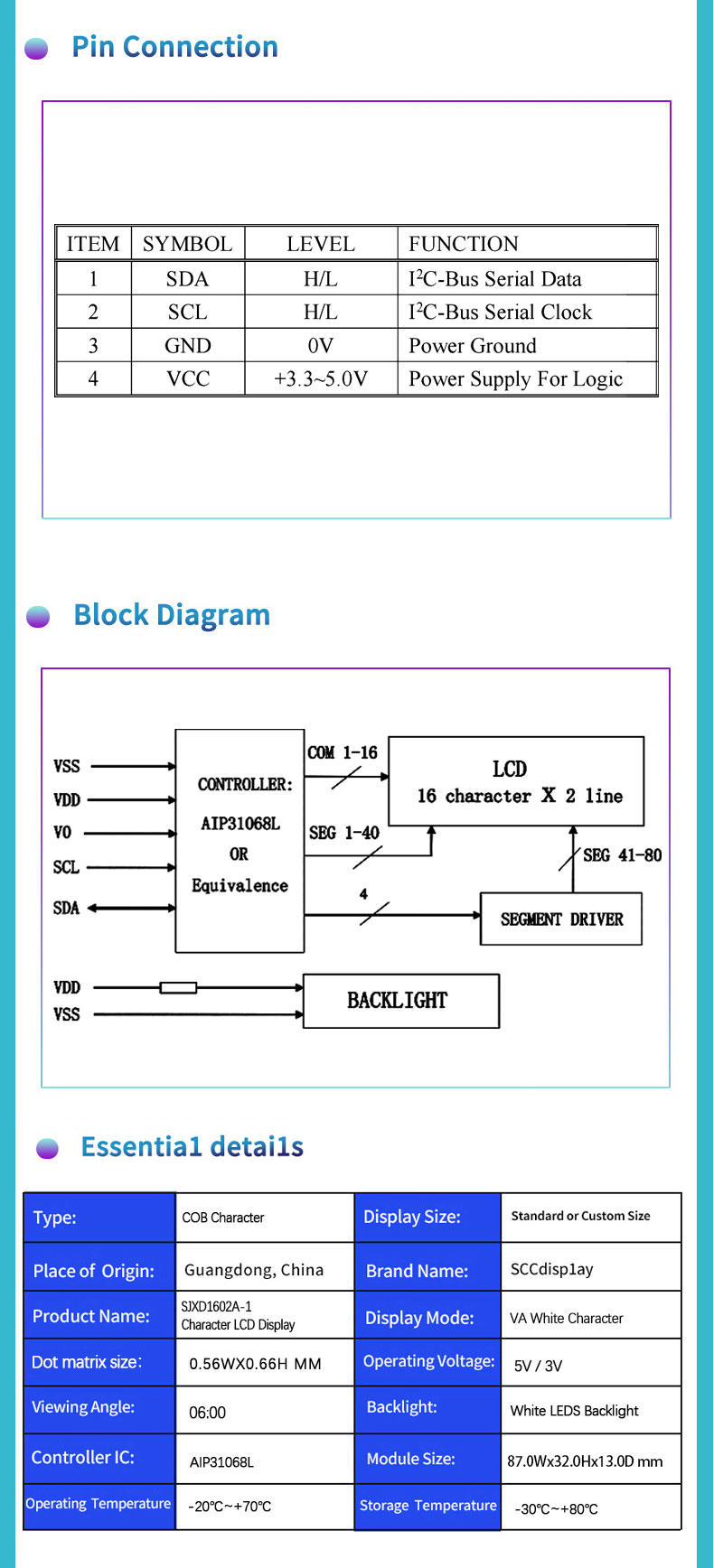

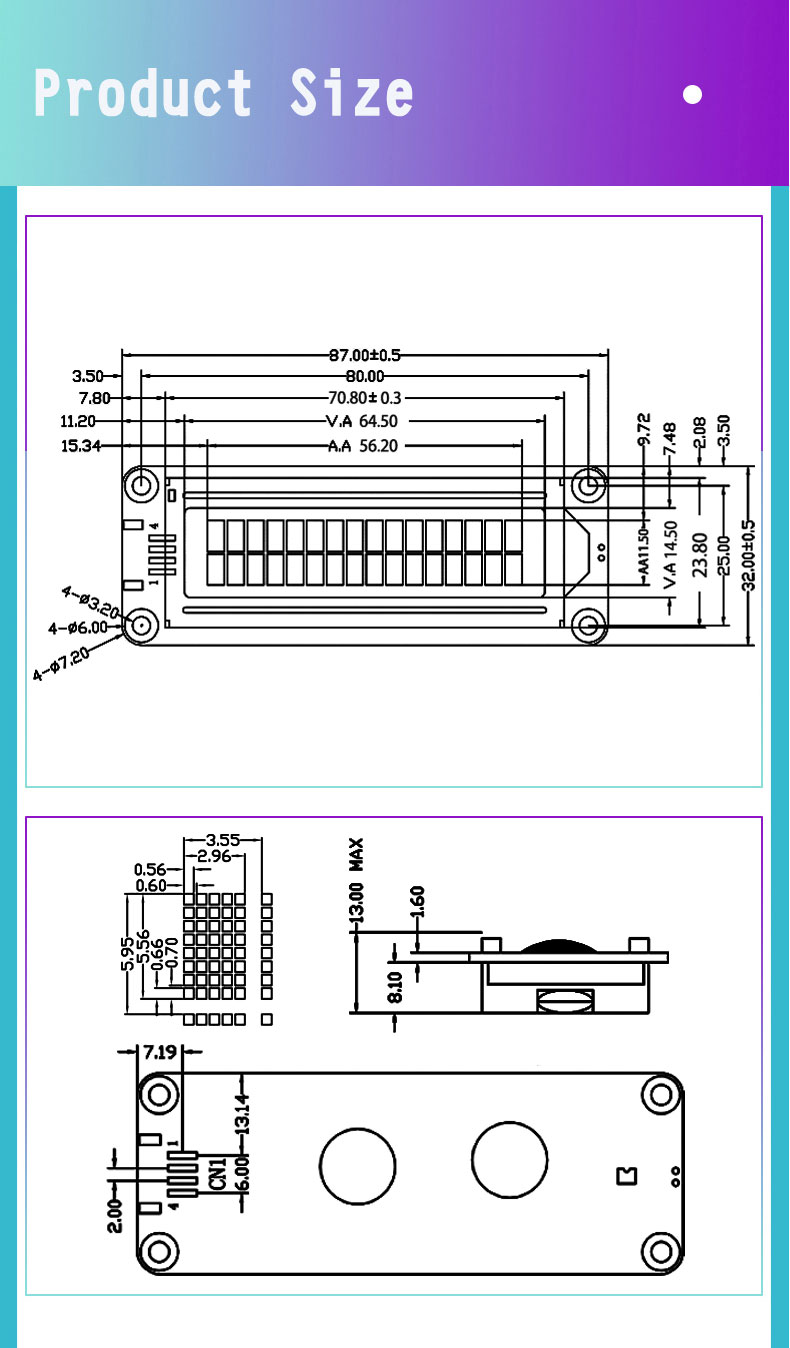

16x2 LCD Display Module is a character dot-matrix screen for showing two rows of letters, numbers, symbols, and operating data. The SJXD1602A-I model has an 87.0×32.0×13.0mm outline size and a 64.5×14.5mm viewing area, giving a clear 16-column by 2-row display format. It supports 3.3V/5.0V drive voltage, AIP31068L drive IC, white LED backlight, DFSTN negative LCD type, 16 double interfaces, and 06:00 viewing angle. It operates from -20°C to +70°C and stores from -30°C to +80°C.

Design Standards

16x2 LCD Display Module is designed for high-contrast text output, low energy consumption, and stable use in compact equipment layouts. The DFSTN negative display mode helps strengthen character visibility, while the white LED backlight supports clear viewing in panels, instruments, and indoor control systems. Its interface structure allows dependable command control for values, labels, large font numbers, and short messages. The module also supports wide-temperature operation, anti-interference performance, multiple color combinations, technical documentation, source-code support, 1-3 day sample preparation, and customization for display content, shell design, backlight color, and project parameters.

Applications

16x2 LCD Display Module is suitable for products that need more information space than a single-line display while keeping a small installation footprint. It can show meter readings, equipment states, setting menus, warning messages, counters, timer values, voltage data, and basic instructions. Typical applications include meters, equipment control panels, information display systems, industrial controllers, home appliances, medical devices, consumer electronics, laboratory instruments, vending equipment, educational kits, DIY projects, and embedded control boards. Its 16×2 format makes it practical for both sample testing and mass-produced electronic devices.

Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.

Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.

Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.

Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.

Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.

If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
