1602 Character LCD Display Module Datasheet-SJXD1602A-D (STN Positive)

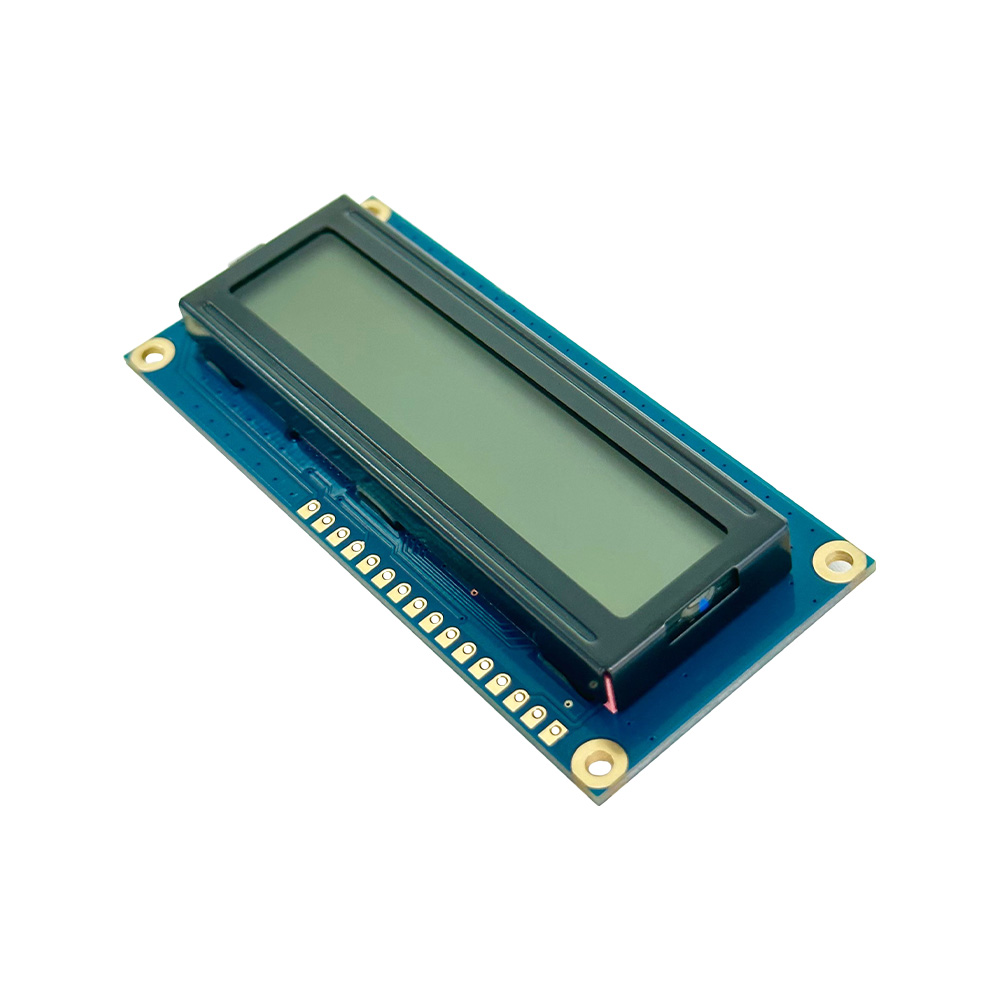

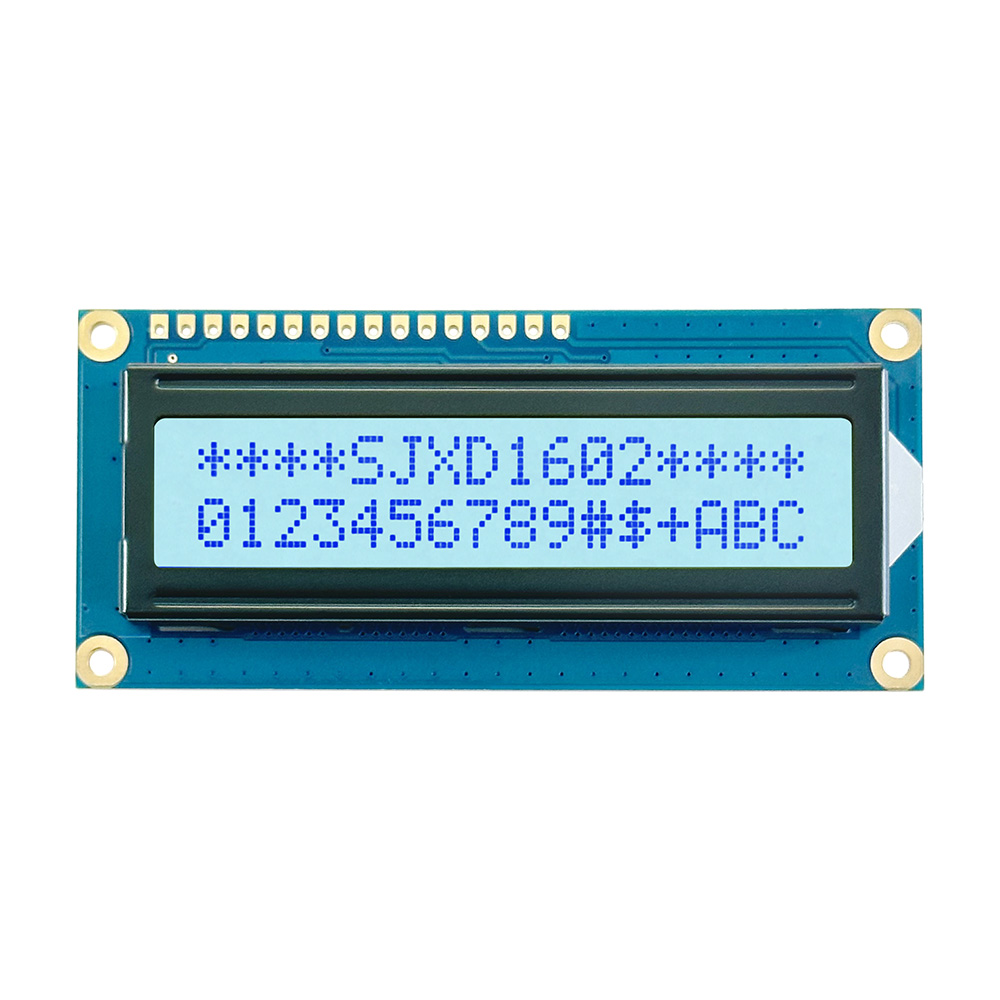

1602 Character LCD Display Module Datasheet introduces the SJXD1602A-D 16x2 LCD for compact two-line text and value display. It features an 80.0x36.0x12.0mm outline, 64.5x14.0mm viewing area, 5V/3.3V drive support, AIP31068L drive IC, white LED backlight, STN positive LCD type, 06:00 viewing angle, and SPI or IIC interface options. It helps engineers review values, menus, alarms, counters, timers, and status output for meters, appliances, medical devices, instruments, vending systems, education kits, and embedded controllers.

Parameters:

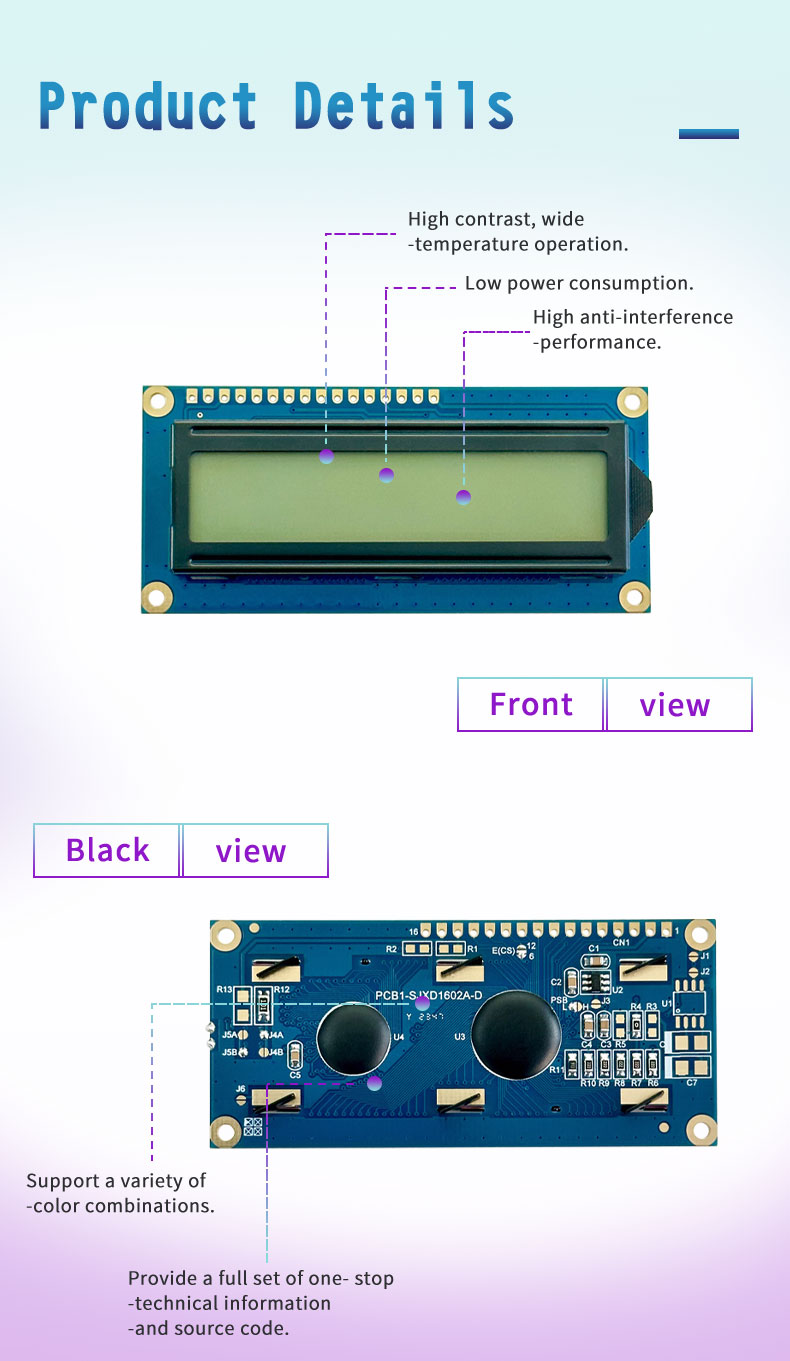

• High contrast, wide-temperature operation
• Low power consumption, high anti-interference performance
• Support for multiple color combinations
• Provide a complete set of one-stop technical information and source code
• Supports customization
• Supports 1-3 day samples
• High quality and cost-effective

Key Specifications

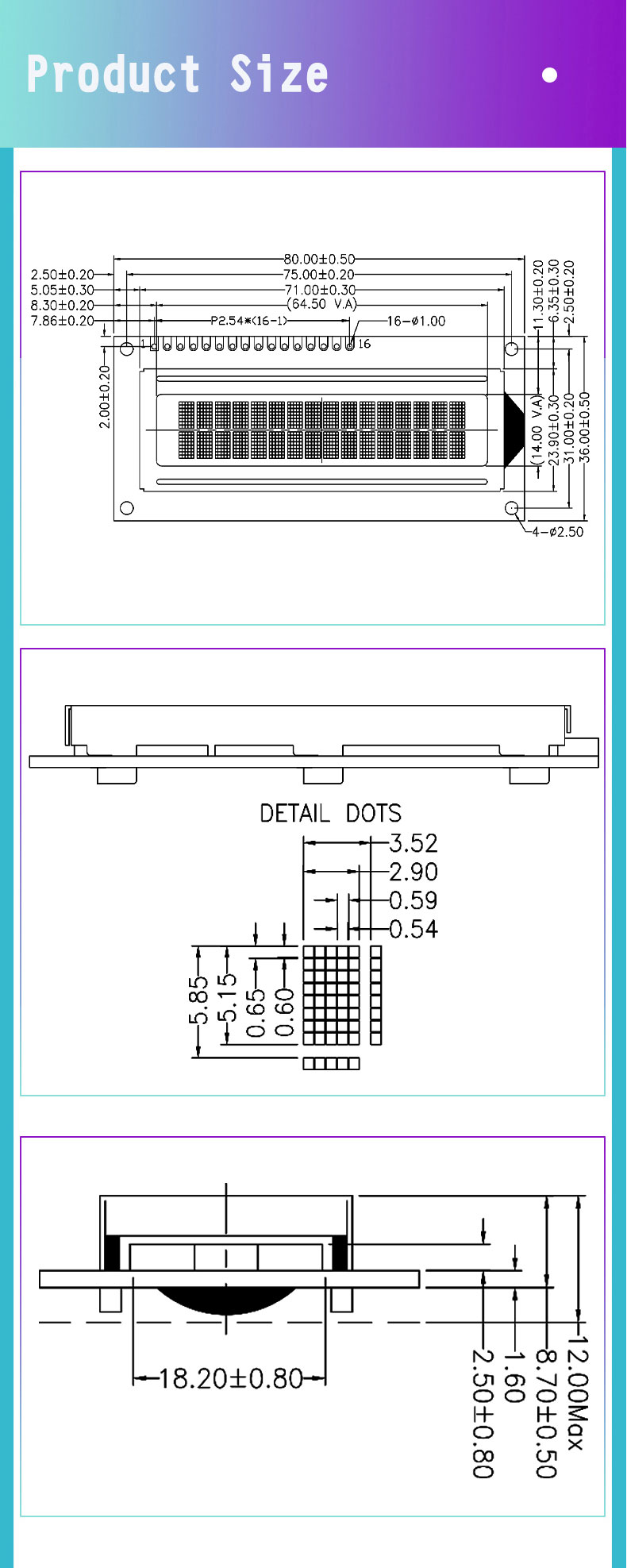

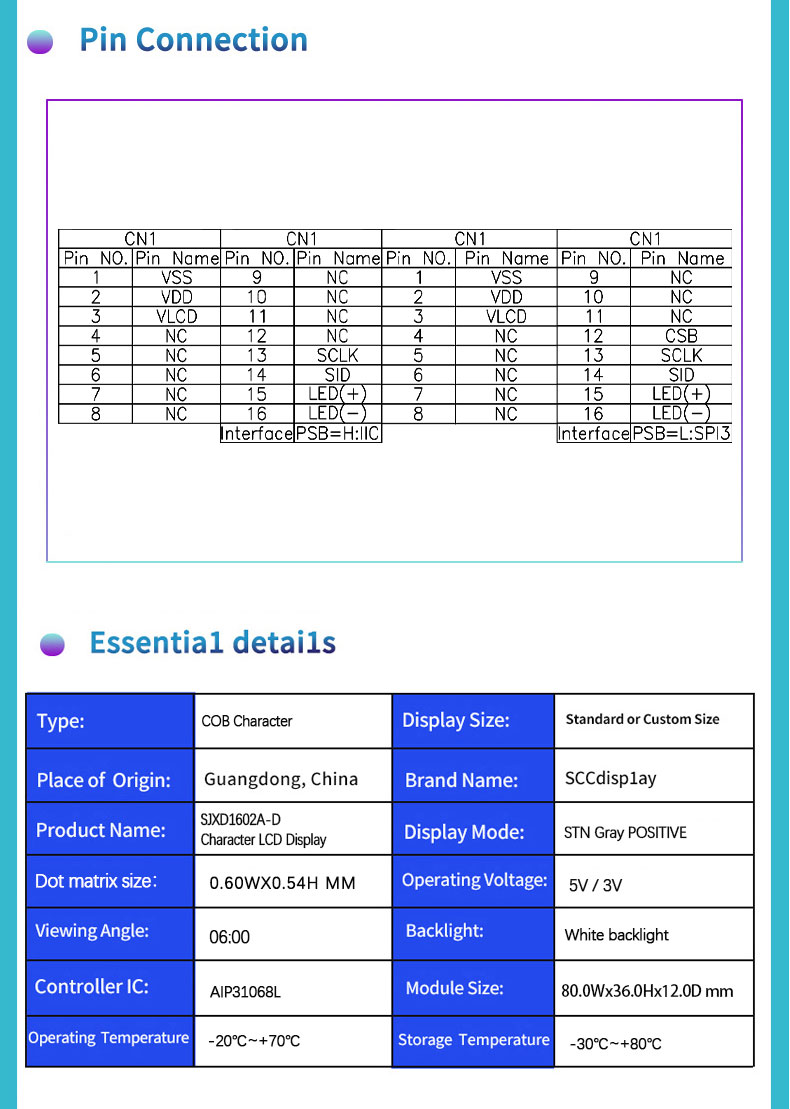

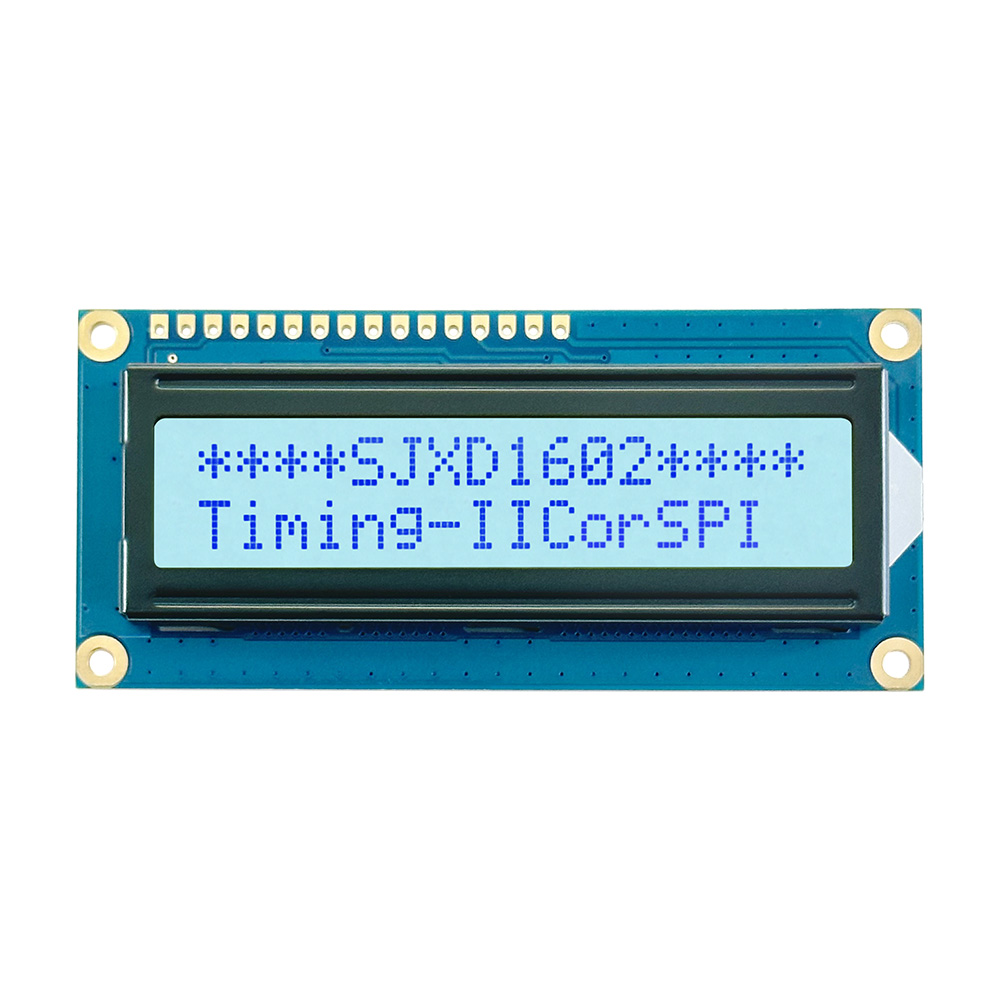

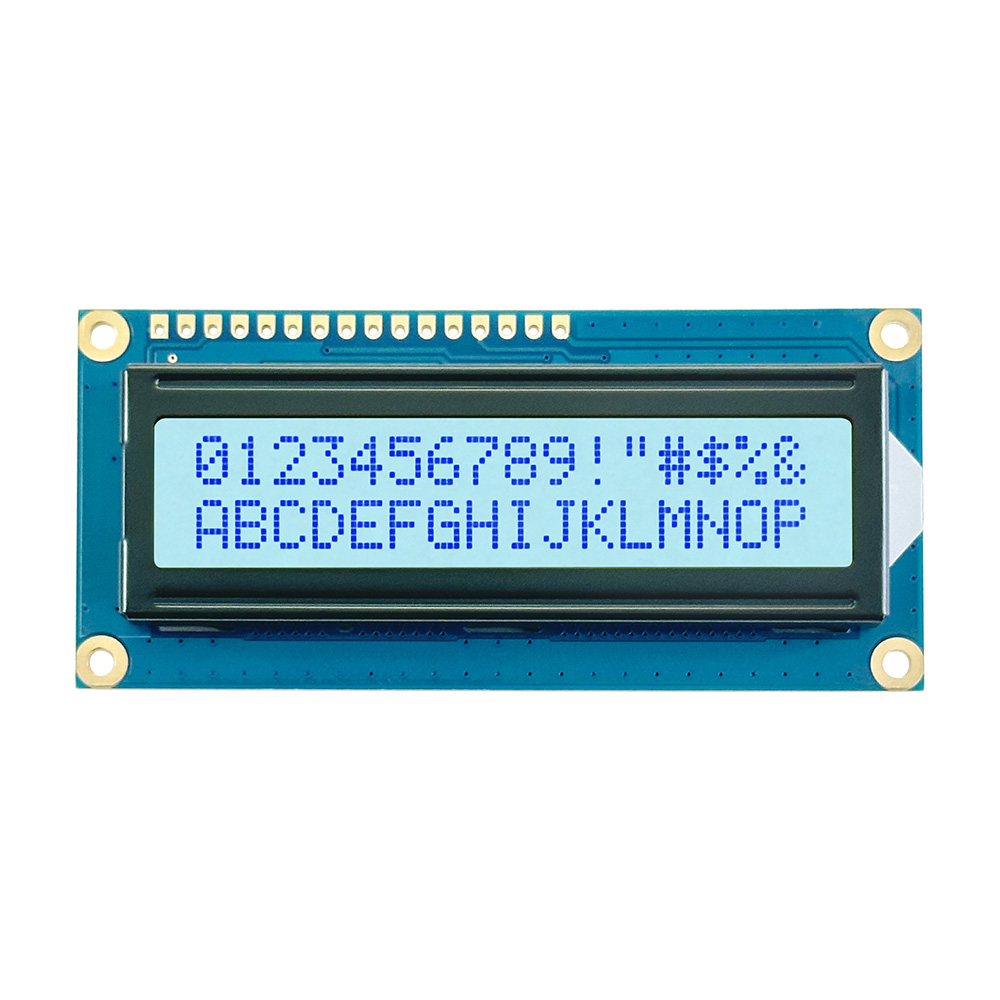

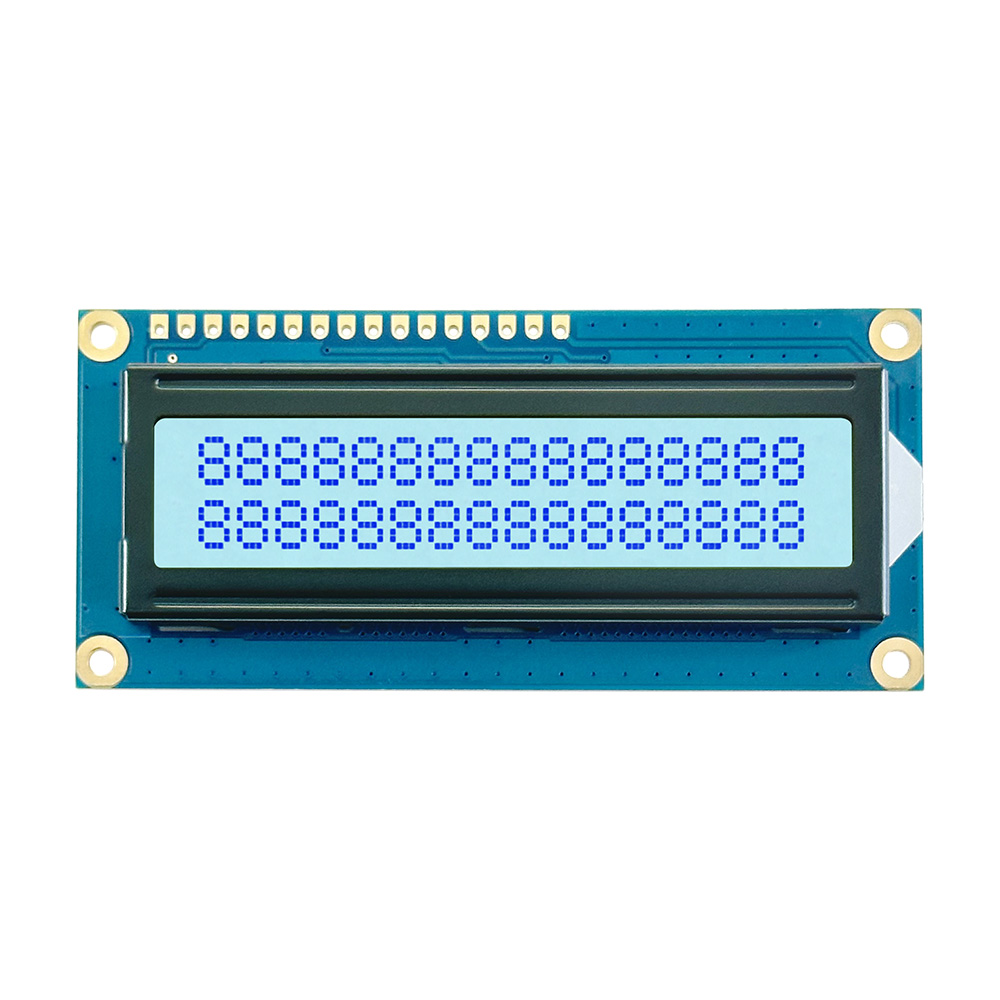

1602 Character LCD Display Module Datasheet describes the SJXD1602A-D 16x2 character display for compact electronic products that need clear two-line text and numeric output. The module uses an 80.0x36.0x12.0mm outline size and a 64.5x14.0mm viewing area. It supports 5.0V/3.3V drive voltage, AIP31068L drive IC, white LED backlight, STN positive LCD type, 06:00 viewing angle, and 16 single interfaces with SPI or IIC interface options. Its structure is suitable for values, codes, menus, prompts, and equipment states.

Design Standards

1602 Character LCD Display Module Datasheet is designed as a practical engineering reference for 16x2 LCD integration, interface selection, and display planning. The STN positive display mode provides readable contrast, while the white LED backlight supports clear viewing in control panels, instruments, and small product interfaces. SPI or IIC interface options help engineers match different MCU resources and PCB layouts. The module also supports high contrast, wide-temperature operation, low power consumption, anti-interference performance, source-code support, technical documentation, fast sample preparation, and customization for backlight color, display content, shell design, and project parameters.

Applications

1602 Character LCD Display Module Datasheet is suitable for devices that require stable two-line character display and dependable long-term performance. It can show measurement values, large numbers, setting menus, alarm codes, timer data, counter results, voltage readings, and operating messages. Typical applications include meters, equipment control panels, information display systems, industrial controllers, home appliances, medical devices, consumer electronics, laboratory instruments, vending machines, educational kits, DIY electronics, and embedded control boards. Its 16x2 format and flexible interface options make it useful for both prototype review and mass production.
