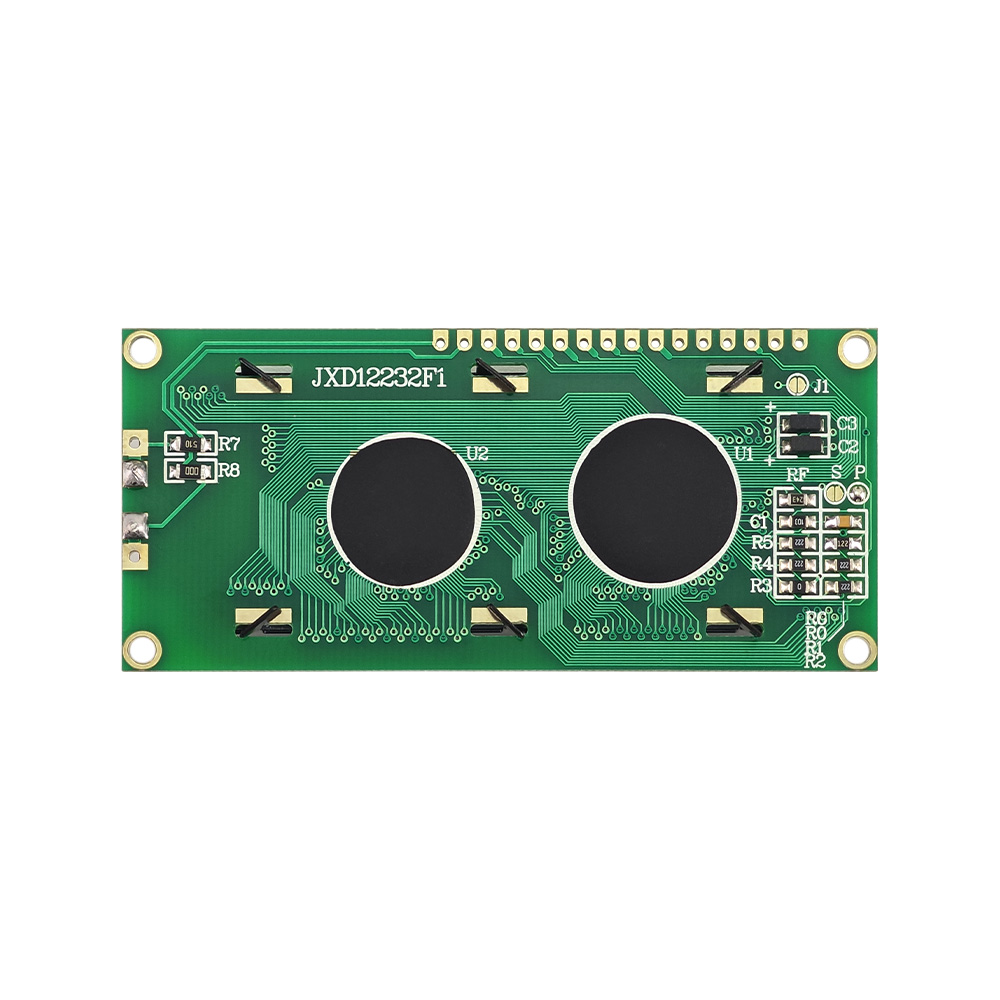

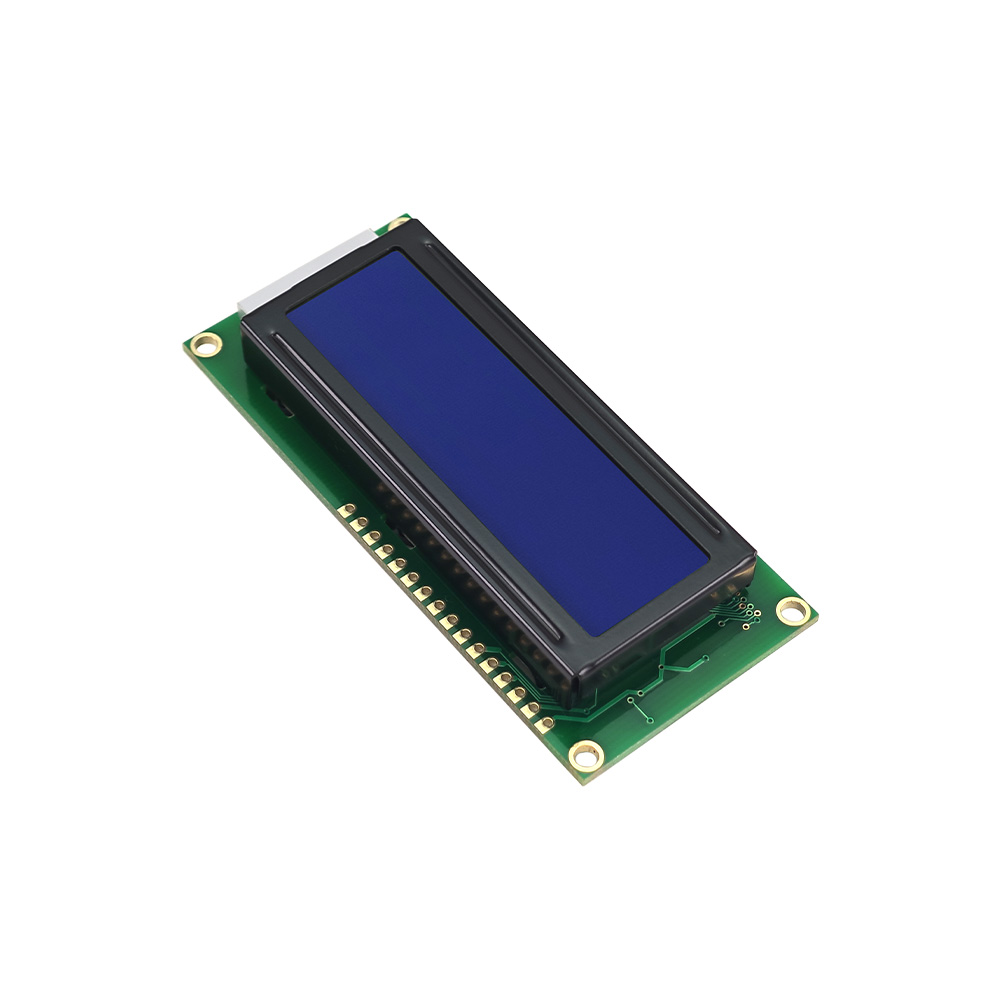

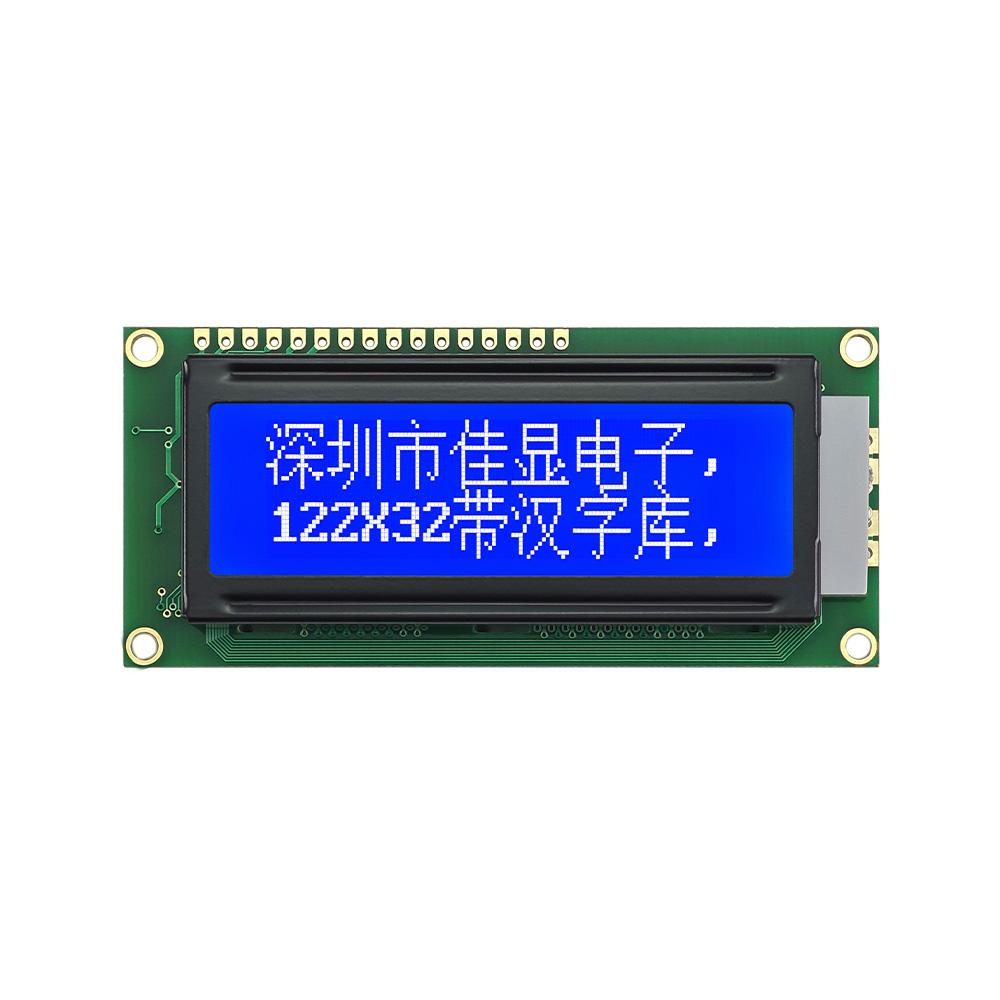

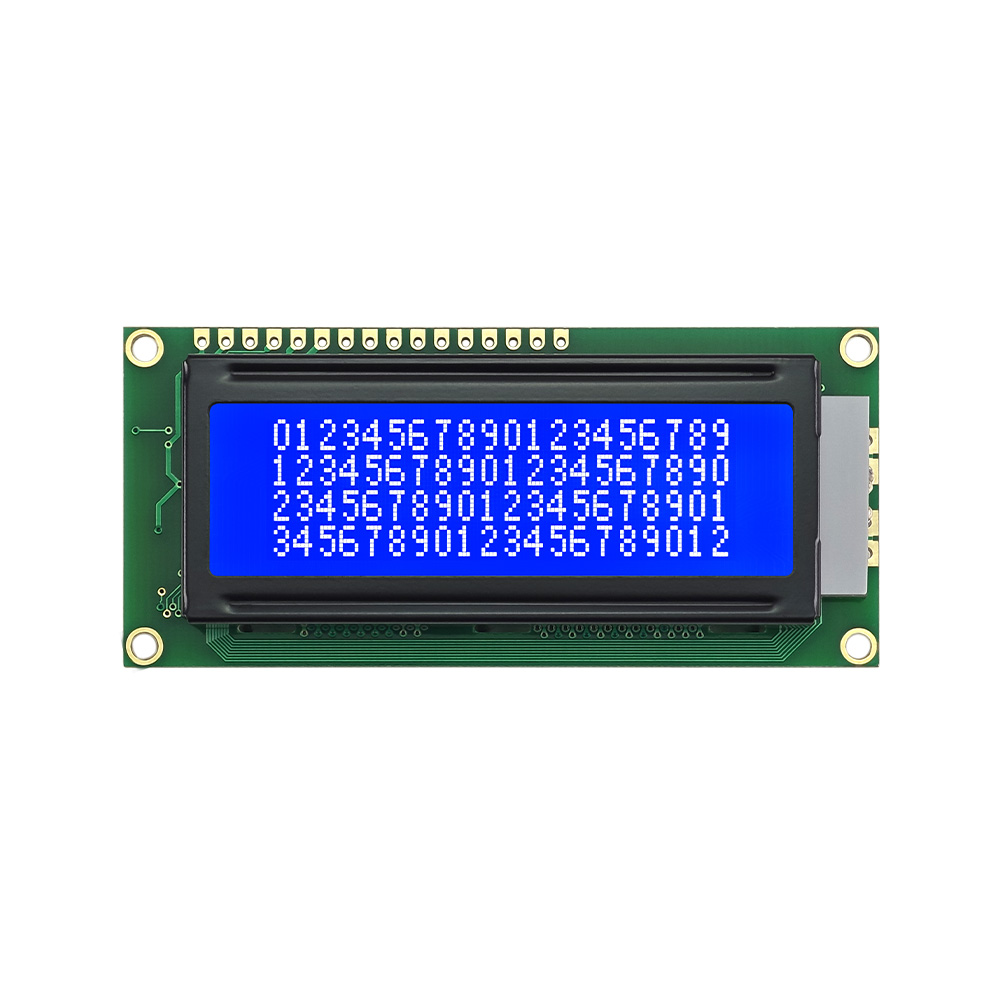

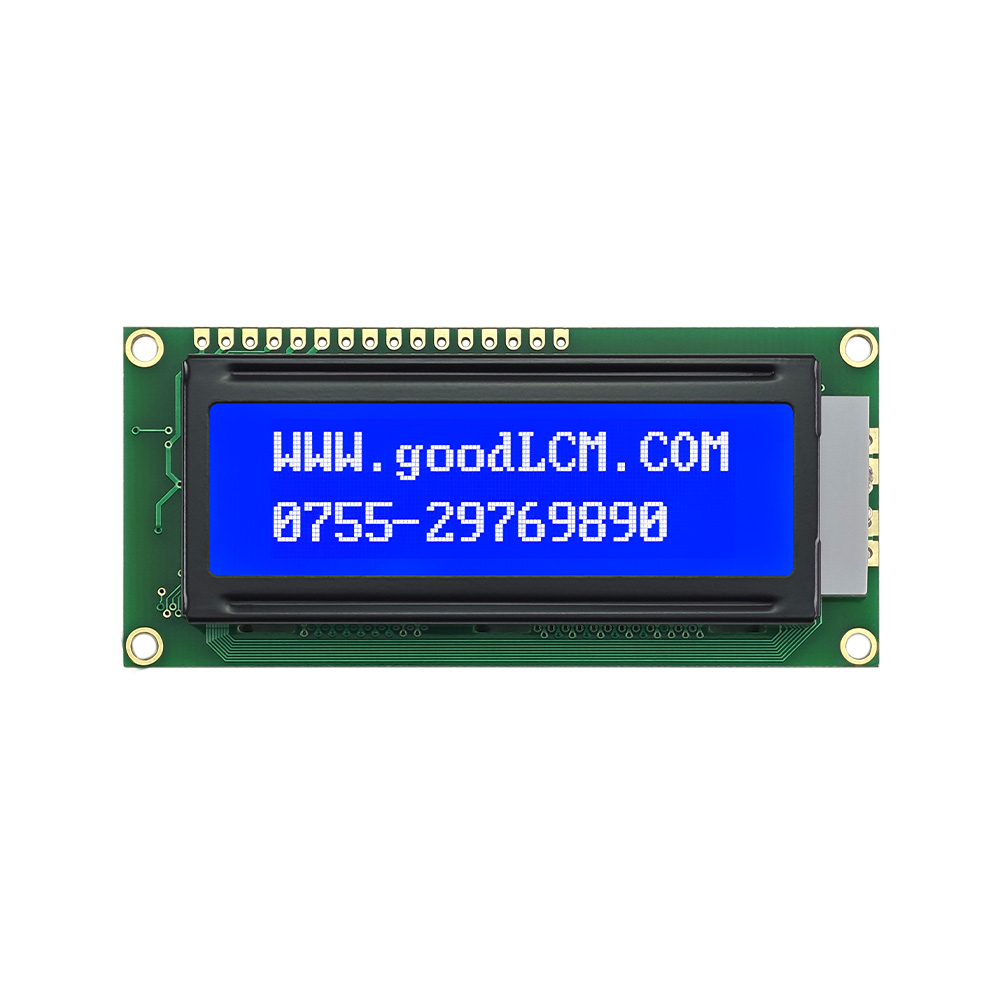

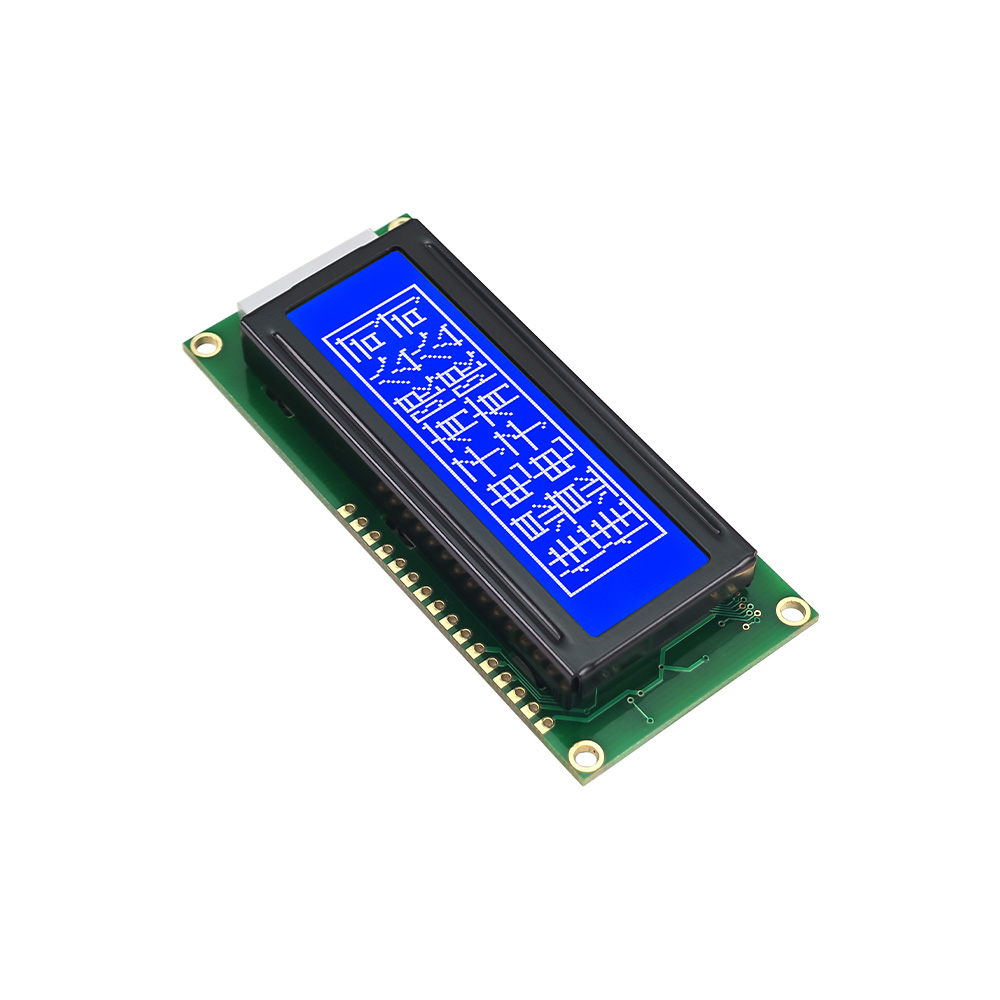

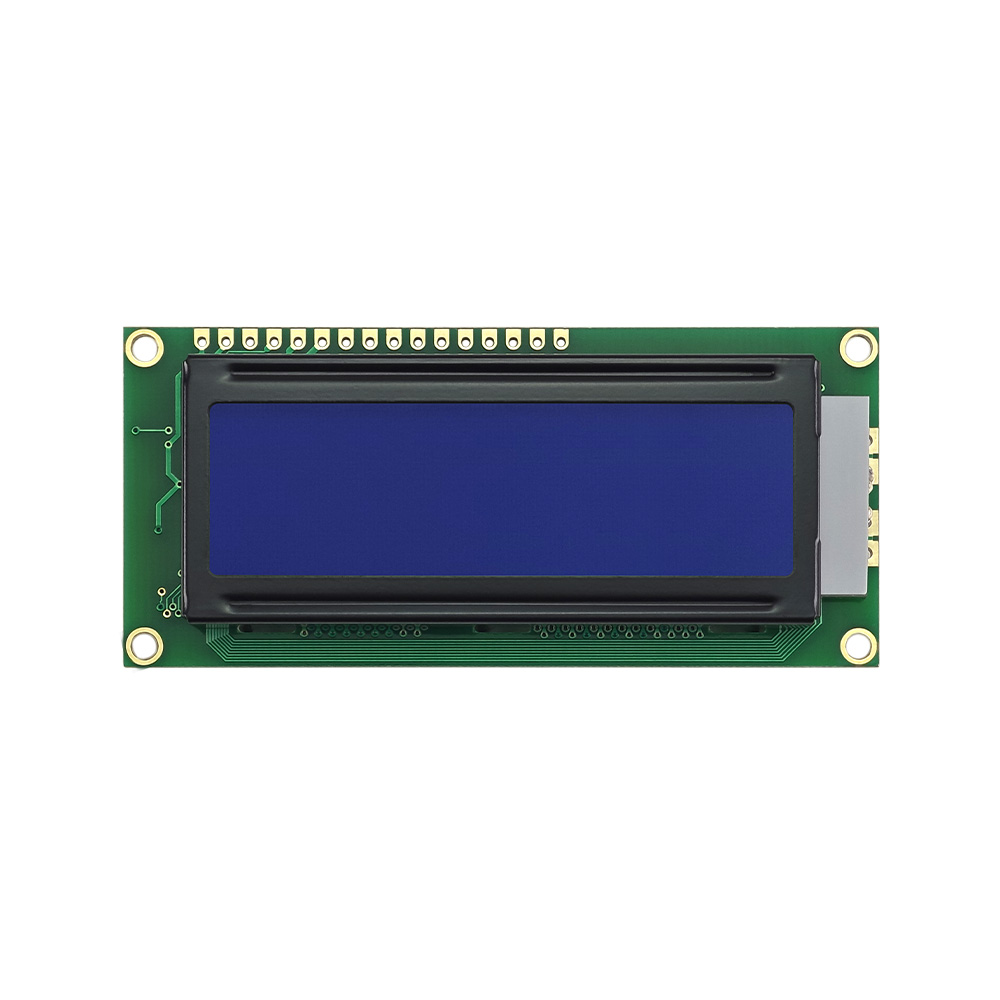

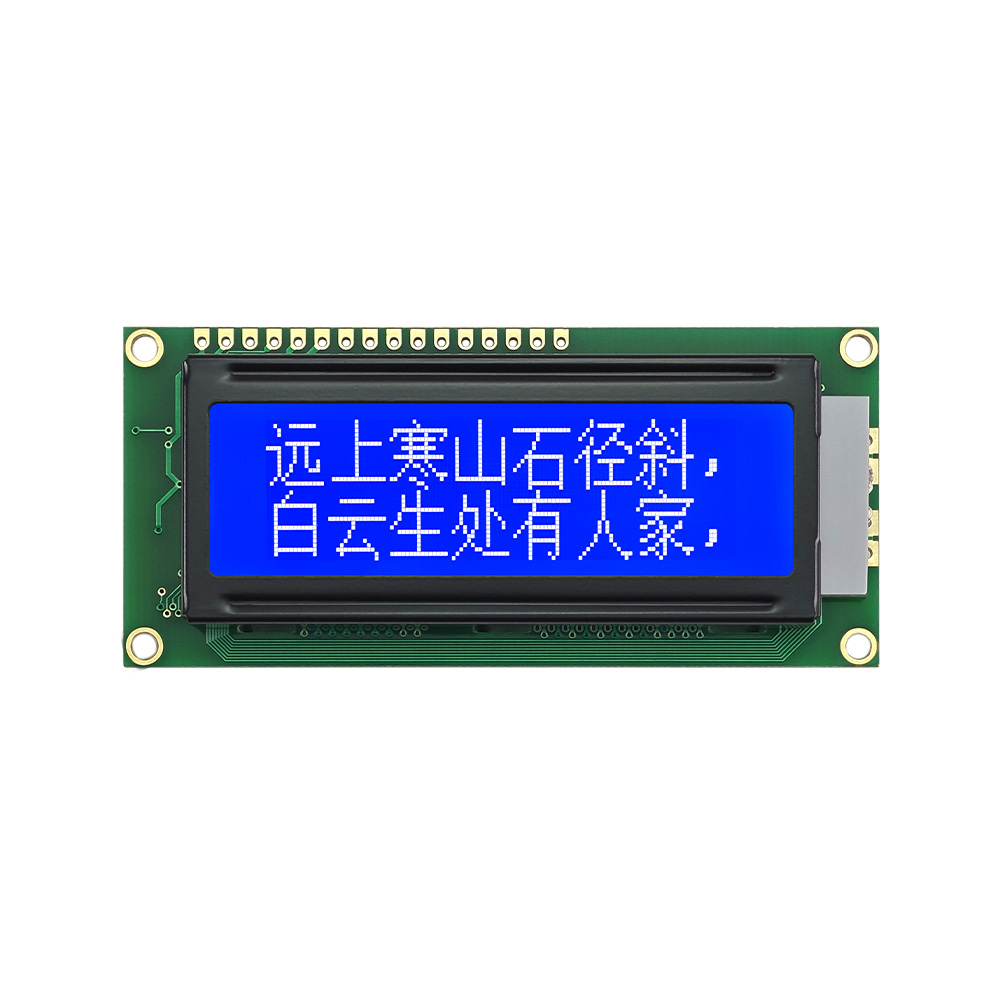

The Industrial LCM Dsplay Module JXD12232F1 is a robust monochrome display solution engineered for industrial embedded systems that require stable performance, clear data visualization, and long-term operational reliability. It is designed to deliver consistent dot matrix output for control, monitoring, and instrumentation applications where accuracy and durability are essential.

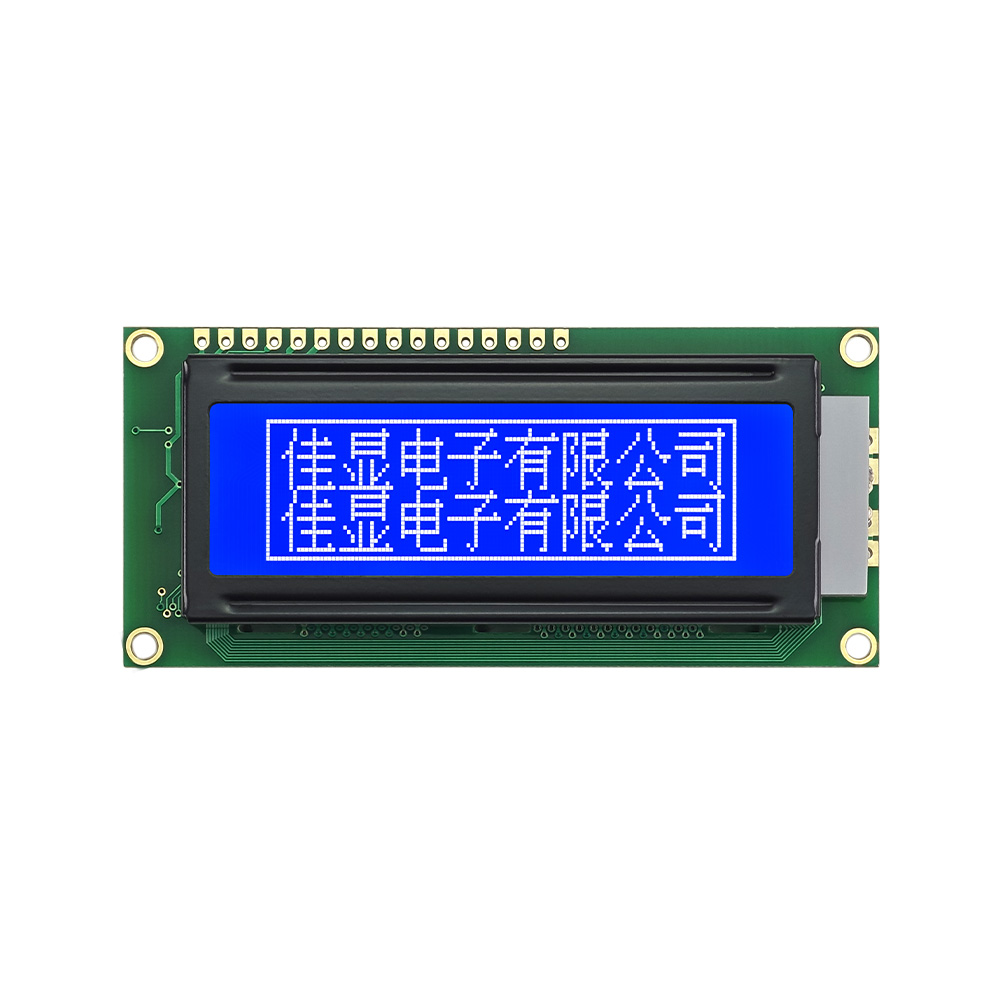

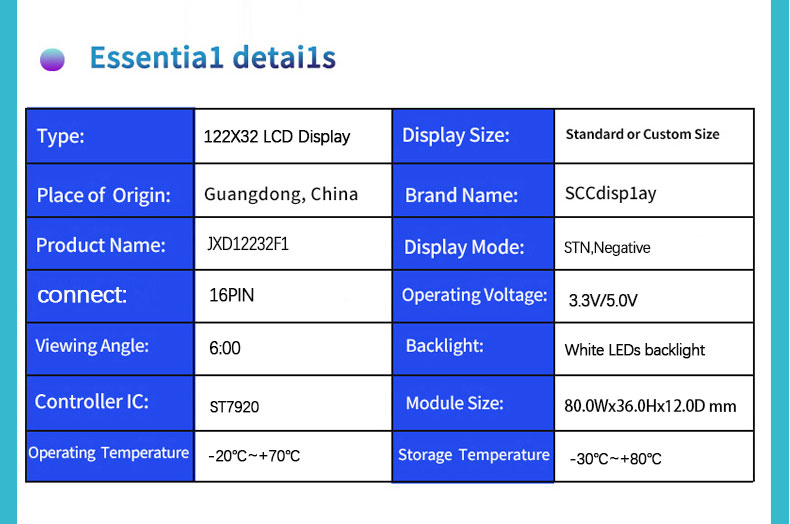

Parameters:
| Character Type | 122X32 |
| Model | JXD12232F1 |
| Model Size | 80.0×36.0×12.0 MM |
| VA Size | 64.5×16.0 MM |
|
Drive Voltage
|
3.3V/5.0V
|
|
Drive IC
|
ST7920
|
|
Backlight
|
White LED backlight
|
|
LCD Type
|
STN Negative
|
|
Interface
|
16Pin |
| Working Temperature |
-20°C - +70°C
|
|
Storage Temperature
|
-30°C - +80°C |
Feature

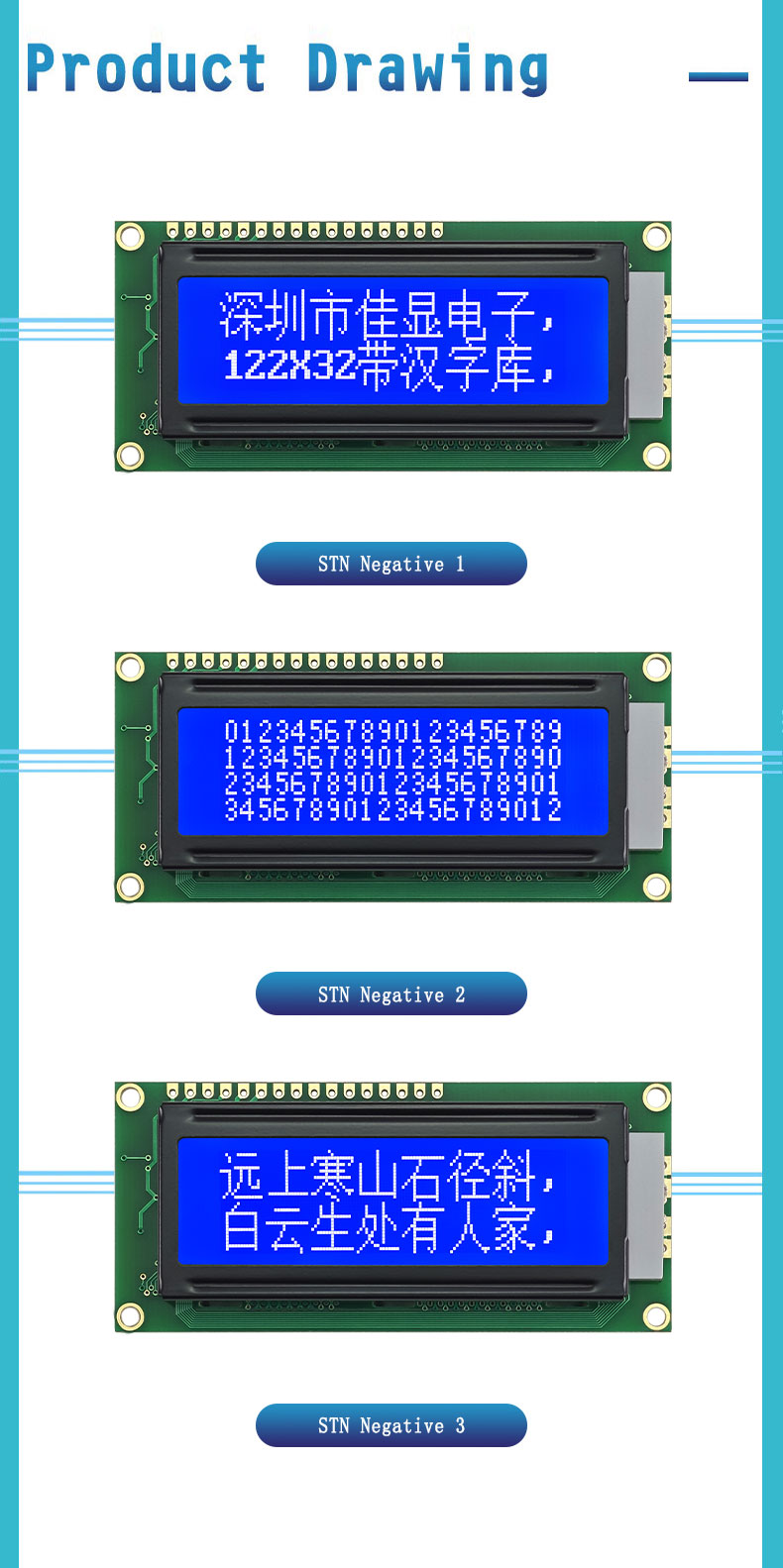

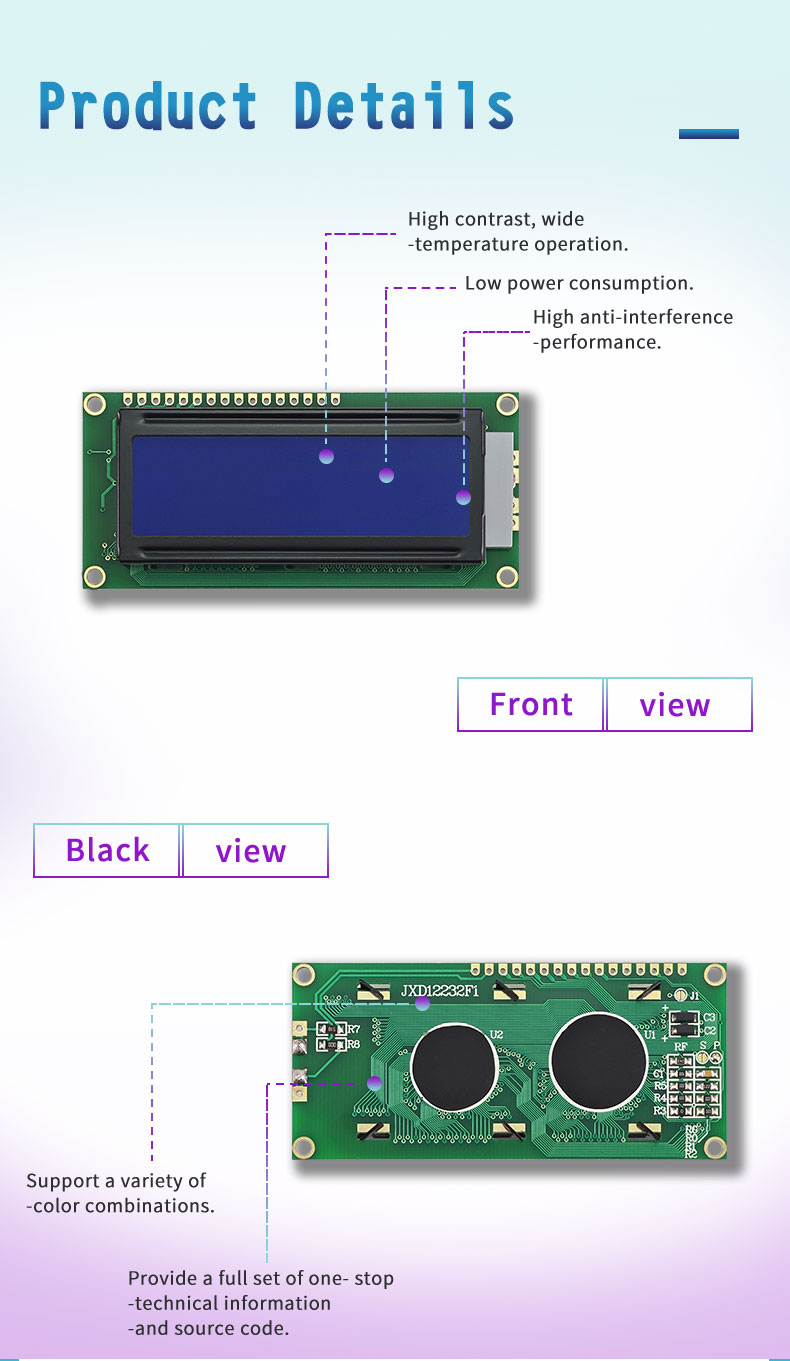

- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- The fastest batch delivery can be achieved within 15 days
Key Specifications
This Industrial LCM Dsplay Module features a 122×32 dot matrix resolution, enabling clear presentation of alphanumeric characters, symbols, and simple graphical elements. The compact resolution is optimized for space-limited industrial designs while maintaining readable and structured visual output. The LCD structure ensures stable contrast performance and consistent display clarity under varying lighting conditions. It operates with low power consumption, making it suitable for continuously running industrial systems and energy-efficient embedded devices. The module supports stable refresh behavior, ensuring smooth updates of displayed information without flicker or distortion. Its compact mechanical design allows easy integration into industrial controllers, communication devices, measurement instruments, and embedded terminals. The display maintains reliable performance across a wide operating temperature range, ensuring stable operation in harsh industrial environments. Uniform pixel alignment and controlled liquid crystal response contribute to accurate and consistent visual output.
Design Standards
The module is manufactured under strict industrial LCD engineering standards to ensure durability, stability, and long-term reliability. High-quality liquid crystal materials are used to achieve uniform optical performance and stable contrast characteristics. Circuit design is optimized to reduce electromagnetic interference and ensure stable signal transmission in industrial environments. The structural design supports compact integration while maintaining mechanical strength and thermal stability. Each unit undergoes comprehensive inspection for pixel accuracy, display uniformity, brightness consistency, and electrical reliability. Energy-efficient engineering principles are applied to reduce power consumption while maintaining stable operation over extended usage cycles. Quality control processes ensure consistent performance across production batches.
Applications
The Industrial LCM Dsplay Module is widely used in industrial automation systems, smart metering equipment, medical devices, communication systems, embedded controllers, and instrumentation panels. It is also suitable for monitoring systems, testing instruments, security devices, and factory control interfaces. Its combination of stable dot matrix output, compact structure, and industrial-grade reliability makes it an effective solution for embedded display applications requiring clear, consistent, and dependable visual communication in demanding environments.

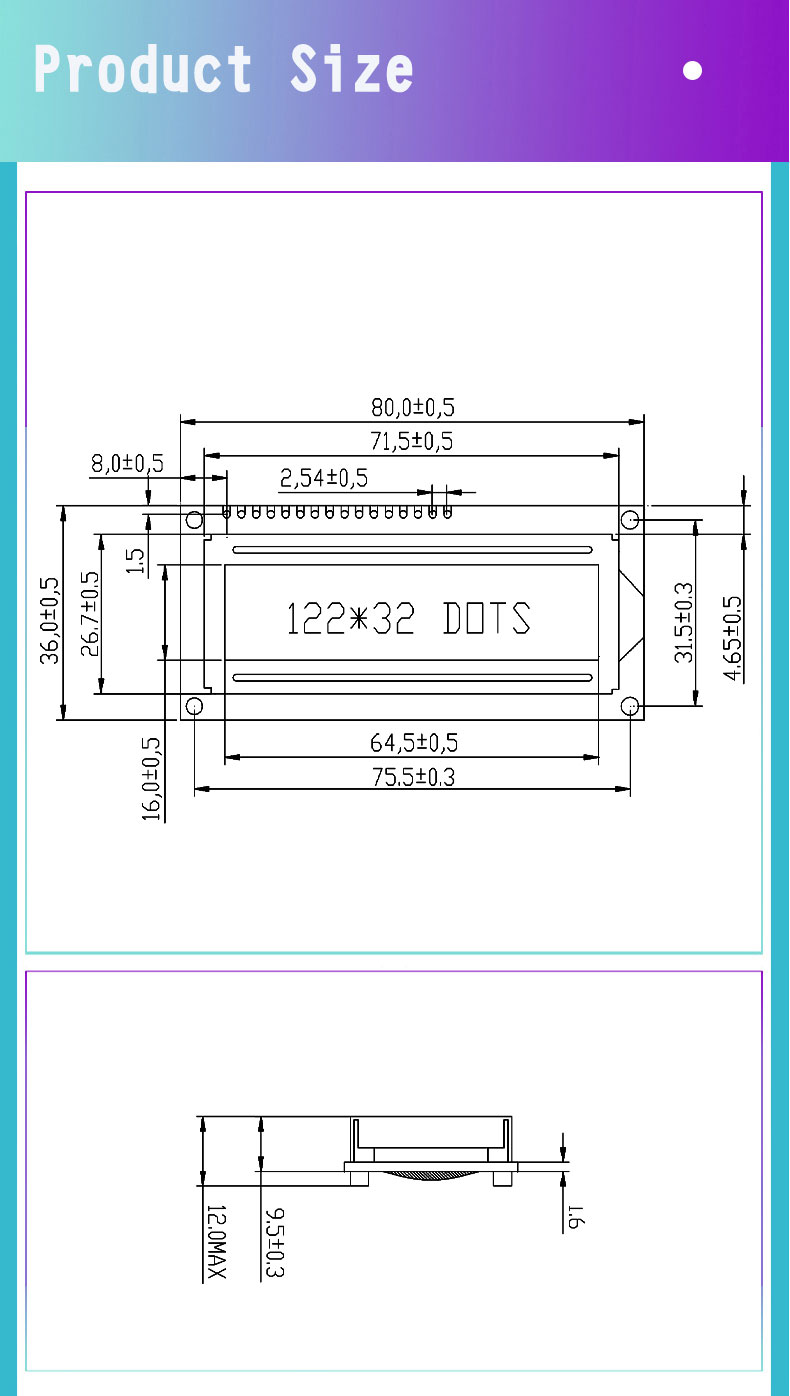

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: What is this screen used for？
A: Character LCD screens are widely used in home appliances, industrial controls, medical devices, consumer electronics, and DIY projects, suitable for displaying status information, menu options, and basic data.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
