Basic Information
The Small 7 Segment LCD Display SJXD-MRC07 is a compact numeric display module designed for precise and efficient data visualization in miniature electronic systems. It is built to present clear and stable 7-segment numeric output in a reduced footprint, making it ideal for space-constrained devices. This display is engineered for applications where simplicity, readability, and low power operation are essential, providing reliable performance for embedded electronics and measurement equipment.
Parameters:
| Character Type | Customized |
| Model | SJXD-MRC07 |
| Model Size | 54.0×22.3×2.8mm |
| VA Size | 51.0×16.8mm |
|
Connector
|
Conductive adhesive strip connection |
|
LCD Type
|
HTN Positive |
|
Drive Conditions
|
1/4D 1/3B
|
|
Working Temperature
|
-20°C TO +70'C
|
| Storage Temperature |
-30'C TO +80'C
|
|
Working Voltage
|
4.5 V |

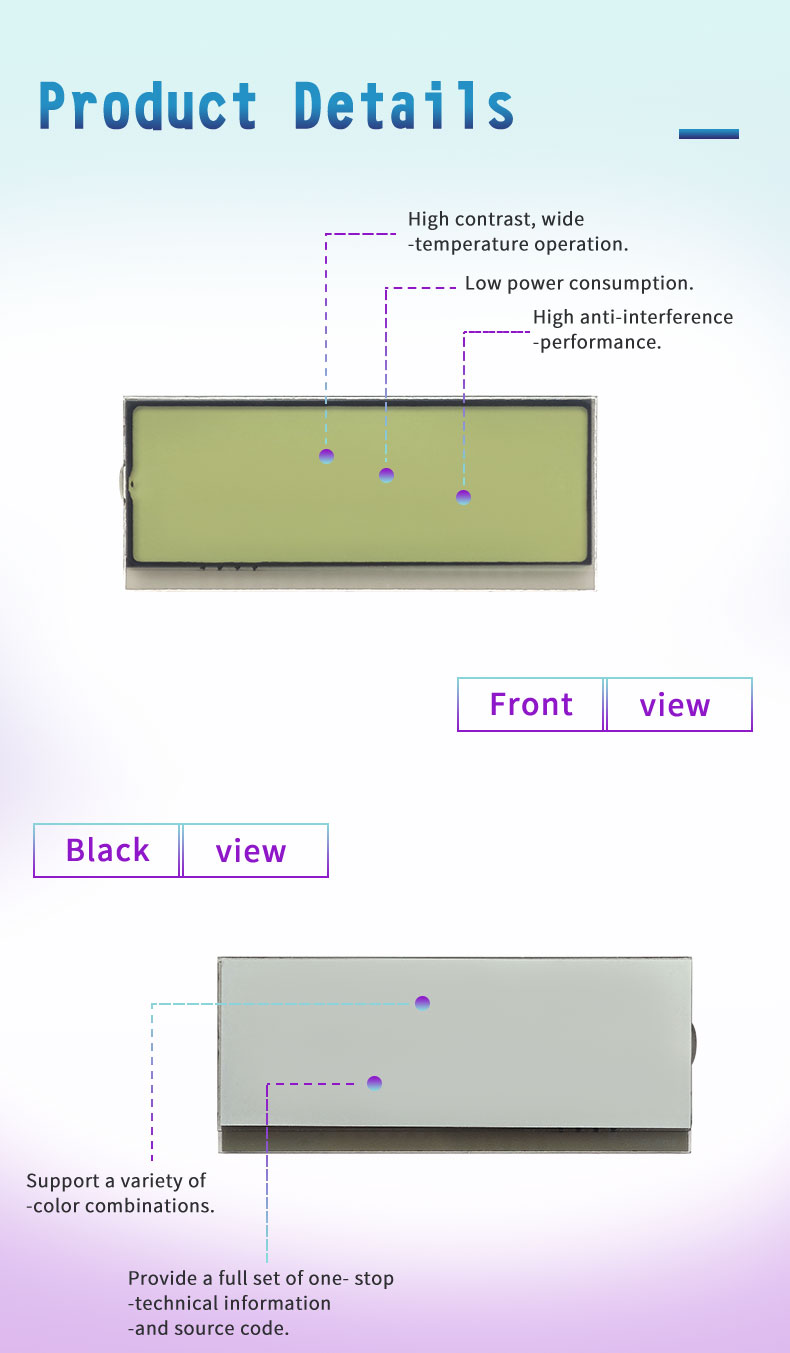

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- In stock, fast delivery
Key Specifications
This Small 7 Segment LCD Display features a classic 7-segment architecture optimized for compact numeric representation. It delivers sharp digit formation, ensuring accurate visualization of numerical data such as measurements, counters, and system values. The display offers strong contrast performance, allowing clear readability under standard indoor lighting conditions. It operates at low voltage, making it suitable for energy-efficient circuits and battery-powered systems. The module is designed for ultra-low power consumption, supporting long-term continuous operation in portable and embedded devices. It maintains stable performance across a wide temperature range, ensuring reliable operation in different environmental environments. Its ultra-compact structure allows easy integration into small handheld devices, miniature meters, and embedded control boards. The fast response of segment switching ensures real-time numeric updates without delay or distortion.
Design Standards
The module is manufactured according to strict industrial LCD design standards to ensure durability, consistency, and long-term stability. High-quality liquid crystal materials are used to maintain uniform segment clarity and optical performance throughout the product lifecycle. Circuit design is optimized to minimize electromagnetic interference and ensure stable signal transmission in electronic environments. The display structure is reinforced to withstand mechanical stress, temperature variation, and continuous operational cycles. Each unit undergoes comprehensive inspection to verify segment accuracy, brightness uniformity, and electrical reliability. Low power engineering principles are applied to enhance energy efficiency and extend device lifespan.
Applications
The Small 7 Segment LCD Display is widely used in compact digital meters, handheld measuring devices, portable electronics, industrial control modules, and embedded instrumentation systems. It is also suitable for consumer electronics, utility monitoring devices, and miniature diagnostic tools requiring simple numeric display output. Its combination of compact size, low power consumption, and stable readability makes it an ideal solution for modern electronic applications requiring efficient and reliable numeric visualization.

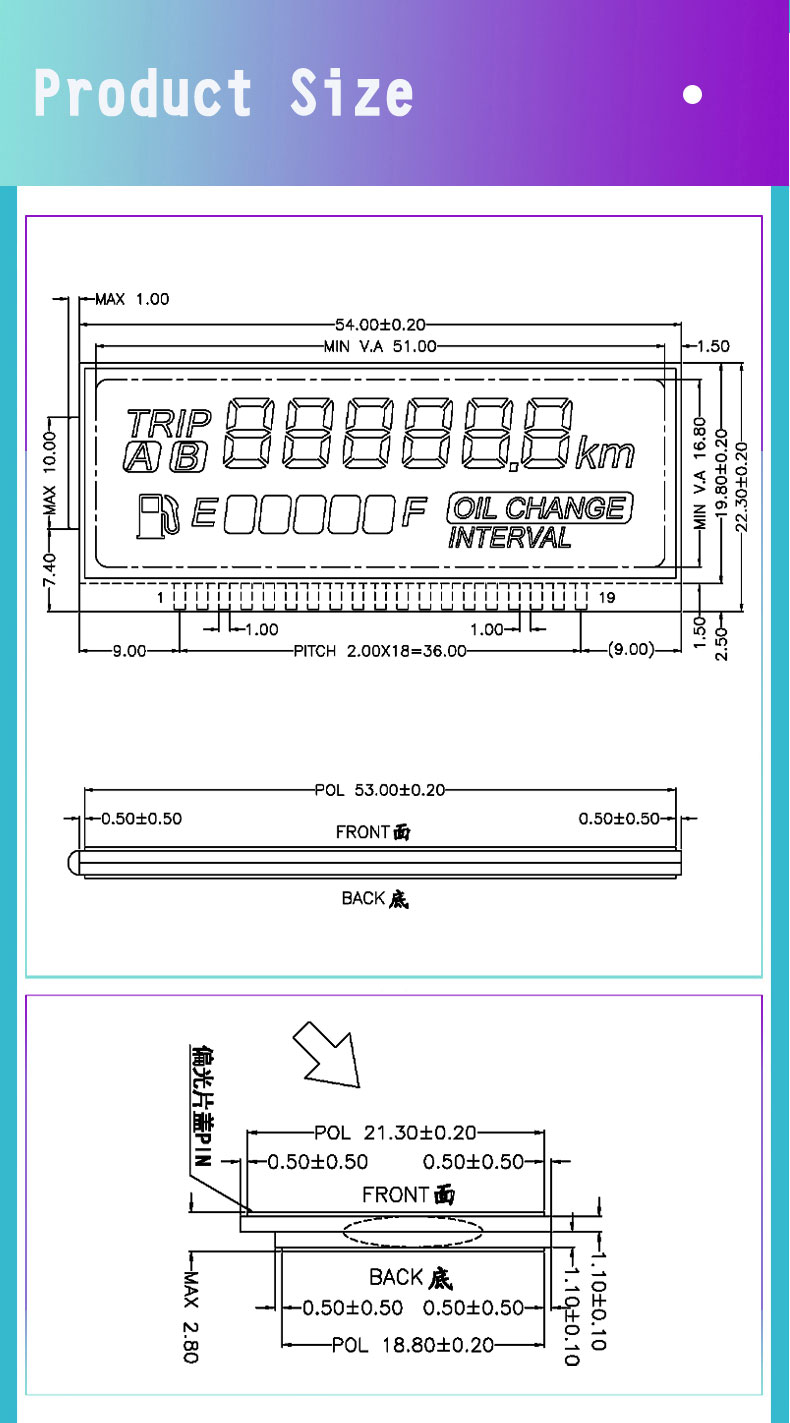

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
