Basic Information

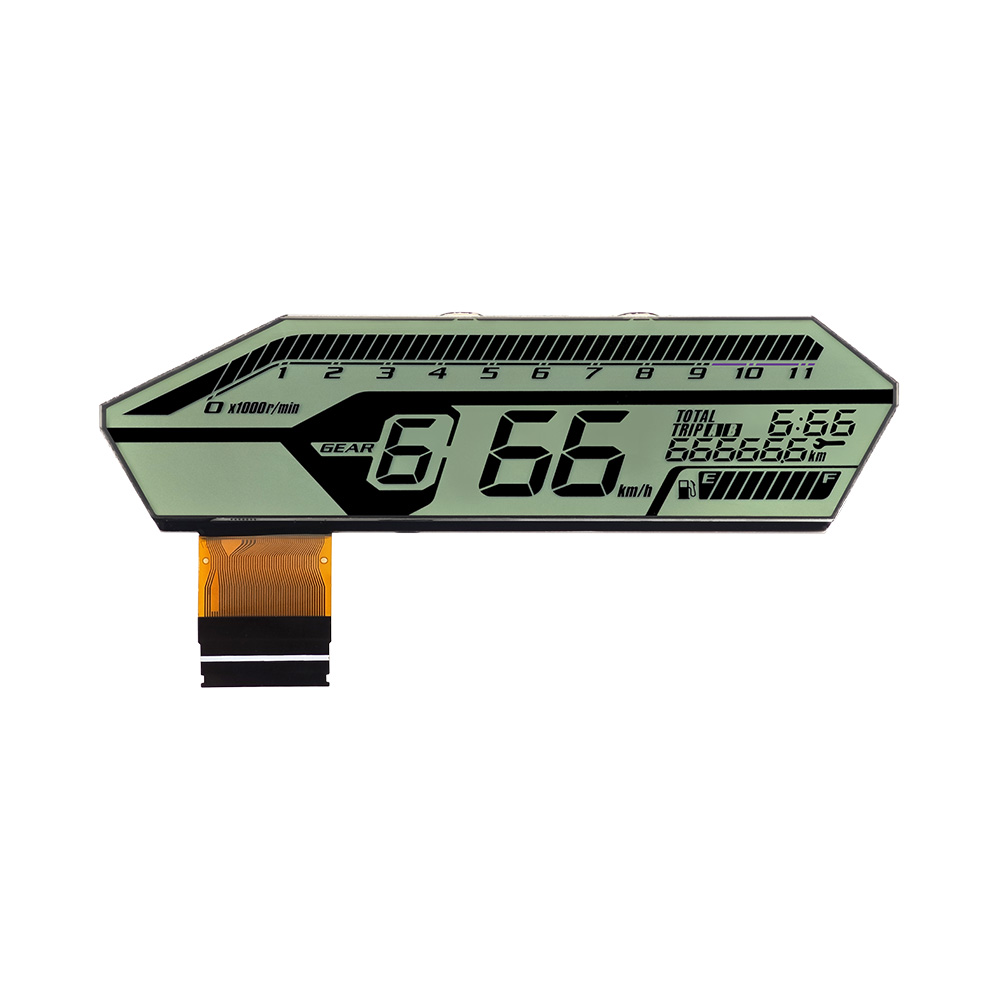

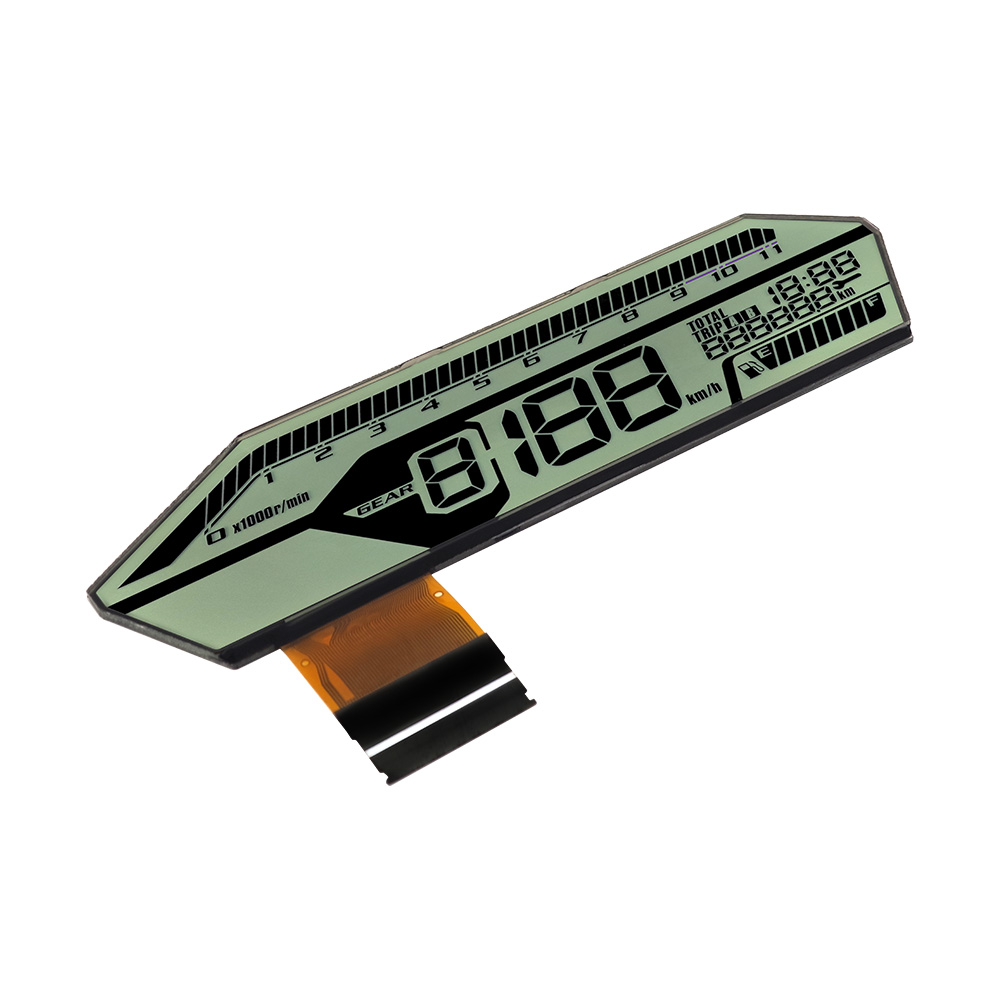

The SJXDGW049 Motorcycle Instrument Screen is a customized LCD display solution developed for modern motorcycle dashboard applications. Designed to provide clear and accurate visual information, it enables riders to monitor critical vehicle data quickly and efficiently. With a durable structure and optimized display performance, this instrument screen is suitable for daily transportation, recreational riding, and commercial vehicle applications. Its combination of reliability, readability, and low power consumption makes it a practical choice for contemporary motorcycle instrument clusters.
parameters：
| Character Type | Customized |
| Model | SJXDGW049 |
| Model Size | 164.5×45.5×2.8 mm |
| VA Size | 161.5×40.0 mm |
|

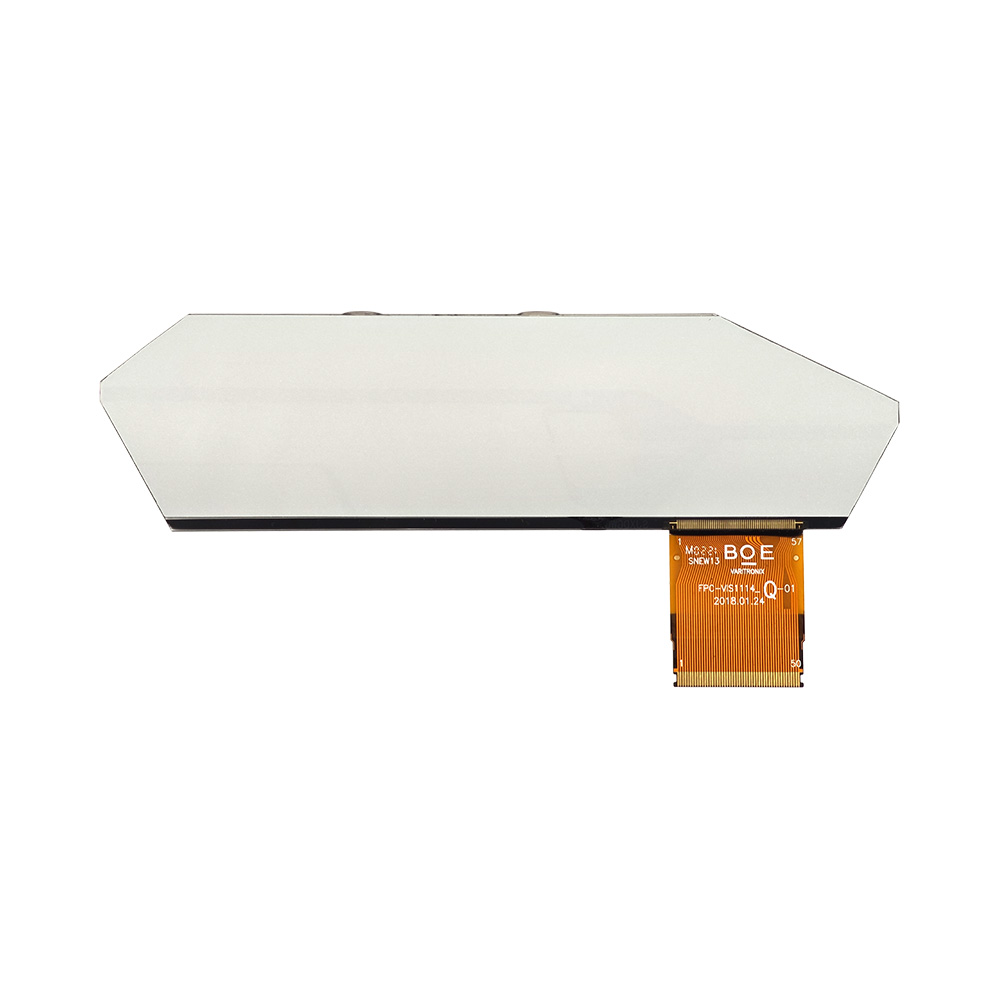

Connector
|
FPC |
|
LCD Type
|
HTN Positive |
|
Drive Conditions
|
1/4 D 1/3 B
|
|
Working Temperature
|
-20C TO +70°C
|
| Storage Temperature |
-30°C TO +80°C
|
|
Working Voltage
|
4.5V |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- In stock, fast delivery
Key Specifications
The SJXDGW049 features a customized segment layout tailored to motorcycle dashboard requirements. It is designed to display essential riding information such as speed, fuel level, trip data, gear indicators, and warning symbols. The display offers stable electrical performance and efficient power consumption, helping to support long-term operation within vehicle electronic systems. Its compact design allows seamless integration into dashboard assemblies while maintaining a clean and professional appearance. The screen is engineered to provide good contrast and visibility under a variety of lighting conditions, ensuring that important information remains easy to read throughout different riding environments.
Design Features
This motorcycle instrument screen is developed to withstand the challenges of vehicle operation, including vibration, temperature changes, and continuous use. The optimized segment structure provides clear symbol and digit presentation, improving the overall user experience. The display is designed for dependable performance and long service life, reducing maintenance requirements while supporting consistent dashboard functionality. Its customizable layout also allows manufacturers to create unique dashboard interfaces that match specific vehicle designs.
Applications
The SJXDGW049 is widely used in motorcycle dashboards, electric motorcycles, scooters, and other two-wheeled vehicle instrument systems. It can be integrated into speedometers, fuel monitoring systems, gear displays, odometers, and multifunction dashboard panels. Its adaptability makes it suitable for both standard and advanced vehicle designs.

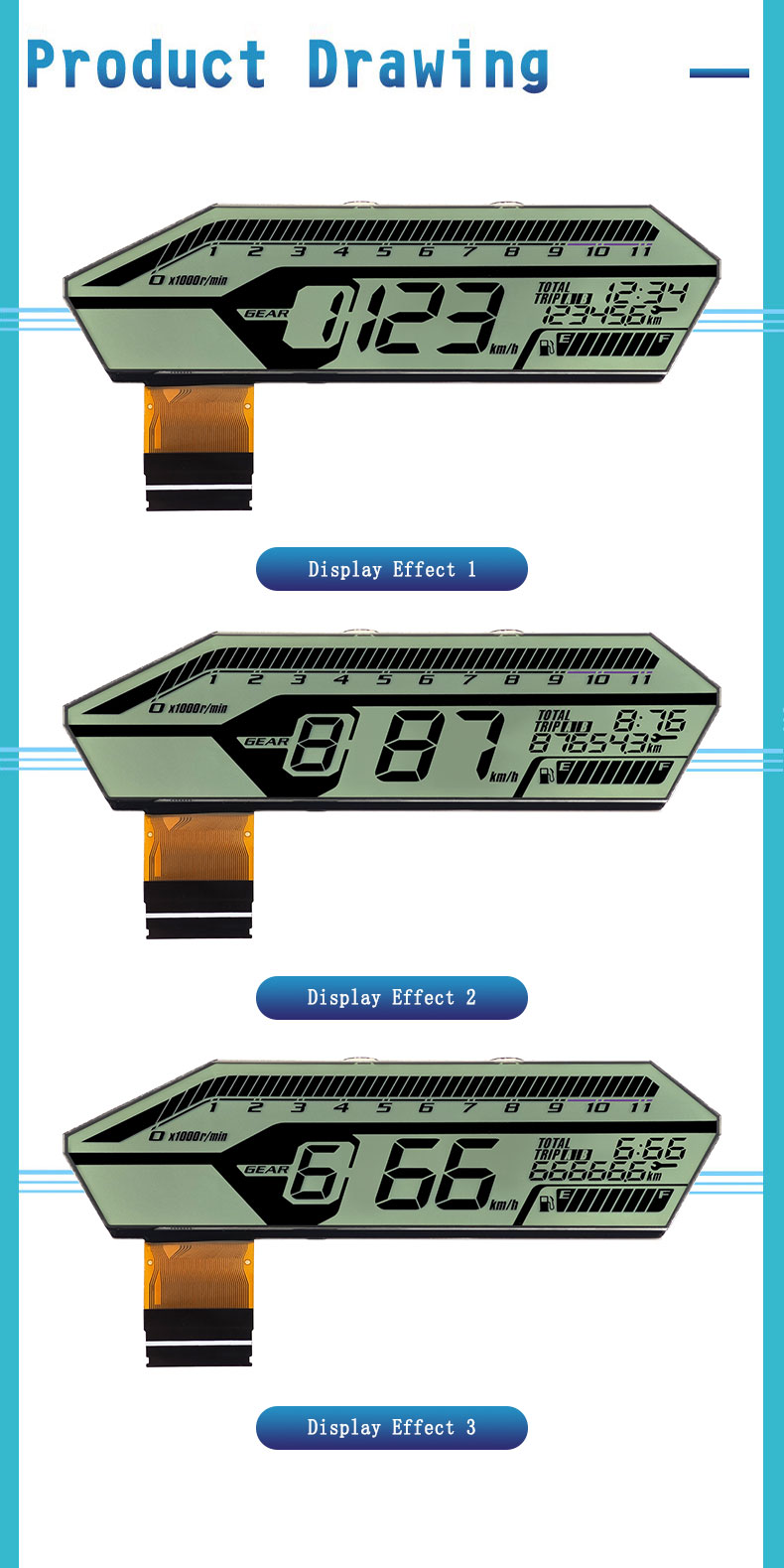

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
