Basic Information
Monochrome 1602 Character is a compact 16x2 LCD module designed for stable black-and-white text display in embedded systems. It features a VA negative screen, white LED backlight, 16PIN interface, and 3.3V or 5.0V operation. The high-contrast display improves readability in different lighting environments. It is widely used in industrial equipment, meters, control panels, home appliances, medical devices, and consumer electronics for reliable real-time information output.
Parameters:
| Character Type | 16X2 |
| Model | SJXD1602B |
| Model Size | 85.0×30.0×12.0 MM |
| VA Size | 64.5×14.0 MM |
|
Drive Voltage
|
3.3V/5.0V
|
|
Drive IC
|
ST7066/AIP31066
|
|
Backlight
|
White LED backlight
|
|
LCD Type
|
VA Negative
|
|

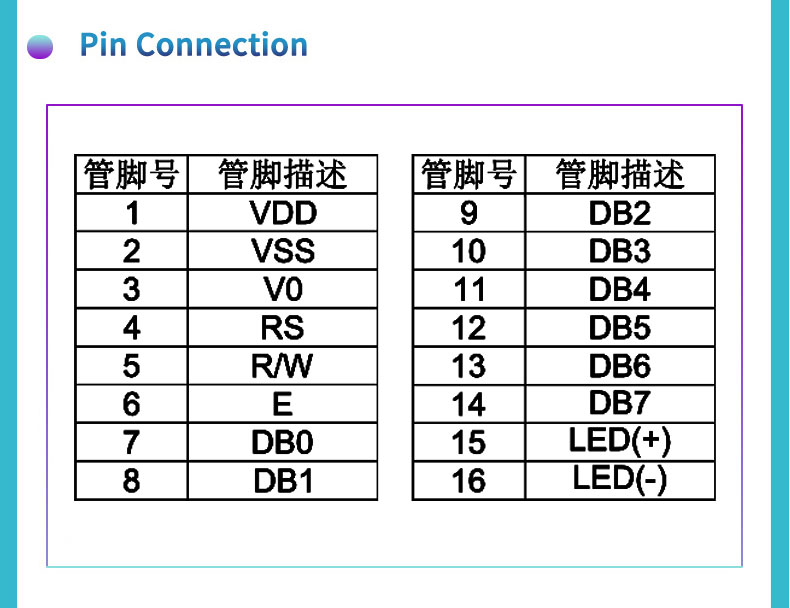

Interface
|
16PIN |
| Working Temperature |
-20°C - +70°C
|
|
Storage Temperature
|
-30°C - +80°C |
Feature

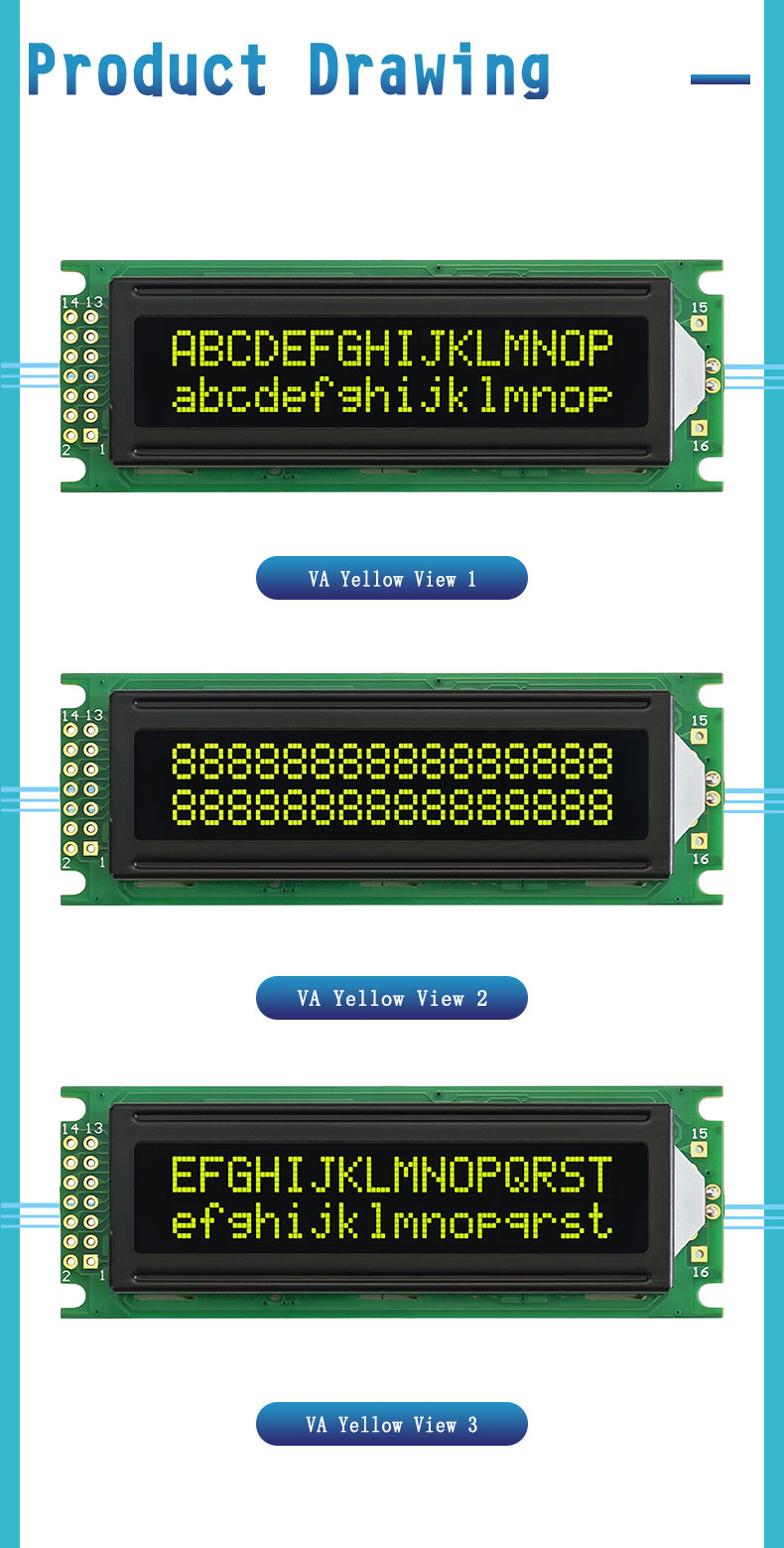

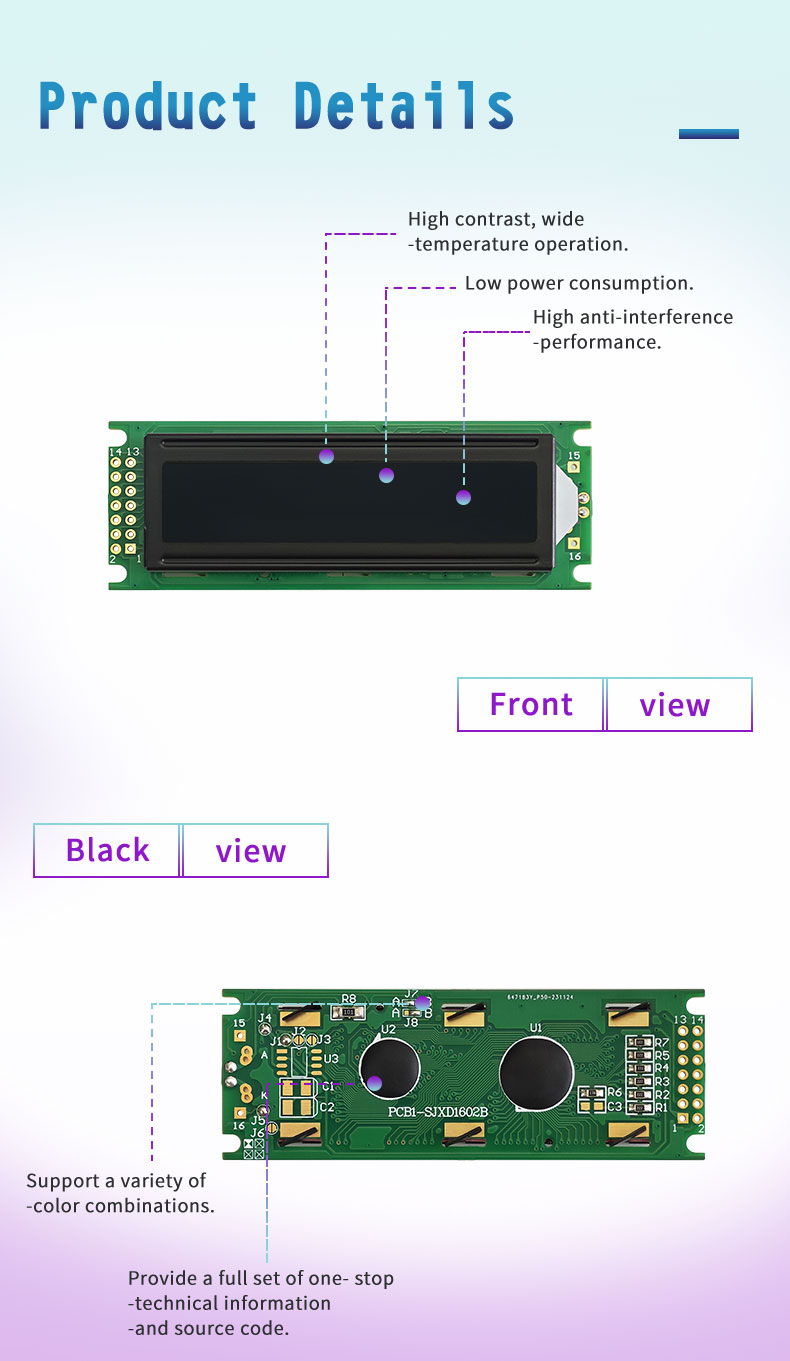

- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- The fastest batch delivery can be achieved within 15 days
Key Specifications
Monochrome 1602 Character is a 16x2 LCD display module designed for stable monochrome text output in embedded electronic systems. The SJXD1602B model adopts a VA negative LCD structure, providing high contrast dark-background visualization for improved readability. It features a compact 84.0×44.0×14.0 mm module size, 64.5×14.0 mm viewing area, 3.3V/5.0V operating voltage, ST7066/AIP31066 compatible driver IC, and 16PIN parallel interface. The white LED backlight ensures consistent brightness, while the module maintains stable operation across a wide temperature range for industrial and commercial use.
Design Standards
Monochrome 1602 Character is engineered under industrial display manufacturing standards focused on durability, electrical stability, and long-term reliability. The VA negative display technology enhances contrast performance and reduces visual fatigue in device interfaces. Its 16PIN standard interface ensures compatibility with common character LCD control systems, enabling easy integration into existing hardware designs. The module supports low power consumption, anti-interference performance, mechanical stability, and RoHS-compliant materials. It also allows customization options, technical documentation support, and fast sample availability for engineering validation and OEM development.
Applications
Monochrome 1602 Character is widely used in electronic devices requiring clear and reliable text display without graphical complexity. It is suitable for industrial instruments, control panels, smart meters, home appliances, medical equipment, automation systems, and consumer electronics. The module can display operational status, numeric values, system messages, warnings, and menu settings in real time. Its compact size, stable VA negative contrast, and standardized 16x2 format make it ideal for front-panel interfaces, embedded control units, prototype development, and cost-sensitive electronic applications requiring long-term display reliability.
Product Size
