Basic Information
COB 1602 Display is a compact 16x2 character LCD module designed for clear text and numeric output in embedded electronic systems. It adopts COB structure, STN positive display mode, white LED backlight, and 16PIN interface with 3.3V or 5.0V operation. The integrated driver design improves stability and reduces wiring complexity. It is widely used in industrial instruments, control panels, home appliances, medical devices, consumer electronics, and DIY development projects for reliable information display.
Parameters:
| Character Type | 16X2 |
| Model | JXD1602A-F |
| Model Size | 80.0×36.0×13.5 MM |
| VA Size | 64.5×16.0 MM |
|
Drive Voltage
|
3.3V/5.0V
|
|
Drive IC
|
KS0066/AIP31066
|
|
Backlight
|
Green LED backlight
|
|
LCD Type
|
STN Positive
|
|
Interface
|
16PIN |
| Working Temperature |
-20°C - +70°C
|
|
Storage Temperature
|
-30°C - +80°C |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- The fastest batch delivery can be achieved within 15 days
Key Specifications
COB 1602 Display is a 16x2 character LCD module designed for stable text output in embedded electronic systems. The JXD1602A-F model adopts COB (Chip-on-Board) technology, integrating the driver IC directly onto the PCB to improve reliability and simplify circuit structure. It features an 84.0×44.0×14.0 mm module size, 64.5×14.0 mm viewing area, 3.3V/5.0V operating voltage, ST7066/AIP31066 compatible driver IC, 16PIN parallel interface, and white LED backlight. The STN positive LCD mode provides balanced contrast and clear character visibility for standard viewing conditions.
Design Standards
COB 1602 Display is developed according to industrial-grade manufacturing standards, focusing on durability, stable electrical performance, and long-term reliability. The COB structure reduces external wiring complexity and enhances signal integrity by embedding the driver IC within the module. The 16PIN interface ensures compatibility with standard character LCD systems, making it suitable for direct replacement and embedded integration. Its STN positive display design ensures uniform optical performance and stable viewing angles. The module also supports low power consumption, anti-interference capability, RoHS compliance, and flexible customization for different application requirements.
Applications
COB 1602 Display is widely used in electronic devices that require simple and reliable character-based information display. It is commonly applied in industrial instruments, control panels, smart meters, home appliances, medical devices, automation systems, and consumer electronics. The module can display menus, system status, numeric values, warnings, and operational messages in real time. Its compact COB structure and stable 16x2 format make it suitable for space-limited designs, front-panel interfaces, prototype development, and cost-sensitive embedded solutions requiring long-term display stability.

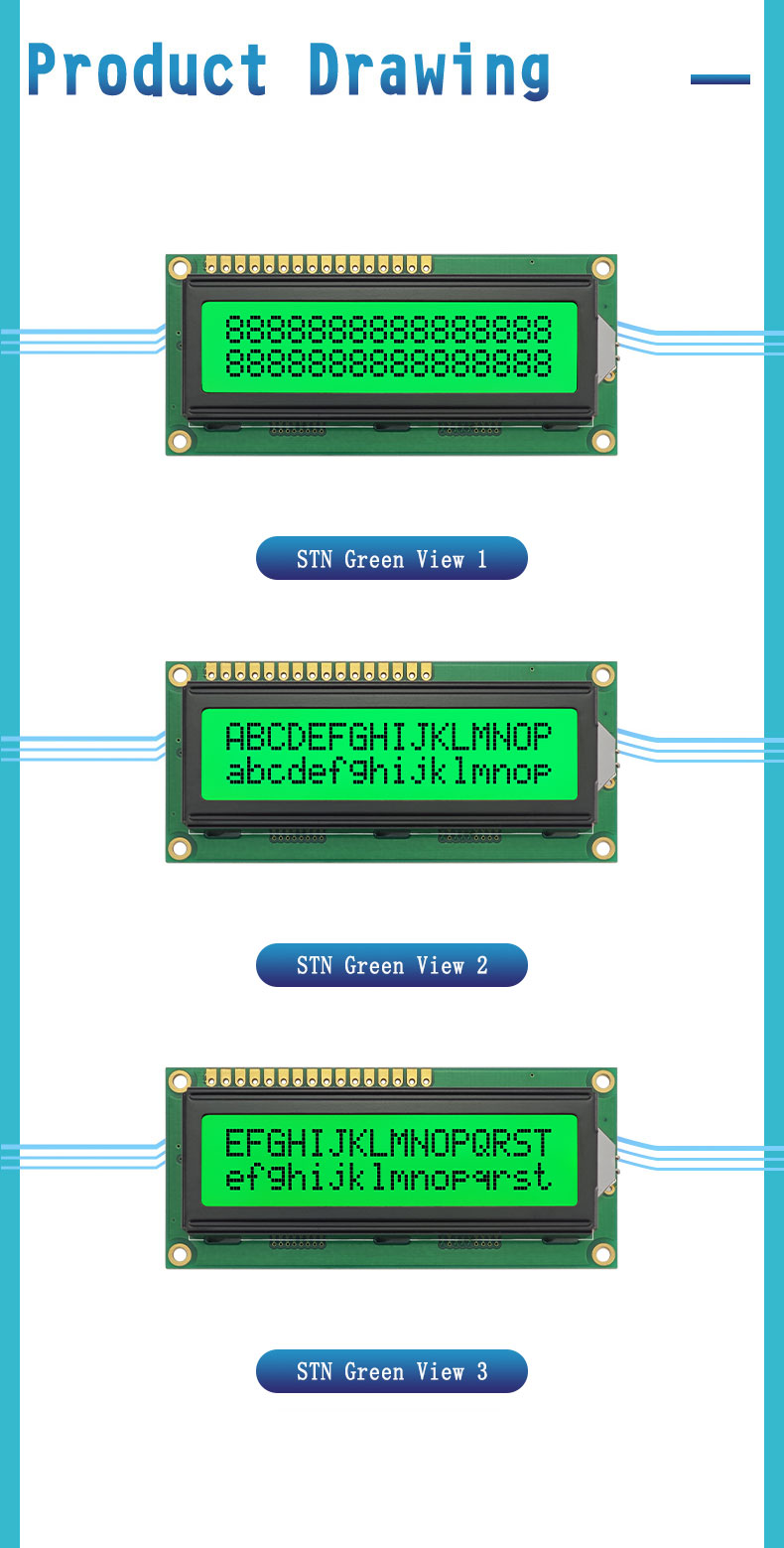

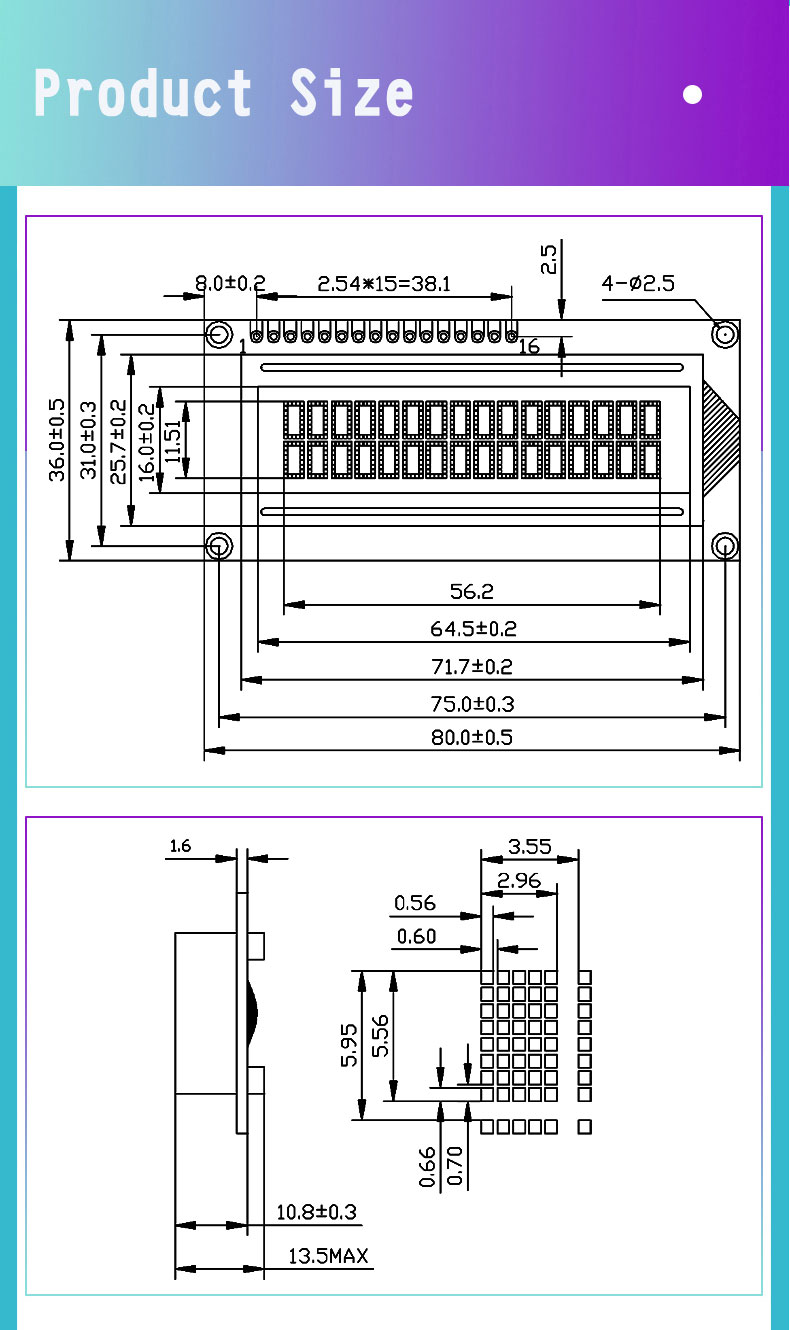

Product Size
