Basic Information
The LCD segment display module SJXDGW001 is a flexible segmented LCD solution designed to present multi-style numeric and symbolic information in electronic systems. It is developed to support customized segment fonts and structured display layouts, enabling clear and adaptable visual output for a wide range of embedded and industrial applications. This module is ideal for devices that require both standard numeric representation and enhanced symbol-based communication within a compact display format.
Parameters:
| Character Type | Customized |
| Model | SJXDGW001 |
| Model Size | 50.0×45.2×2.8mm |
| VA Size | 47.0×37.8mm |
|
Connector
|
Conductive adhesive strip |
|
LCD Type
|
HTN Positive |
|
Drive Conditions
|
1/4D 1/3B
|
|
Working Temperature
|
-20°C TO +70'C
|
| Storage Temperature |
-30'C TO +80'C
|
|
Working Voltage
|
5.0 V |

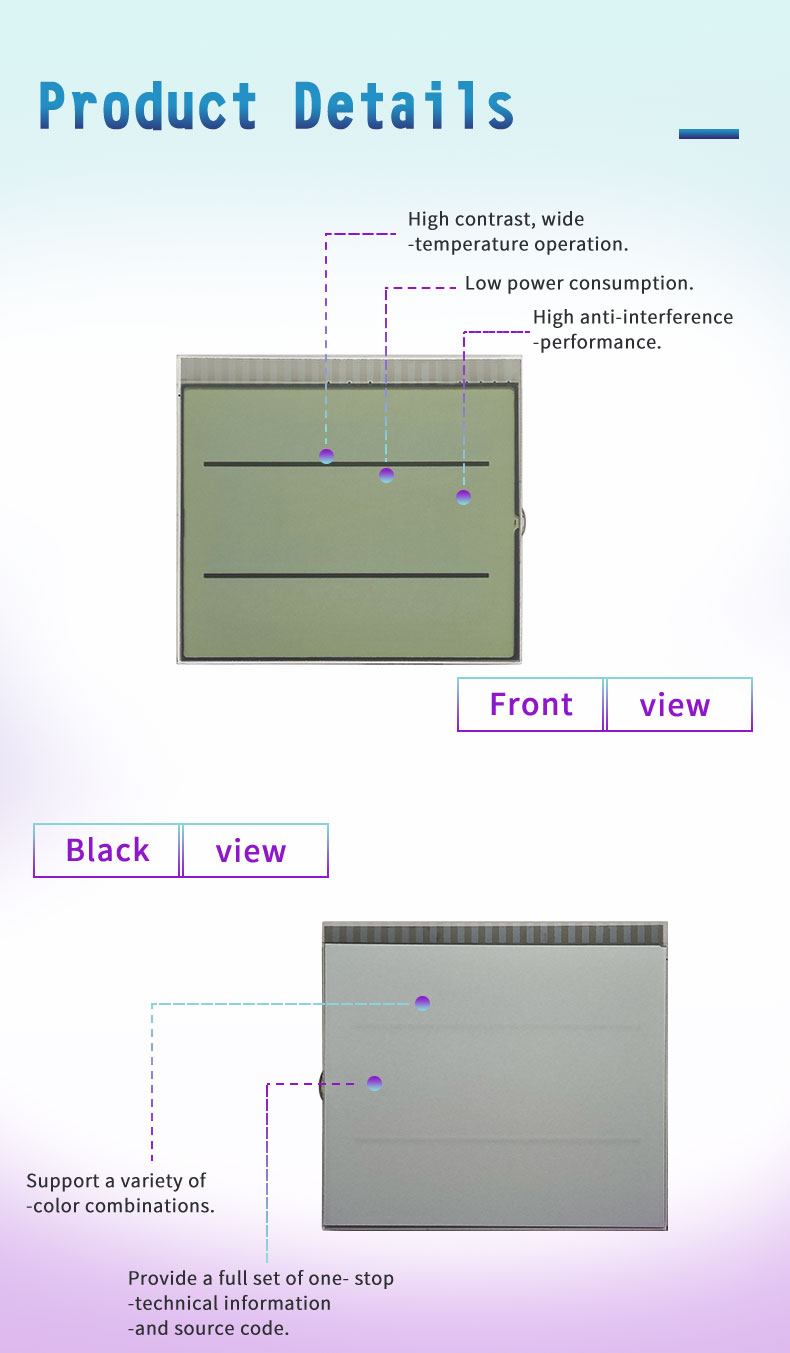

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- In stock, fast delivery
Key Specifications
This LCD segment display module features a multi-segment architecture capable of supporting customized font structures and complex segment arrangements. It provides sharp and stable visual output for numbers, letters, and special symbols, ensuring clear information presentation in various electronic systems. The display offers high contrast performance, making it suitable for indoor viewing environments where readability is essential. It operates at low voltage, allowing seamless integration into energy-efficient and battery-powered devices. The module is designed for ultra-low power consumption, supporting long-term continuous operation without excessive energy usage. It maintains stable optical and electrical performance across a wide temperature range, ensuring reliable functionality in different working conditions. Its compact and adaptable structure allows easy integration into control panels, smart meters, and embedded instrumentation systems. The fast response of segment activation ensures real-time display accuracy without delay or flicker.
Design Standards
The module is manufactured according to strict industrial LCD design standards to ensure durability, consistency, and long-term operational stability. High-quality liquid crystal materials are used to maintain uniform segment clarity and optical stability over extended use. Circuit design is optimized to reduce electromagnetic interference and ensure stable signal transmission in electronic environments. The structure is reinforced to withstand mechanical stress, temperature variation, and continuous operational cycles. Each unit undergoes comprehensive inspection to verify segment accuracy, font clarity, and electrical reliability. Low power engineering principles are applied to enhance efficiency and extend device lifespan.
Applications
The LCD segment display module is widely used in smart meters, industrial control systems, embedded electronic devices, portable instruments, and customized display interfaces. It is also suitable for consumer electronics, medical devices, and utility monitoring equipment requiring flexible segment fonts and stable visual output. Its combination of adaptability, clarity, and low power consumption makes it an effective solution for modern electronic display applications requiring customizable segmented information presentation.
Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
