Basic Information
Industrial monochrome LCD is engineered for demanding embedded and control system environments that require stable, long-term visual performance. The JXD19264FC model delivers a high-clarity monochrome output designed to present structured information such as numerical data, system status, and simplified graphics. With its expanded display area and optimized resolution, it supports efficient human-machine interaction in industrial and technical equipment.
Parameters:
| Model | JXD19264FC |
| Model Size | 130.0×65.0×12.5 mm |
| Field of View Size | 104.0×39.0mm |
| Display Mode | STN positive |
| Viewing Angle | 6 o'clock |
| Top |
-20°C - +70°C
|
|
Tst
|
-25°C - +80°C |
|
Connector
|
ST7920 |
|
Backlight
|
Yellow LEDs backlight |
|
Drive Voltage
|
5.0V or 3.3V |

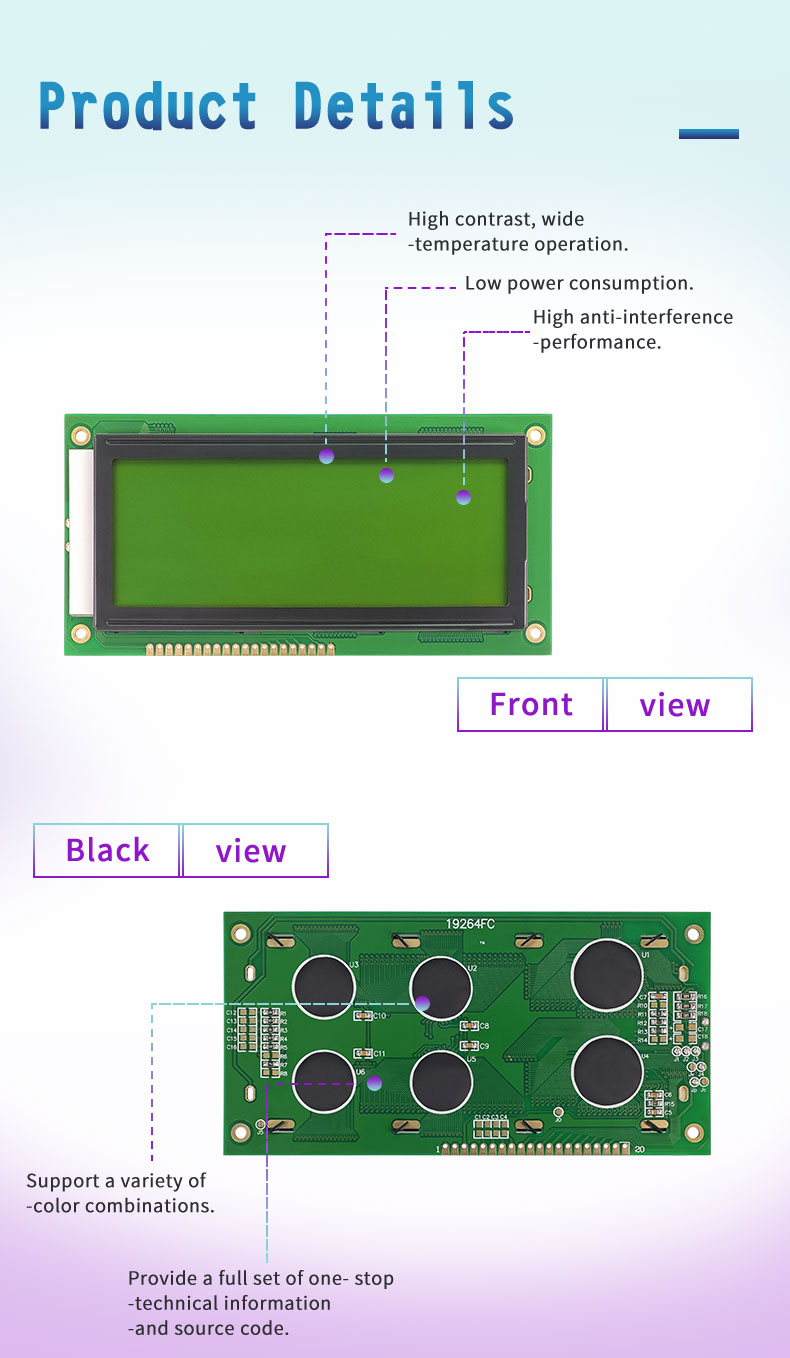

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
This industrial monochrome LCD features a 192×64 dot matrix layout, enabling detailed text and multi-line data visualization within a single compact module. It is built with a high-contrast liquid crystal structure to maintain readability under both indoor lighting and moderate ambient brightness conditions. The module is designed for low power operation, making it suitable for continuous-use systems and energy-conscious applications. Standard interface compatibility allows integration with a wide range of embedded controllers and industrial processors. The stable driving architecture ensures consistent refresh behavior and reduces display flicker during operation. Viewing performance remains uniform across multiple angles, ensuring clear visibility for operators in different working positions.
Design Standards
The module is manufactured according to industrial-grade reliability requirements, ensuring consistent performance in long-term deployments. Reinforced glass construction and precision alignment of liquid crystal layers enhance mechanical durability and optical stability. Anti-electromagnetic interference design helps maintain signal integrity in electrically noisy environments such as factories and automation systems. Thermal stability engineering allows the display to operate reliably across extended temperature ranges without degradation in response speed or contrast. The structure is optimized for extended lifecycle use, reducing maintenance requirements in critical systems.
Applications
Industrial monochrome LCD modules are widely used in automation equipment, measurement instruments, medical devices, and communication systems. They are particularly effective in control panels, diagnostic tools, and embedded terminals where clear and stable information output is essential. The JXD19264FC is also suitable for handheld testing devices, industrial monitoring units, and custom embedded solutions requiring reliable visual interfaces. Its balance of readability, efficiency, and durability makes it a practical choice for modern industrial electronic design.

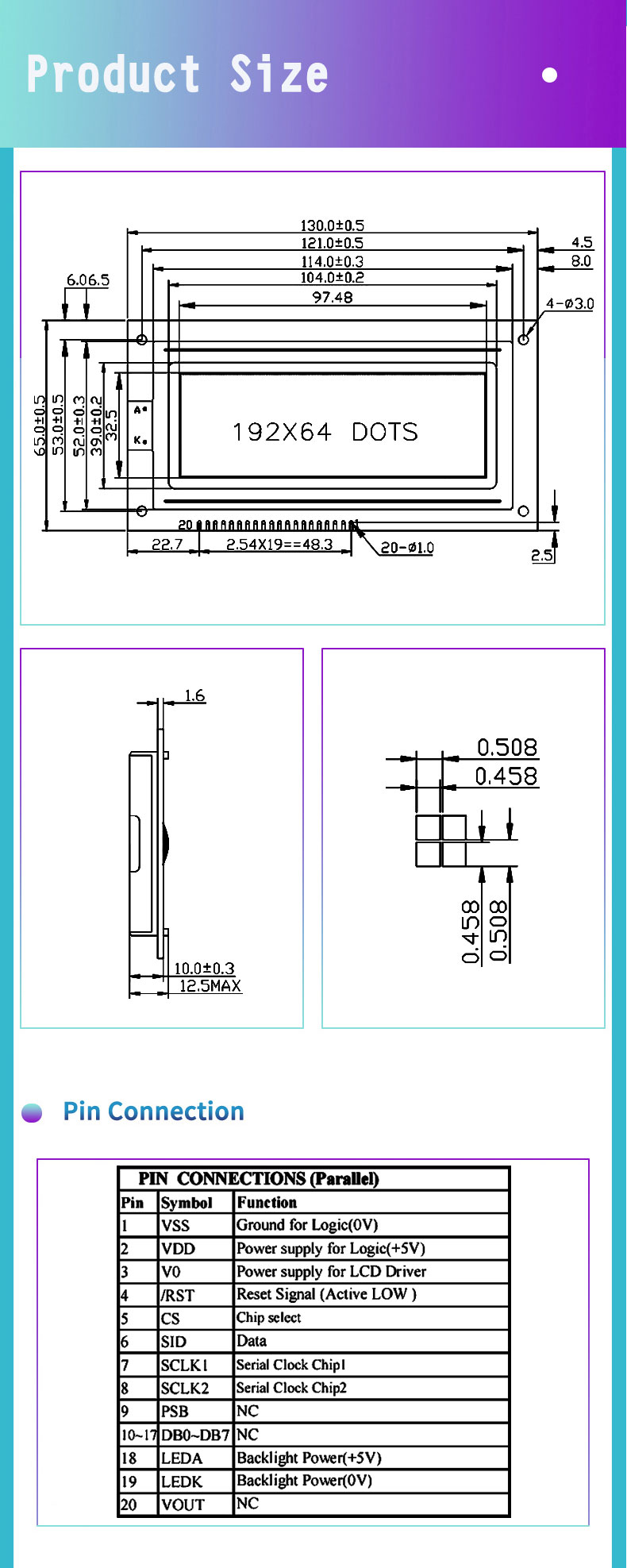

Product Size
FAQ
Q: What are the advantages of this display screen?
A: Advantages of wide temperature range, low energy consumption, and high brightness display.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
