Basic Information
Parameters:
| Character Type | 16X1 |
| Model | JXD1601A |
| Model Size | 80.0×36.0×12.0 MM |
| VA Size | 64.5×14.0 MM |
|
Drive Voltage
|
3.3V/5.0V
|
|
Drive IC
|
ST7066/AIP31066
|
|
Backlight
|
White LED backlight
|
|
LCD Type
|
STN Negative
|
|
Interface
|
16PIN parallel port
|
| Working Temperature |
-20°C - +70°C
|
|
Storage Temperature
|
-30°C - +80°C |

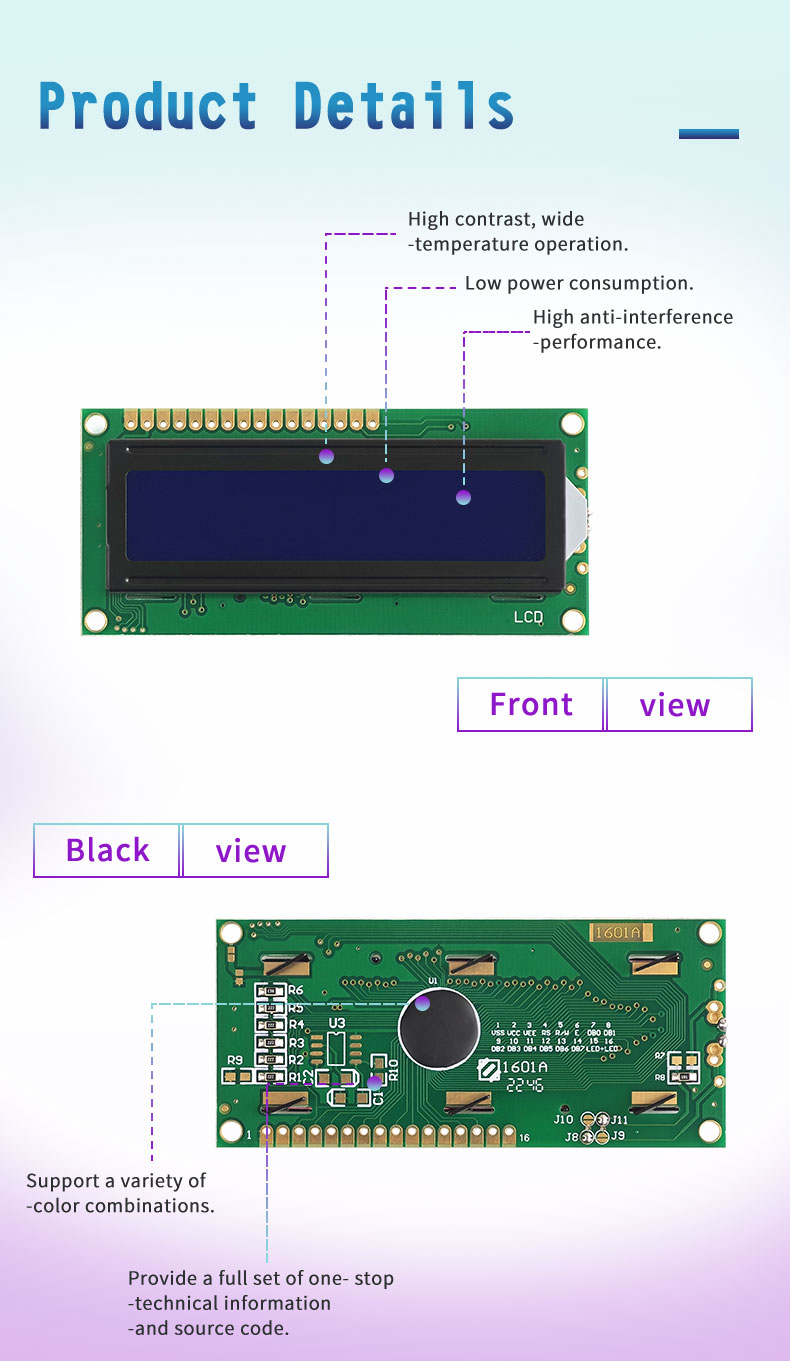

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- The fastest batch delivery can be achieved within 15 days

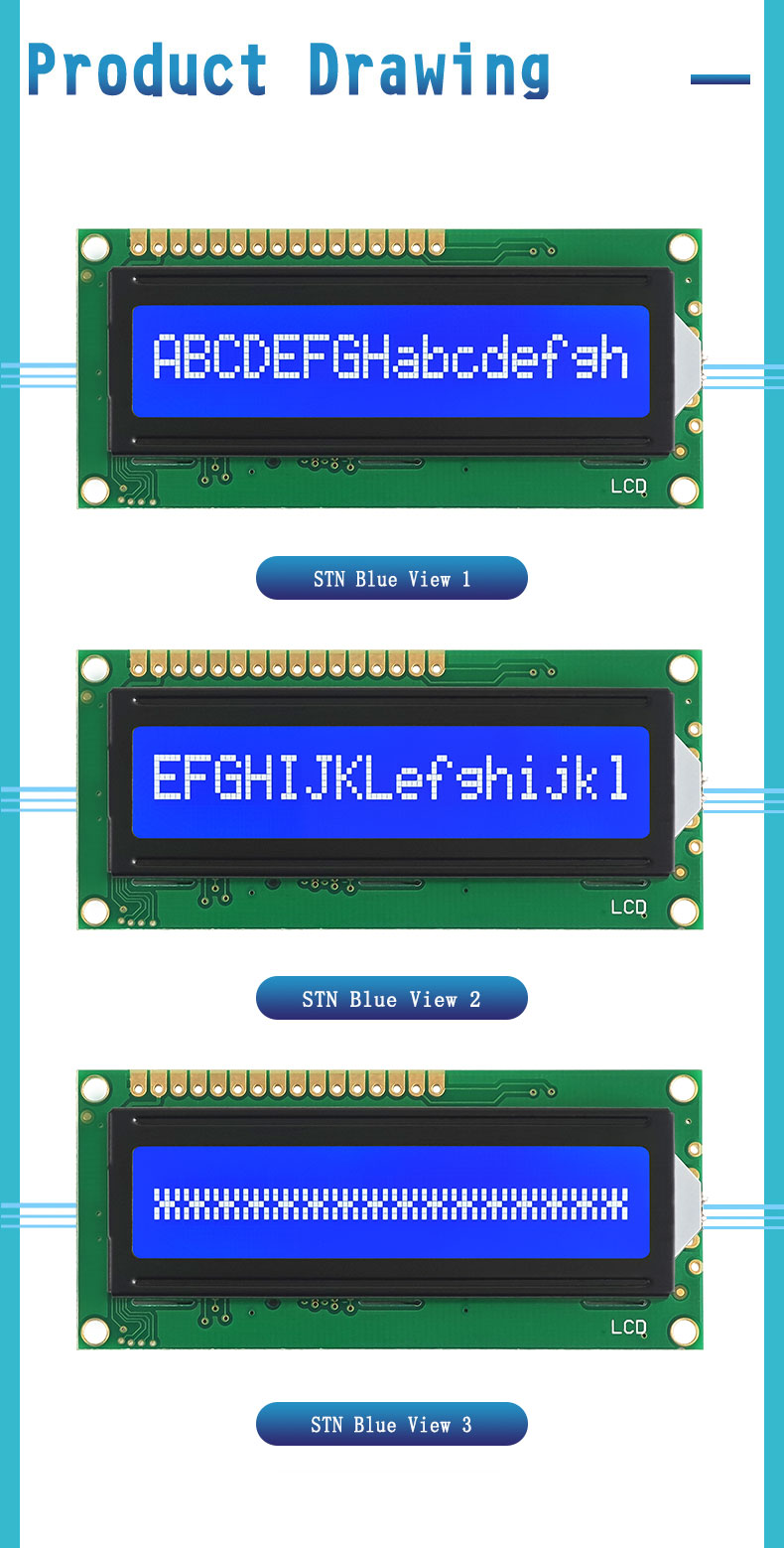

Key Specifications
LCD Display Panel JXD1601A is a 16×1 character LCD module designed for text, numbers, symbols, menu options, and basic data output. It features an 80.0×36.0×12.0 mm module size, 64.5×14.0 mm viewing area, 3.3V/5.0V drive voltage, ST7066/AIP31066 drive IC, and 16PIN parallel port interface. With STN Negative LCD type and white LED backlight, it provides clear character visibility for compact electronic devices.
Design Standards
LCD Display Panel is designed for high contrast, wide-temperature operation, low power consumption, and strong anti-interference performance. It supports working temperatures from -20°C to +70°C and storage temperatures from -30°C to +80°C, helping maintain reliable performance in different environments. The product also supports multiple color combinations, customization, complete technical information, source code support, 1–3 day samples, and fast batch delivery for development projects.
Applications
LCD Display Panel is suitable for meters, equipment control panels, information display systems, home appliances, industrial controls, medical devices, consumer electronics, and DIY electronic projects. It works well for applications that need large font characters, numbers, status messages, menu options, and basic system data. With compact size, STN Negative viewing effect, white LED backlight, and stable character output, it supports both prototype testing and customized production.

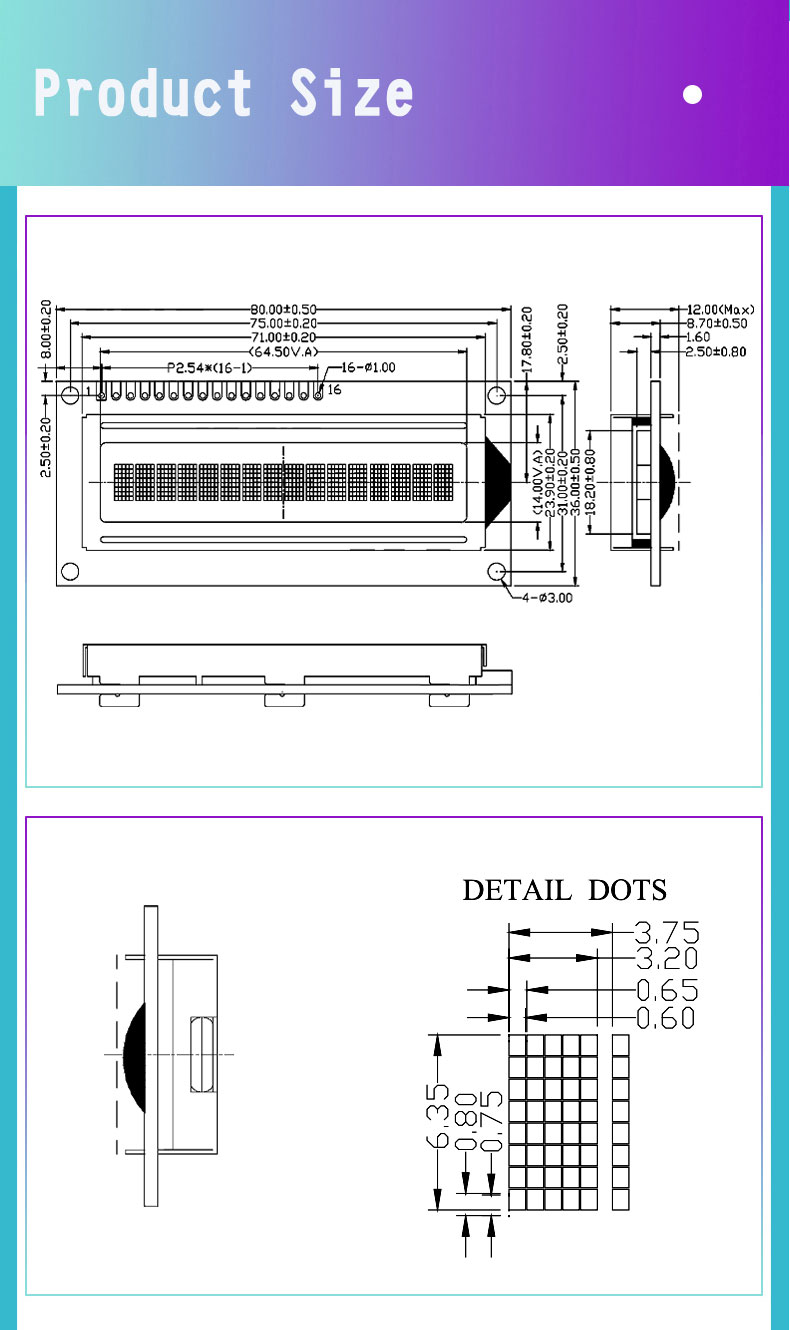

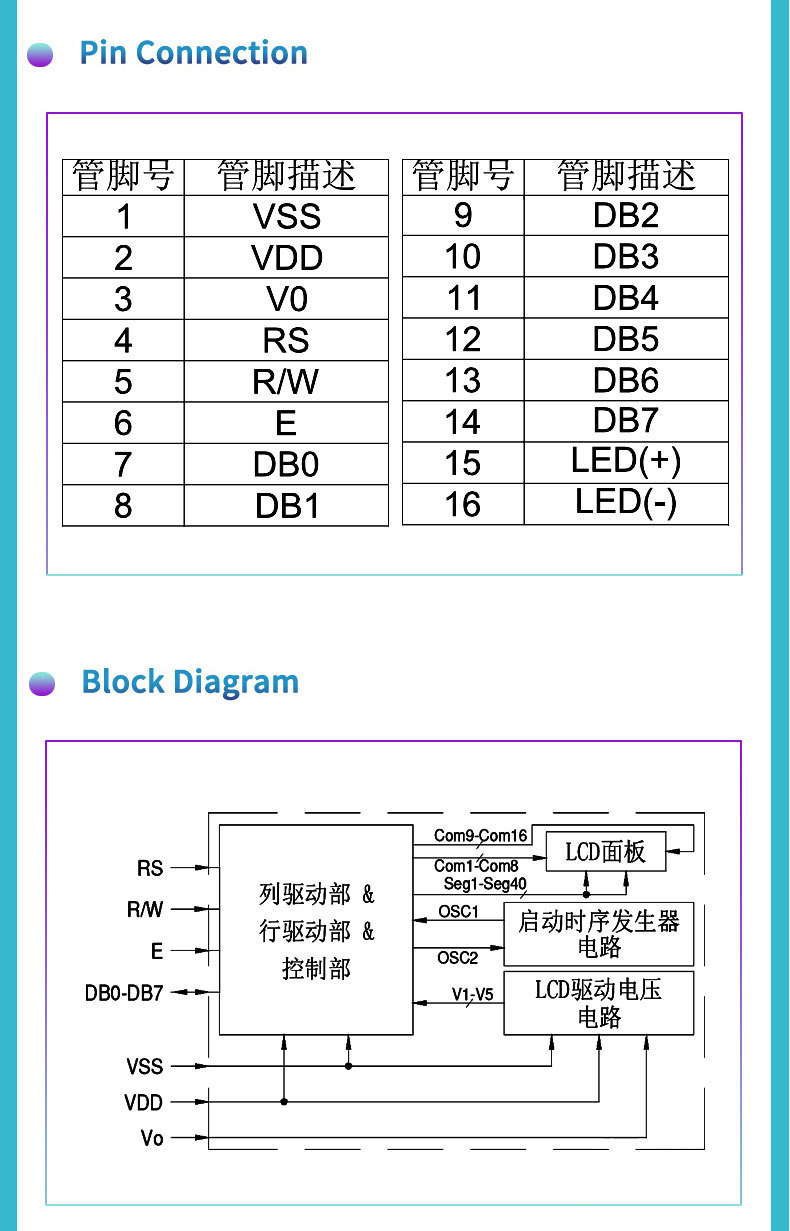

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: What is this screen used for？
A: Character LCD screens are widely used in home appliances, industrial controls, medical devices, consumer electronics, and DIY projects, suitable for displaying status information, menu options, and basic data.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
