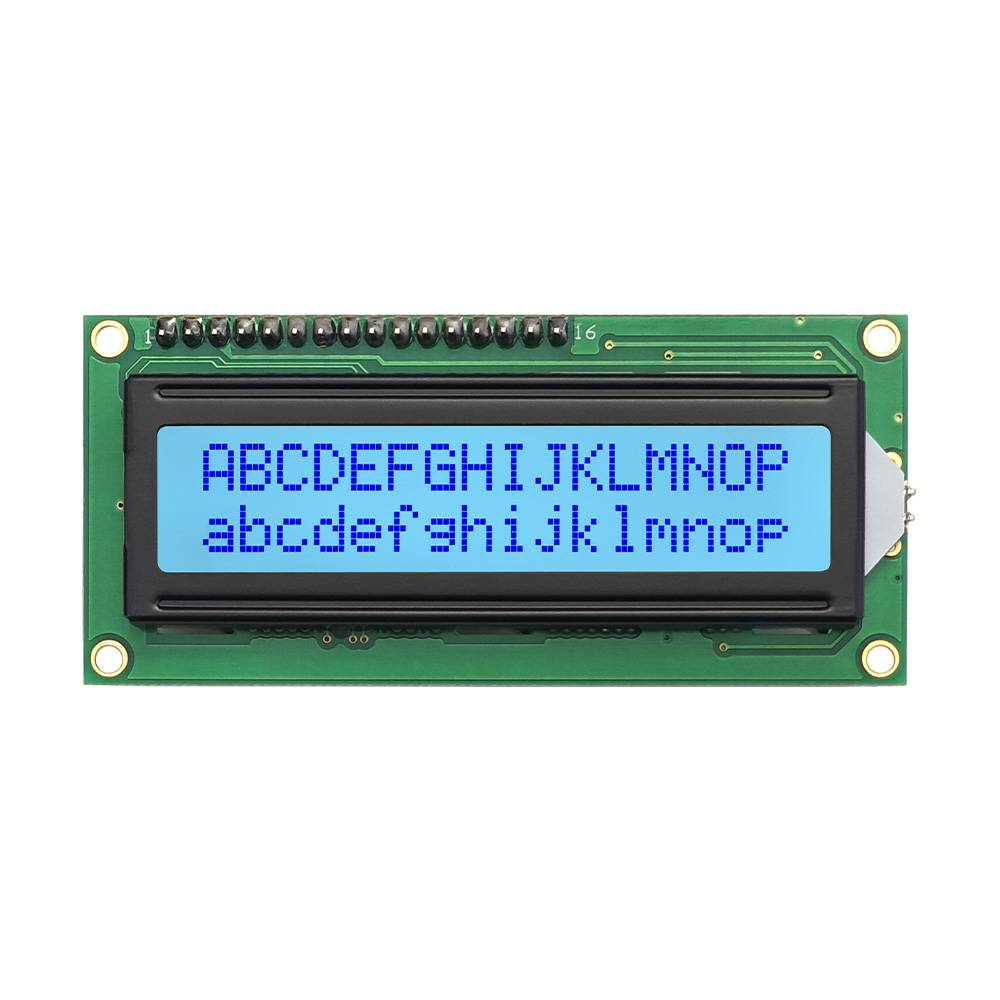

LCD 1602 I2C 3.3 V - JXD1602A-IIC （STN Positive）

LCD 1602 I2C 3.3 V is a compact 16x2 character module for low-voltage embedded projects and controller panels. It uses IIC/I2C communication to reduce wiring while keeping more pins available for sensors and control parts. The JXD1602A-IIC design supports 3.3V/5V operation, ST7066/AIP31066 controller options, white LED backlight, and STN positive display mode. It can show values, menus, alerts, timers, and connection status in smart devices, instruments, teaching kits, and DIY electronics.

Parameters:

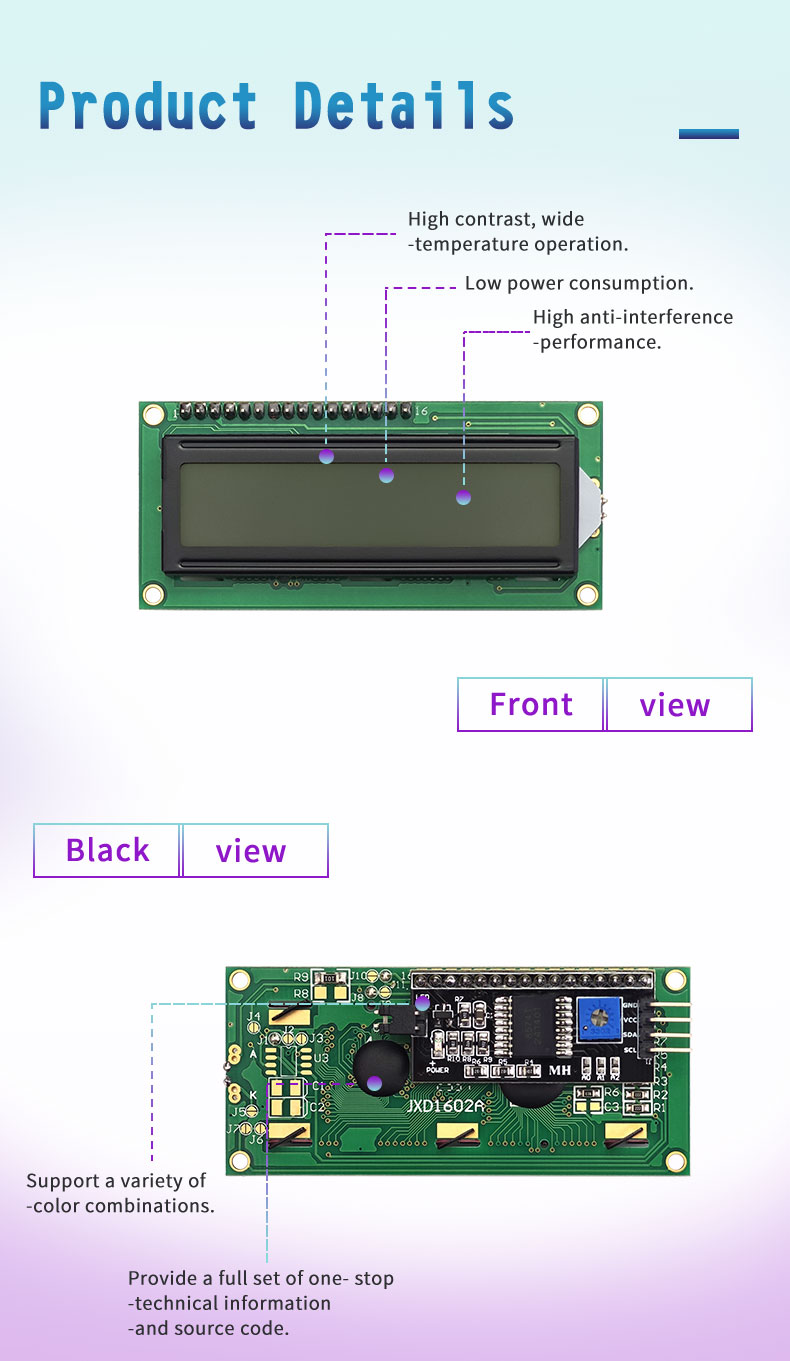

• High contrast, wide-temperature operation
• Low power consumption, high anti-interference performance
• Support for multiple color combinations
• Provide a complete set of one-stop technical information and source code
• Supports customization
• Supports 1-3 day samples
• High quality and cost-effective
• The fastest batch delivery can be achieved within 15 days

Key Specifications

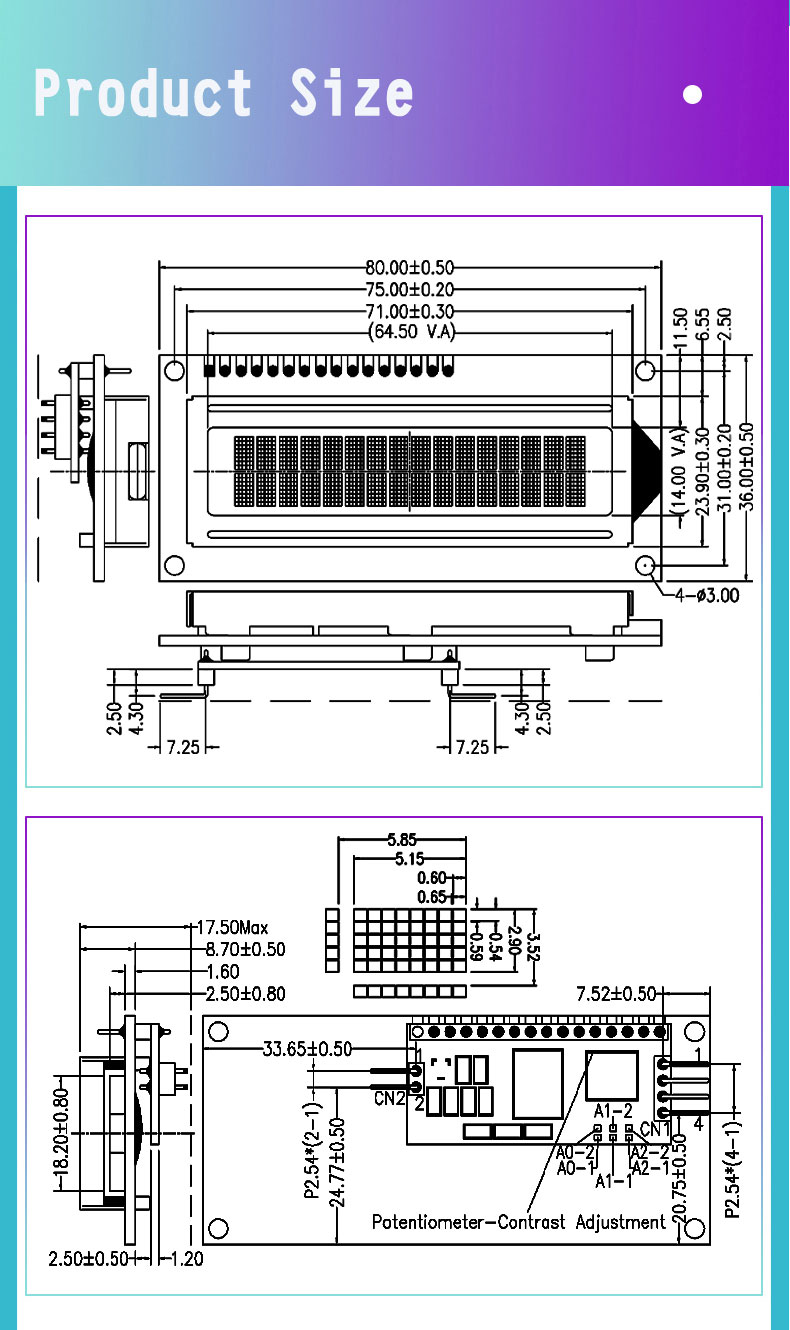

LCD 1602 I2C 3.3 V is a 16x2 character display module designed for low-voltage controller projects and compact electronic equipment. The JXD1602A-IIC model features an 80.0×36.0×17.5mm module outline and a 64.5×14.0mm viewing area, giving developers two rows for values, labels, prompts, and short messages. It supports 3.3V/5.0V drive voltage, ST7066/AIP31066 controller IC options, IIC/I2C communication, white LED backlight, and STN positive display mode. Its operating temperature range is -20°C to +70°C, with storage tolerance from -30°C to +80°C.

Design Standards

LCD 1602 I2C 3.3 V is built for cleaner wiring and easier integration with Arduino, Raspberry Pi, ESP, and other microcontroller systems. The I2C interface reduces the number of signal connections, helping engineers reserve more pins for sensors, buttons, communication modules, or control circuits. The white backlight supports clear viewing in equipment panels, while the 06:00 viewing direction suits front-mounted installation. The module also offers low power use, high contrast, anti-interference performance, and customization options for backlight color, display layout, housing fit, and project-specific appearance.

Applications

LCD 1602 I2C 3.3 V is suitable for products that need stable two-line text display without the cost or complexity of a graphic screen. It can show temperature, voltage, humidity, timer data, menu items, alarm notices, connection status, and basic operating instructions. Common applications include low-voltage development boards, smart home controllers, sensor monitors, handheld instruments, teaching kits, DIY electronics, appliance panels, access systems, medical device interfaces, and industrial control units. Its compact structure and I2C communication make it practical for space-limited designs.

Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.

Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.

Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.

Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.

Q: What is this screen used for？
A: Character LCD screens are widely used in home appliances, industrial controls, medical devices, consumer electronics, and DIY projects, suitable for displaying status information, menu options, and basic data.

If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
