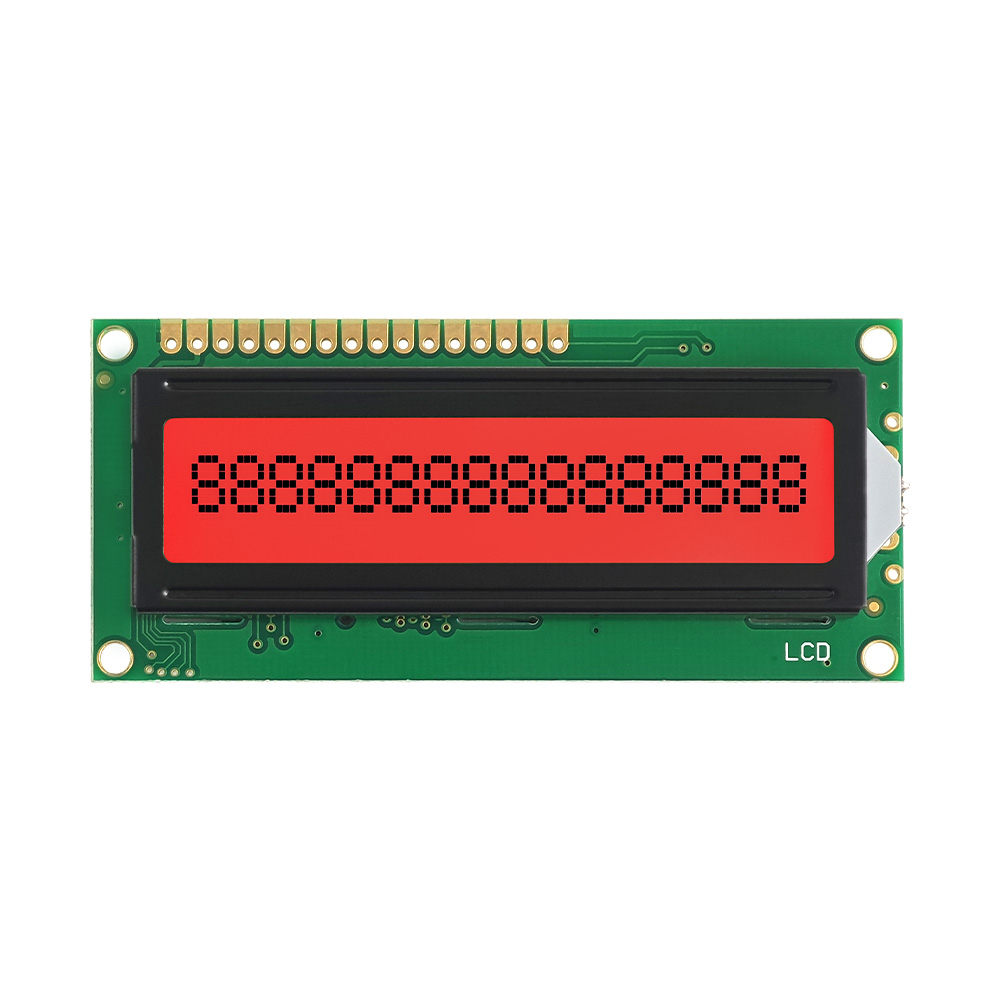

lcd 1601 - JXD1601A （FSTN Positive）

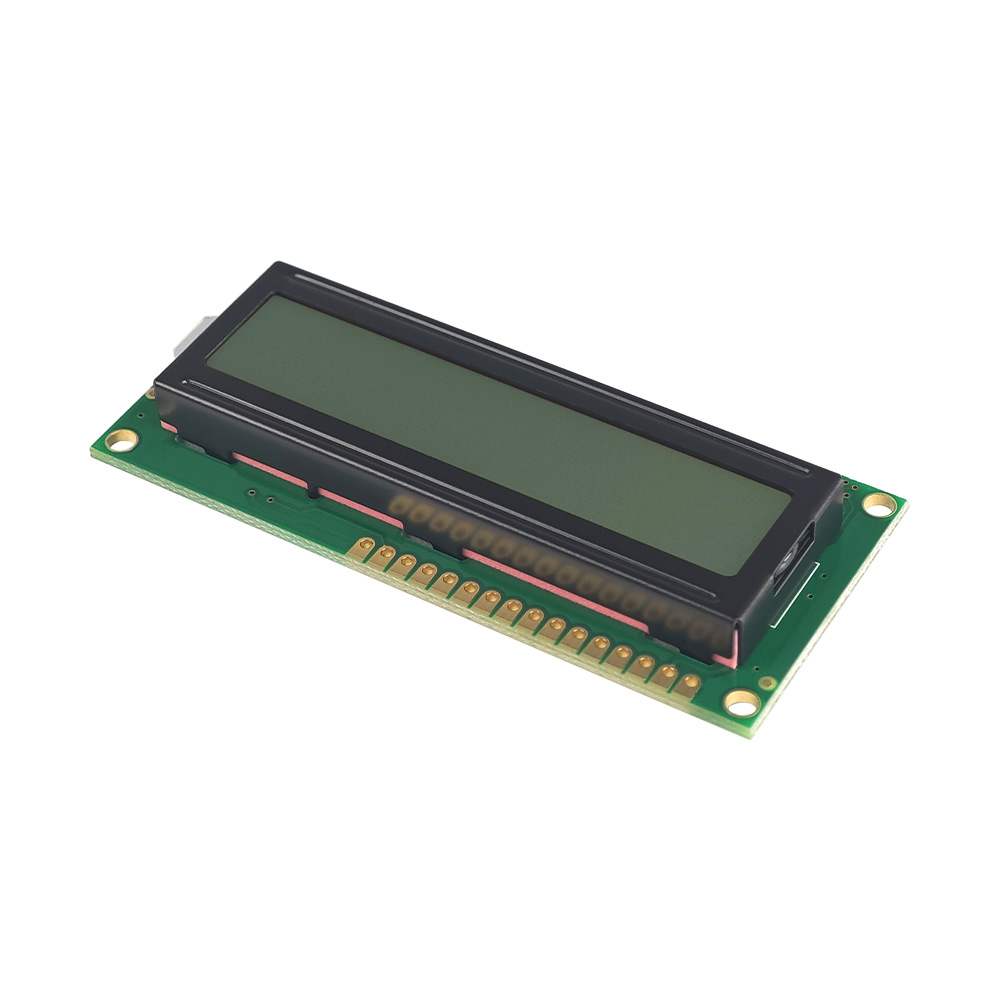

lcd 1601 is a 16×1 character LCD module for devices that need one-row text, numbers, or symbols in a compact panel. The JXD1601A model features an 80.0×36.0×12.0mm outline, 64.5×14.0mm viewing area, 3.3V/5V drive voltage, ST7066/AIP31066 controller options, white LED backlight, FSTN positive display mode, and 16PIN parallel interface. It supports values, prompts, mode labels, and status messages in meters, appliances, industrial controls, medical devices, test tools, and embedded projects.

Parameters:

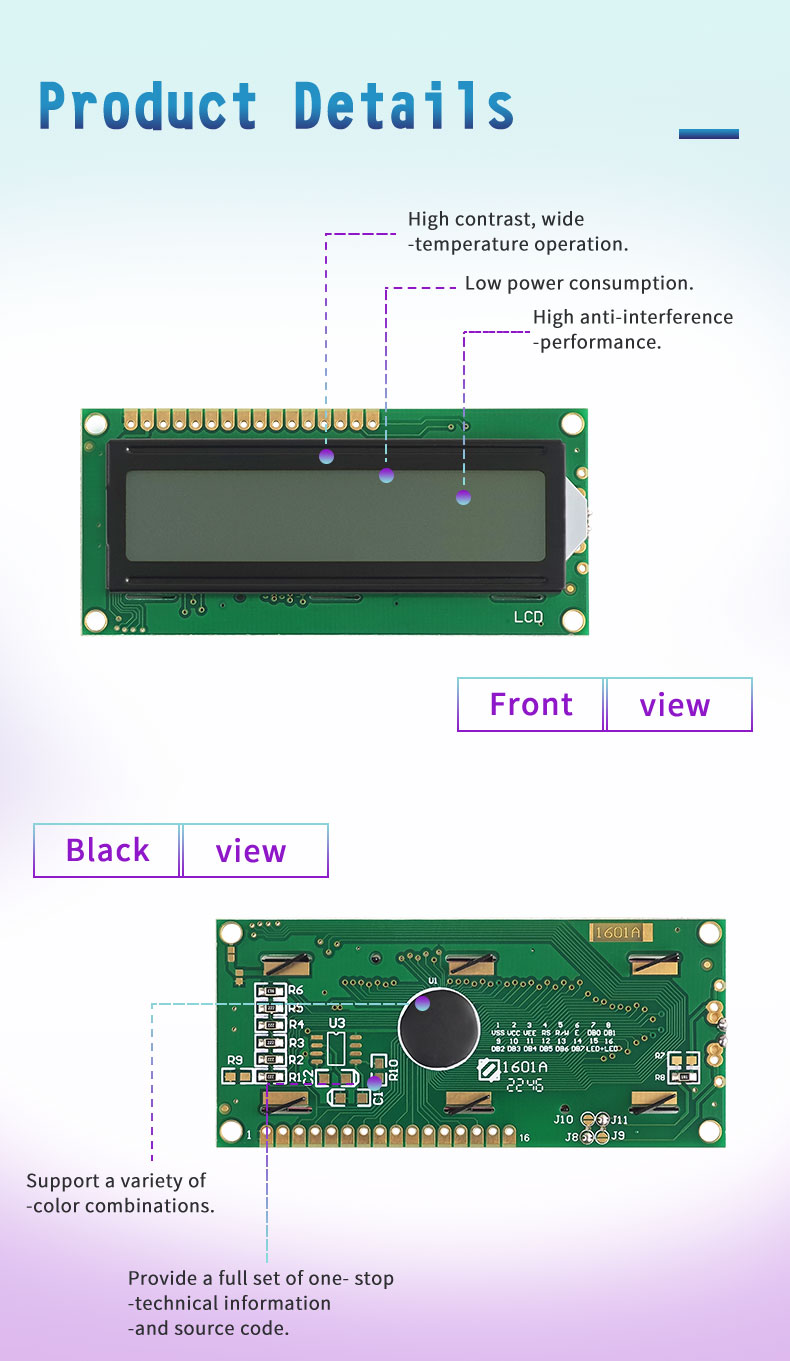

• High contrast, wide-temperature operation
• Low power consumption, high anti-interference performance
• Support for multiple color combinations
• Provide a complete set of one-stop technical information and source code
• Supports customization
• Supports 1-3 day samples
• High quality and cost-effective
• The fastest batch delivery can be achieved within 15 days

Key Specifications

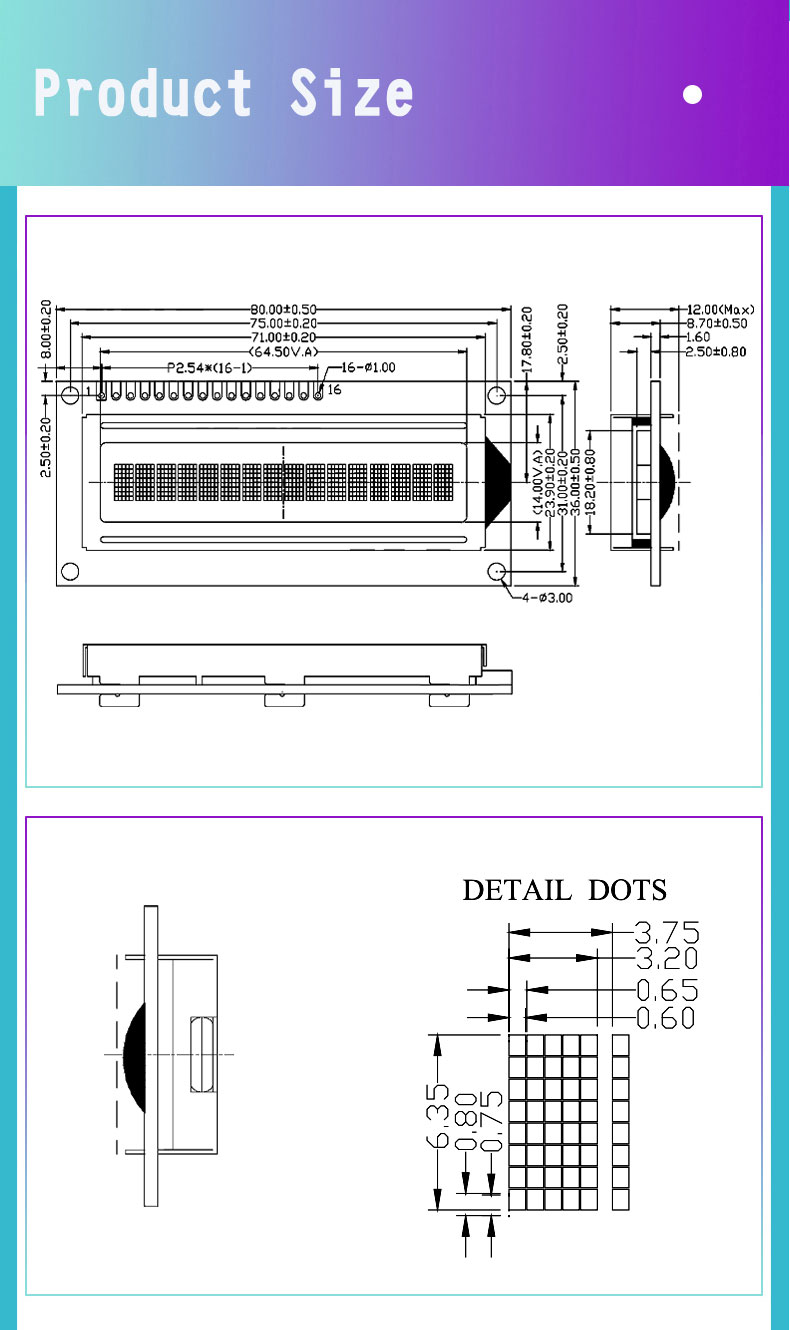

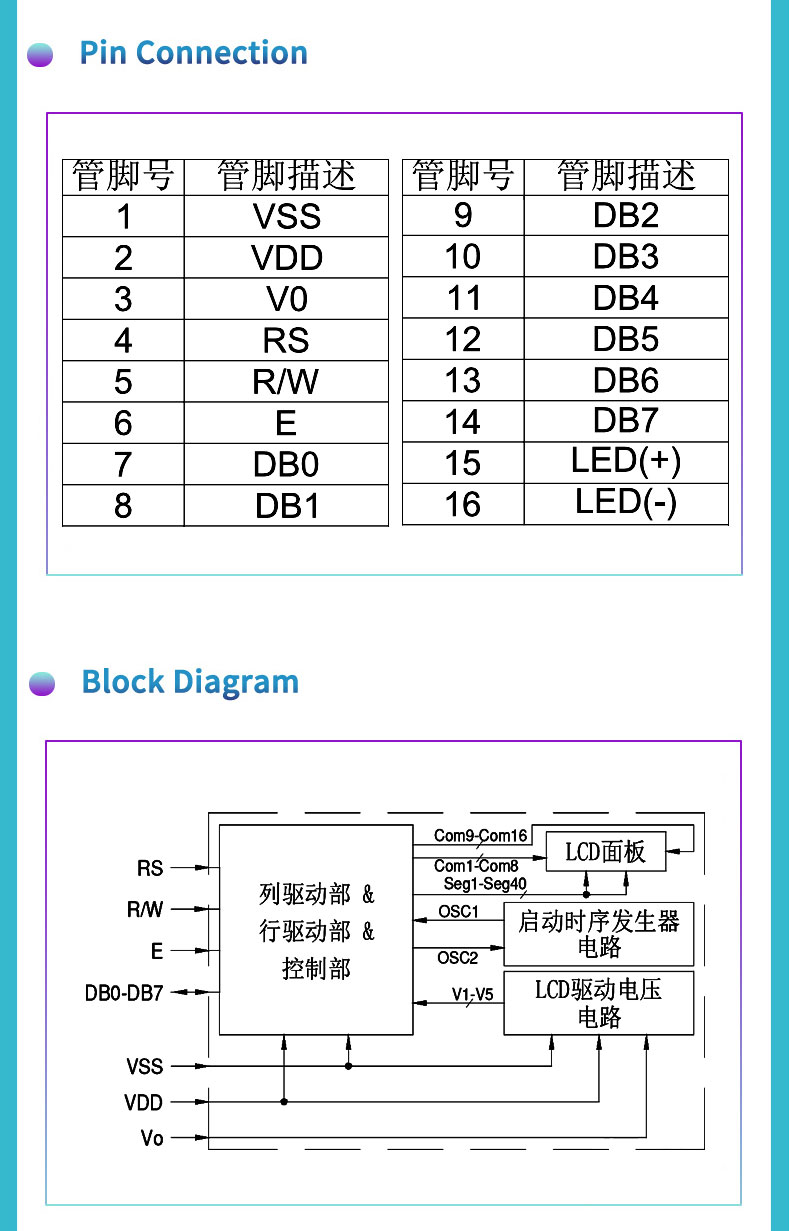

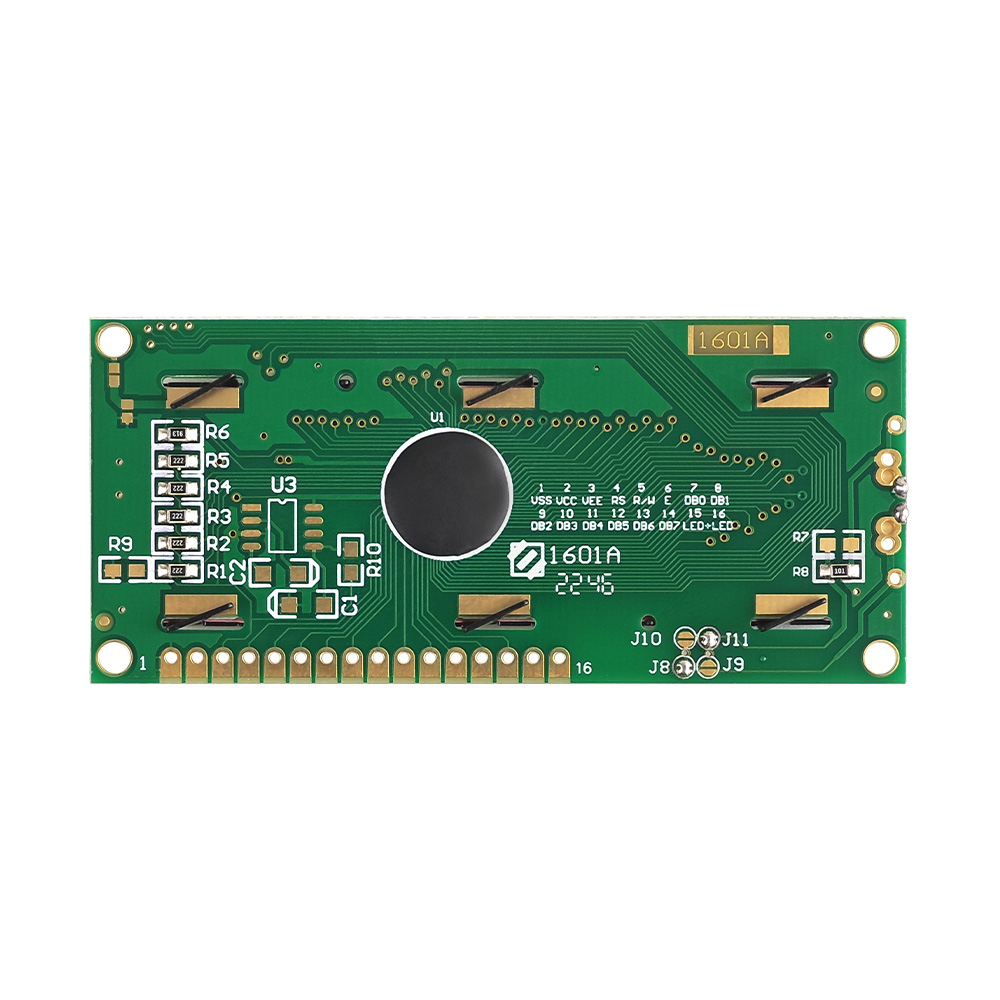

lcd 1601 is a 16×1 character LCD module for compact devices that need one clear row of text or numeric information. The JXD1601A model uses an 80.0×36.0×12.0mm outline size with a 64.5×14.0mm viewing area. It supports 3.3V/5.0V drive voltage, ST7066/AIP31066 controller IC options, white LED backlight, FSTN positive display mode, and a 16PIN parallel port interface. The module operates from -20°C to +70°C and stores from -30°C to +80°C, with 06:00/09:00/12:00 viewing angle options.

Design Standards

lcd 1601 is developed for stable single-line readability, simple MCU connection, and reliable use in small control interfaces. The FSTN positive LCD structure helps improve character contrast, while the white LED backlight supports clear viewing in indoor equipment and low-light panels. Its 16PIN parallel interface gives engineers direct signal control for predictable display timing. The module also supports low power consumption, wide-temperature performance, anti-interference operation, multiple color combinations, technical documentation, source-code support, sample supply within 1-3 days, and customization for backlight color, display content, shell design, and other project details.

Applications

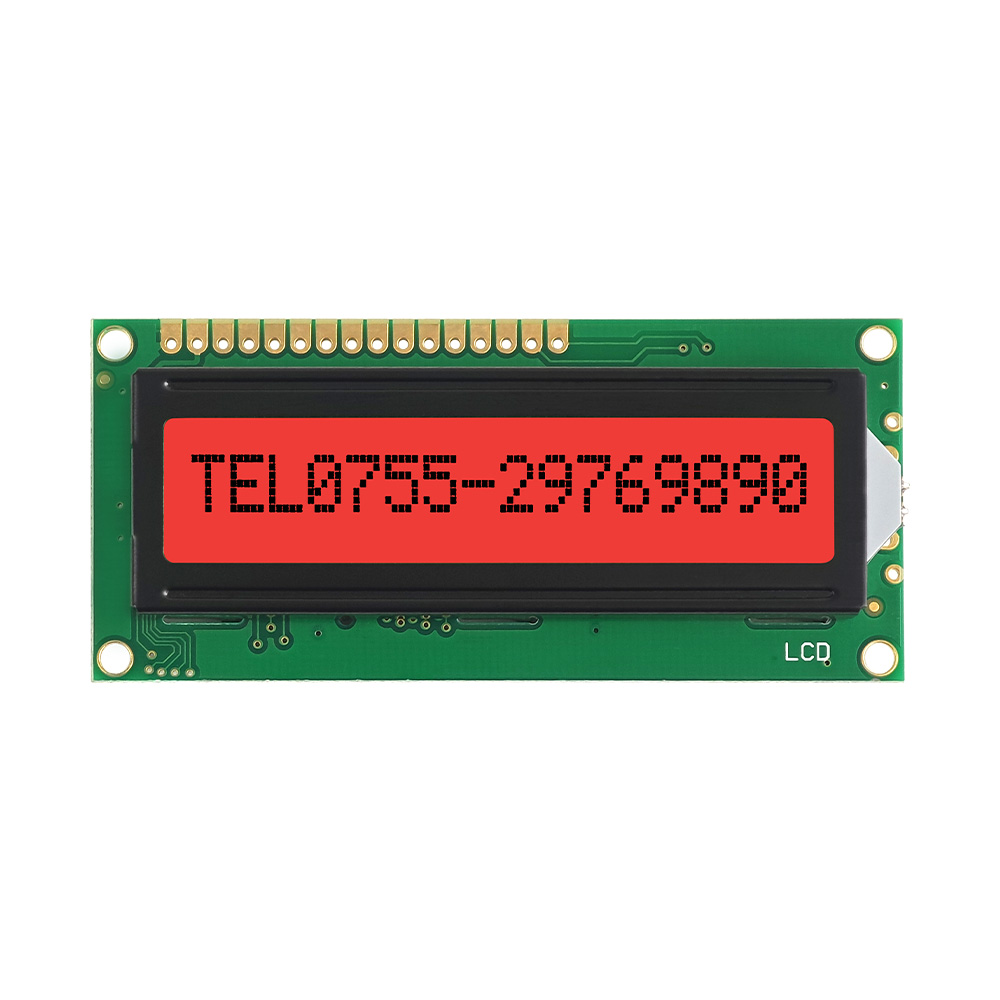

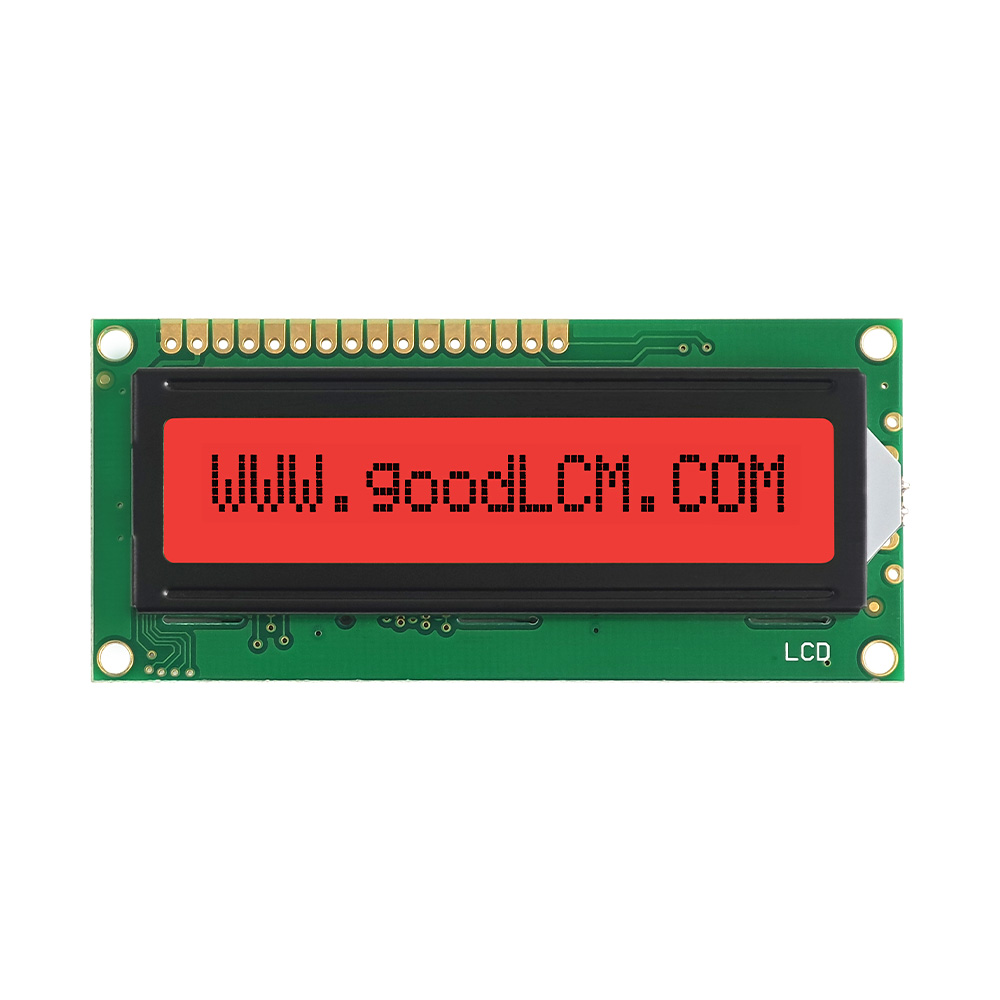

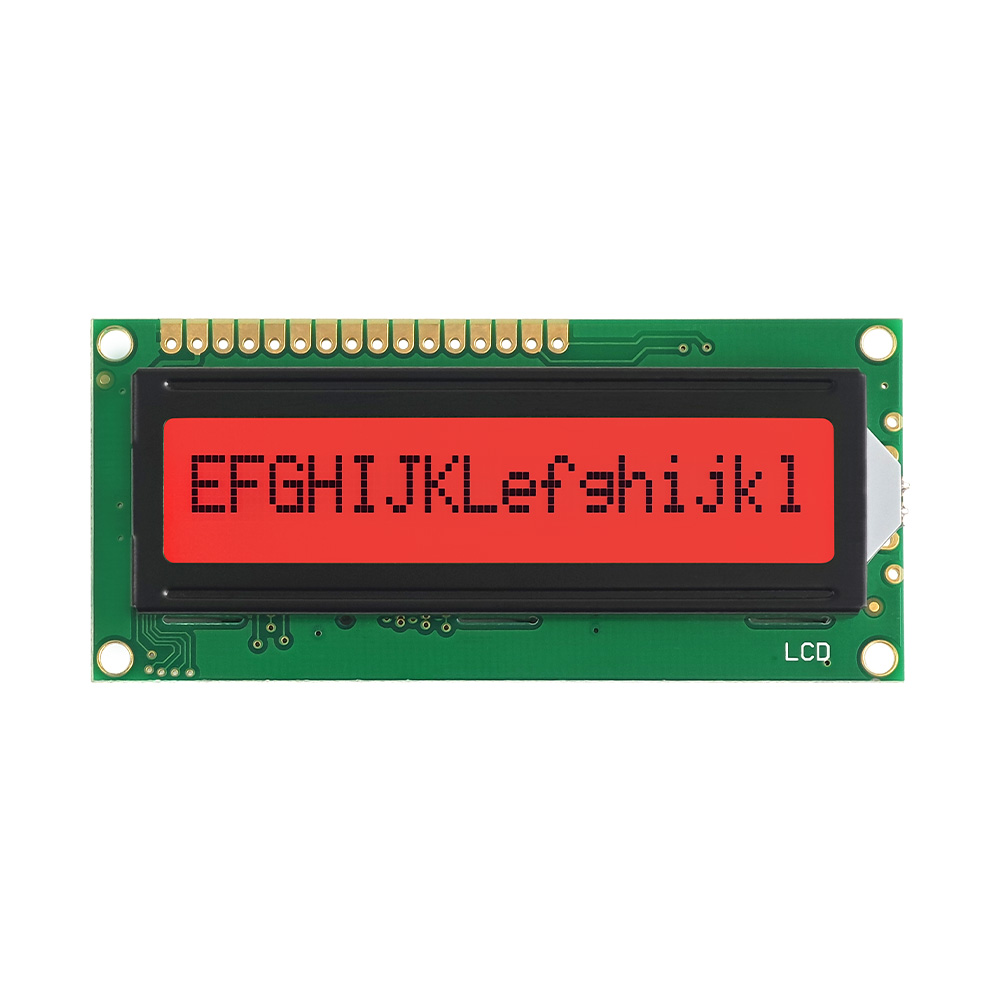

lcd 1601 is suitable for products that need concise information display in a limited installation area. It can present large characters, numbers, mode labels, system prompts, measurement results, operating states, and basic menu options. Common applications include meters, equipment control panels, information display systems, home appliances, industrial controls, medical devices, consumer electronics, test instruments, educational electronics, DIY projects, and embedded controller boards. Its 16×1 layout makes it practical for devices that only need one row of essential data rather than a larger multi-line screen.
