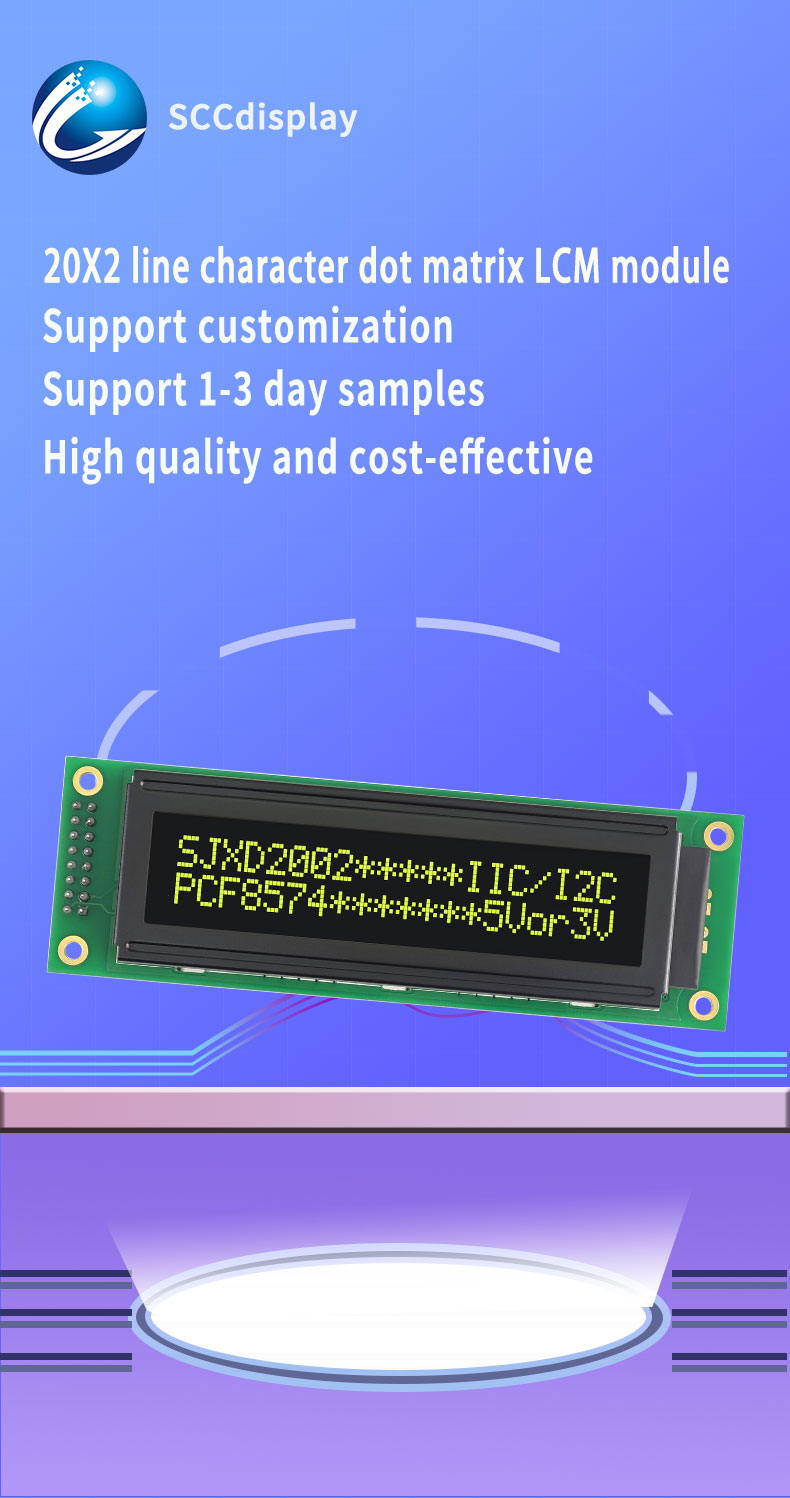

Basic Information
I2C Display Module provides a 20x2 character solution for devices needing longer menu text, values, and status messages. Its VA negative screen, white LED backlight, IIC interface, and 3.3V/5V drive support clean contrast with simplified wiring. The 116.0x37.0mm structure offers a larger viewing area for meters, controllers, appliances, medical equipment, industrial panels, and DIY projects requiring stable readable information output and efficient embedded integration during product development and testing cycles.
Parameters:
| Character Type | 20X2 |
| Model | JXD2002A-IIC |
| Model Size | 116.0×37.0×20.0 MM |
| VA Size | 83.0×18.6 MM |
|
Drive Voltage
|
3.3V/5.0V
|
|
Drive IC
|
ST7066/AIP31066
|
|
Backlight
|
White LED backlight
|
|
LCD Type
|
VA Negative
|
|
Interface
|
IIC/I2C |
| Working Temperature |
-20°C - +70°C
|
|
Storage Temperature
|
-30°C - +80°C |

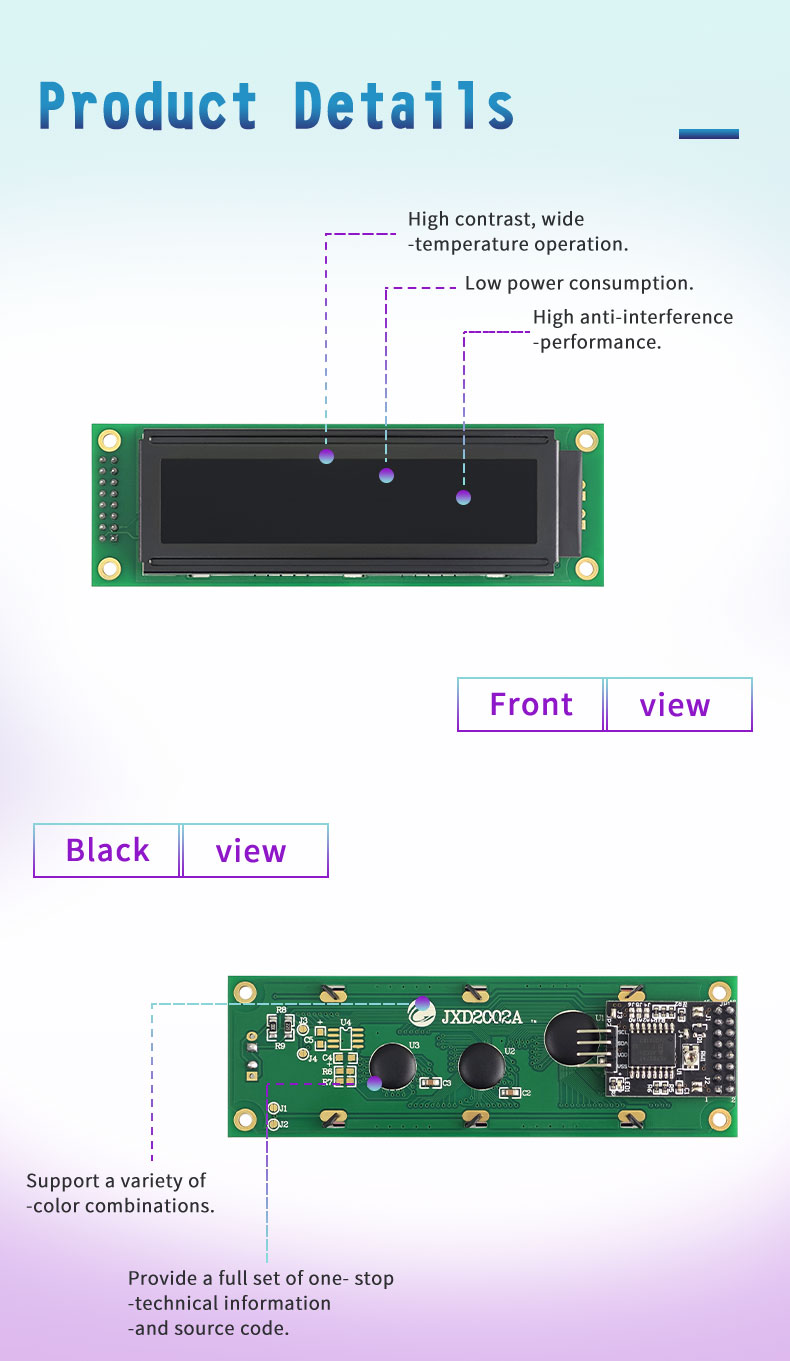

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- The fastest batch delivery can be achieved within 15 days
Key Specifications
I2C Display Module is a 20×2 character LCD designed for equipment that needs more text space than standard 16×2 displays. The JXD2002A-IIC model provides a 116.0×37.0×20.0 mm module size and an 83.0×18.6 mm viewing area, allowing two longer lines of letters, numbers, menu prompts, and parameter data. It supports 3.3V/5.0V drive voltage, ST7066/AIP31066 driver IC, IIC/I2C interface, white LED backlight, and VA negative display mode. The module also supports -20°C to +70°C working temperature, -30°C to +80°C storage temperature, and a 06:00 viewing angle for stable panel readability.
Design Standards
I2C Display Module is developed for simplified wiring, high-contrast viewing, and efficient embedded product integration. The IIC/I2C interface reduces pin usage compared with traditional parallel connection designs, helping engineers save controller resources and shorten PCB routing work. Its VA negative screen creates a dark-background display effect with strong visual contrast, while the white LED backlight improves character recognition in modern control interfaces. The design also supports low power consumption, high anti-interference performance, multiple color combinations, technical documentation, source code support, customization, 1–3 day sample preparation, and batch delivery as fast as 15 days.
Applications
I2C Display Module is suitable for products that need longer two-line character content, such as setting menus, device status, measured values, fault codes, operation guidance, and system messages. It can be used in meters, equipment control panels, information display systems, home appliances, industrial controllers, medical devices, consumer electronics, and DIY development projects. Its 20×2 format, I2C communication, VA negative contrast, and larger viewing area make it practical for compact products that require clearer information layout without switching to a graphic LCD screen.

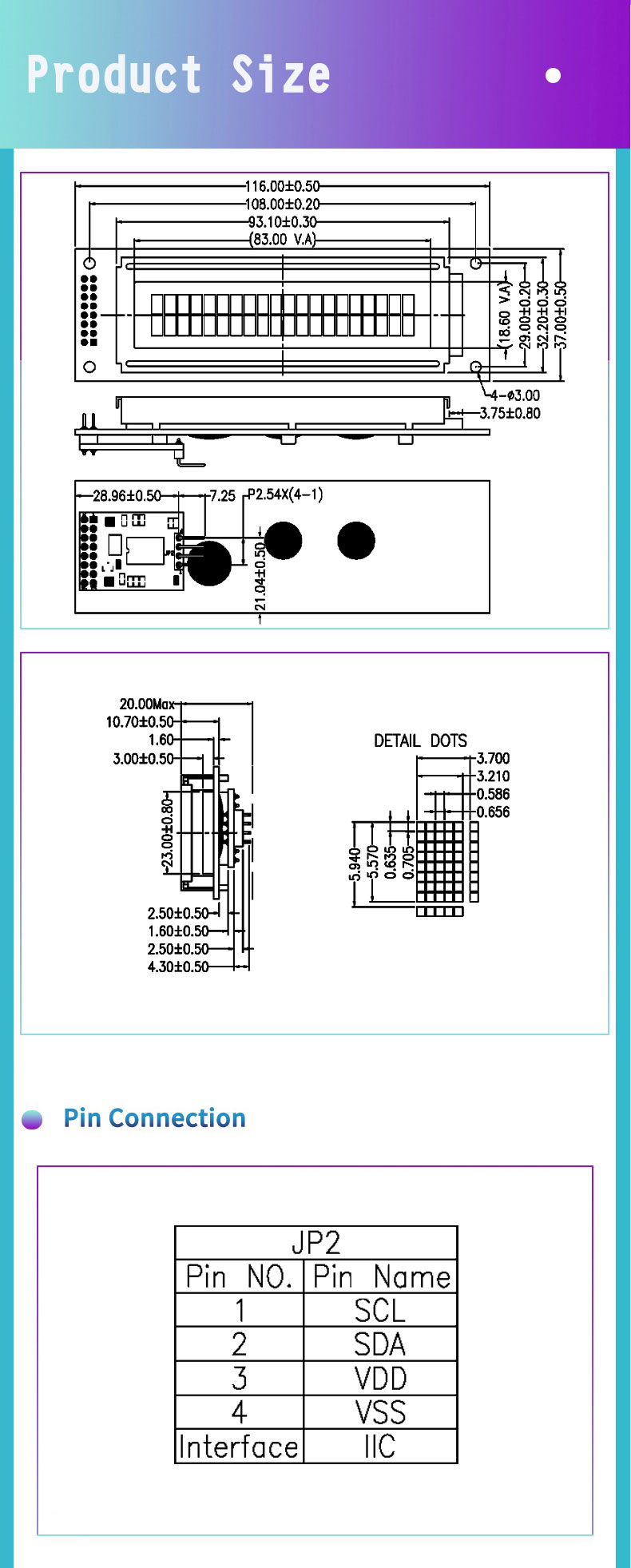

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: What is this screen used for？
A: Character LCD screens are widely used in home appliances, industrial controls, medical devices, consumer electronics, and DIY projects, suitable for displaying status information, menu options, and basic data.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
