Display 16x2 LCD Module-SJXD1602E (FSTN Positive)

Display 16x2 LCD Module is a large-view character screen for products that need clear two-line text, values, and status output. The SJXD1602E model uses a 122.0x44.0x13.5mm outline, 99.0x24.0mm viewing area, 5V/3.3V drive support, AIP31066/ST7066 drive IC, white LED backlight, FSTN positive display type, 16 single interfaces, and selectable viewing angles. It can show readings, menus, alarms, timers, counters, and prompts in meters, appliances, medical devices, instruments, vending systems, education kits, and control panels.

Parameters:

• High contrast, wide-temperature operation
• Low power consumption, high anti-interference performance
• Support for multiple color combinations
• Provide a complete set of one-stop technical information and source code
• Supports customization
• Supports 1-3 day samples
• High quality and cost-effective

Key Specifications

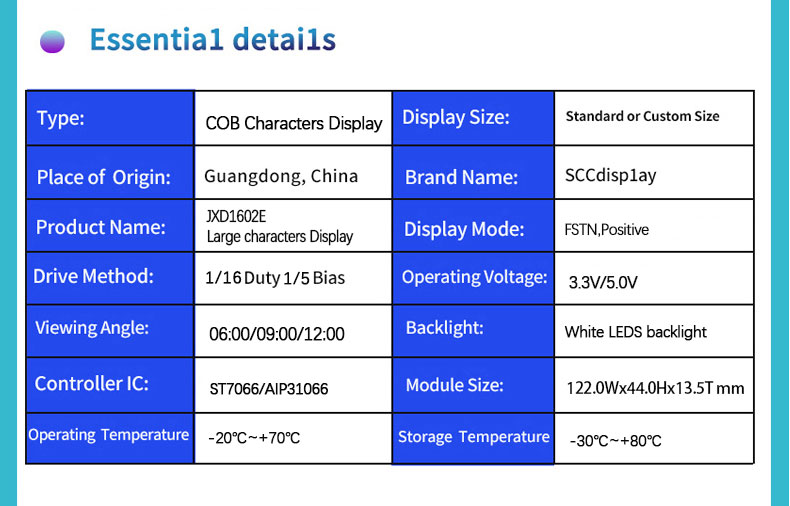

Display 16x2 LCD Module is a large character LCD designed for products that need clear two-line text, numbers, and status information. The SJXD1602E model has a 122.0x44.0x13.5mm outline size and a 99.0x24.0mm viewing area, offering a wider display window for larger characters. It supports 5.0V/3.3V drive voltage, AIP31066/ST7066 drive IC, white LED backlight, FSTN positive LCD type, 16 single interfaces, and 06:00/09:00/12:00 viewing angle options. The module operates from -20°C to +70°C and stores from -30°C to +80°C.

Design Standards

Display 16x2 LCD Module is designed for high readability, dependable signal control, and stable use in equipment that requires larger character output. The FSTN positive display mode provides strong contrast for values, labels, prompts, and operating messages, while the white LED backlight improves visibility in indoor panels and information windows. Its 16 single interface structure supports direct command control for embedded systems. The module also offers low power consumption, wide-temperature operation, anti-interference performance, multiple color combinations, technical documentation, source-code support, 1-3 day sample availability, and customization for backlight color, display content, shell design, and project parameters.

Applications

Display 16x2 LCD Module is suitable for devices that need large, readable character feedback in a compact but wider display area. It can show meter readings, large font numbers, setup menus, alarm codes, timer data, counter results, equipment states, and user prompts. Typical applications include meters, equipment control panels, information display systems, industrial controllers, home appliances, medical devices, consumer electronics, testing instruments, vending machines, laboratory tools, educational electronics, DIY projects, and embedded control products. Its 16x2 layout and larger viewing area make it practical for long-term equipment use.

Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.

Q: How long does it usually take to ship？
A: Generally, orders are placed and shipments begin within 1-3 days.

Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.

Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.

Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.

If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
