Digital Signage LCD Display - JXD1601A-IIC （STN Positive） Russian

Digital Signage LCD Display JXD1601A-IIC is a compact 16×1 text module for short notices, values, labels, counters, and status prompts. It uses an STN positive display style, backlight support, and IIC/I2C interface to simplify wiring and save controller pins. With 3.3V/5.0V drive compatibility, low power use, wide temperature performance, and customization options, it fits small signage terminals, access panels, meters, instruments, appliance interfaces, medical electronics, and embedded control projects.

Parameters:

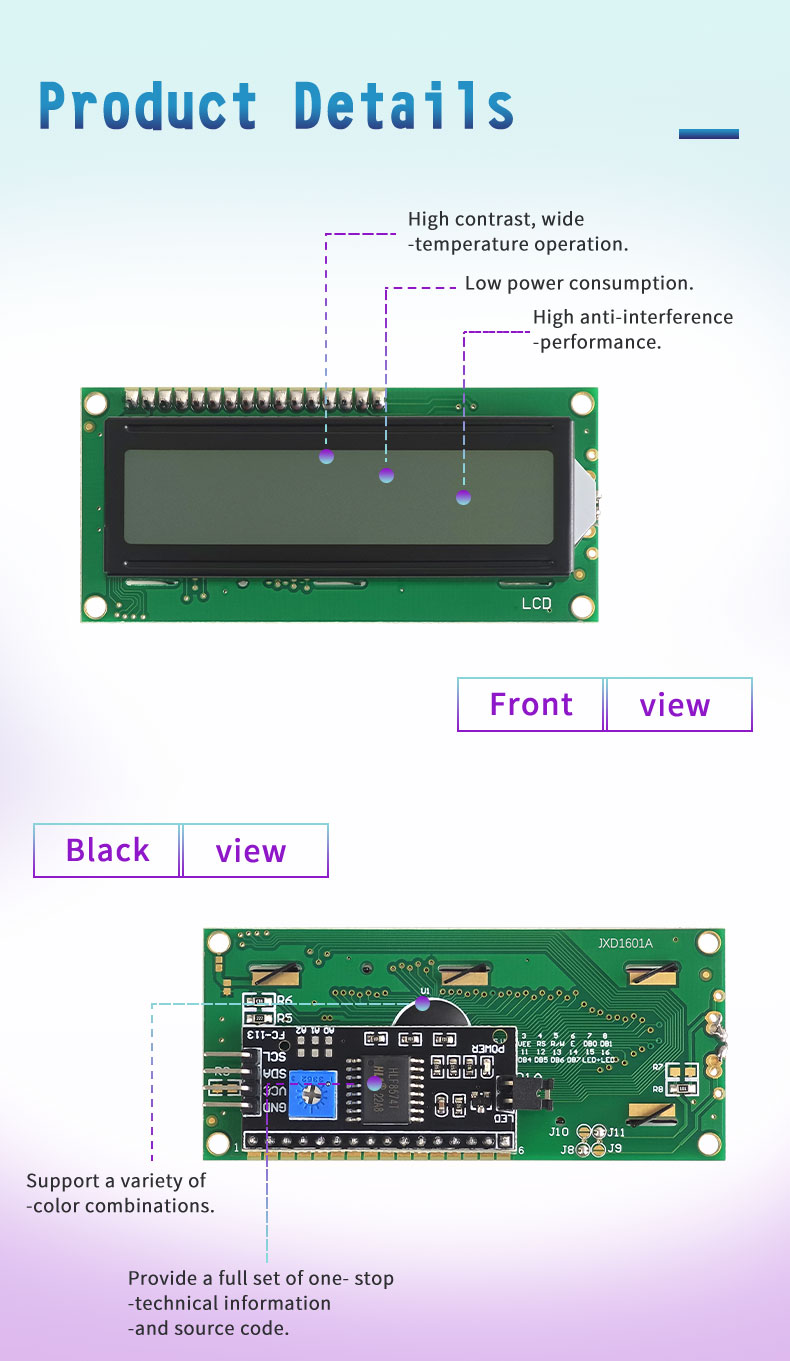

• High contrast, wide-temperature operation
• Low power consumption, high anti-interference performance
• Support for multiple color combinations
• Provide a complete set of one-stop technical information and source code
• Supports customization
• Supports 1-3 day samples
• High quality and cost-effective
• The fastest batch delivery can be achieved within 15 days

Key Specifications

Digital Signage LCD Display JXD1601A-IIC is a compact 16×1 character module for showing short notices, values, labels, and operating status. It uses an STN positive LCD structure with clear dark characters on a bright background, making information easy to read in small display windows. The IIC/I2C interface reduces wiring requirements and saves controller pins, while 3.3V/5.0V drive support helps match different embedded boards, control circuits, and product systems.

Design Standards

Digital Signage LCD Display is designed for simple message presentation, stable communication, and space-saving panel integration. Its single-line format works well for compact products that only need brief information instead of multi-page content. The STN positive display mode supports clean character contrast, while the backlight improves visibility during daily operation. Low power consumption, anti-interference performance, wide-temperature capability, technical documentation, source code support, sample testing, and customization options support OEM display development.

Applications

Digital Signage LCD Display is suitable for devices that need short visual messages, status words, setting labels, counters, and prompt text. It can be used in small signage terminals, access control panels, meters, instruments, appliance interfaces, medical electronics, communication devices, power equipment, embedded controllers, and DIY development boards. Its 16×1 layout and I2C connection help designers create a simple, readable, and efficient text display for compact electronic products.

Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.

Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.

Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.

Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.

Q: What is this screen used for？
A: Character LCD screens are widely used in home appliances, industrial controls, medical devices, consumer electronics, and DIY projects, suitable for displaying status information, menu options, and basic data.

If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
