The COG Dot Matrix LCD Screen SJXD202A-5060A is a compact chip-on-glass graphic display solution designed for embedded systems requiring high-density visual output and reliable performance. It is engineered to present alphanumeric data, symbols, and custom graphics with excellent clarity, making it suitable for advanced electronic devices where space efficiency and display precision are essential. The module integrates dot matrix technology with COG structure to achieve a slim profile and stable operational behavior.
Parameters:
| Character Type | Customized |
| Model | SJXD202A-5060A |
| Model Size | 69.4×25.0×2.8 mm |
| VA Size | 65.4×15.2 mm |
|
Connector
|
Metal pins |
|
LCD Type
|
HTN Positive |
|
Drive Conditions
|
1/16D 1/5B
|
|
Working Temperature
|
-20°C TO +70'C
|
| Storage Temperature |
-30'C TO +80'C
|
|
Working Voltage
|
4.5 V |
Feature

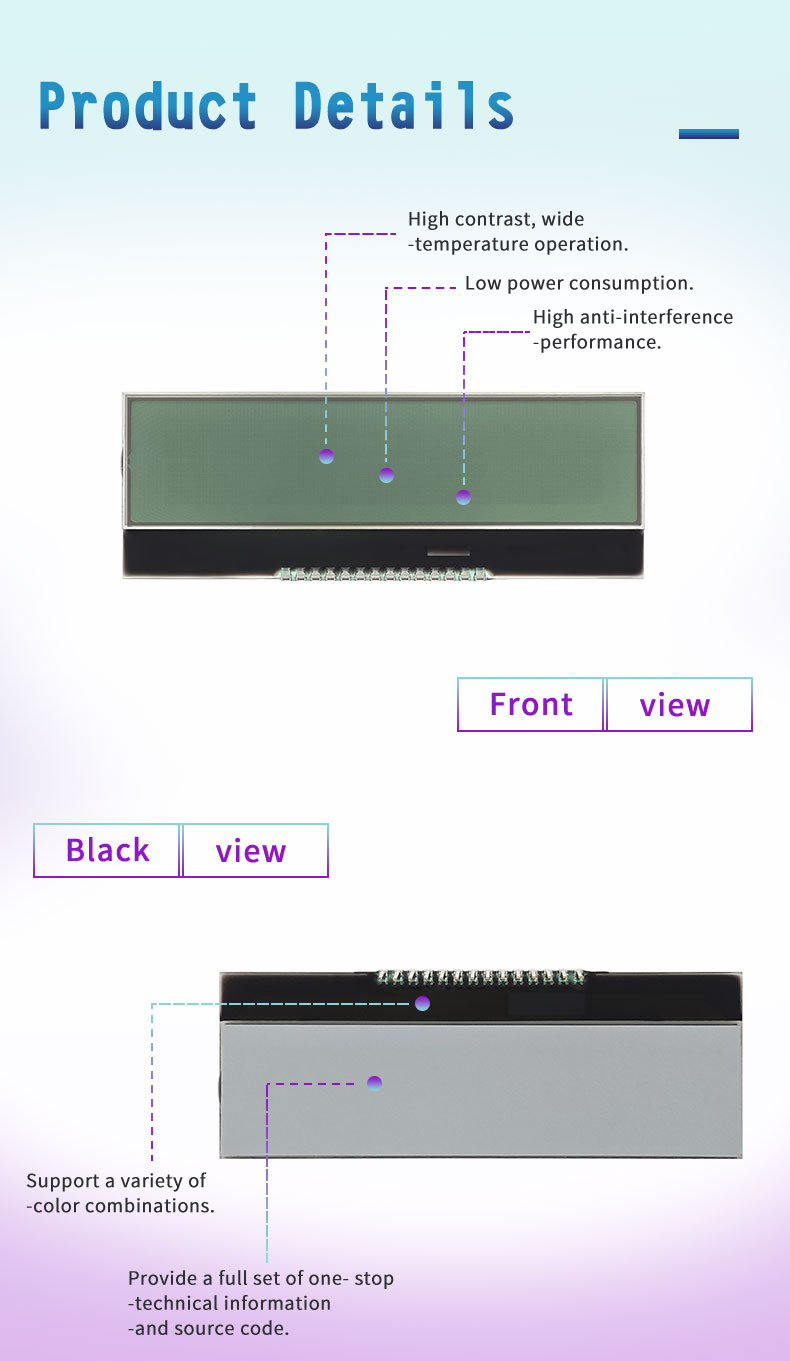

- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- In stock, fast delivery
Key Specifications
This COG dot matrix LCD screen features a high-resolution dot matrix layout that supports flexible graphical and text rendering. It enables clear presentation of complex information, including multi-line data, icons, and system status indicators. The chip-on-glass integration reduces module thickness and simplifies system assembly by minimizing external connection requirements. It delivers strong contrast and well-defined pixel output, ensuring readability under standard lighting conditions. The display operates at low voltage, making it compatible with energy-efficient embedded systems and portable electronic devices. It is designed for low power consumption, supporting continuous operation in battery-powered applications. The module maintains stable optical performance across a wide temperature range, ensuring consistent readability in different environmental conditions. Its compact structure allows seamless integration into handheld devices, industrial instruments, and embedded control interfaces. Fast refresh capability ensures smooth graphical updates without flicker or delay, improving real-time data visualization performance.
Design Standards
The module is manufactured according to strict COG LCD engineering standards to ensure reliability, precision, and long-term operational stability. Chip-on-glass bonding technology enhances structural integrity and reduces assembly complexity. High-quality liquid crystal materials are selected to maintain uniform optical performance and stable pixel behavior. Circuit design is optimized to minimize electromagnetic interference and ensure stable signal transmission. Each unit undergoes comprehensive inspection to verify pixel consistency, display uniformity, and electrical reliability. Reinforced structural design improves resistance to mechanical stress, temperature variation, and continuous operation. Energy-efficient engineering principles are applied to enhance durability and reduce overall power consumption.
Applications
The COG Dot Matrix LCD Screen is widely used in industrial automation systems, medical devices, smart meters, embedded controllers, and consumer electronics. It is also suitable for portable diagnostic equipment, instrumentation panels, data terminals, and custom graphical interfaces. Its combination of compact design, high-density display capability, and stable performance makes it an effective solution for modern embedded display applications requiring reliable graphical output.

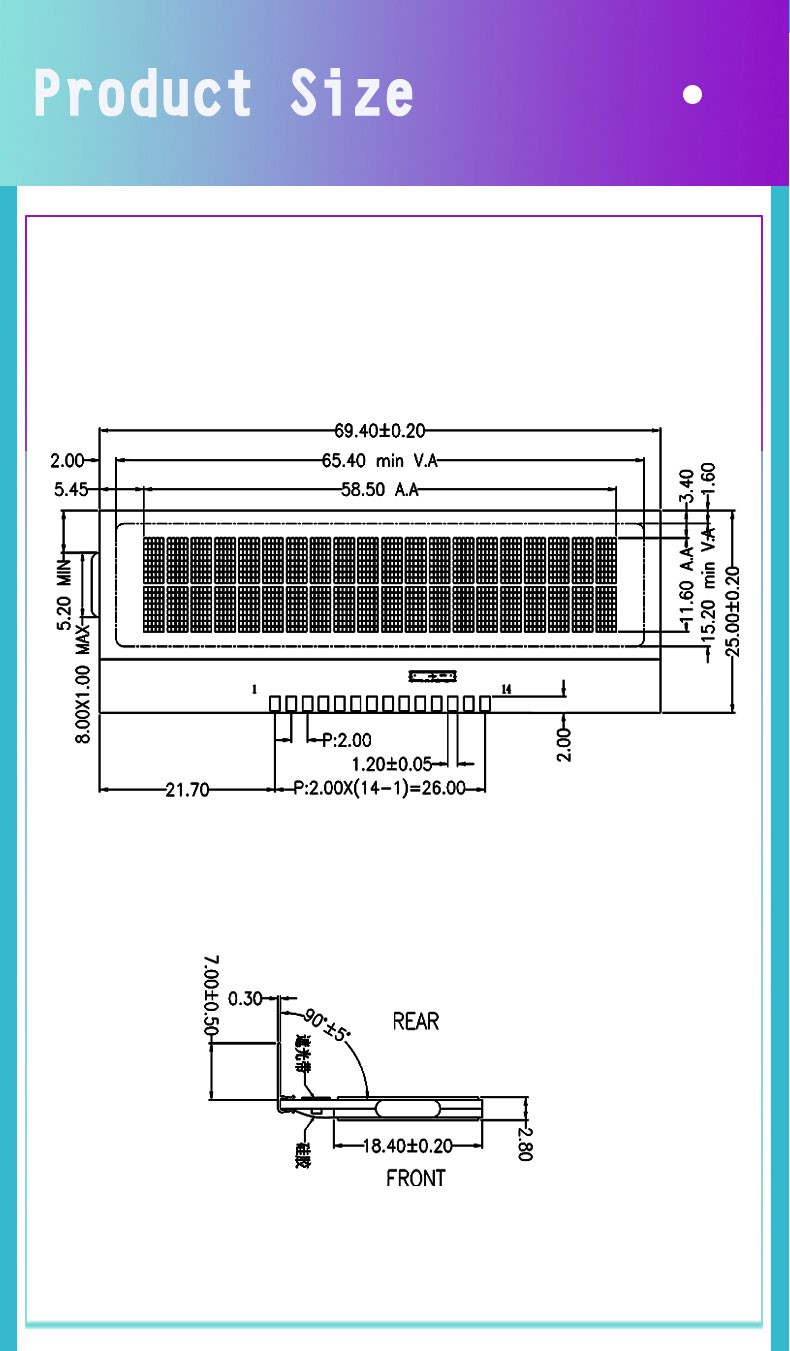

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
