Basic Information

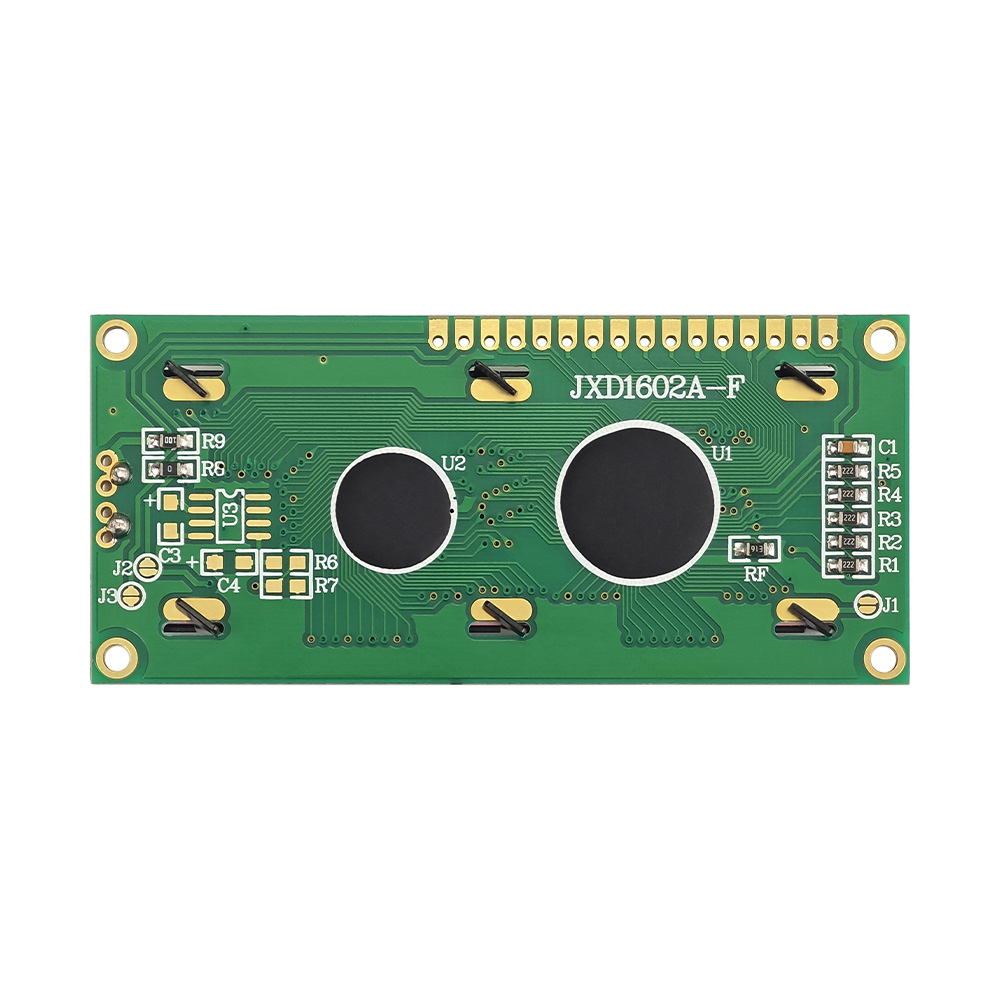

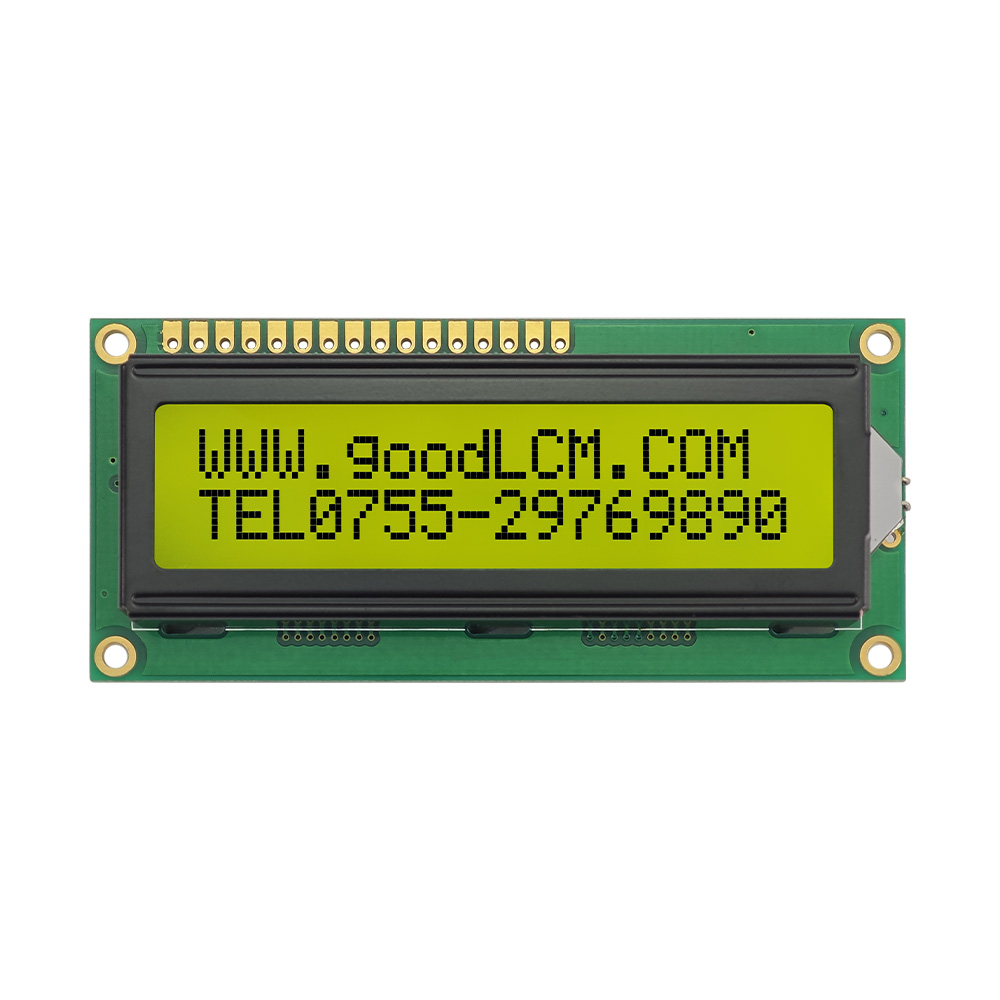

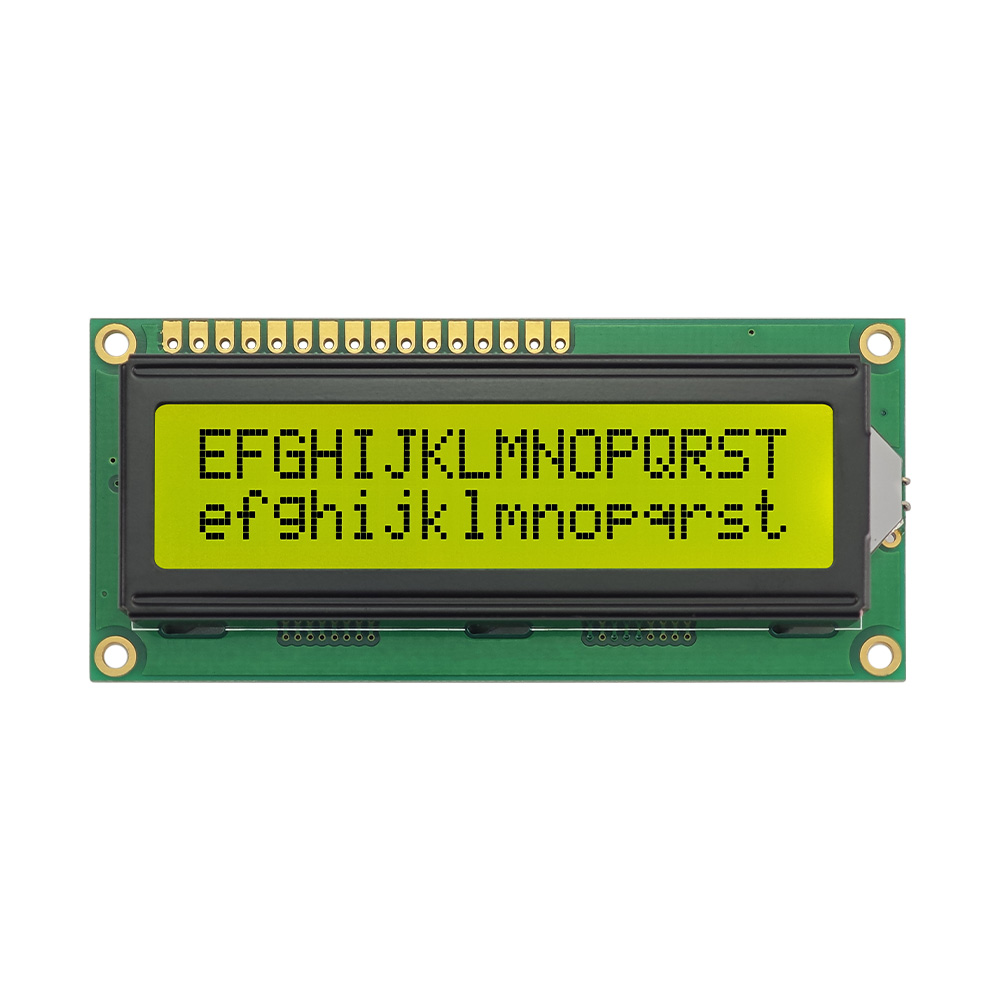

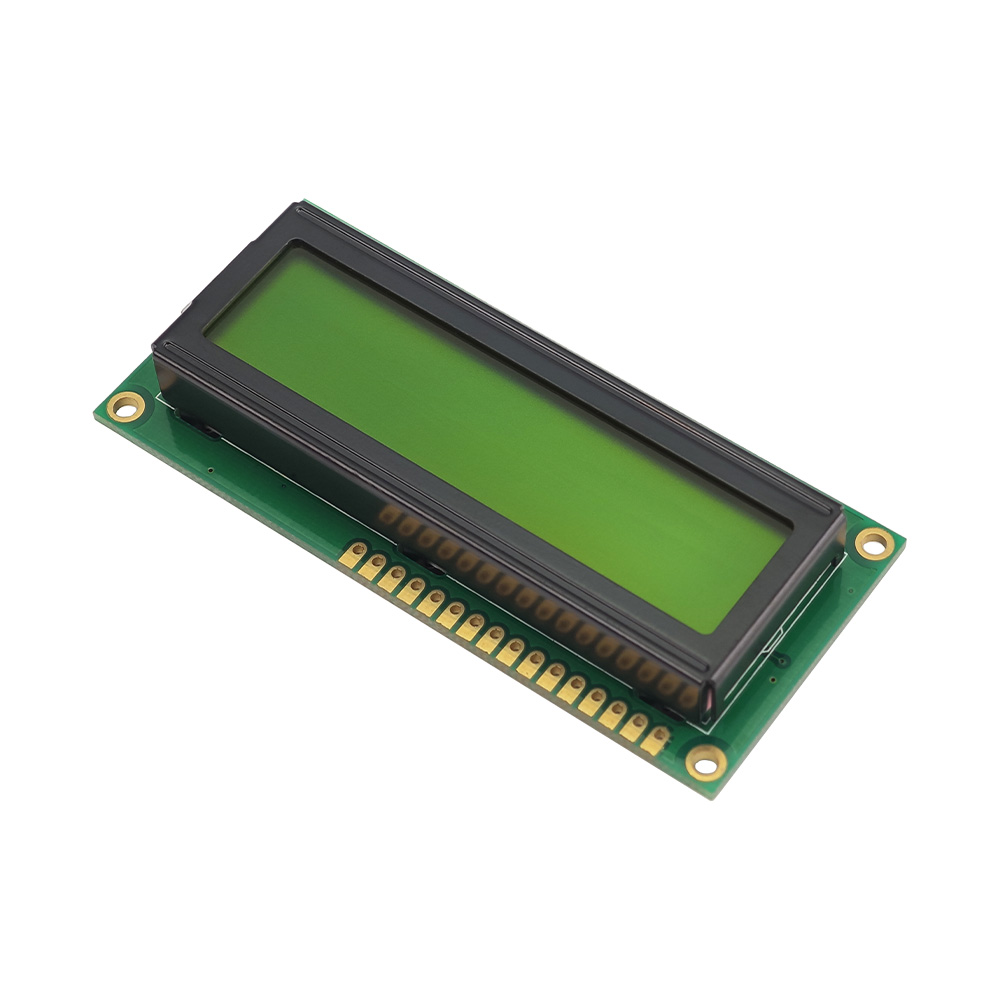

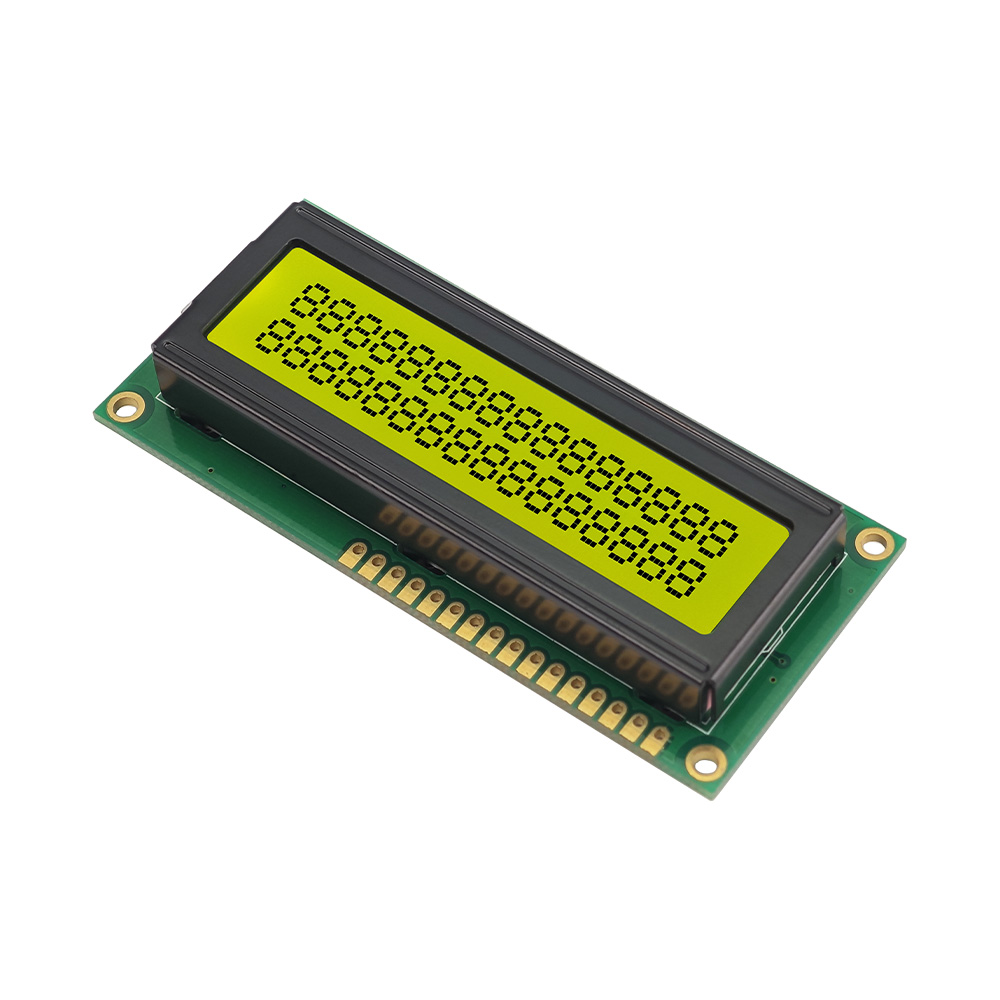

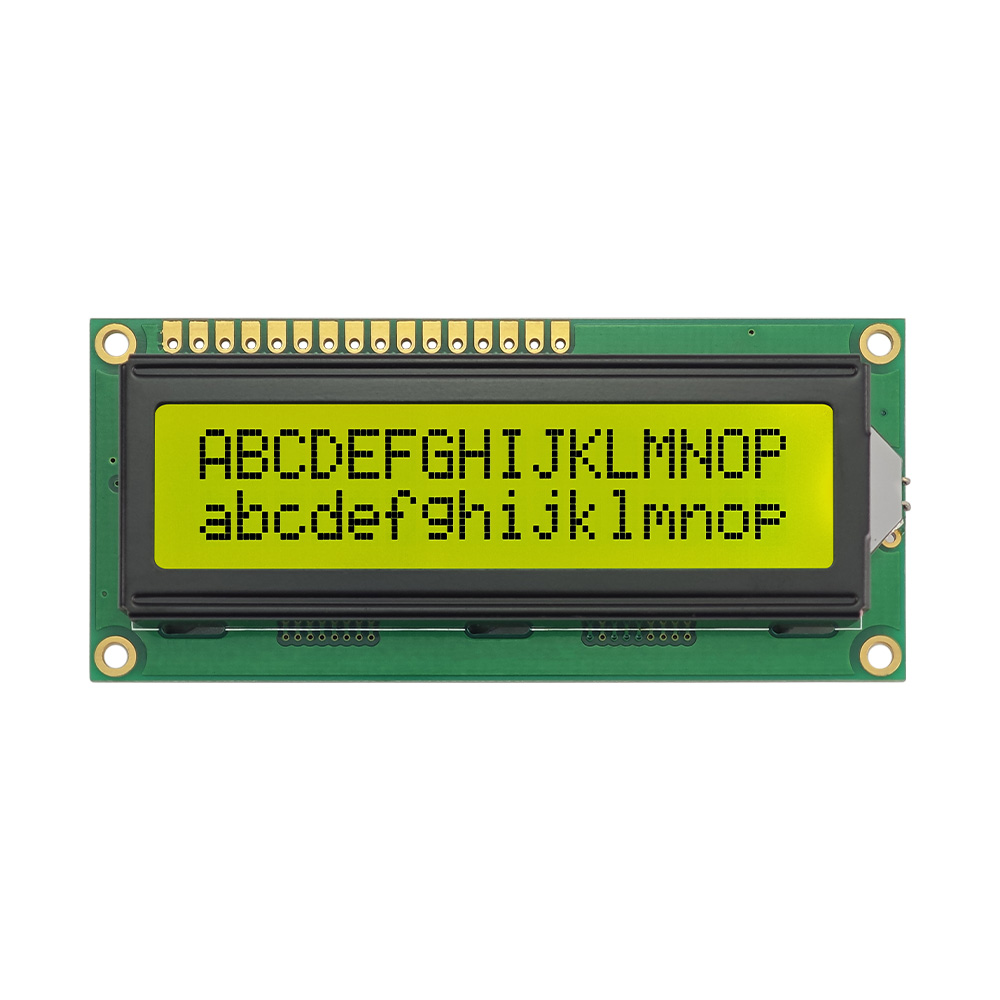

COB 16*2 Characters is a compact LCD module for clear two-line text, values, and status messages in small equipment panels. Its COB structure supports stable construction, while the STN positive screen, yellow LED backlight, 16PIN interface, and 3.3V/5V drive help simplify integration. The 80.0x36.0mm body suits meters, appliances, medical devices, industrial instruments, access systems, and development projects requiring reliable daily readability and efficient hardware matching in compact product design workflows.

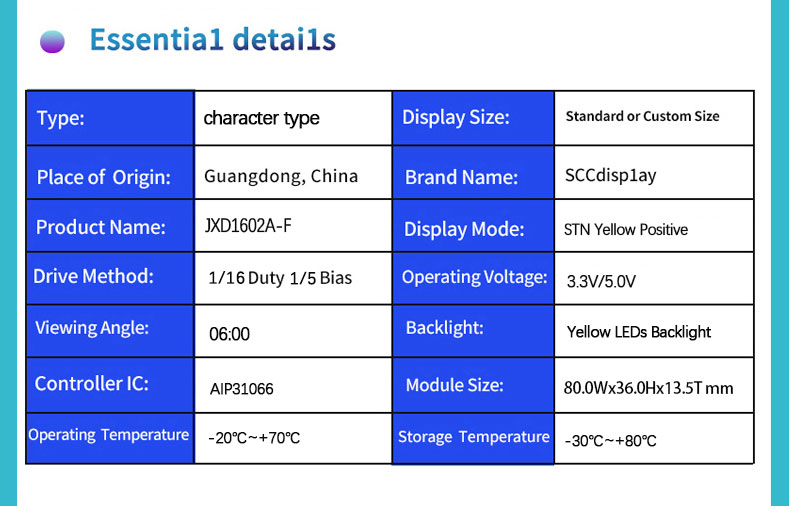

Parameters:
| Character Type | 16X2 |
| Model | JXD1602A-F |
| Model Size | 80.0×36.0×13.5 MM |
| VA Size | 64.5×16.0 MM |
|
Drive Voltage
|
3.3V/5.0V
|
|
Drive IC
|
KS0066/AIP31066
|
|
Backlight
|
Yellow LED backlight
|
|
LCD Type
|
STN Positive
|
|
Interface
|
16PIN |
| Working Temperature |
-20°C - +70°C
|
|
Storage Temperature
|
-30°C - +80°C |

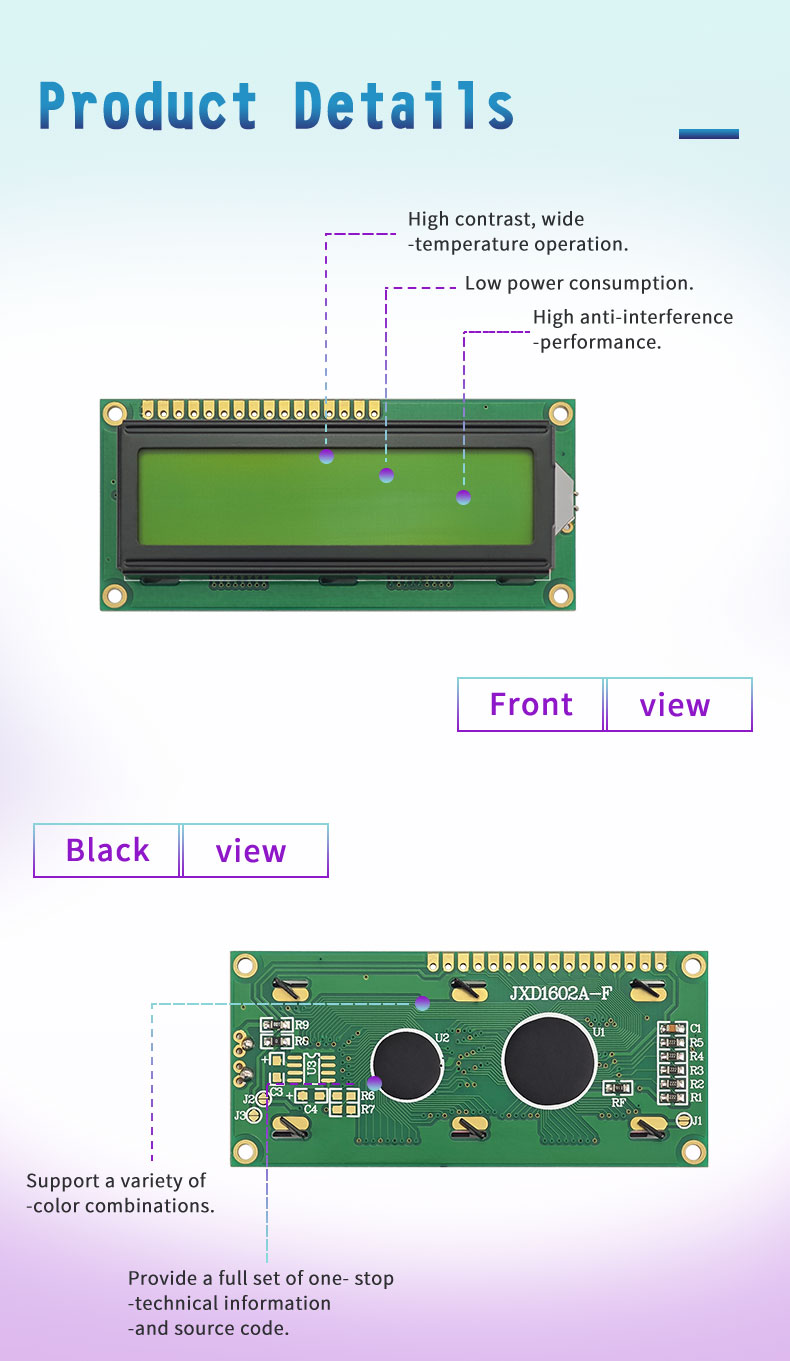

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- The fastest batch delivery can be achieved within 15 days
Key Specifications
COB 16*2 Characters is a compact character LCD module built for clear two-line alphanumeric display in electronic control interfaces. The JXD1602A-F model uses COB technology to improve structural reliability, vibration resistance, and stable display performance during long-term operation. It features a 16×2 character format, 80.0×36.0×13.5 mm module size, 64.5×16.0 mm viewing area, 3.3V/5.0V drive voltage, KS0066/AIP31066 driver IC, 16PIN interface, yellow LED backlight, STN Positive LCD type, 06:00 viewing angle, -20°C to +70°C working temperature, and -30°C to +80°C storage temperature.
Design Standards
COB 16*2 Characters is designed for durable module construction, simple circuit connection, and dependable character readability in compact equipment. The COB assembly method helps create a firm electronic structure, making the module suitable for applications where stability and long service life matter. Its STN Positive display mode provides a clean light-background viewing effect, while the yellow LED backlight gives the interface a warm and recognizable appearance. The module also supports high contrast, low power consumption, wide-temperature operation, anti-interference performance, multiple color combinations, complete technical information, source code support, customization, 1–3 day sample testing, and fast batch delivery planning.
Applications
COB 16*2 Characters is suitable for products that need simple text, numbers, and status information without using a larger graphic display. It can show menu options, operating states, measurement values, warning prompts, timer data, counting information, and basic system messages in a readable two-row layout. Common application fields include meters, equipment control panels, household appliances, communication equipment, industrial instruments, medical devices, consumer electronics, access devices, and DIY development projects. Its COB structure, compact size, yellow backlight, STN Positive readability, and 16PIN connection make it practical for stable panel integration and cost-sensitive electronic products.

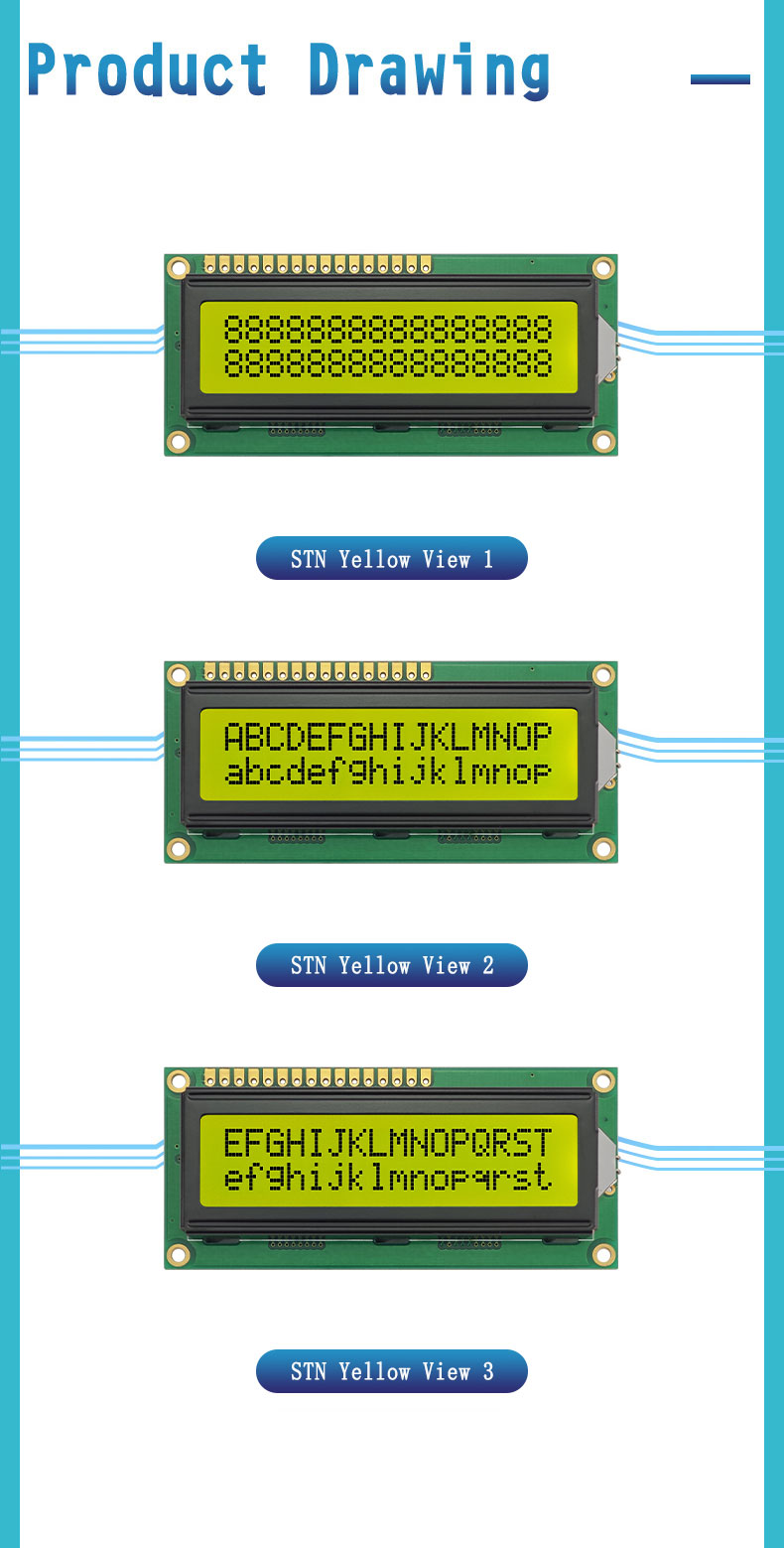

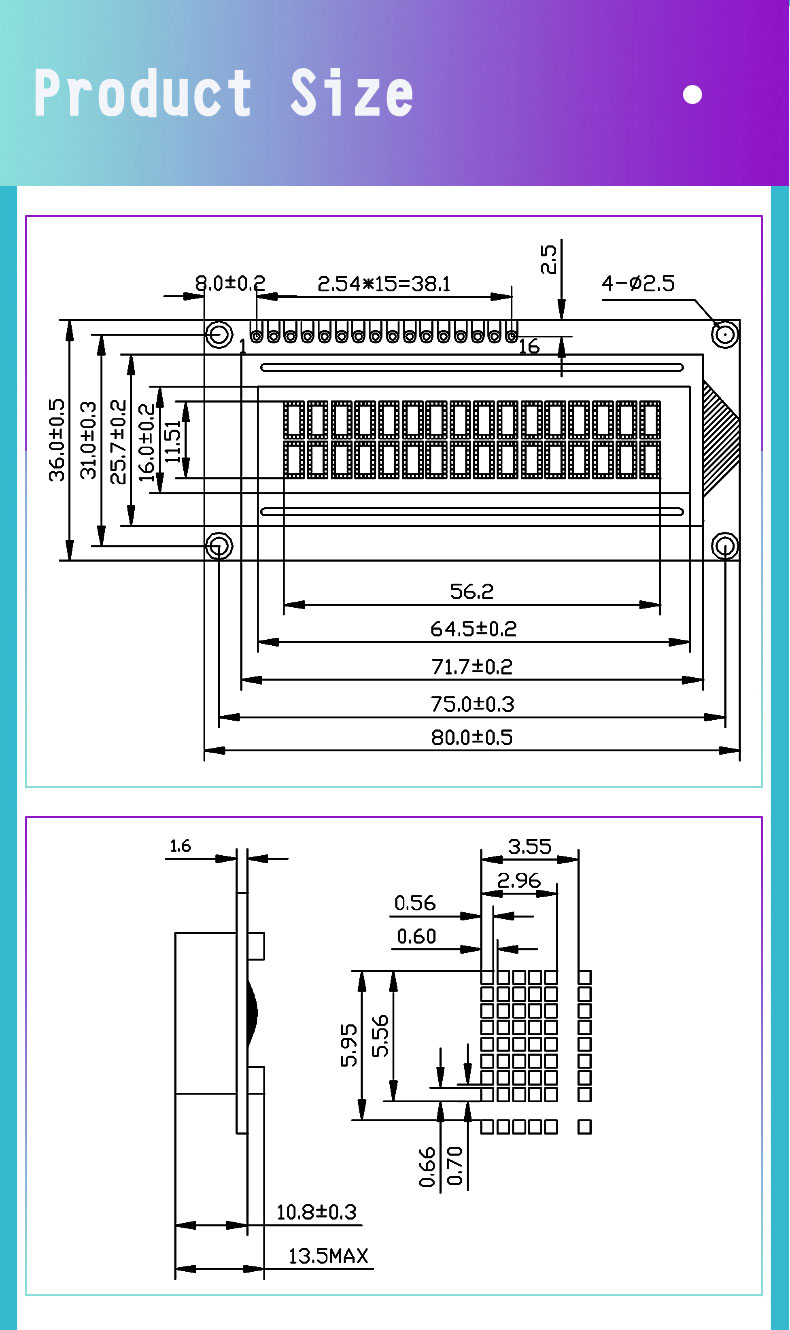

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: What is this screen used for？
A: Character LCD screens are widely used in home appliances, industrial controls, medical devices, consumer electronics, and DIY projects, suitable for displaying status information, menu options, and basic data.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
