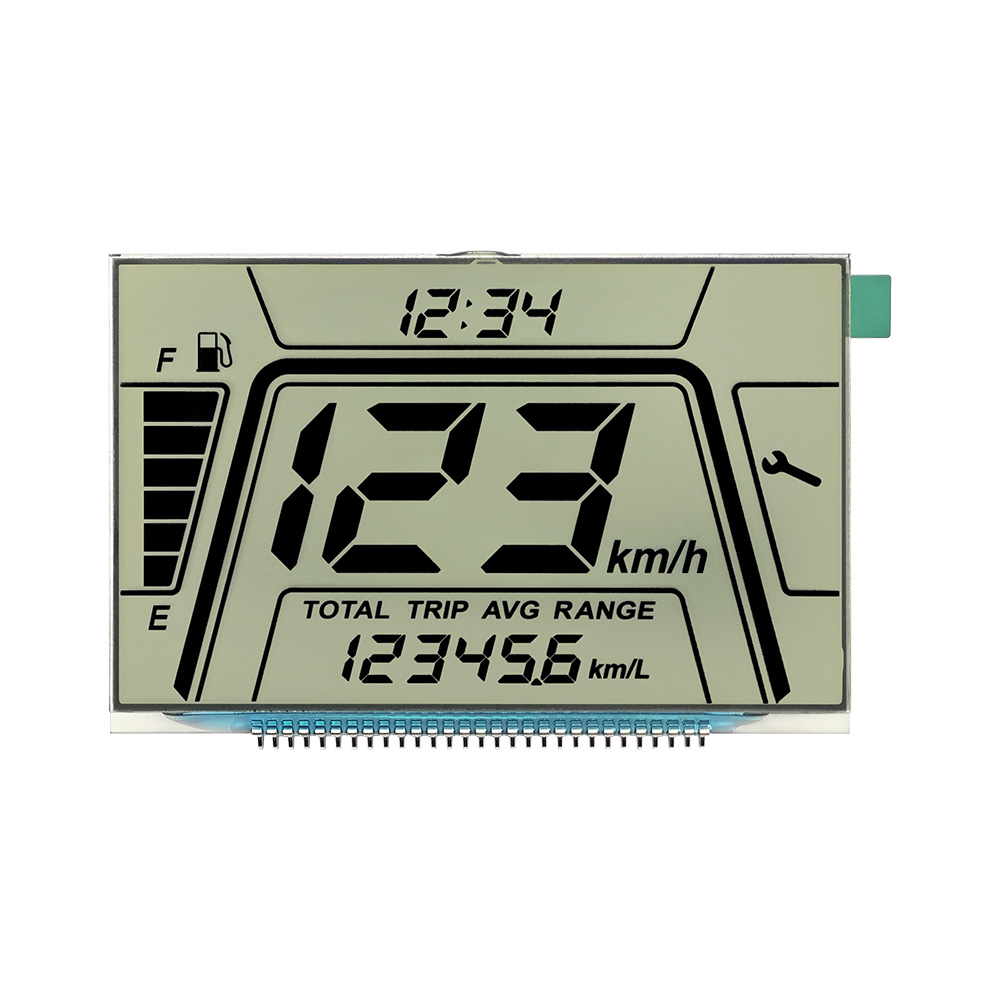

Basic Information
The SJXDGW054 7 Segment LCD is a high-quality segmented display module designed for clear and reliable numeric visualization in a wide range of electronic products. It is engineered with stable LCD technology to provide excellent readability, low power consumption, and long service life. This display is suitable for applications requiring precise numeric output, making it an ideal solution for modern electronic instruments and control systems.
Parameters:
| Character Type | Customized |
| Model | SJXDGW054 |
| Model Size | 92.0×60.0×2.8 mm |
| VA Size | 89.0×54.5 mm |
|
Connector
|
Metal pins |
|
LCD Type
|
HTN Positive |
|
Drive Conditions
|
1/4 D 1/3 B
|
|
Working Temperature
|
-20C TO +70°C
|
| Storage Temperature |
-30°C TO +80°C
|
|
Working Voltage
|
4.0V |

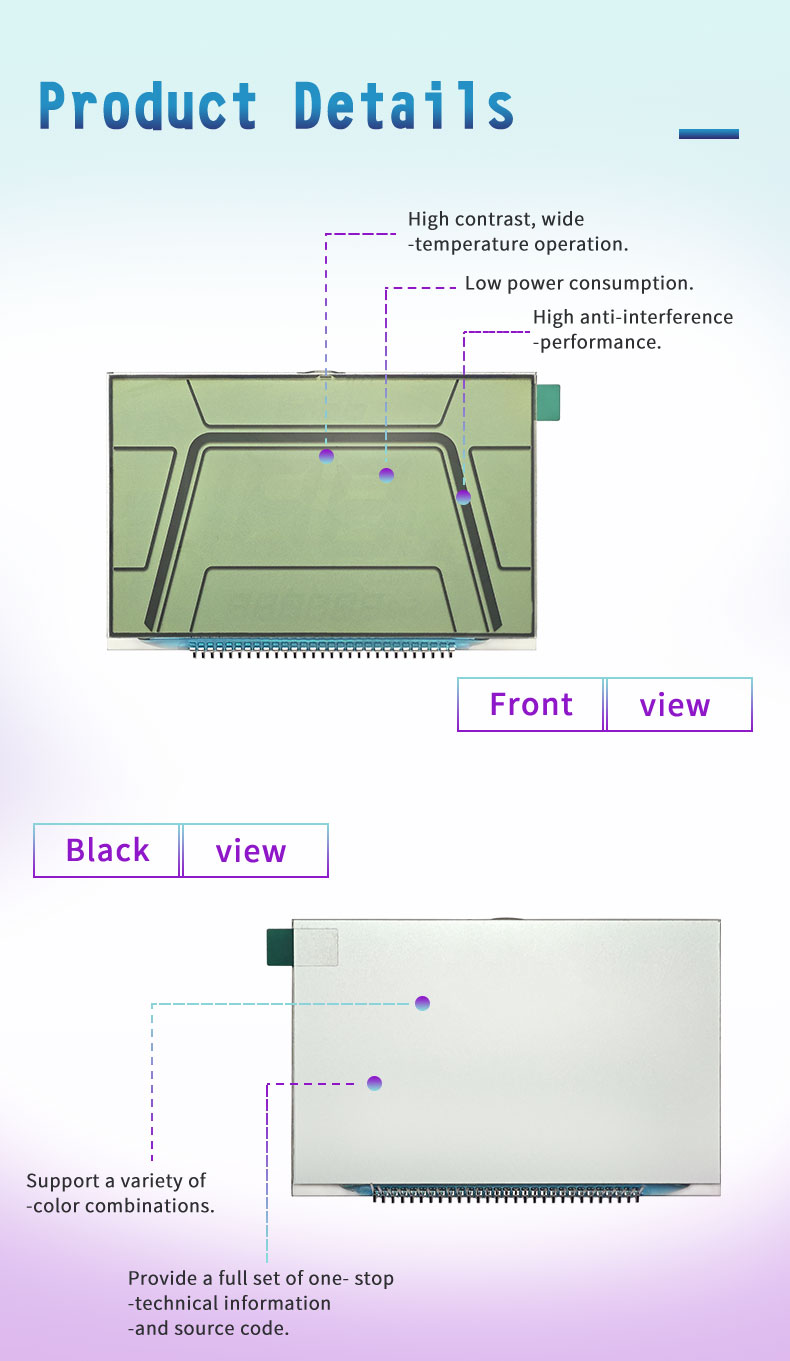

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- In stock, fast delivery
Key Specifications
The SJXDGW054 features a customized 7 segment structure optimized for clear digit presentation. It delivers high contrast display performance, ensuring readability under different lighting conditions. The module is designed for low power operation, making it suitable for battery-powered devices and energy-efficient systems. It supports stable driving conditions and consistent signal response, ensuring reliable long-term operation. The compact structure allows easy integration into various electronic products without complex design modifications. The display also provides stable electrical characteristics, ensuring consistent performance in both consumer and industrial applications. Its optimized segment layout enhances clarity and improves user experience.
Design Features
This 7 segment LCD is built for durability and efficiency. It provides fast response time and stable display performance, ensuring accurate numeric representation. The segmented design enhances visibility while maintaining low energy consumption. Its robust structure ensures long operational life and reliable performance in continuous use environments. The module is also designed for easy installation and compatibility with standard electronic circuits, making it convenient for manufacturers.
Applications
The SJXDGW054 7 segment LCD is widely used in digital meters, measuring instruments, timers, counters, household appliances, and industrial control systems. It is commonly found in products such as power meters, temperature displays, electronic clocks, and portable measurement devices. Its clarity and stability make it suitable for both consumer-grade and industrial-grade applications.

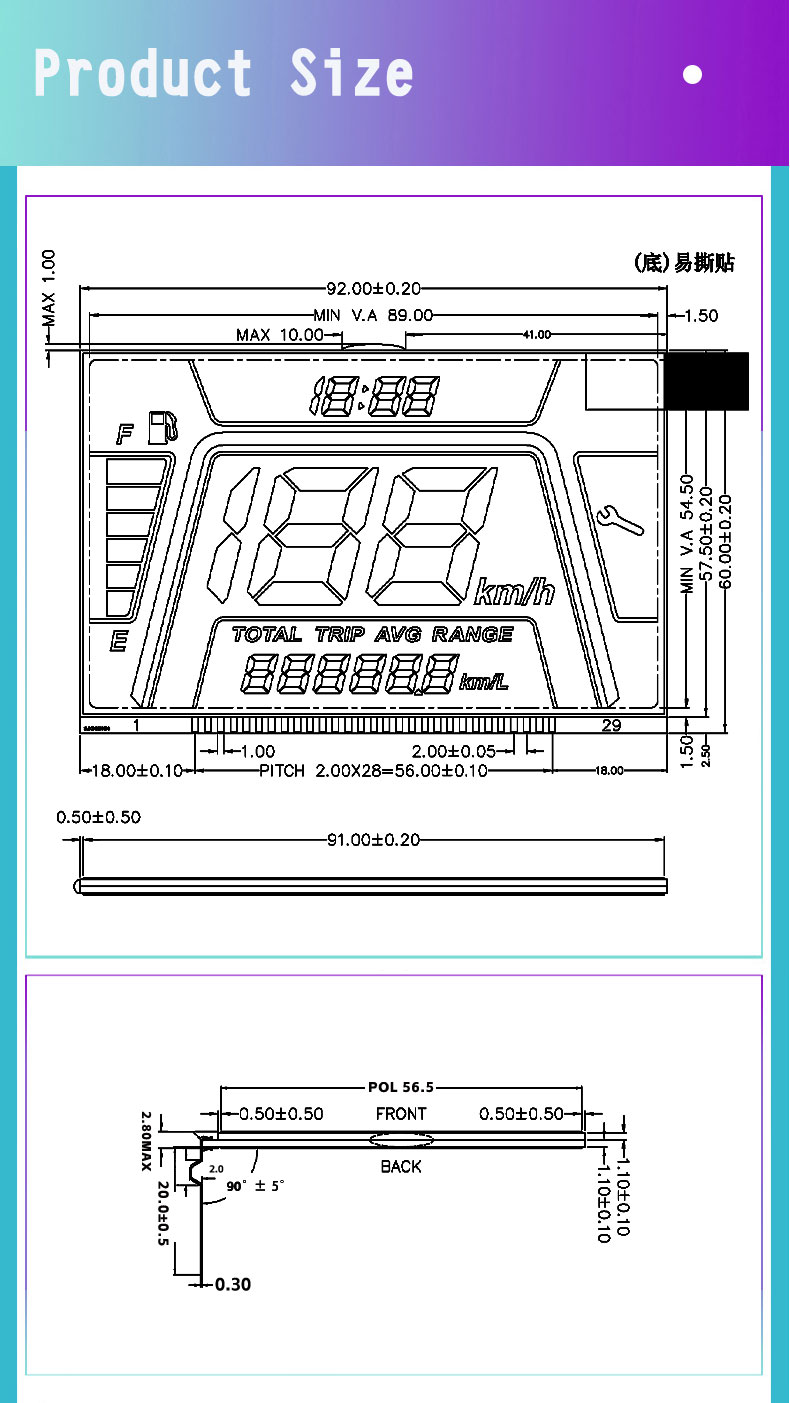

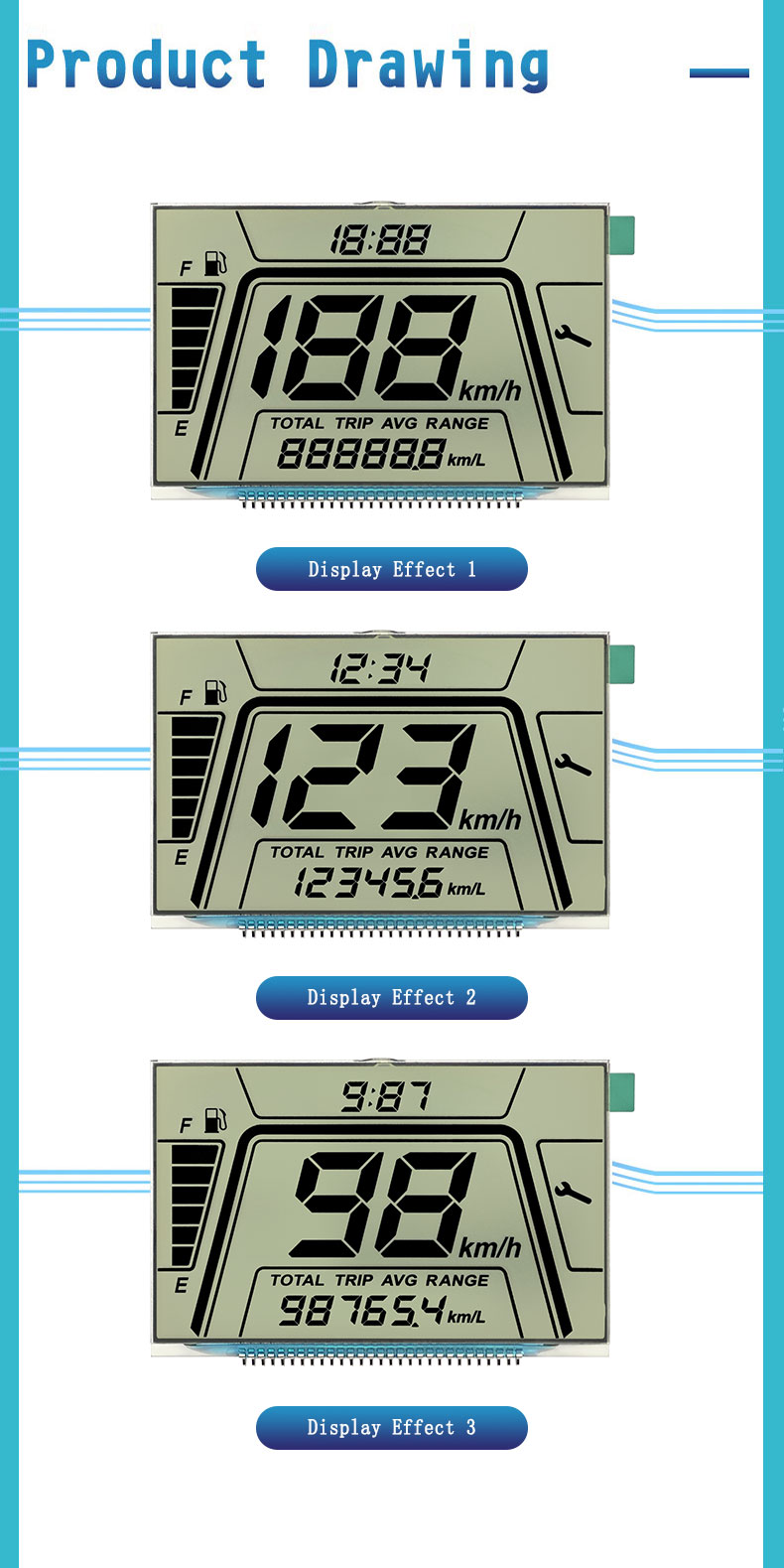

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
