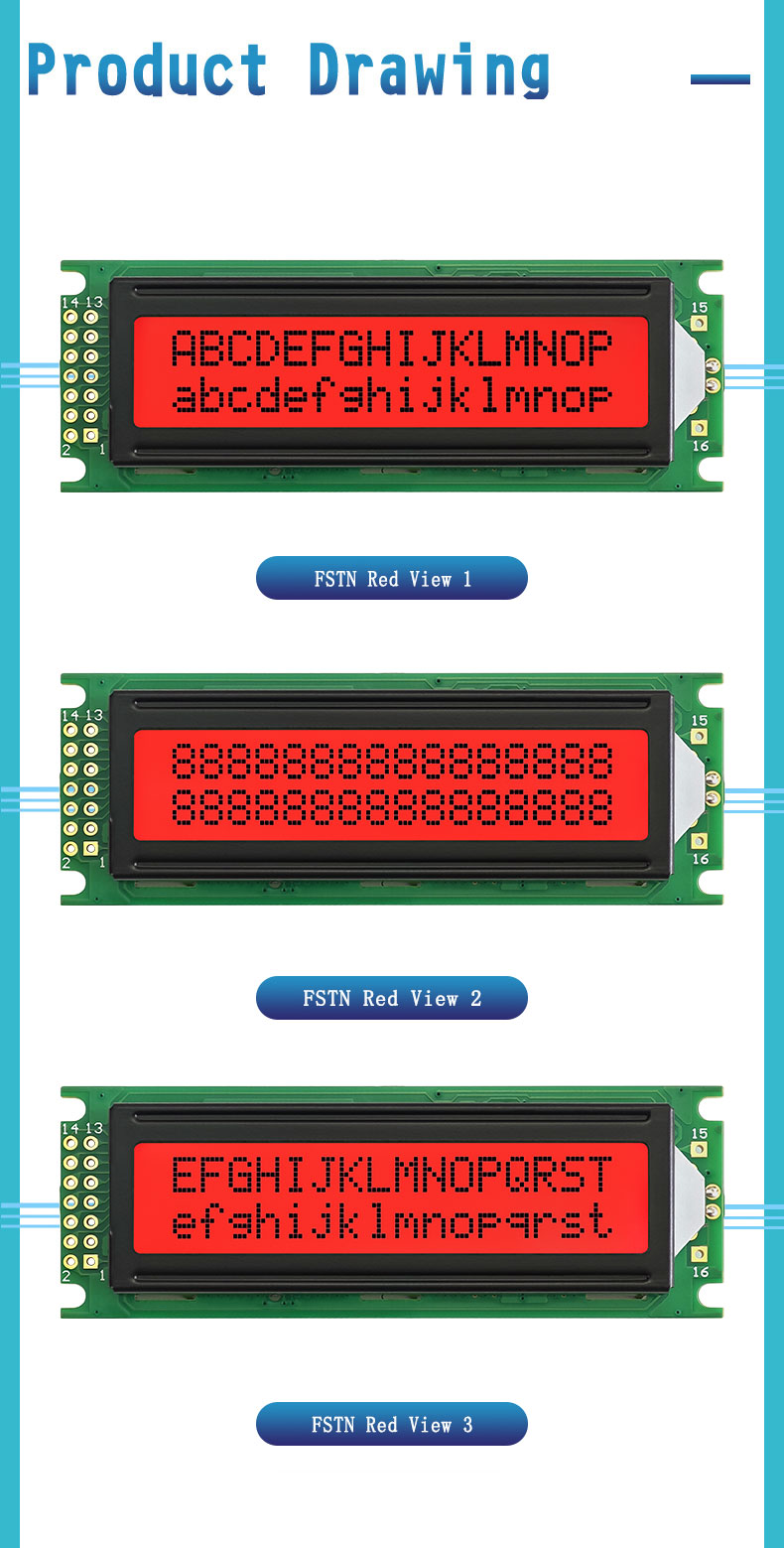

16X2 LCD Display Screen - SJXD1602B （FSTN Positive）

16X2 LCD Display Screen is a slim character module created for compact devices that need readable two-line information. It uses FSTN positive technology, a red LED backlight, 16PIN connection, and 3.3V or 5.0V driving voltage. The narrow body supports easy panel mounting while keeping clear visual performance. It suits meters, controllers, appliances, medical equipment, industrial terminals, and development projects requiring simple data viewing in daily operating environments with dependable clarity.

Parameters:

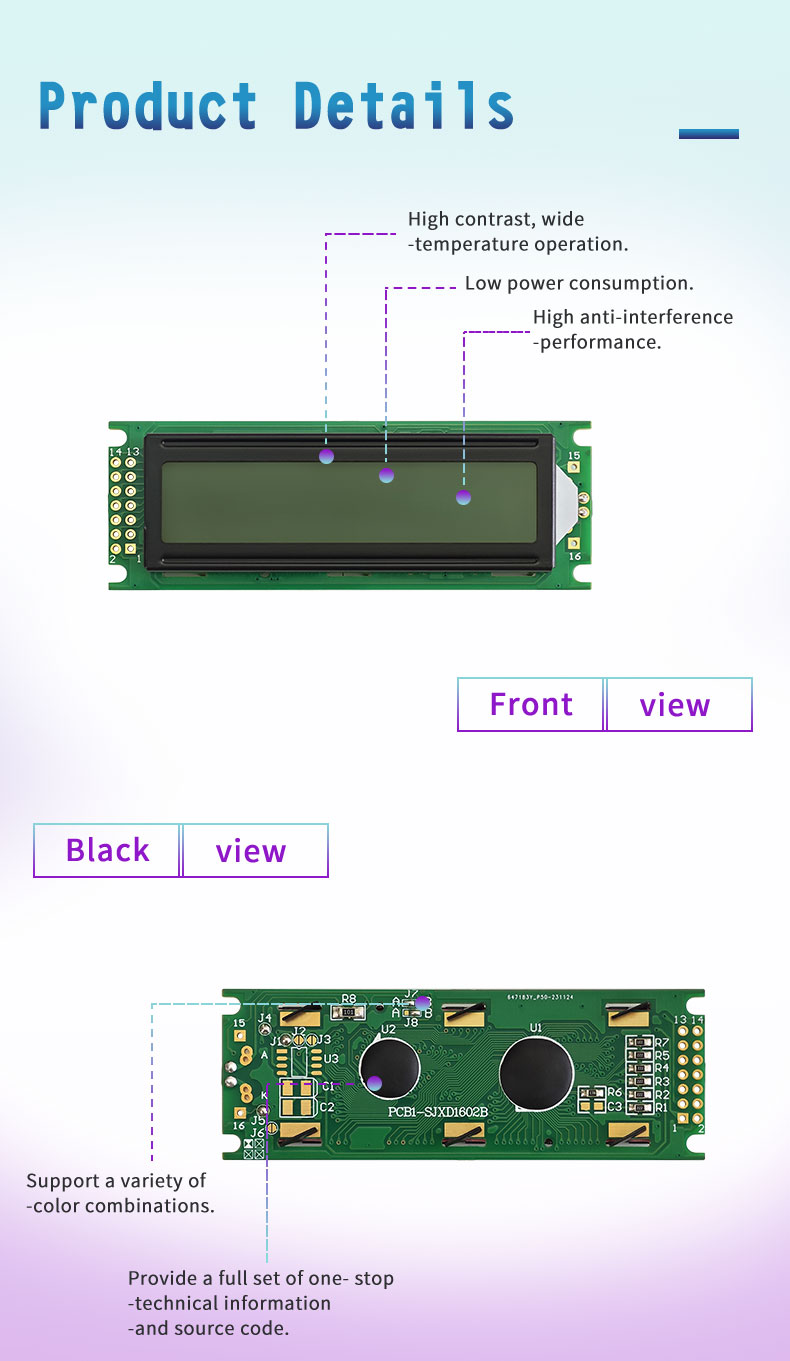

• High contrast, wide-temperature operation
• Low power consumption, high anti-interference performance
• Support for multiple color combinations
• Provide a complete set of one-stop technical information and source code
• Supports customization
• Supports 1-3 day samples
• High quality and cost-effective
• The fastest batch delivery can be achieved within 15 days

Key Specifications

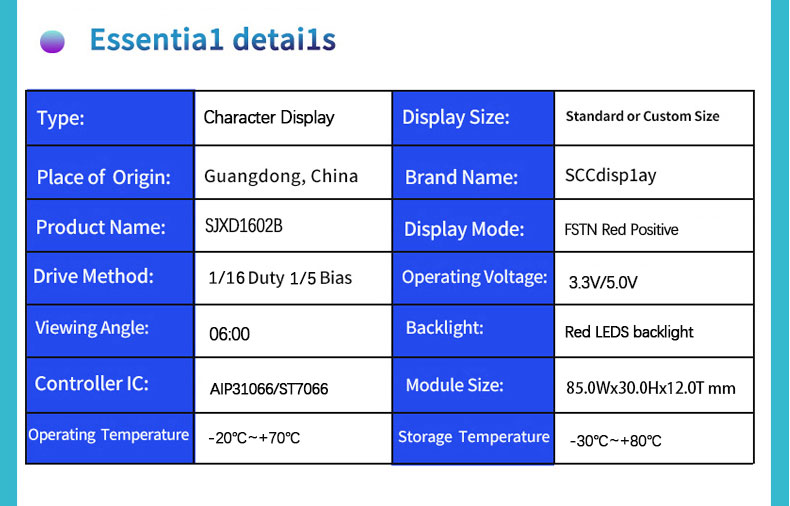

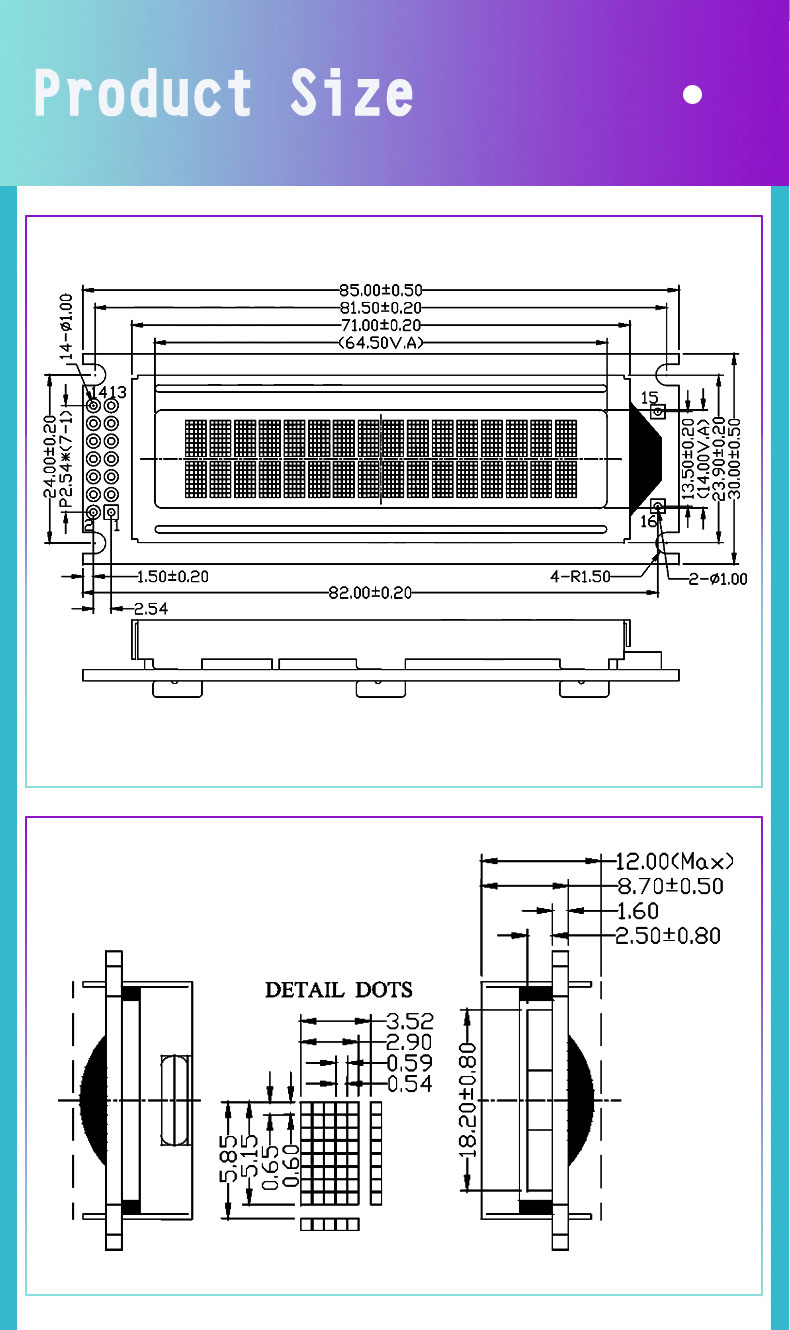

16X2 LCD Display Screen is a compact character module designed for two-line information presentation in space-limited electronic products. The SJXD1602B model uses an 85.0×30.0×12.0 mm outline and a 64.5×14.0 mm viewing area, giving it a slim structure for panel-mounted designs. It supports 3.3V/5.0V drive voltage, ST7066/AIP31066 driver IC, 16PIN interface, red LED backlight, and FSTN positive LCD type. Its -20°C to +70°C working range and -30°C to +80°C storage range help maintain dependable performance in demanding operating conditions.

Design Standards

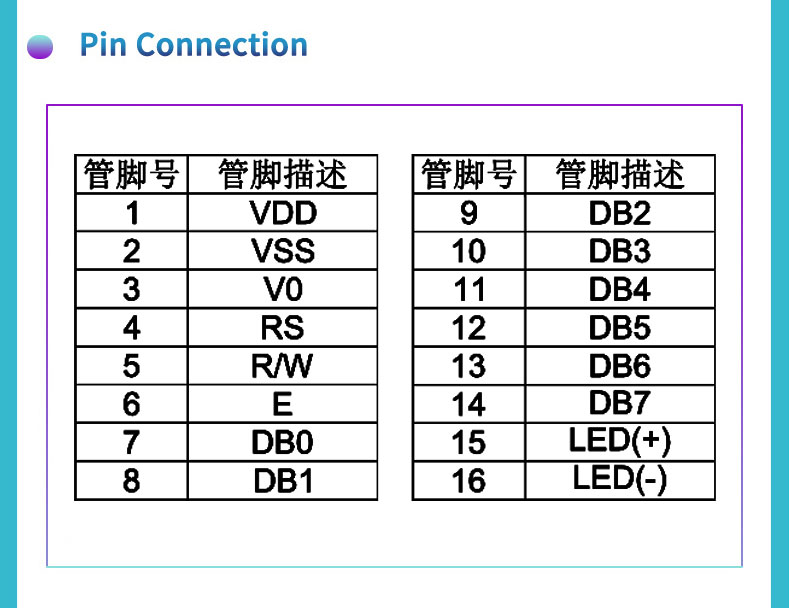

16X2 LCD Display Screen is engineered for applications that require readable character output, compact hardware matching, and stable circuit behavior. The FSTN positive display structure improves contrast while keeping the screen suitable for standard equipment interfaces. Its 16PIN connection allows engineers to integrate the module with common LCD control circuits for testing, replacement, or customized product development. The design also emphasizes low power consumption, anti-interference performance, multiple color combination support, technical documentation, source code assistance, and sample availability, helping developers shorten evaluation time before production.

Applications

16X2 LCD Display Screen is suitable for equipment that needs simple character-based communication rather than complex graphic display functions. It can present operating instructions, menu content, alarm prompts, counting data, measurement values, and basic system status. Typical use cases include meters, equipment control panels, information display systems, industrial control units, medical devices, home appliances, consumer electronics, and DIY electronics projects. Its slim body size, red backlight option, and stable FSTN positive display make it practical for compact instruments, embedded terminals, and customized panel solutions.

Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.

Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.

Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.

Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.

Q: What is this screen used for？
A: Character LCD screens are widely used in home appliances, industrial controls, medical devices, consumer electronics, and DIY projects, suitable for displaying status information, menu options, and basic data.
