Basic Information
The SJXDGN69 motorcycle digital dashboard is a customized segmented display designed specifically for motorcycle instrument clusters. It is engineered to provide clear, stable, and reliable visual output for essential riding information. With a focus on durability and readability, this display ensures that riders can quickly access key data such as speed, fuel level, gear position, and warning indicators. Its robust design makes it suitable for outdoor environments and long-term vehicle use.
| Character Type | Customized |
| Model | SJXDGN69 |
| Model Size | 104.7×40.5×2.8 mm |
| VA Size | 101.7×35.0 mm |
|
Connector
|
Metal pins |
|
LCD Type
|
HTN Positive |
|
Drive Conditions
|
1/4 D 1/3 B
|
|
Working Temperature
|
-20C TO +70°C
|
| Storage Temperature |
-30°C TO +80°C
|
|
Working Voltage
|
4.5V |

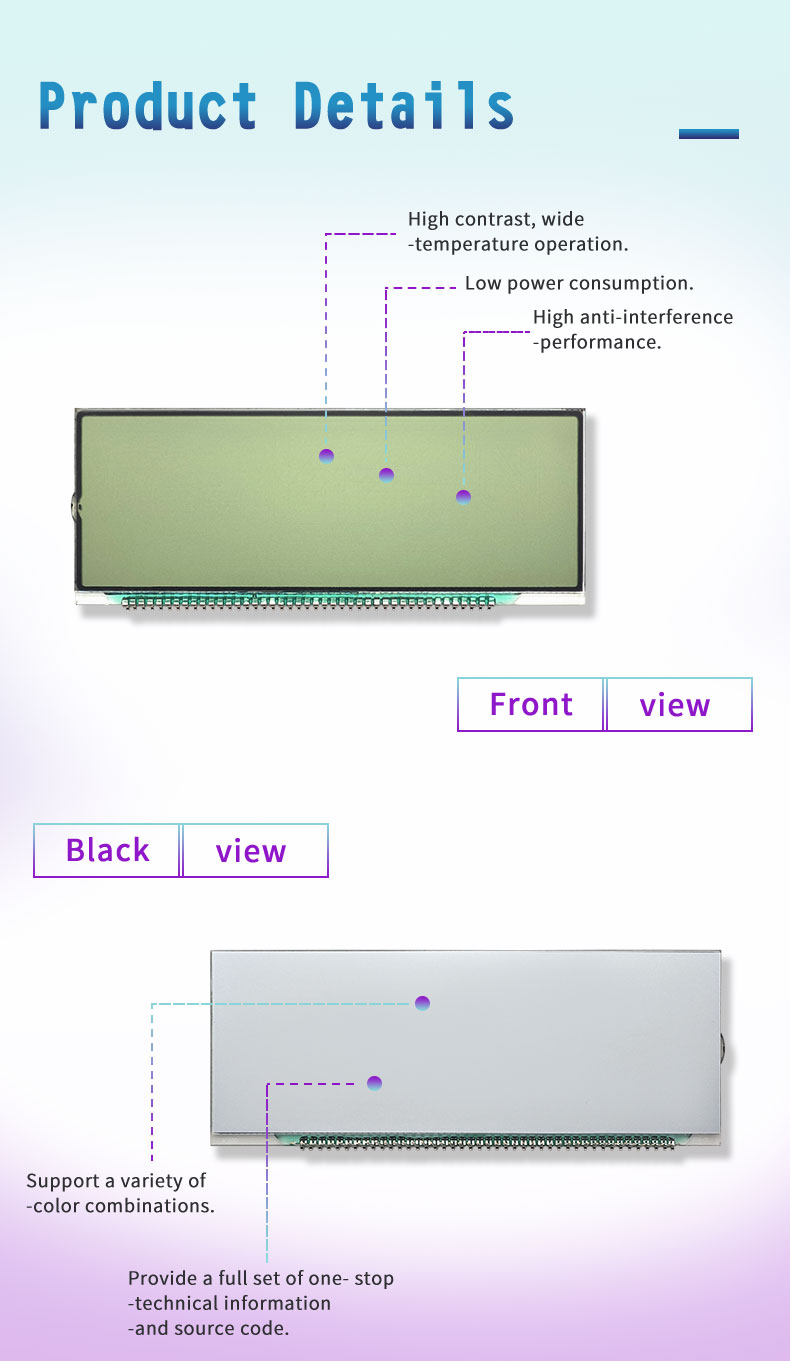

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- In stock, fast delivery
Key Specifications
The SJXDGN69 LCD segment adopts a high-quality segmented display structure optimized for automotive applications. It features low power consumption, making it ideal for battery-powered motorcycle systems. The display supports stable driving conditions and consistent signal performance, ensuring reliable operation during vibration and motion. It is designed with a compact structure that allows easy integration into modern motorcycle dashboards. The module offers good contrast and readability under different lighting conditions, improving visibility during both daytime and nighttime riding. It also supports a wide operating temperature range, ensuring stable performance in various climates and road conditions.
Design Features
This motorcycle LCD segment is built with durability and functional stability in mind. It is resistant to vibration and environmental stress, which are common in motorcycle applications. The segmented layout ensures fast response and accurate display of numerical and symbolic information. Its long service life and low maintenance requirements make it a dependable choice for vehicle manufacturers.
Applications
The SJXDGN69 is widely used in motorcycle dashboards, electric bikes, scooters, and other light vehicle instrument panels. It is commonly applied in speedometers, fuel indicators, gear displays, and multifunctional dashboard systems. Its clear visibility and stable performance make it suitable for both entry-level and advanced vehicle designs.
Conclusion
Overall, the SJXDGN69 Motorcycle LCD Segment offers a reliable, energy-efficient, and highly readable display solution for two-wheeler instruments. Its durability, clarity, and stable performance make it an excellent choice for modern motorcycle dashboard applications.

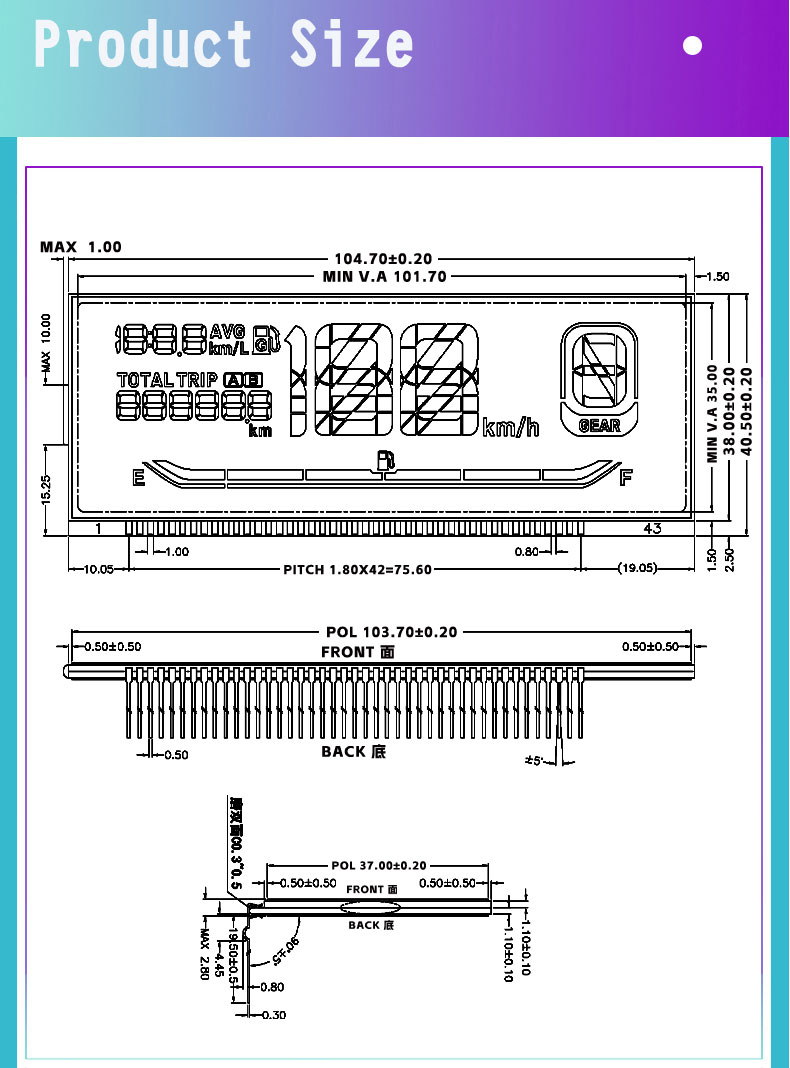

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
