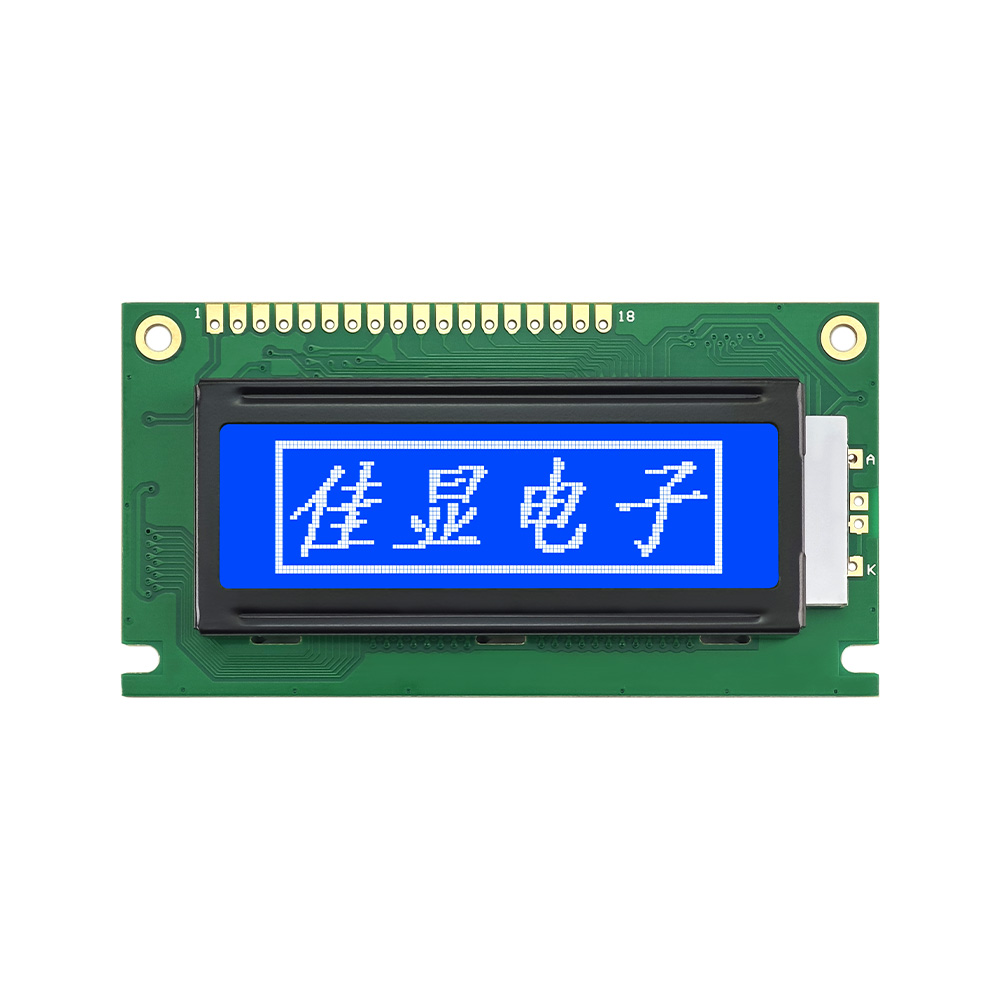

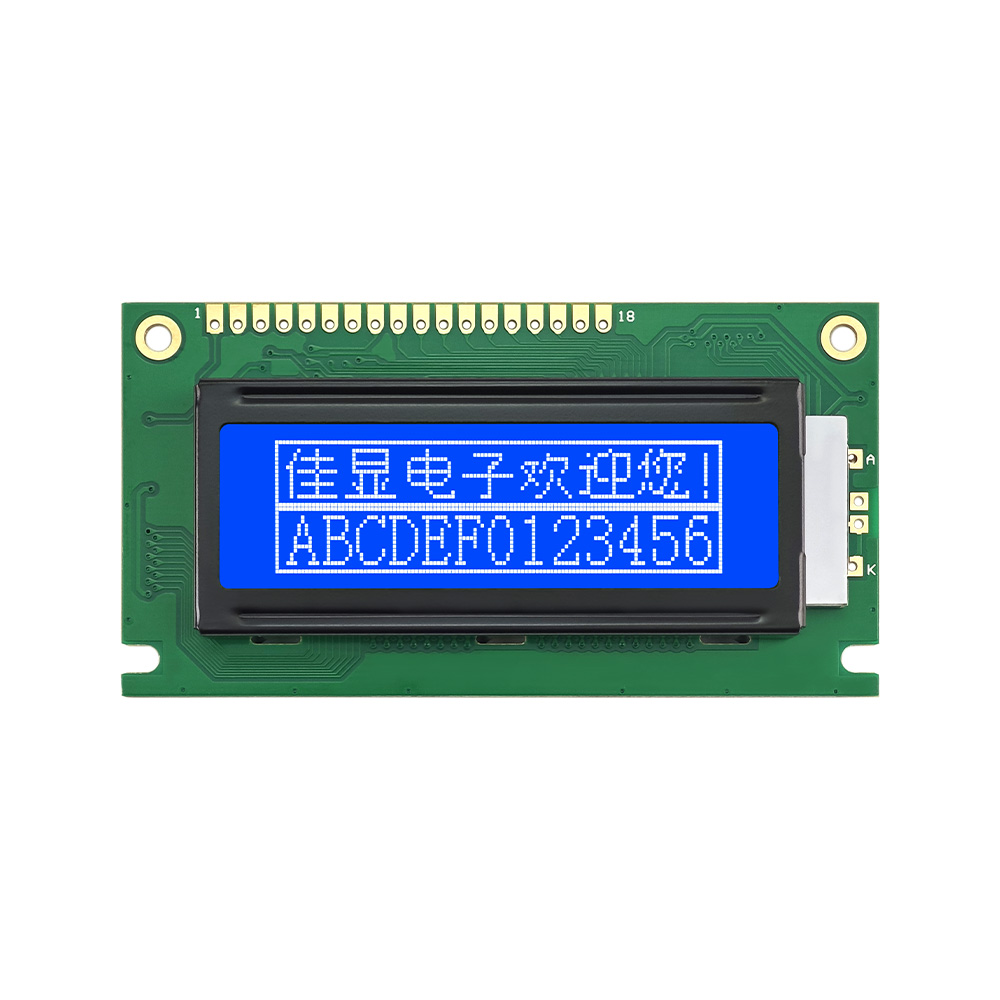

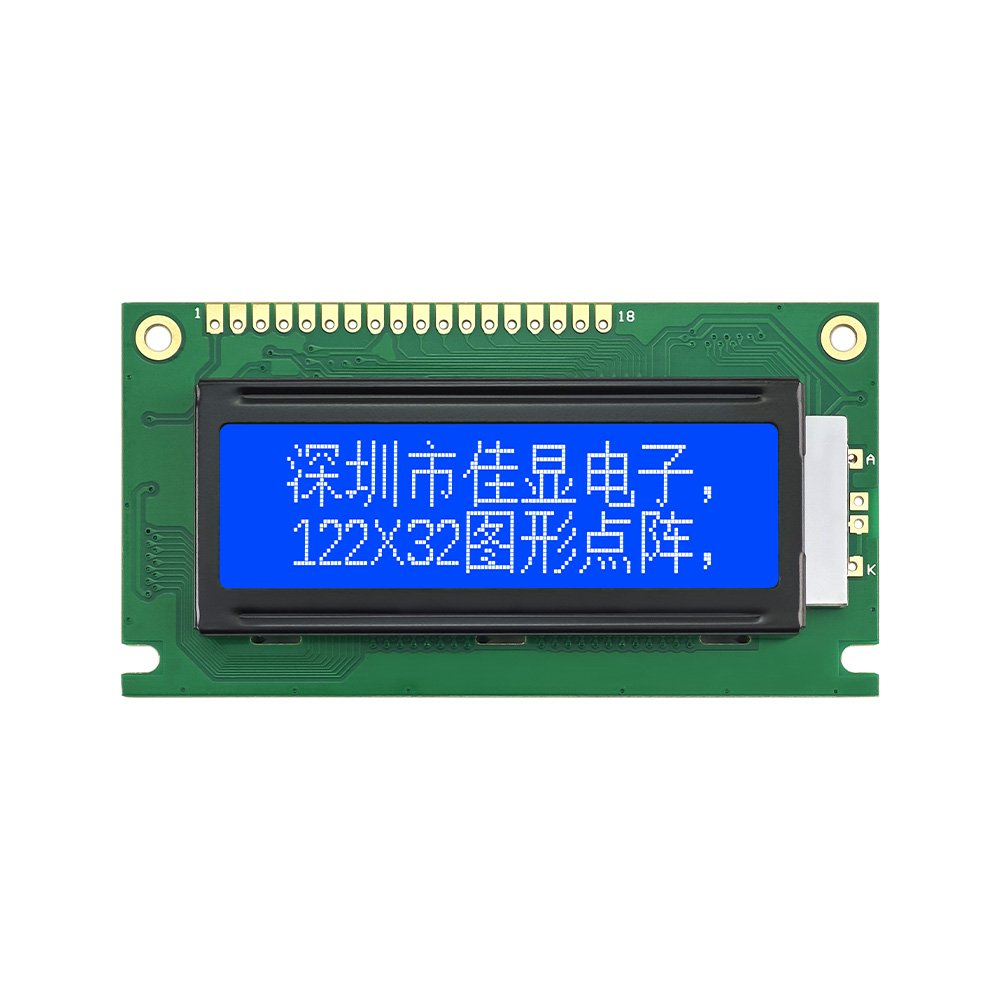

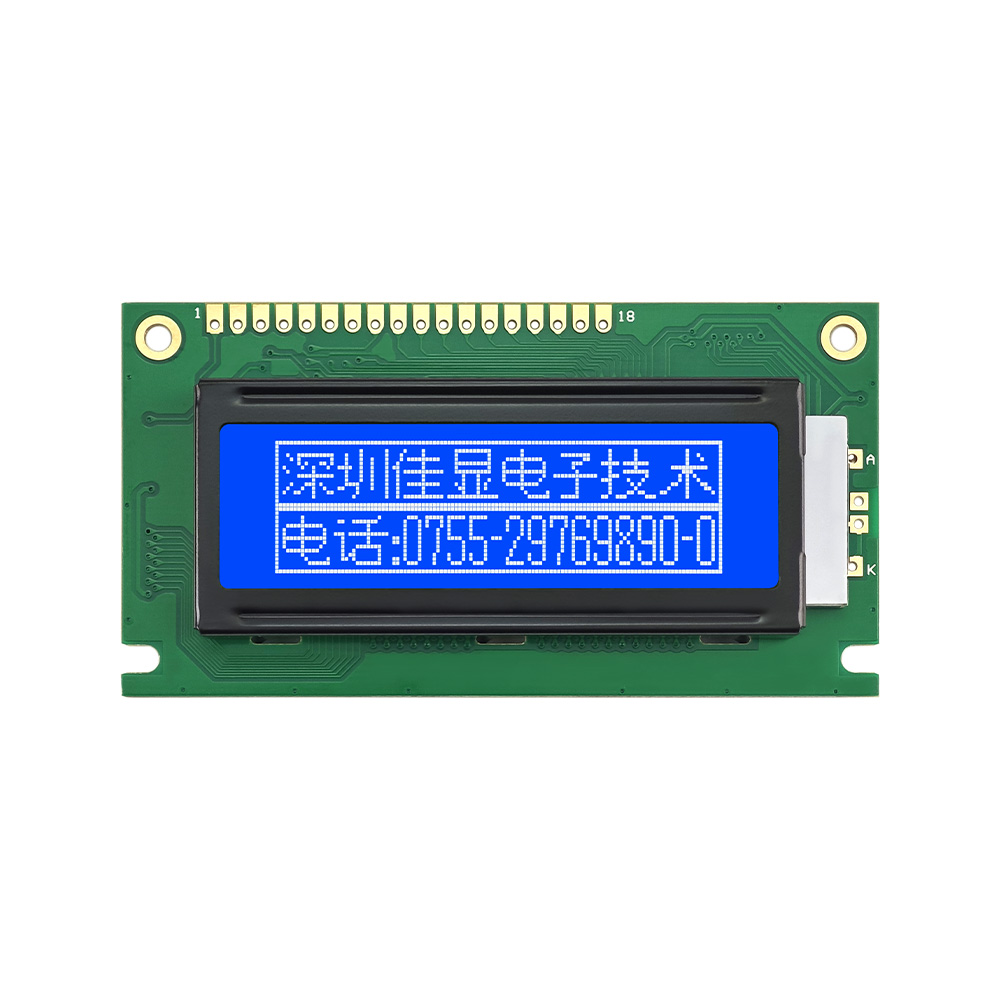

Basic Information
The 122*32 LCD Screen JXD12232B is a compact monochrome dot matrix display module designed for embedded electronic systems that require stable visual output, low power consumption, and reliable long-term operation. It utilizes LCD dot matrix technology to deliver clear and structured information presentation, making it suitable for industrial control, instrumentation, and communication devices. The module is optimized for applications where space efficiency and consistent readability are essential.

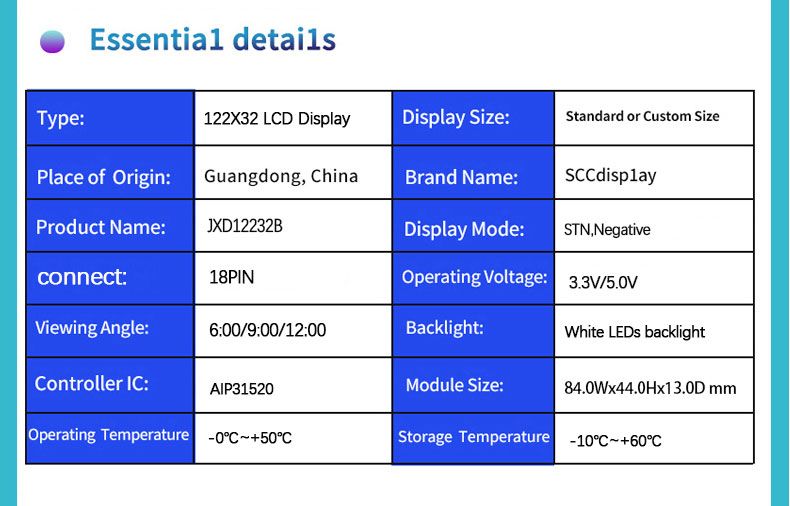

Parameters:
| Character Type | 122X32 |
| Model | JXD12232B |
| Model Size | 84.0×44.0×13.0 MM |
| VA Size | 60.5×18.0 MM |
|
Drive Voltage
|
3.3V/5.0V
|
|
Drive IC
|
AIP31520
|
|
Backlight
|
White LED Backlight
|
|
LCD Type
|
STN Negative
|
|
Interface
|
18PIN |
| Working Temperature |
-0°C - +50°C
|
|
Storage Temperature
|
-10°C - +60°C |
Feature

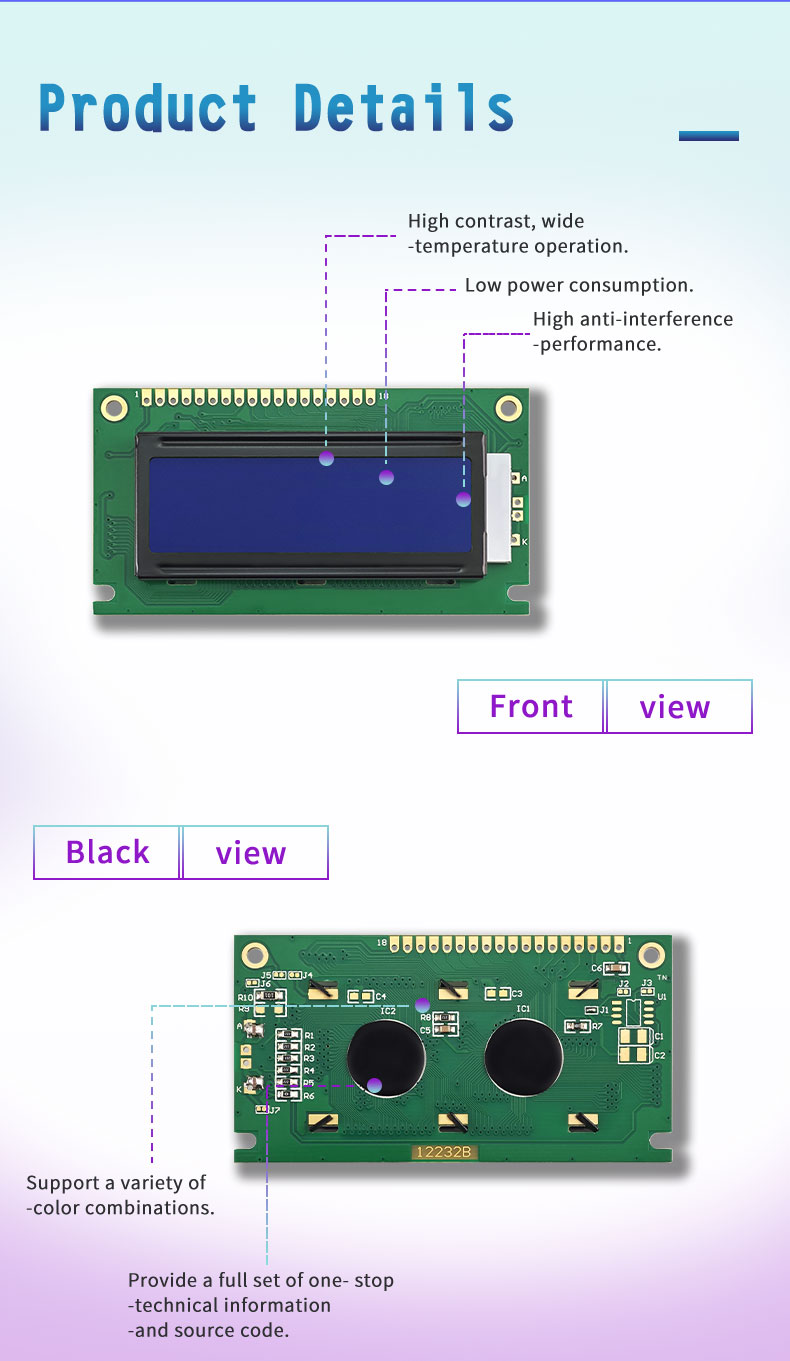

- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- The fastest batch delivery can be achieved within 15 days
Key Specifications
This 122*32 LCD Screen features a 122×32 dot matrix resolution, enabling efficient display of text, numeric data, symbols, and simple graphical elements. The compact resolution is ideal for space-constrained designs while still maintaining clear and readable output. The LCD structure ensures stable contrast performance and consistent visual clarity under different lighting conditions. It operates with low power consumption, making it suitable for battery-powered and continuously operating embedded systems. The module supports stable refresh performance, ensuring smooth updates of displayed information without flicker or distortion. Its compact mechanical structure allows easy integration into industrial controllers, measurement devices, monitoring systems, and embedded terminals. The display maintains reliable performance across a wide operating temperature range, ensuring stable operation in different environmental conditions. Uniform pixel alignment and controlled liquid crystal response contribute to accurate and consistent visual output.
Design Standards
The module is manufactured under strict LCD engineering standards to ensure durability, stability, and long-term reliability. High-quality liquid crystal materials are used to achieve uniform optical performance and stable contrast characteristics. Circuit design is optimized to reduce electromagnetic interference and ensure stable signal transmission in embedded applications. The structural design supports compact integration while maintaining mechanical strength and thermal stability. Each unit undergoes comprehensive inspection for pixel accuracy, display uniformity, brightness consistency, and electrical reliability. Energy-efficient design principles are applied to reduce power consumption while maintaining stable performance over extended operational cycles. Quality control processes ensure consistent performance across production batches.
Applications
The 122*32 LCD Screen is widely used in industrial automation systems, smart meters, medical equipment, communication devices, embedded controllers, and instrumentation panels. It is also suitable for monitoring systems, testing instruments, security devices, and portable electronics. Its combination of compact structure, stable dot matrix output, and low-power operation makes it an effective solution for embedded display applications requiring clear and reliable visual communication in demanding environments.

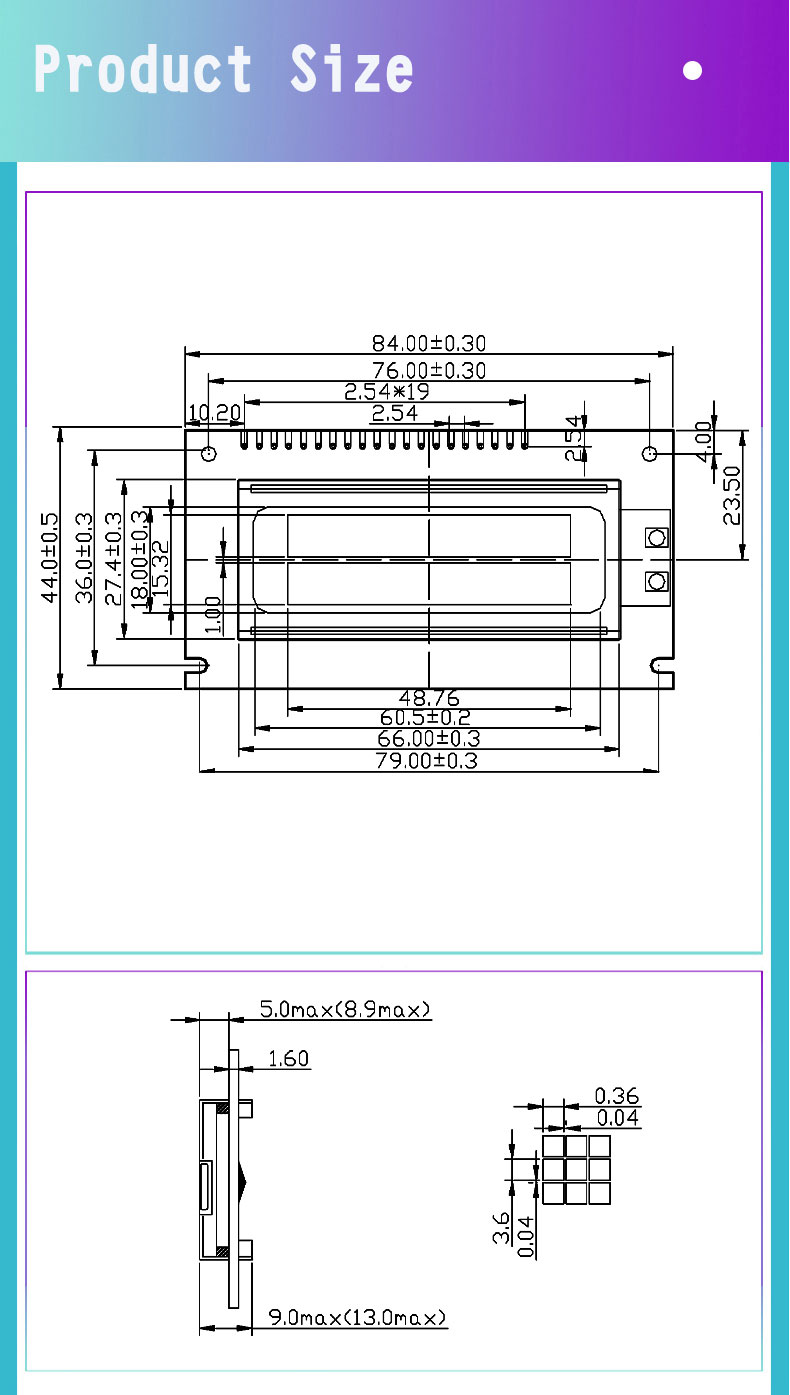

Product Size
