Basic Information

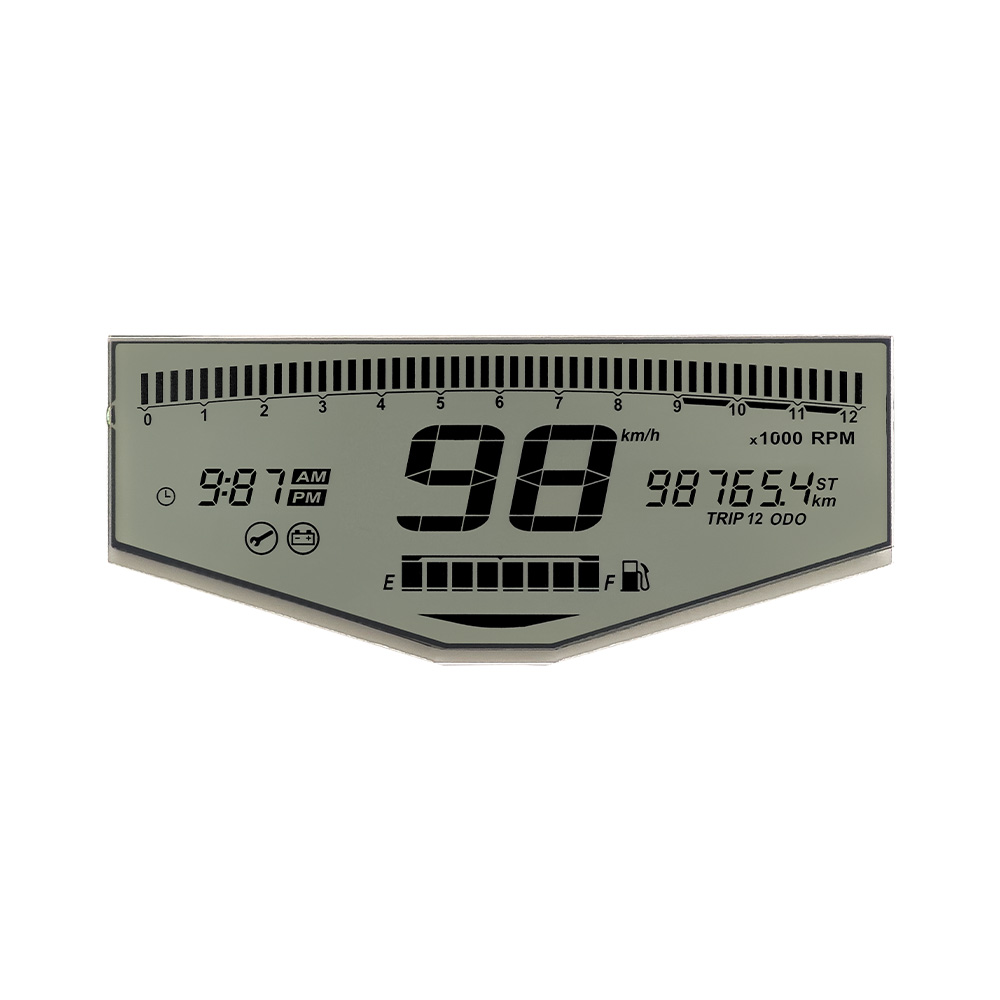

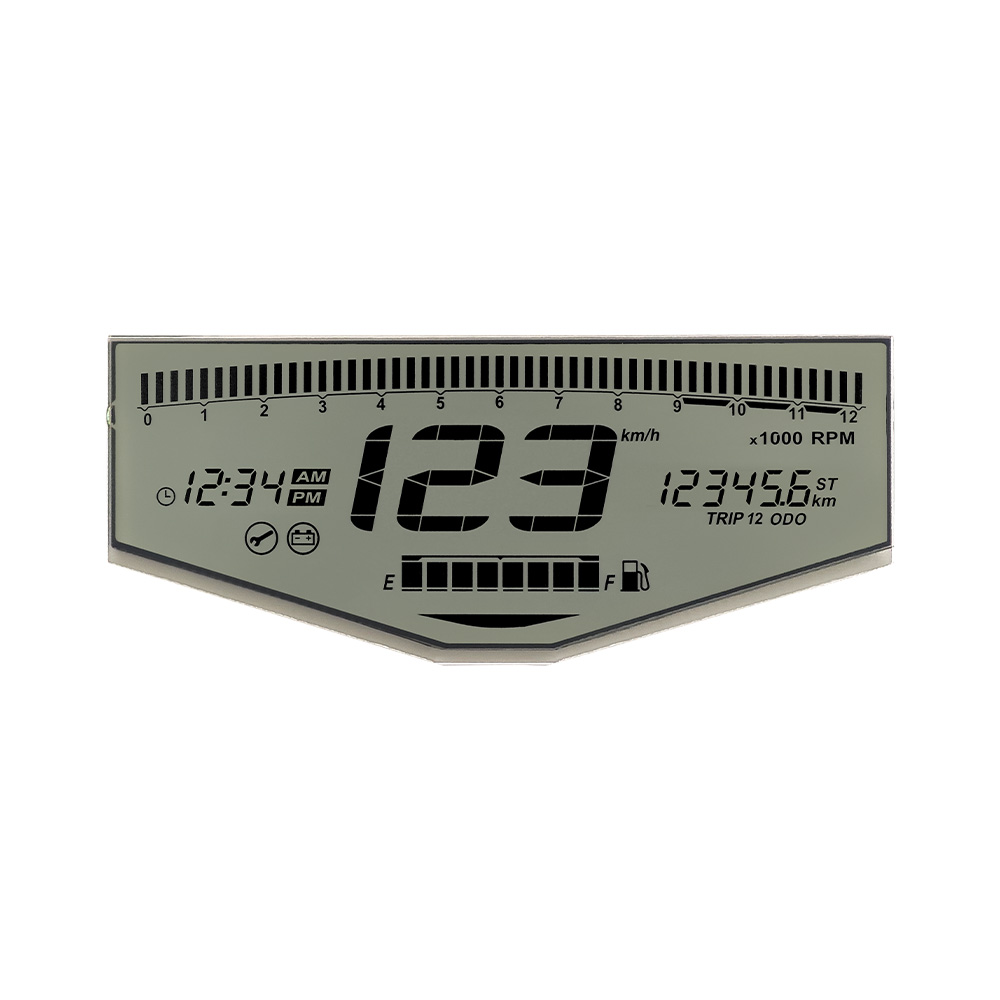

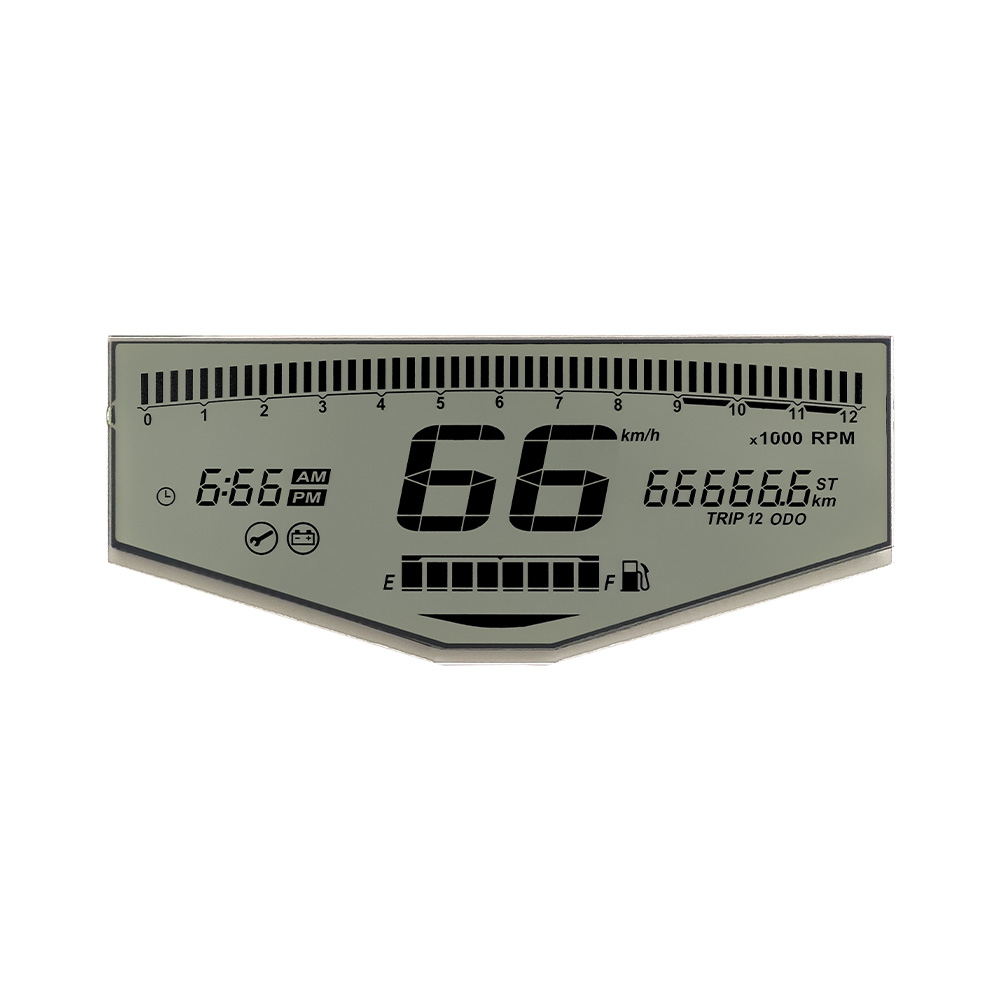

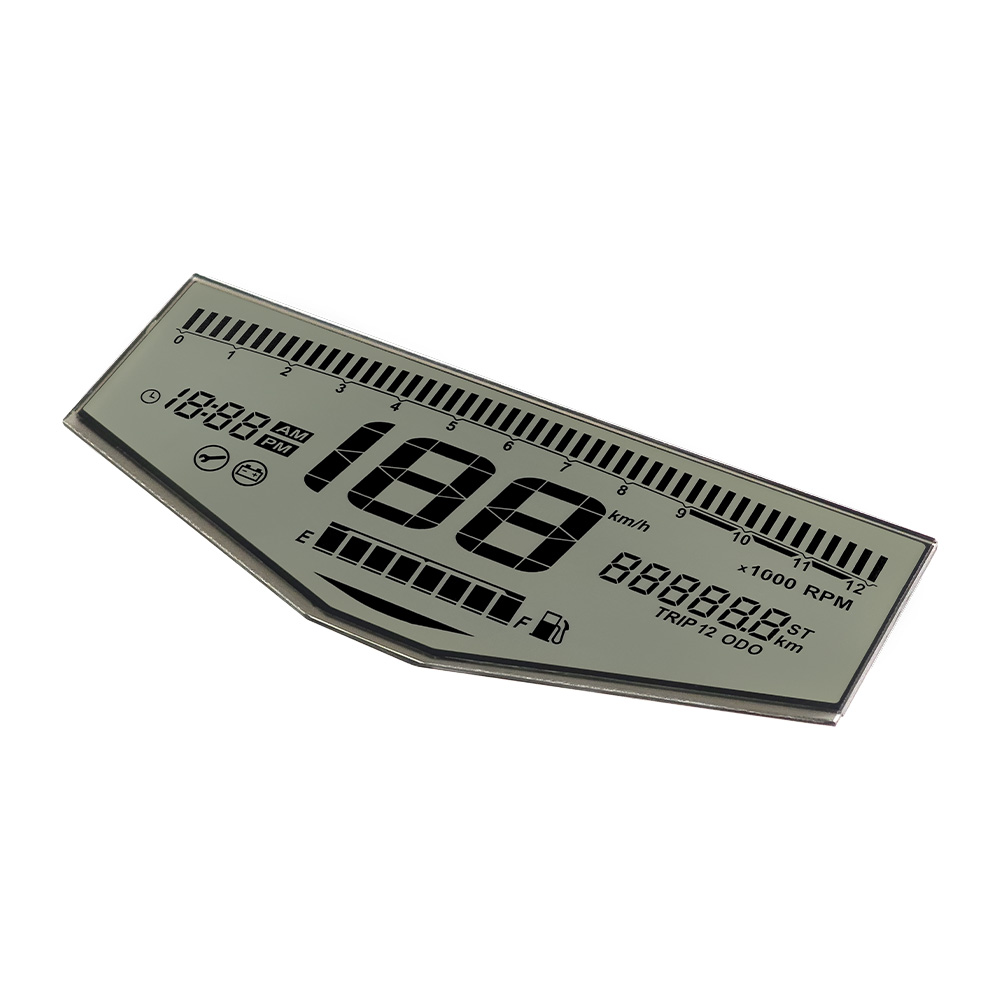

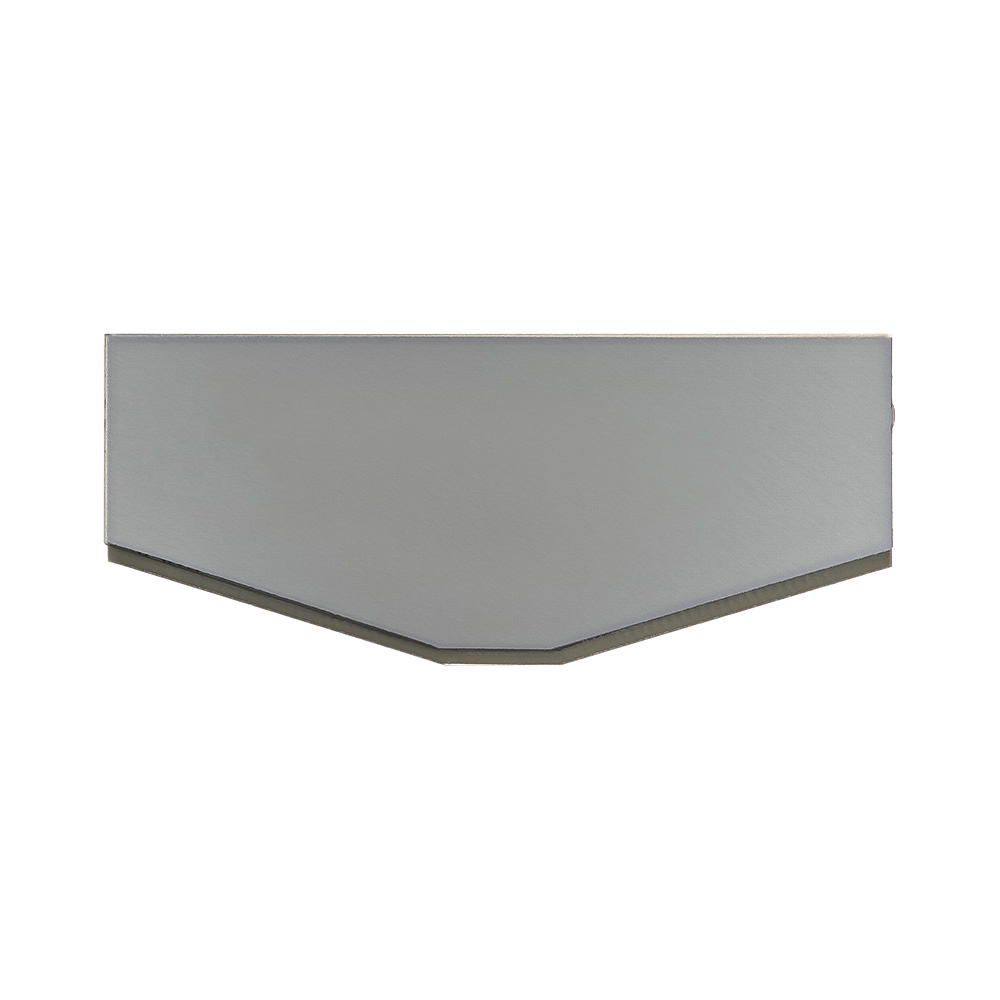

The Multiplexed 7 Segment LCD Display SJXDGN025 is a high-efficiency segmented LCD solution designed for multi-digit numeric visualization using multiplex driving technology. It is engineered to reduce pin usage while maintaining clear and stable display output, making it ideal for compact electronic systems and embedded applications. This module is widely used in devices that require multiple digit representation with optimized circuit efficiency and reliable visual performance.
Parameters:
| Character Type | Customized |
| Model | SJXDGW025 |
| Model Size | 125×53×2.8mm |
| VA Size | 122×47.5mm |
|
Connector
|
Conductive adhesive strip |
|
LCD Type
|
HTN Positive |
|
Drive Conditions
|
1/4D 1/3B
|
|
Working Temperature
|
-20°C TO +70'C
|
| Storage Temperature |
-30'C TO +80'C
|
|
Working Voltage
|
4.5 V |
Feature

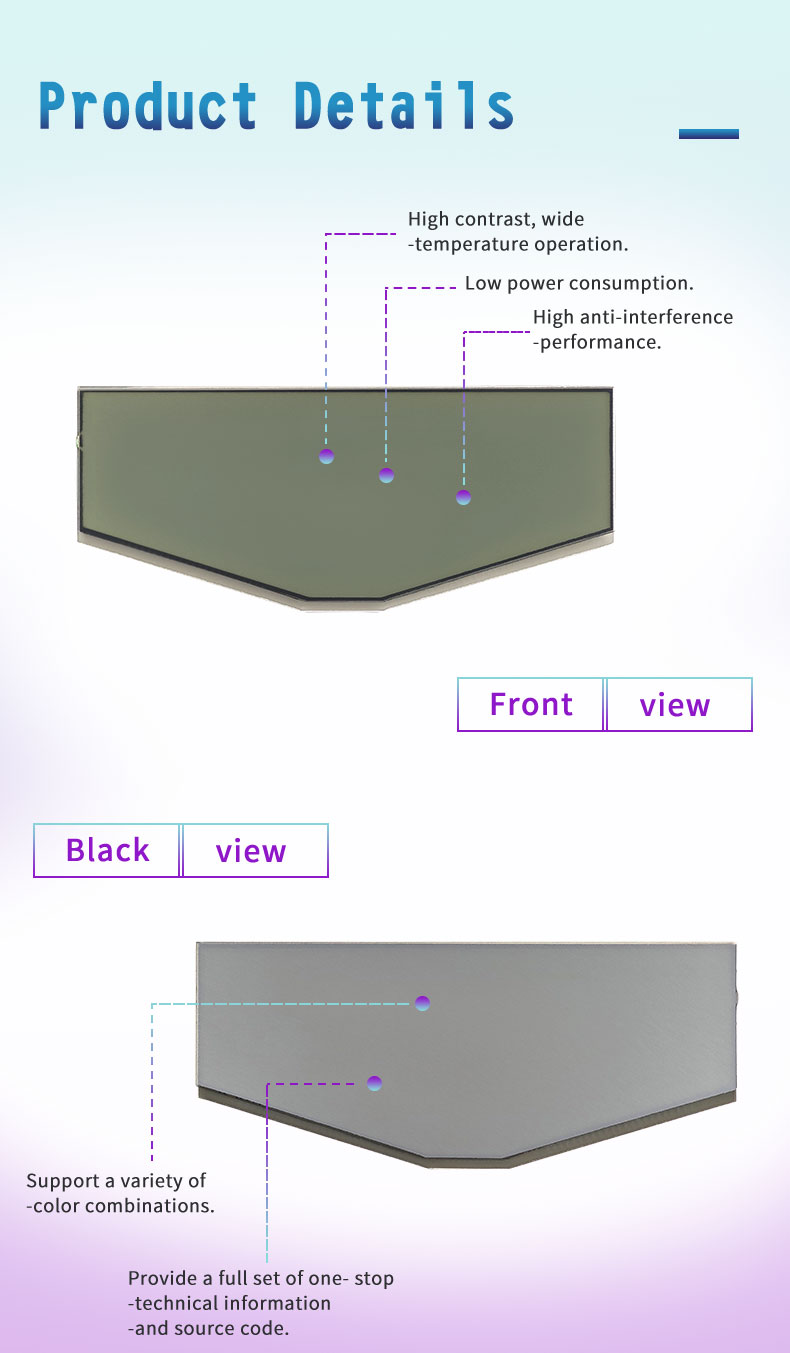

- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- In stock, fast delivery
Key Specifications
This Multiplexed 7 Segment LCD Display utilizes a multiplexed driving architecture that enables multiple digits to be controlled using shared segment lines. It provides clear and stable numeric output, ensuring accurate display of multi-digit values such as measurements, counters, and system parameters. The display offers strong contrast performance, allowing easy readability under standard indoor lighting conditions. It operates at low voltage, making it suitable for energy-efficient designs and battery-powered devices. The module is engineered for low power consumption, supporting continuous operation in embedded and industrial systems. It maintains stable performance across a wide temperature range, ensuring reliable functionality in different environmental conditions. Its compact design allows efficient integration into multi-digit display panels, industrial meters, and control systems. The fast refresh capability of multiplex driving ensures smooth and consistent numeric updates without flicker or delay.
Design Standards
The module is manufactured according to strict industrial LCD and multiplex driving standards to ensure durability, stability, and long-term operational reliability. High-quality liquid crystal materials are used to maintain uniform segment clarity and optical consistency across all digits. Circuit design is optimized to minimize electromagnetic interference and ensure stable multiplex signal transmission. The structure is reinforced to withstand mechanical stress, temperature variation, and continuous switching cycles inherent in multiplex operation. Each unit undergoes comprehensive testing to verify segment accuracy, timing synchronization, and electrical stability. Low power engineering principles are applied to enhance efficiency and extend operational lifespan in embedded applications.
Applications
The Multiplexed 7 Segment LCD Display is widely used in digital meters, industrial control systems, multi-digit counters, embedded instrumentation, and smart measurement devices. It is also suitable for portable electronics, utility monitoring systems, and custom display panels requiring efficient multi-digit numeric output. Its combination of reduced pin requirements, stable performance, and low power consumption makes it an ideal solution for modern electronic display systems using multiplexed architecture.

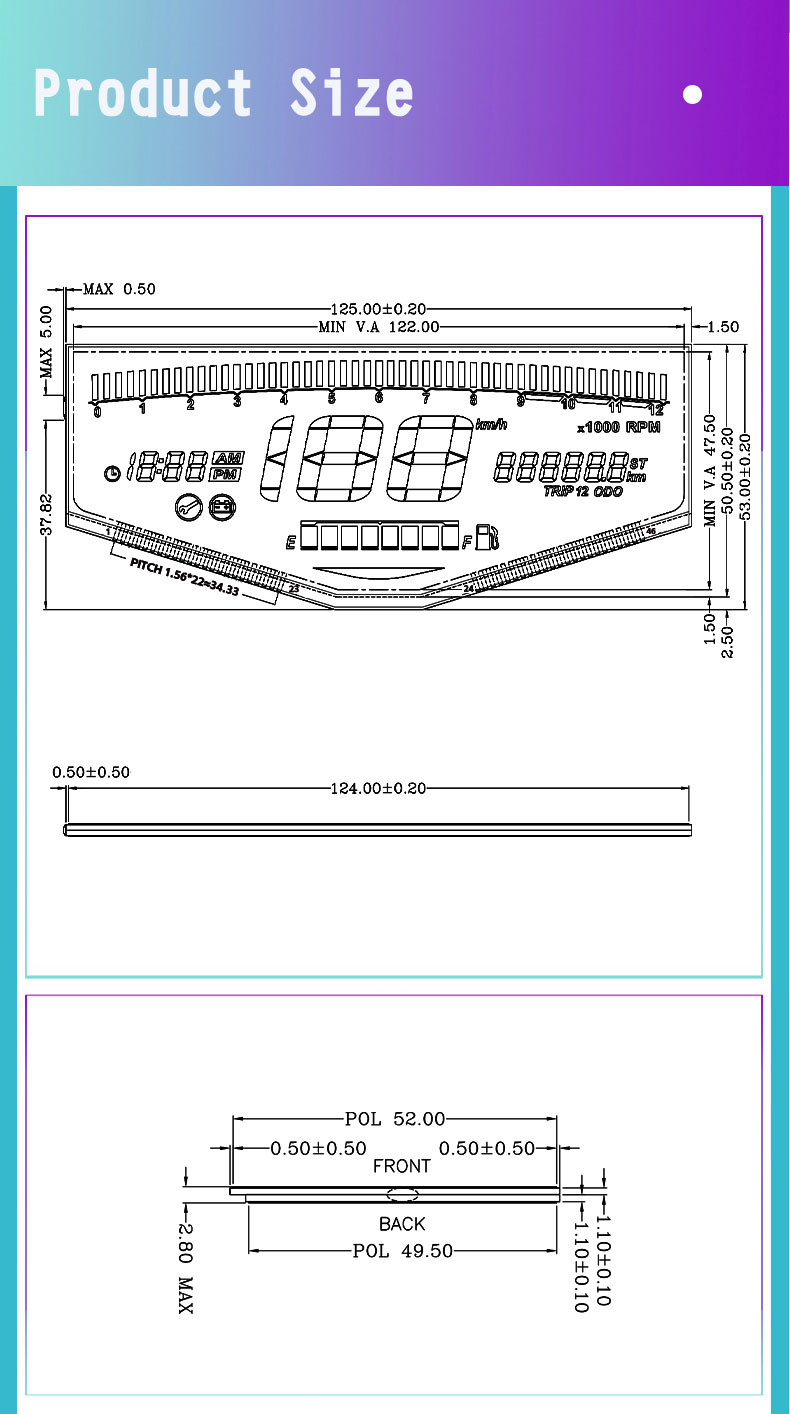

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
