Monochrome LCD Display​ - JXD1602A （FSTN Positive）Russian

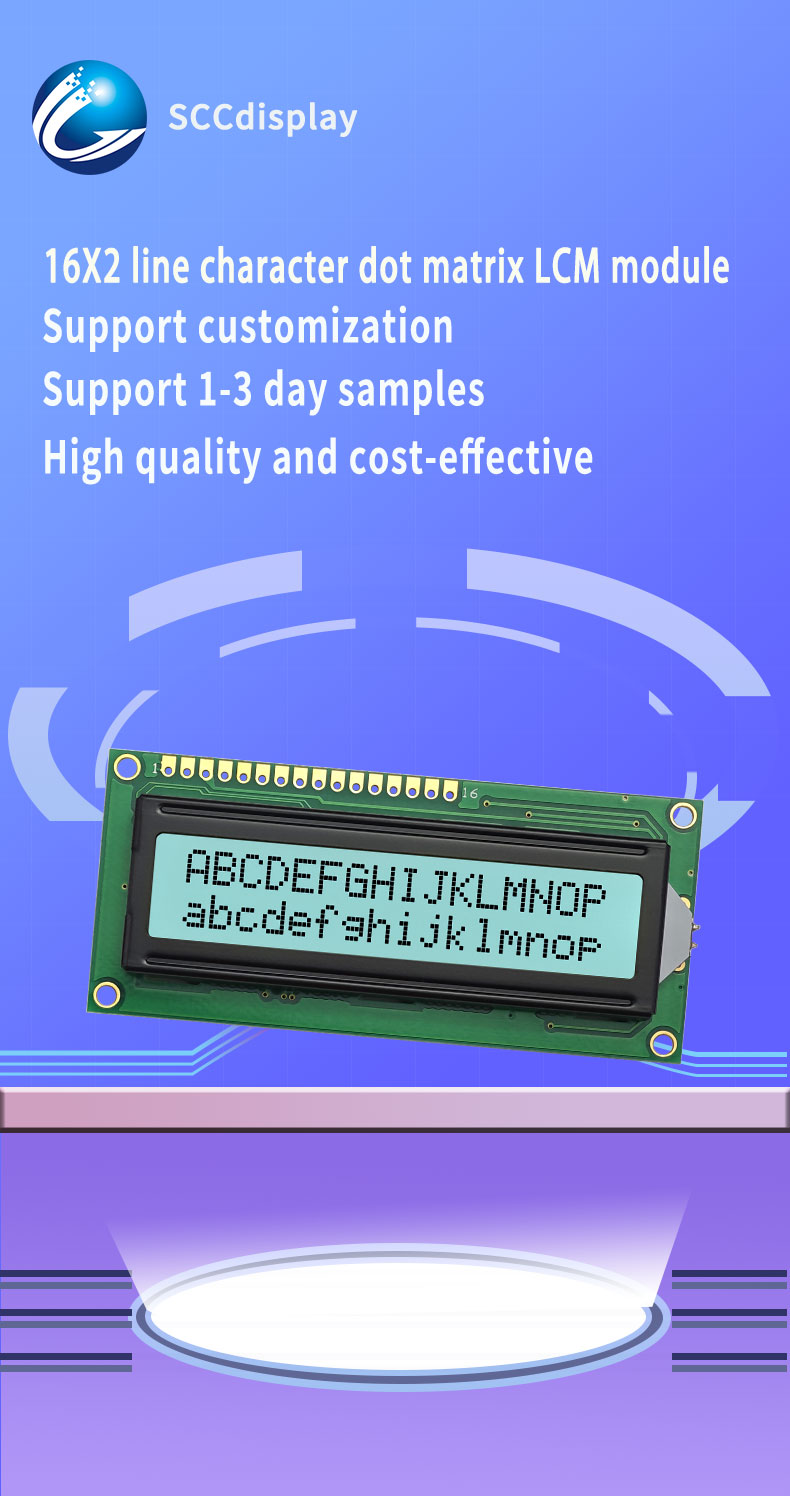

Monochrome LCD Display JXD1602A is a 16×2 character module for values, menus, symbols, labels, warnings, and device status. It uses FSTN positive technology to present clear dark text on a light background, supporting readable output in compact equipment panels. With 3.3V/5.0V drive compatibility, LED backlight options, low power operation, wide temperature performance, and customization flexibility, it fits meters, industrial instruments, control panels, household appliances, medical electronics, communication devices, and embedded electronic systems.

Parameters:

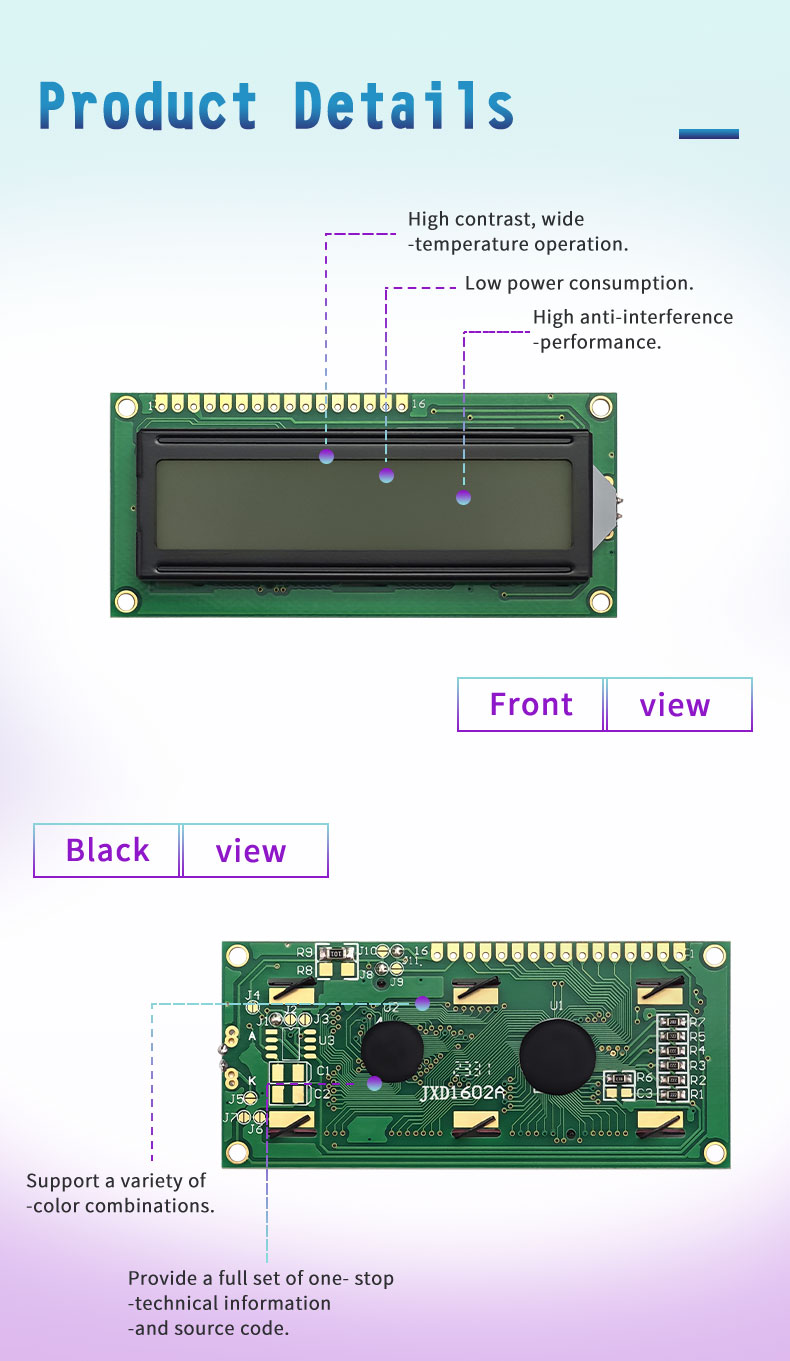

• High contrast, wide-temperature operation
• Low power consumption, high anti-interference performance
• Support for multiple color combinations
• Provide a complete set of one-stop technical information and source code
• Supports customization
• Supports 1-3 day samples
• High quality and cost-effective
• The fastest batch delivery can be achieved within 15 days

Key Specifications

Monochrome LCD Display JXD1602A is a 16×2 character module designed for clear two-line text output, including numbers, symbols, menu items, values, and short operating prompts. It uses FSTN positive display technology to improve character definition and readability in compact equipment panels. The module supports 3.3V/5.0V drive voltage, a standard character LCD controller, LED backlight options, and a practical viewing area for embedded systems, instruments, and control devices.

Design Standards

Monochrome LCD Display is built for stable character presentation, low power operation, and easy integration into electronic products. Its FSTN positive structure provides dark characters on a light background, helping users read data clearly during daily operation. The module supports wide-temperature performance, anti-interference capability, technical documentation, sample testing, and customized options for backlight color, interface type, viewing direction, and product structure. This makes it suitable for OEM designs that need dependable monochrome text output.

Applications

Monochrome LCD Display is suitable for products that need simple, readable, and cost-effective information display. It can show measurement values, setting menus, device status, warning codes, unit labels, and short instructions. Common applications include meters, industrial instruments, control panels, household appliances, medical electronics, communication devices, access terminals, power equipment, embedded controllers, and DIY development projects. Its 16×2 format gives enough display capacity for essential information while keeping the product interface compact and practical.

Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.

Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.

Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.

Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.

Q: What is this screen used for？
A: Character LCD screens are widely used in home appliances, industrial controls, medical devices, consumer electronics, and DIY projects, suitable for displaying status information, menu options, and basic data.

If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
