Basic Information
16x1 LCD Display Module JXD1601A-IIC is a compact single-line screen for values, labels, symbols, counters, and status messages. It uses VA negative display technology with LED backlight, showing bright characters on a dark background for clear visibility. The IIC/I2C interface reduces wiring and saves controller pins. With 3.3V/5.0V drive compatibility, low power operation, wide temperature performance, and customization flexibility, it fits meters, access panels, handheld instruments, appliances, medical electronics, and embedded control systems.

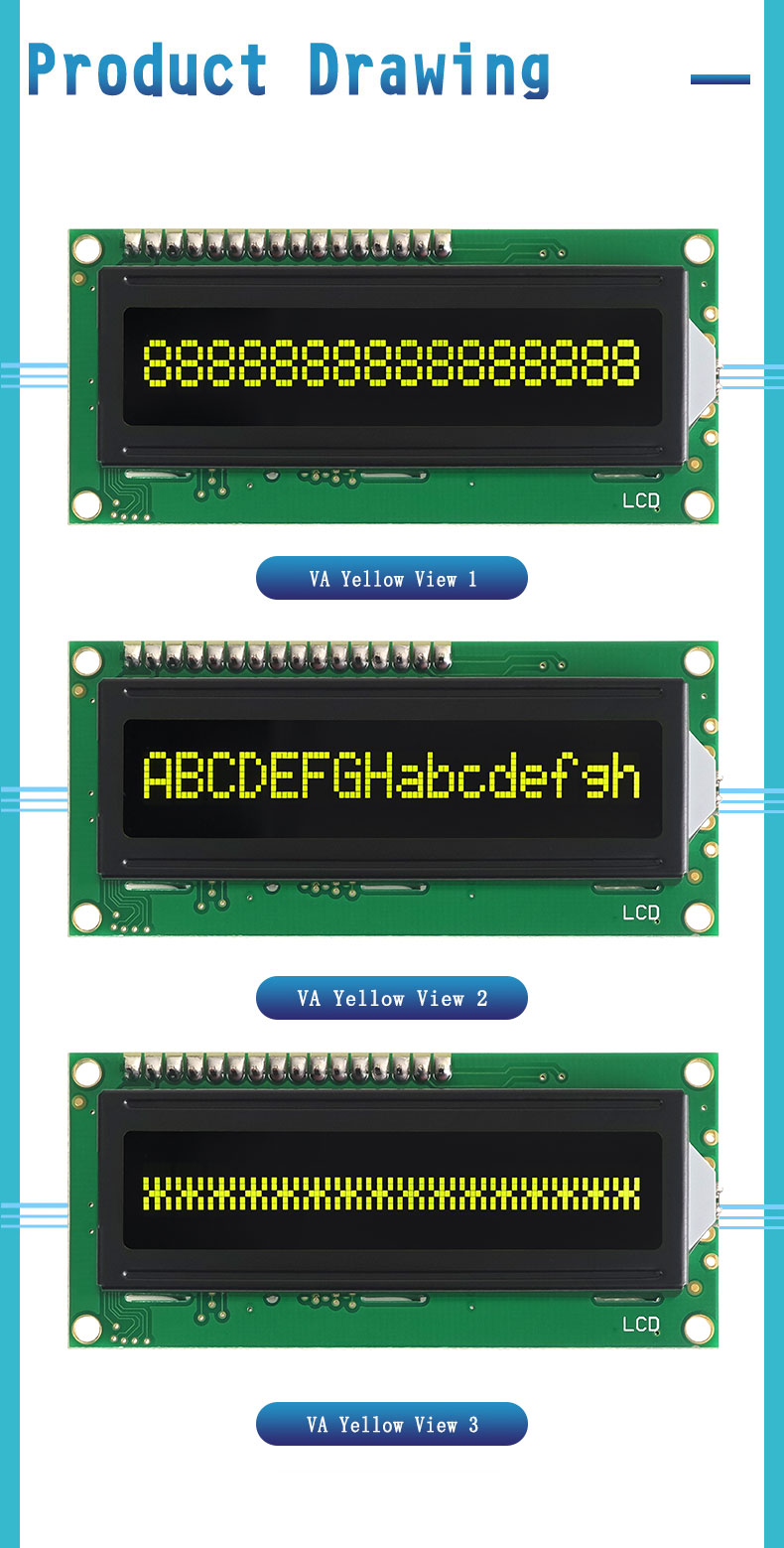

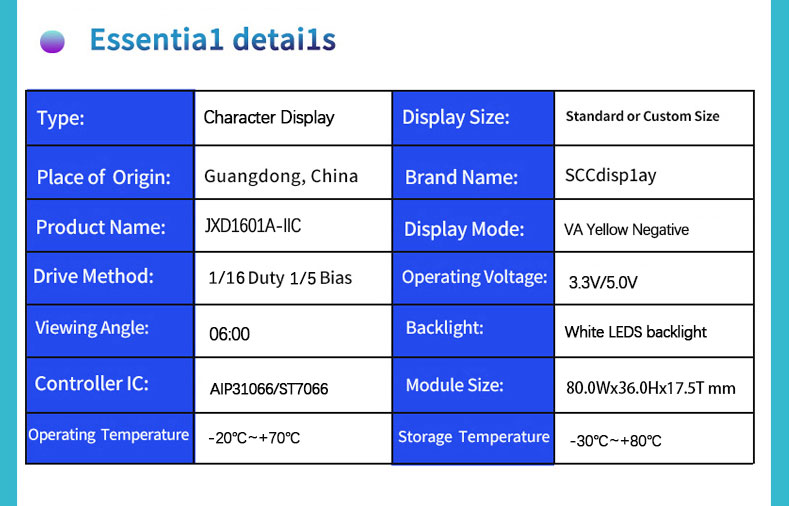

Parameters:
| Character Type | 16X1 |
| Model | JXD1601A-IIC |
| Model Size | 80.0×36.0×17.5 MM |
| VA Size | 64.5×14.0 MM |
|
Drive Voltage
|
3.3V/5.0V
|
|
Drive IC
|
ST7066/AIP31066
|
|
Backlight
|
White LED backlight
|
|
LCD Type
|
VA Negative
|
|

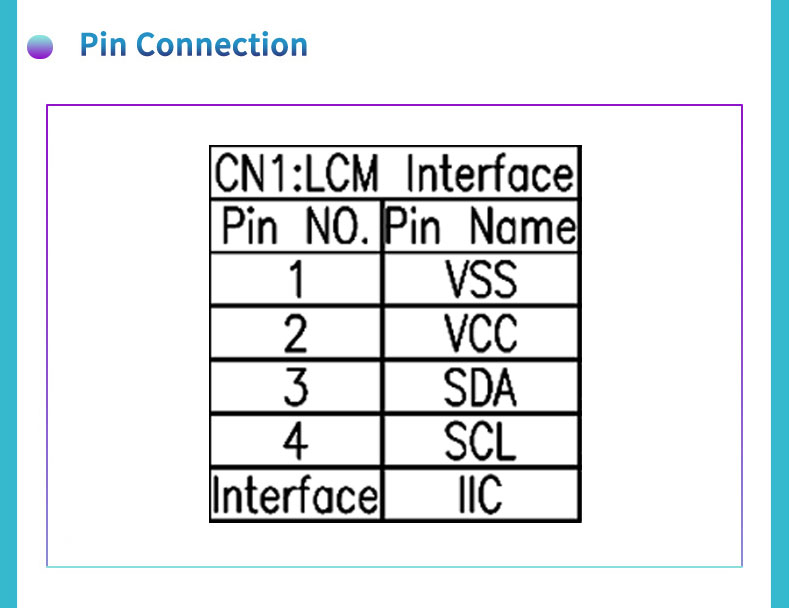

Interface
|
IIC/I2C
|
| Working Temperature |
-20°C - +70°C
|
|
Storage Temperature
|
-30°C - +80°C |

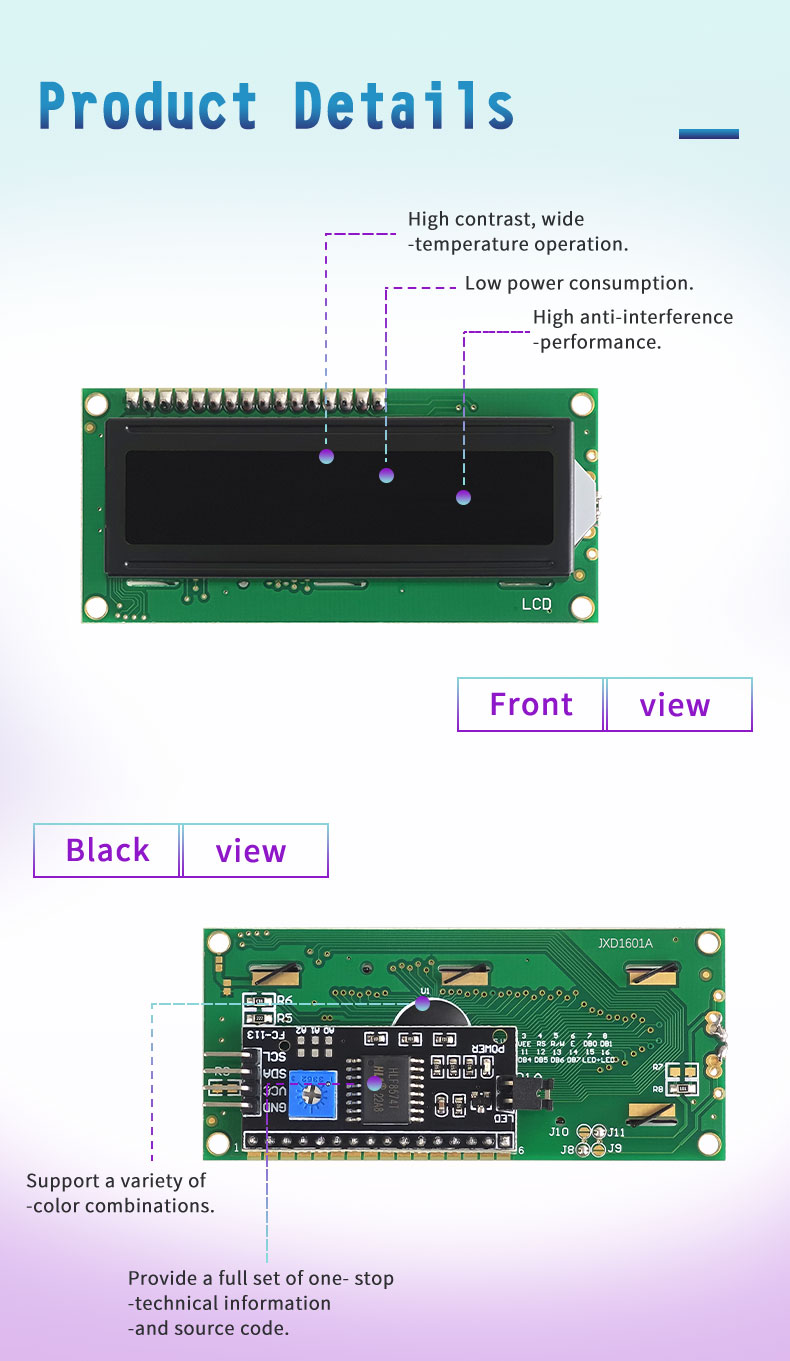

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- The fastest batch delivery can be achieved within 15 days
Key Specifications
16x1 LCD Display Module JXD1601A-IIC is designed for compact single-line information output, including short values, labels, symbols, counters, and device status prompts. It uses VA negative display technology with LED backlight, creating bright characters on a dark background for stronger contrast. The IIC/I2C interface helps reduce wiring and saves controller pins, while 3.3V/5.0V drive compatibility supports easier connection with embedded boards, microcontrollers, and customized control systems.
Design Standards
16x1 LCD Display Module focuses on clear readability, low wiring complexity, and stable performance in limited installation spaces. Its VA negative structure gives the screen a modern high-contrast appearance, while the LED backlight improves visibility in indoor or dim environments. The module supports low power operation, anti-interference performance, wide-temperature use, technical data support, sample testing, and flexible customization for backlight color, interface matching, and OEM product structure requirements.
Applications
16x1 LCD Display Module is suitable for products that need a simple one-line display without increasing panel size. It can show mode names, setting values, warning prompts, product labels, running states, and brief system messages. Common applications include small meters, access control panels, handheld instruments, household appliances, medical electronics, communication devices, power equipment, embedded controllers, DIY electronics, and replacement display projects requiring compact, readable, and easy-to-integrate character output.

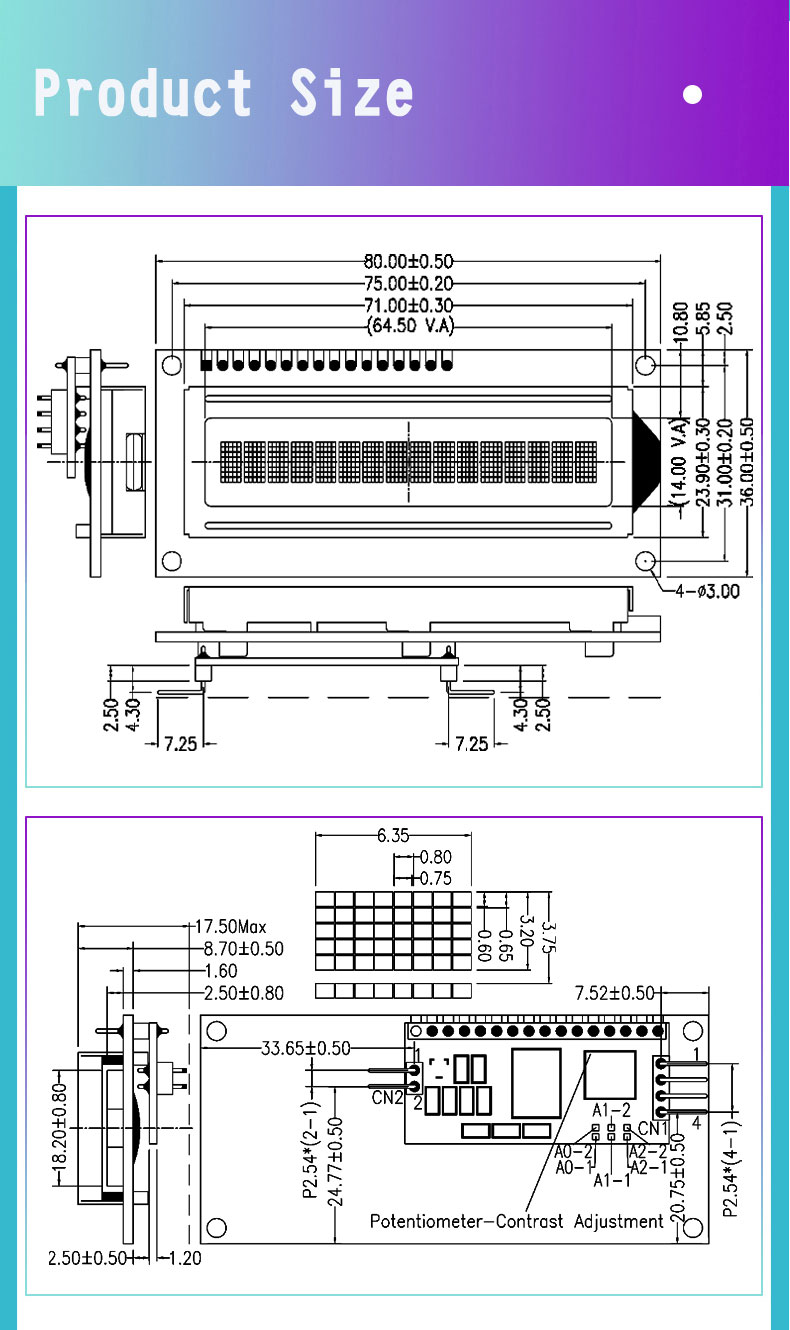

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: What is this screen used for？
A: Character LCD screens are widely used in home appliances, industrial controls, medical devices, consumer electronics, and DIY projects, suitable for displaying status information, menu options, and basic data.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
