Basic Information
LCD Character Display Simulator provides a compact 16x4 text interface for testing menus, readings, alerts, and controller feedback before final hardware integration. Its IIC connection saves pins, while the STN positive screen, white LED backlight, and 3.3V/5V drive support clear viewing. The 87.0x60.0mm module fits MCU boards, training kits, meters, instruments, medical devices, appliances, communication panels, and DIY projects needing reliable four-line output for setup, debugging, monitoring, and daily operation.

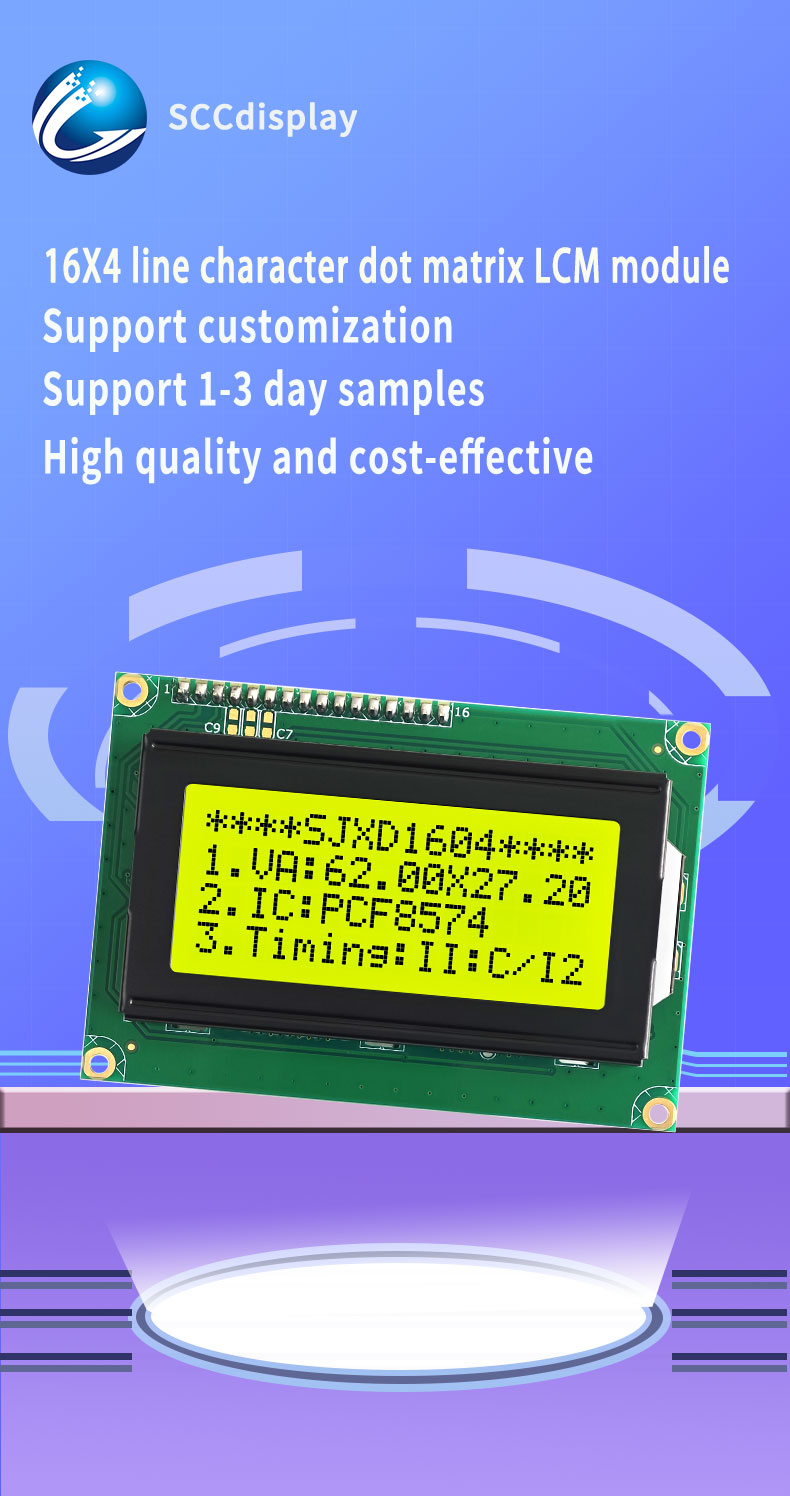

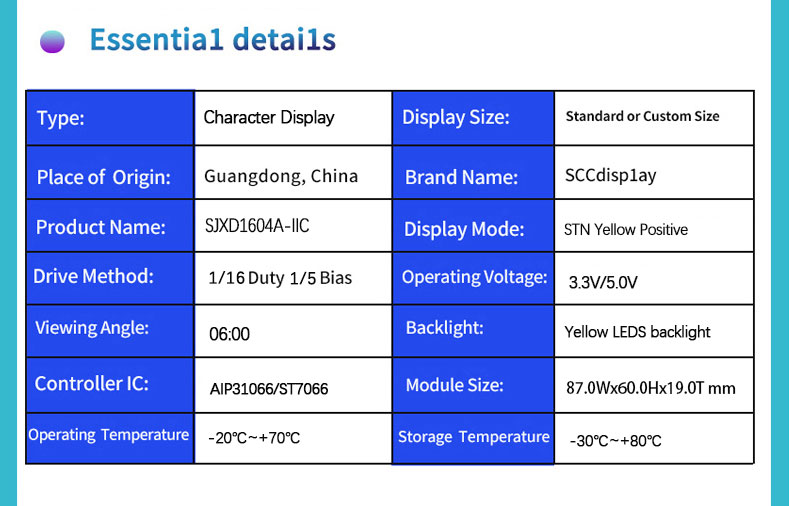

Parameters:
| Character Type | 16X4 |
| Model | SJXD1604A-IIC |
| Model Size | 87.0×60.0×19.0 MM |
| VA Size | 62.0×27.2 MM |
|
Drive Voltage
|
3.3V/5.0V
|
|
Drive IC
|
ST7066/AIP31066
|
|
Backlight
|
Yellow LED backlight
|
|
LCD Type
|
STN Positive
|
|
Interface
|
IIC/I2C |
| Working Temperature |
-20°C - +70°C
|
|
Storage Temperature
|
-30°C - +80°C |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- The fastest batch delivery can be achieved within 15 days
Key Specifications
LCD Character Display Simulator is a 16×4 character LCD module designed for display testing, interface simulation, and embedded control projects that need multi-line text output. The SJXD1604A-IIC model provides 16 characters per row and 4 display lines, giving engineers enough space to verify menu labels, sensor values, status messages, warning notes, and operation prompts. It features an 87.0×60.0×19.0 mm module size, 62.0×27.2 mm viewing area, 3.3V/5.0V drive voltage, ST7066/AIP31066 driver IC, IIC/I2C interface, white LED backlight, STN Positive LCD type, 06:00 viewing direction, -20°C to +70°C working temperature, and -30°C to +80°C storage temperature.
Design Standards
LCD Character Display Simulator is built for simplified wiring, stable character response, and convenient simulation-to-hardware testing. The IIC/I2C interface helps reduce pin usage compared with a traditional parallel LCD, making it easier to connect with MCU boards, Arduino-style controllers, teaching platforms, and prototype circuits. Its STN Positive screen presents dark characters on a bright background, while the white LED backlight supports clean indoor readability. The module also supports high contrast, wide-temperature operation, low power consumption, anti-interference performance, multiple color combinations, technical documentation, source code support, customization, 1–3 day sample testing, cost-effective production, and fast batch delivery.
Applications
LCD Character Display Simulator is suitable for projects that need to test or demonstrate four-line character output before final product integration. It can display simulation results, parameter settings, measured data, program feedback, device states, error messages, operating steps, and user instructions in a structured 16×4 format. Common application fields include display simulators, MCU development boards, Arduino projects, training kits, meters, small instruments, industrial control panels, medical devices, home appliances, communication terminals, information display systems, and DIY electronics. Its IIC connection, 16×4 layout, STN Positive readability, and white backlight make it practical for compact display verification and daily equipment interfaces.

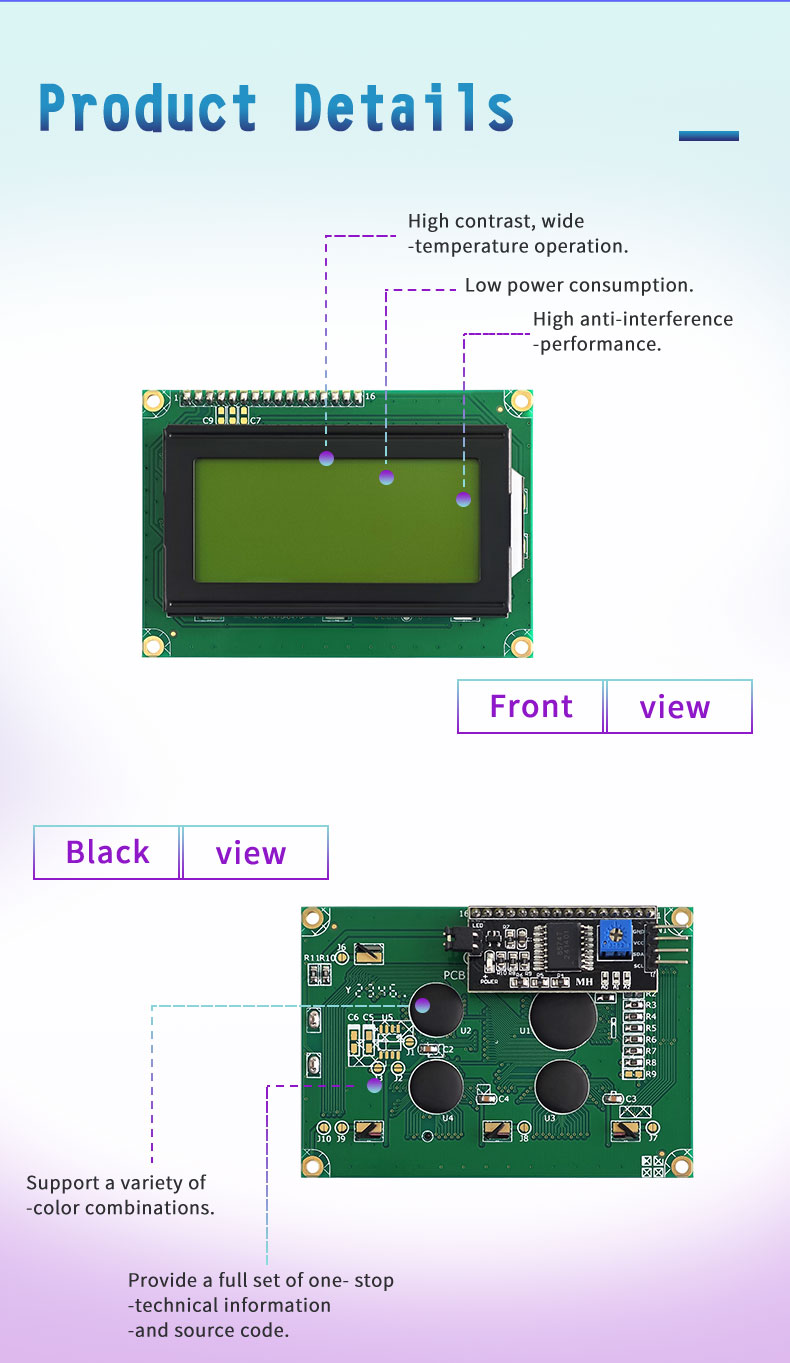

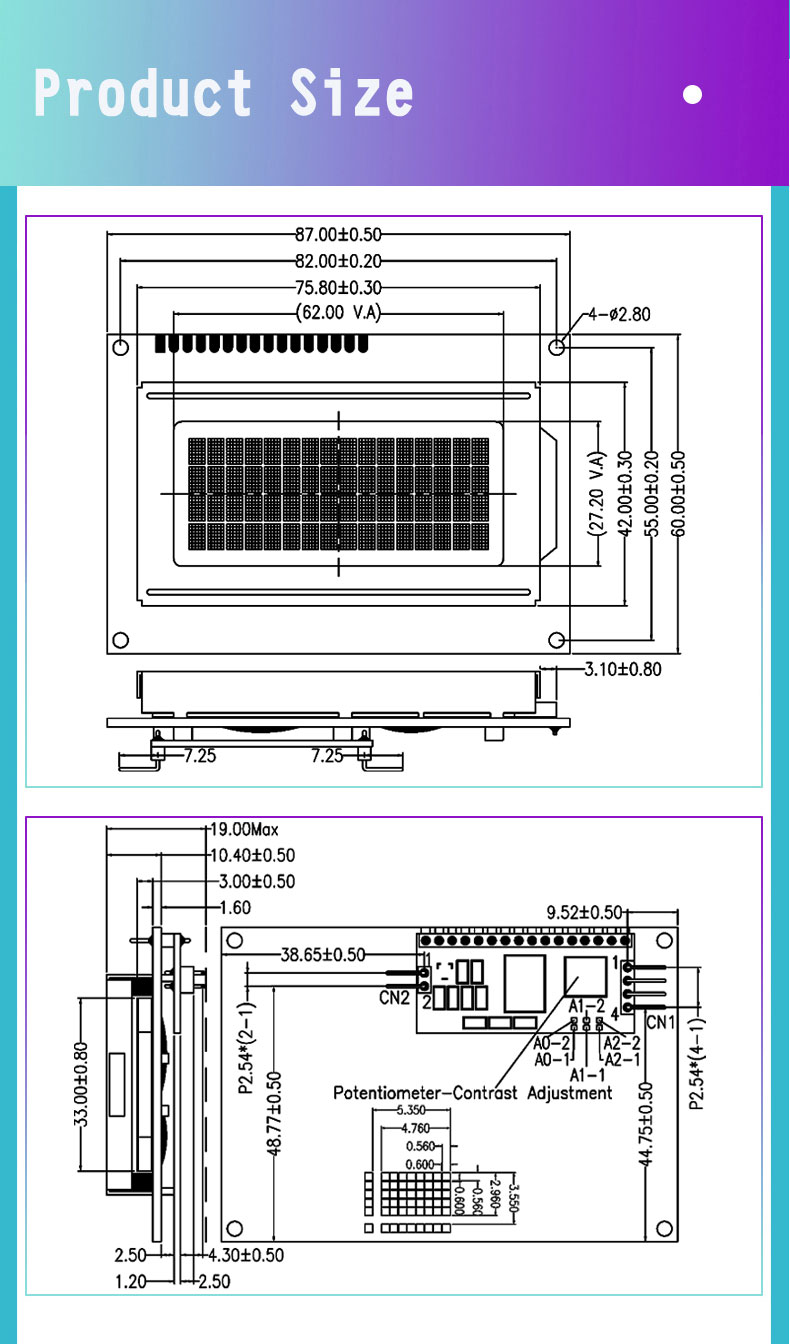

Product Size
