IIC 1602 LCD - JXD1602A-IIC （FSTN Positive）Russian

IIC 1602 LCD JXD1602A-IIC is a 16×2 character module for compact text output in embedded products. It displays values, symbols, settings, alarms, and device status across two lines while using the IIC interface to reduce wiring and save controller pins. The module features FSTN positive technology, LED backlight support, ST7066/AIP31066 compatible control, and 3.3V/5.0V drive voltage. It suits Arduino projects, smart meters, instruments, access devices, appliances, medical electronics, and control boards.

Parameters:

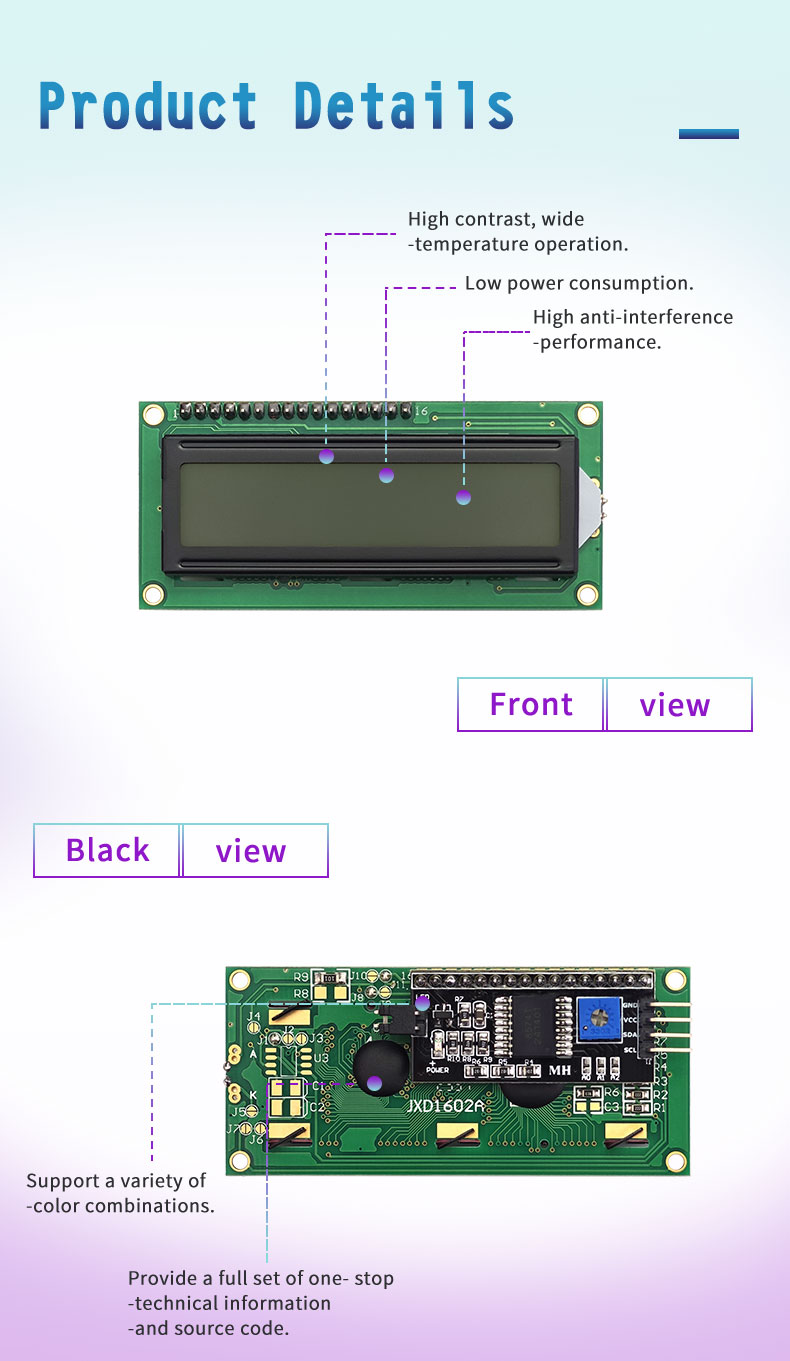

• High contrast, wide-temperature operation
• Low power consumption, high anti-interference performance
• Support for multiple color combinations
• Provide a complete set of one-stop technical information and source code
• Supports customization
• Supports 1-3 day samples
• High quality and cost-effective
• The fastest batch delivery can be achieved within 15 days

Key Specifications

IIC 1602 LCD JXD1602A-IIC is a two-line character display module built for compact text output in embedded devices. It offers a 16×2 character format for values, icons, symbols, setting names, alerts, and status information. The IIC communication interface helps reduce connection lines and frees microcontroller pins for other functions. This module uses FSTN positive LCD technology, LED backlight support, ST7066/AIP31066 compatible control, and 3.3V/5.0V drive voltage for flexible system integration.

Design Standards

IIC 1602 LCD is developed for projects that require simple wiring, stable signal transmission, and readable character display performance. The FSTN positive screen structure supports clear dark text on a light background, while the backlight improves visibility in indoor applications. Its 16×2 layout keeps the interface compact but useful for common operation data. Low power consumption, anti-interference capability, wide-temperature operation, technical file support, sample testing, and customization options help engineers match the module to different OEM designs.

Applications

IIC 1602 LCD works well in electronic products that need practical two-line information display with fewer wiring requirements. It can show sensor readings, measurement data, user menus, alarm codes, working modes, counters, and short system instructions. Typical uses include Arduino projects, smart meters, industrial instruments, test tools, access control devices, home appliances, medical electronics, communication equipment, power systems, educational kits, and embedded controller boards that need dependable character LCD output.

Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.

Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.

Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.

Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.

Q: What is this screen used for？
A: Character LCD screens are widely used in home appliances, industrial controls, medical devices, consumer electronics, and DIY projects, suitable for displaying status information, menu options, and basic data.

If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
