Basic Information
The SJXD12864-14 COG LCD Display Types module is a high-quality graphical display solution designed for embedded electronics and industrial applications. Built using Chip-On-Glass (COG) technology, the driver IC is directly integrated onto the glass substrate, reducing external components and improving overall system reliability. This structure enables a compact design, stable performance, and low power consumption, making it suitable for portable devices and energy-efficient systems. The module supports clear graphical and alphanumeric output, ensuring excellent readability in various environments.

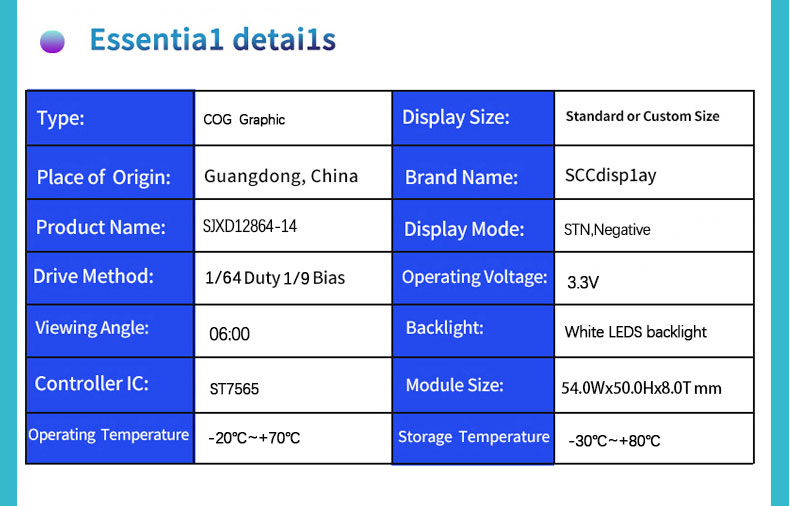

Parameters:
| Model | SJXD12864-14 Blue LCM |
| Model Size | 54x50x8mm |
| Field of View Size | 44x 29mm |
| Viewing Direction | 6o'clock |
| Display Mode | FSTN |
|
Drive Method
|
1/64D,1/9B, |
|
Operating Temp
|
-20°C--+70°C |
|
Storage Temp
|
-30°C--+80°C
|
|
Unmarked Tolerance
|
±0.2mm/+0.5° |
| Polarizer Type | Transmissive/Positive(White) |
|
Backlight Type
|
LED(White,+3.3V) |
| Working voltage | +3.3V |

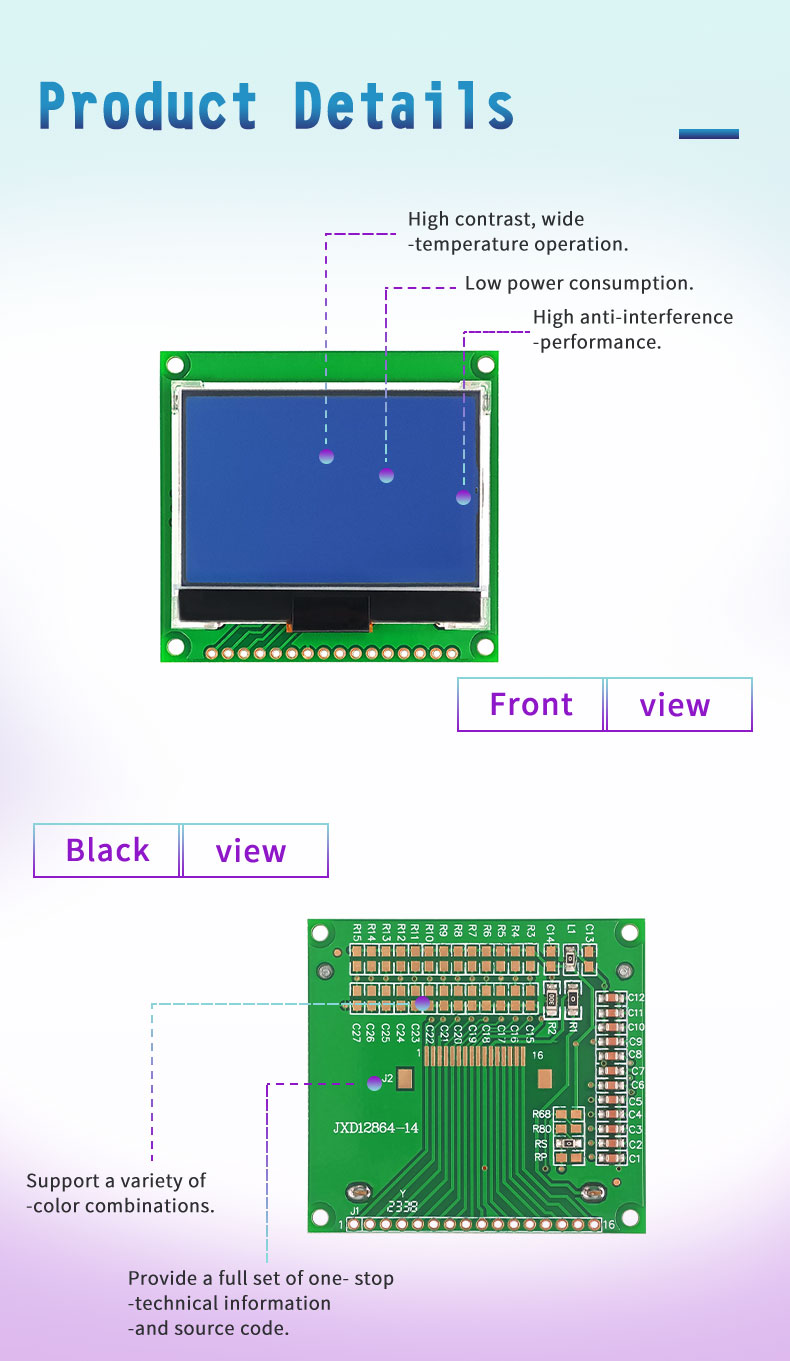

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
The SJXD12864-14 COG LCD Display Types features a 128×64 dot matrix resolution, allowing precise representation of text, symbols, and graphical elements. The COG structure enhances integration by eliminating the need for external driver ICs, which reduces PCB space requirements and simplifies circuit design. The display operates at low voltage with minimal power consumption, making it ideal for battery-powered applications. It provides high contrast and wide viewing angles, ensuring clear visibility under different lighting conditions. The module supports stable electrical performance, fast response time, and consistent refresh rates, ensuring smooth and reliable display output. Its robust construction allows long-term operation in demanding industrial environments.
Design Features
This COG LCD Display Types module is engineered for flexibility and efficiency in embedded system design. The chip-on-glass architecture simplifies hardware design while maintaining high performance and reliability. It supports precise pixel control, enabling the display of complex graphics, icons, and customized interfaces. The compact form factor makes it suitable for space-limited devices, while its stable operation ensures consistent visual output. The module is compatible with various microcontrollers and embedded platforms, making it suitable for OEM and ODM development projects.
Applications
The SJXD12864-14 COG LCD Display Types is widely used in industrial control systems, medical instruments, automotive dashboards, smart home devices, handheld electronics, and measurement equipment. It is particularly suitable for applications requiring graphical user interfaces, data visualization, and embedded display solutions. Engineers often apply this module in custom electronic products and interactive control panels.

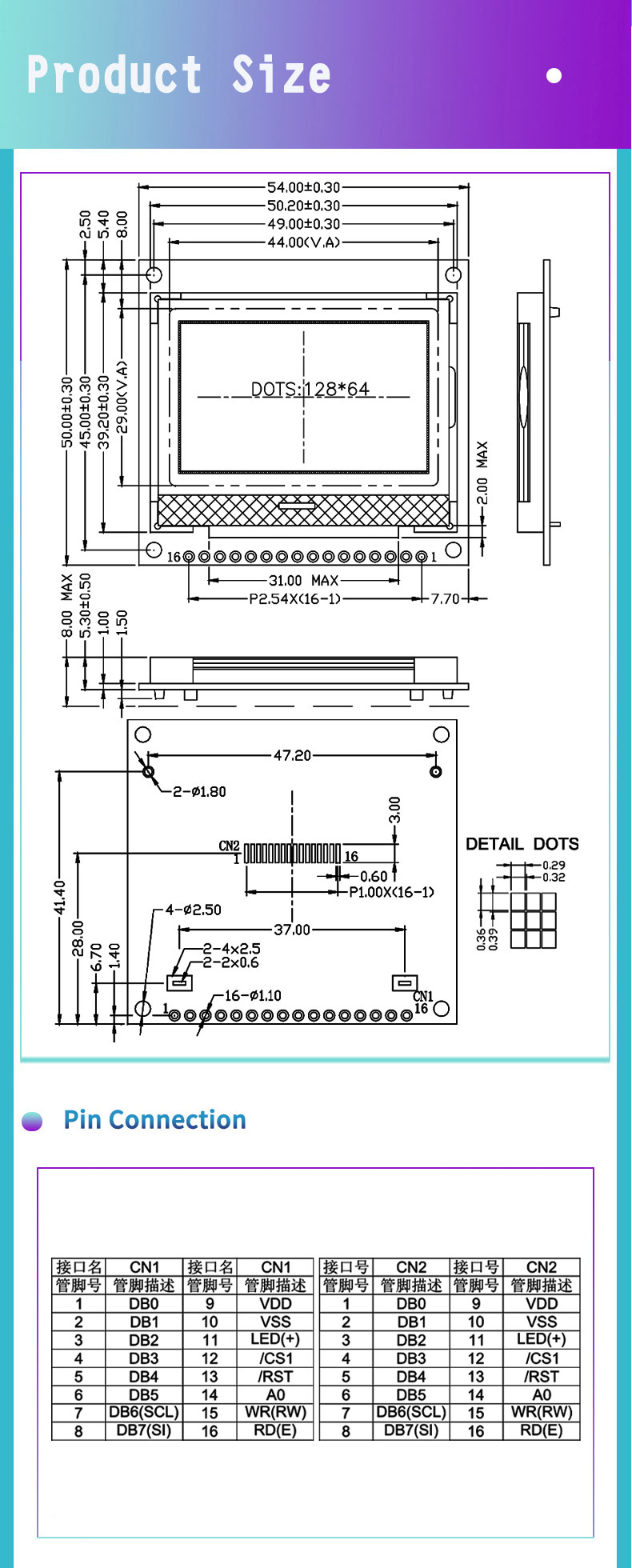

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
