Character I2C Display Screen - JXD2002A-IIC （STN Negative）

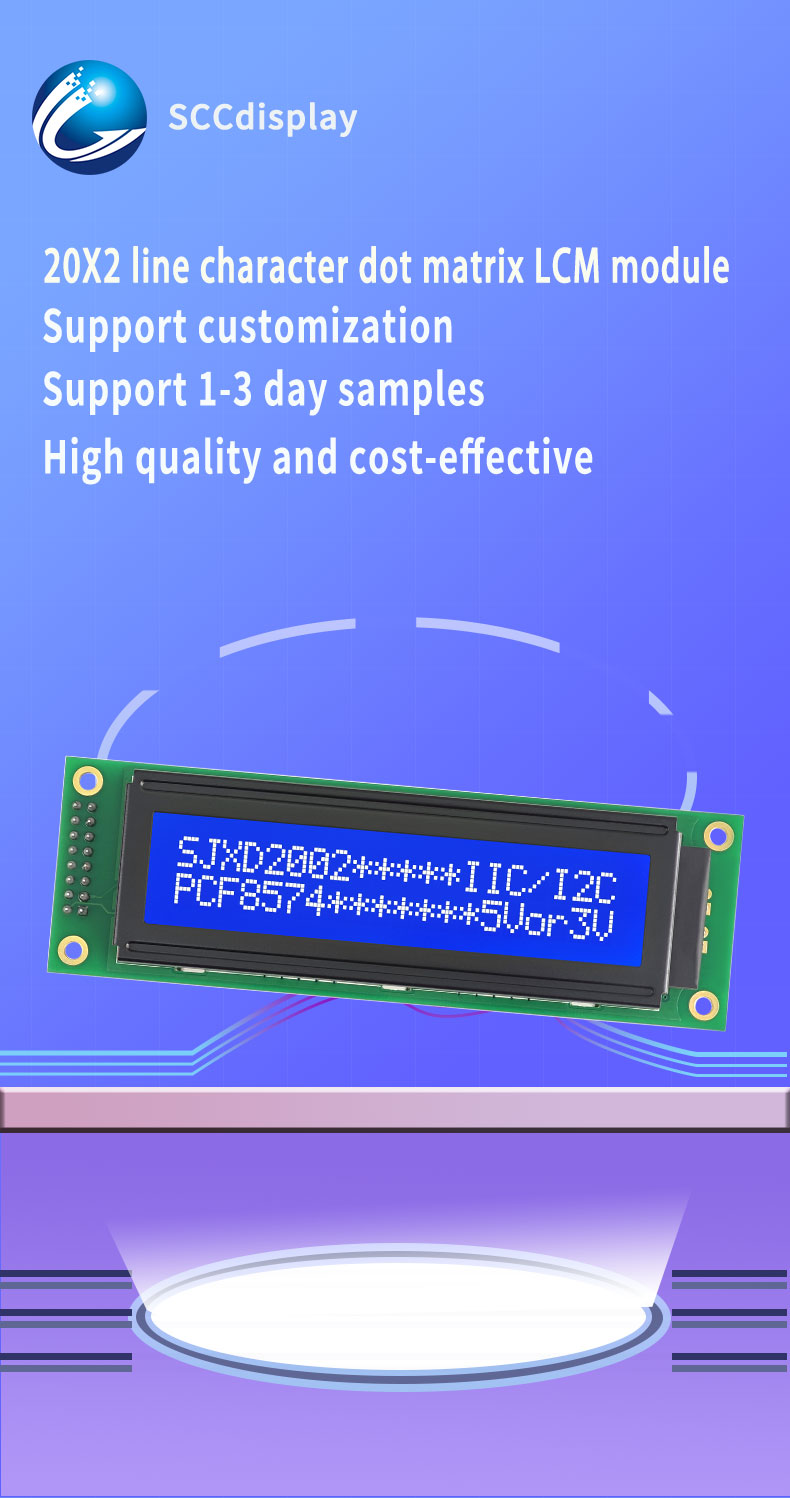

Character I2C Display Screen offers a 20x2 character format for devices needing longer menus, values, and status prompts. It uses STN negative viewing, white LED backlighting, IIC communication, and 3.3V/5V drive support to reduce wiring work. The 116.0x37.0mm body provides wider text space for meters, controllers, appliances, medical devices, industrial panels, and DIY projects requiring stable readable output during setup, diagnostics, operation, and embedded development across varied product testing cycles.

Parameters:

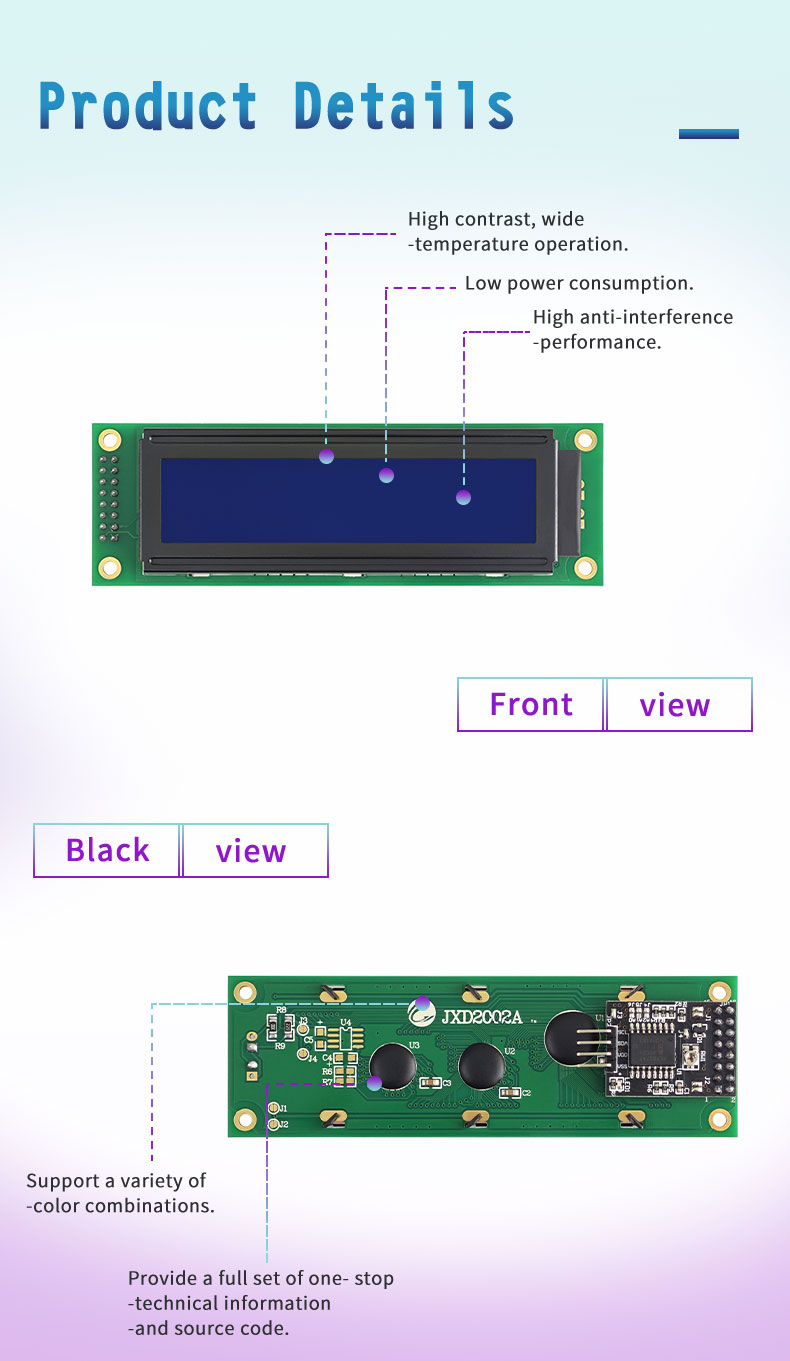

• High contrast, wide-temperature operation
• Low power consumption, high anti-interference performance
• Support for multiple color combinations
• Provide a complete set of one-stop technical information and source code
• Supports customization
• Supports 1-3 day samples
• High quality and cost-effective
• The fastest batch delivery can be achieved within 15 days

Key Specifications

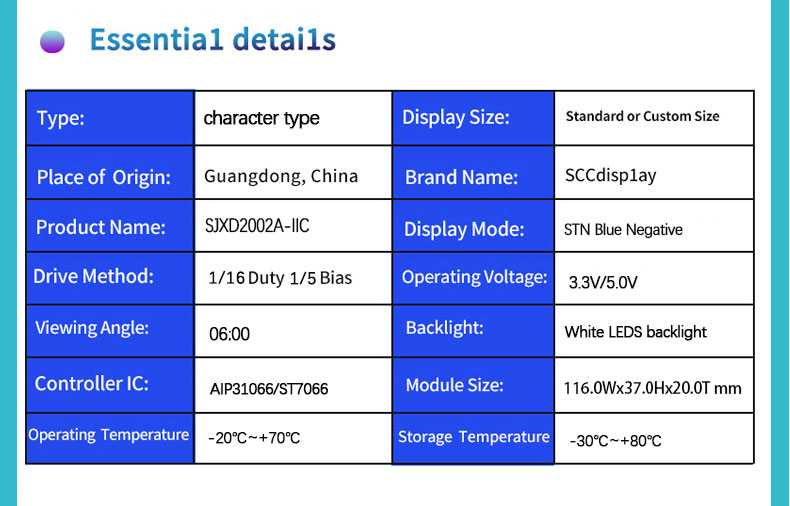

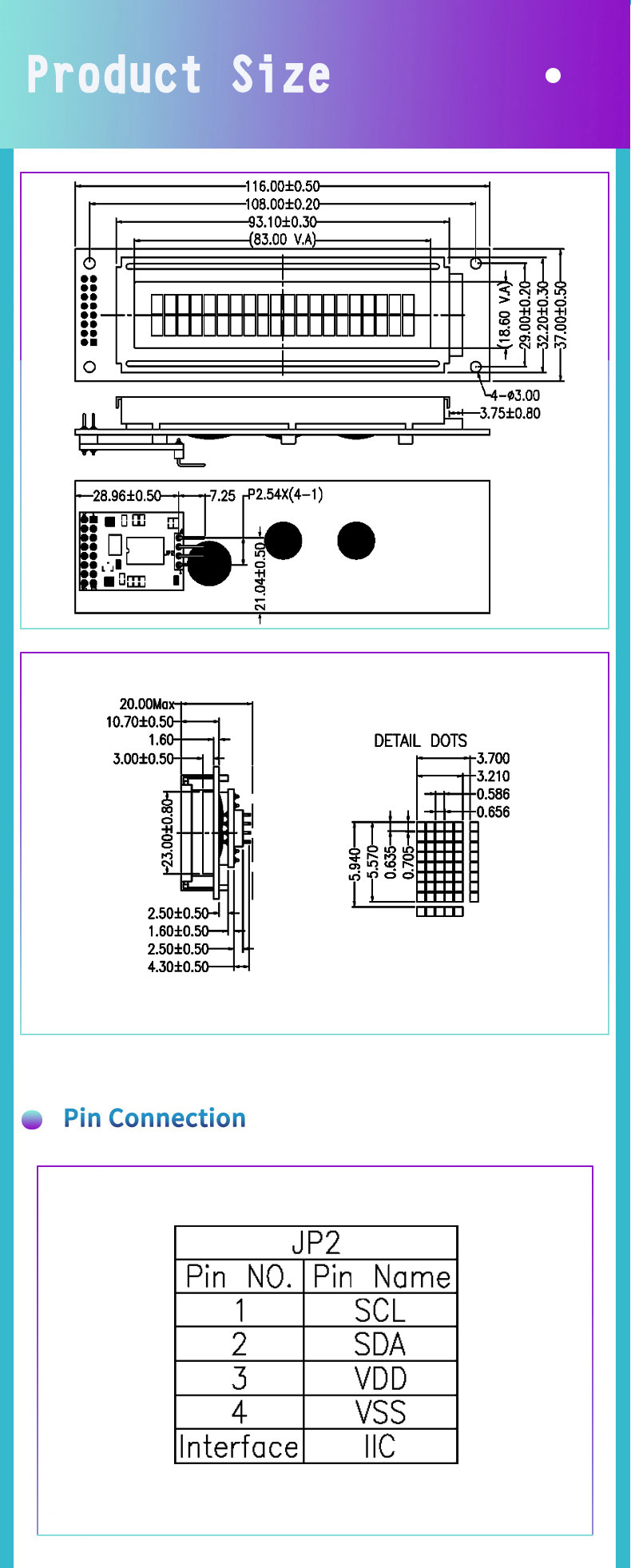

Character I2C Display Screen is a 20×2 character LCD module designed for products that need longer two-line text than compact 16×2 displays. The JXD2002A-IIC model features a 116.0×37.0×20.0 mm outline and an 83.0×18.6 mm viewing area, giving more room for menu words, values, and operating prompts. It supports 3.3V/5.0V drive voltage, ST7066/AIP31066 driver IC, IIC/I2C interface, white LED backlight, STN negative LCD type, 06:00 viewing angle, -20°C to +70°C operation, and -30°C to +80°C storage.

Design Standards

Character I2C Display Screen is built for simplified MCU connection, stable text control, and dark-background readability in embedded equipment. The IIC/I2C interface helps reduce wiring compared with traditional parallel LCD modules, while the STN negative structure creates a clear contrast effect for modern control panels. Its design also supports low power consumption, high anti-interference performance, multiple color combinations, complete technical documents, source code support, customization service, 1–3 day sample preparation, high cost performance, and fast batch delivery planning within 15 days.

Applications

Character I2C Display Screen fits devices that need organized two-line information instead of complex graphic output. It can show setting menus, operating status, error codes, measurement values, user instructions, timer data, and basic system messages. Typical uses include meters, equipment control panels, information display systems, industrial controllers, home appliances, medical devices, consumer electronics, and DIY development projects. Its 20×2 layout, I2C communication, white backlight, and STN negative viewing effect make it practical for product interfaces that require more text capacity with fewer control pins.

Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.

Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.

Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.

Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.

Q: What is this screen used for？
A: Character LCD screens are widely used in home appliances, industrial controls, medical devices, consumer electronics, and DIY projects, suitable for displaying status information, menu options, and basic data.

If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
