Basic Information
Character 16X2 Display is a compact FSTN positive LCD module made for clear two-line text, values, and status prompts in small equipment panels. It uses a white LED backlight, 16PIN connection, and 3.3V/5V drive support for easy circuit matching. The 80.0x36.0mm body saves space and fits meters, controllers, appliances, medical devices, industrial instruments, and embedded products requiring stable readable information output during operation, inspection, maintenance, and customized development cycles.
Parameters:
| Character Type | 16×2 |
| Model | SJXD1602A-S |
| Model Size | 80.0×36.0×12.0 mm |
| VA Size | 64.5×14.0 mm |
|
Drive Voltage
|
5.0V/3.3V
|
|
Drive IC
|
ST7066/AIP31066
|
|
Backlight
|
white LED backlight
|
|
LCD Type
|
FSTN positive
|
|
Interface
|
16PIN
|
| Working Temperature |
-20°C - +70°C
|
|
Storage Temperature
|
-30°C - +80°C |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
Character 16X2 Display is a compact alphanumeric LCD module for two-line message output in space-limited electronic equipment. The SJXD1602A-S model uses an 80.0×36.0×12.0 mm module outline and a 64.5×14.0 mm viewing area, giving designers a practical size for control panels and embedded interfaces. It supports 5.0V/3.3V drive voltage, ST7066/AIP31066 driver IC, 16PIN interface, white LED backlight, and FSTN positive LCD technology. With -20°C to +70°C working temperature and -30°C to +80°C storage range, it supports reliable character presentation in daily equipment operation.
Design Standards
Character 16X2 Display is engineered for clear text visibility, stable electrical connection, and efficient hardware matching during product development. The FSTN positive structure helps improve contrast and readability, while the white LED backlight keeps the display appearance clean for instruments and equipment panels. Its 16PIN interface matches common character LCD control circuits, allowing engineers to simplify prototype testing, replacement design, and customized integration. The product also supports low power use, strong anti-interference performance, multiple color combinations, technical documentation, source code support, customization service, 1–3 day sample preparation, and cost-effective production needs.
Applications
Character 16X2 Display is suitable for products that need direct information feedback through simple letters, numbers, symbols, and status prompts. It can show menu content, operating modes, measured values, alarm messages, counting results, and system settings in a clear two-row layout. Common applications include meters, equipment control panels, information display systems, industrial instruments, medical devices, household appliances, consumer electronics, and embedded development projects. Its small structure, FSTN positive readability, white backlight, and standard character format make it useful for compact products that require practical display performance without graphic screen complexity.

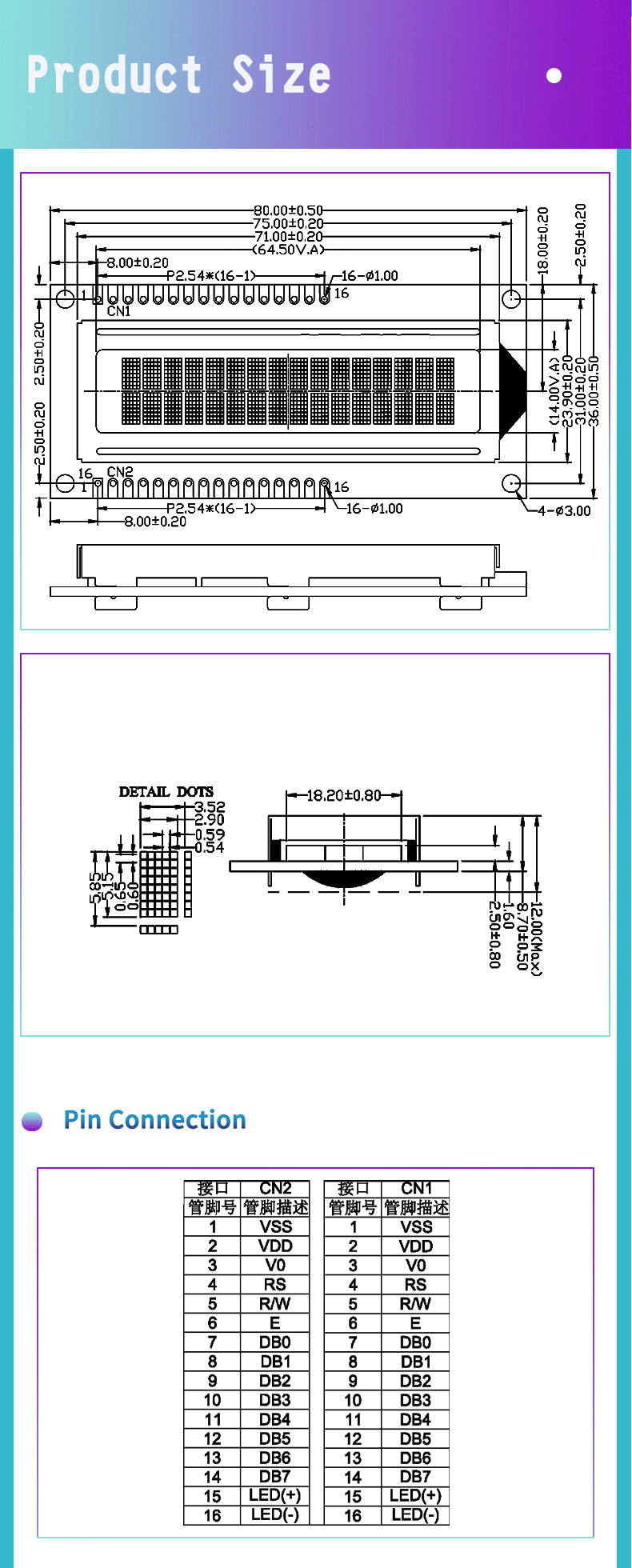

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
