Basic Information
Character 1602 is a compact 16x2 LCD module designed for clear and stable text display in embedded electronic systems. It features an STN positive LCD mode, white LED backlight, 16PIN interface, and 3.3V or 5.0V operation. The module provides reliable readability and consistent performance in different environments. It is widely used in industrial instruments, control panels, home appliances, medical devices, automation systems, and DIY electronic development projects for real-time information display.

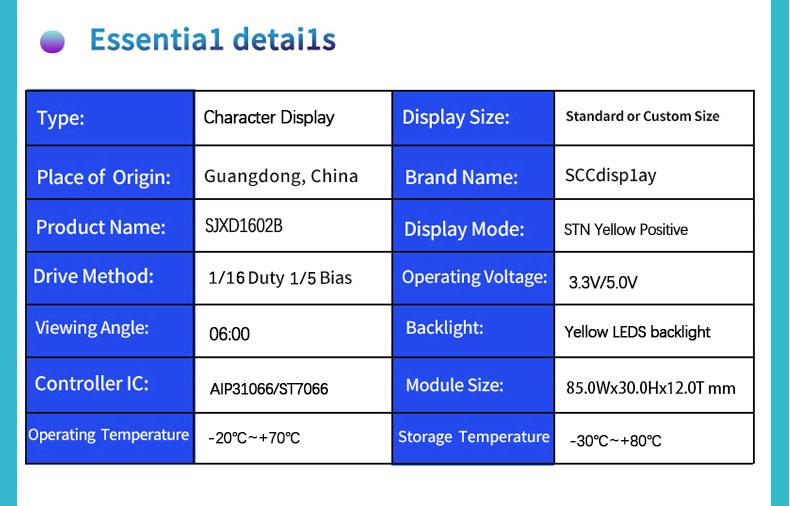

Parameters:
| Character Type | 16X2 |
| Model | SJXD1602B |
| Model Size | 85.0×30.0×12.0 MM |
| VA Size | 64.5×14.0 MM |
|
Drive Voltage
|
3.3V/5.0V
|
|
Drive IC
|
ST7066/AIP31066
|
|
Backlight
|
Yellow LED backlight
|
|
LCD Type
|
STN Positive
|
|

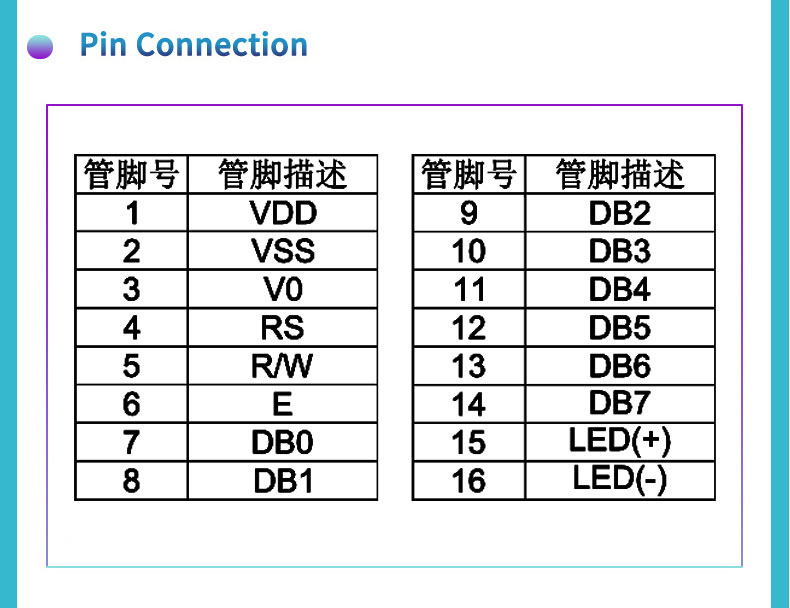

Interface
|
16PIN |
| Working Temperature |
-20°C - +70°C
|
|
Storage Temperature
|
-30°C - +80°C |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- The fastest batch delivery can be achieved within 15 days
Key Specifications
Character 1602 is a 16x2 character LCD module designed for stable alphanumeric display in embedded electronic systems. The SJXD1602B model adopts an STN positive LCD structure, providing balanced contrast and clear readability under standard lighting conditions. It features a compact 84.0×44.0×14.0 mm outline, 64.5×14.0 mm viewing area, 3.3V/5.0V operating voltage, ST7066/AIP31066 compatible driver IC, and 16PIN parallel interface. The white LED backlight ensures uniform illumination, supporting reliable character presentation in continuous operation environments.
Design Standards
Character 1602 is manufactured according to industrial-grade display standards, focusing on long-term stability, consistent optical performance, and robust electrical reliability. The 16PIN interface ensures compatibility with widely used microcontroller systems, allowing straightforward integration into existing hardware architectures. The STN positive display design improves visibility and maintains stable viewing angles for front-panel applications. The module is optimized for low power consumption, anti-interference capability, and signal stability. It also supports RoHS-compliant materials, batch production consistency, and optional customization for different embedded design requirements.
Applications
Character 1602 is widely used in electronic products requiring simple and reliable text display without graphical complexity. It is suitable for industrial instruments, control panels, smart meters, home appliances, medical devices, automation systems, and consumer electronics. The module can display system status, numeric readings, menu options, warnings, and real-time operational data. Its compact size, stable 16x2 format, and clear STN positive display make it ideal for embedded interfaces, prototype development, front-panel displays, and cost-sensitive electronic applications requiring long-term stable performance.

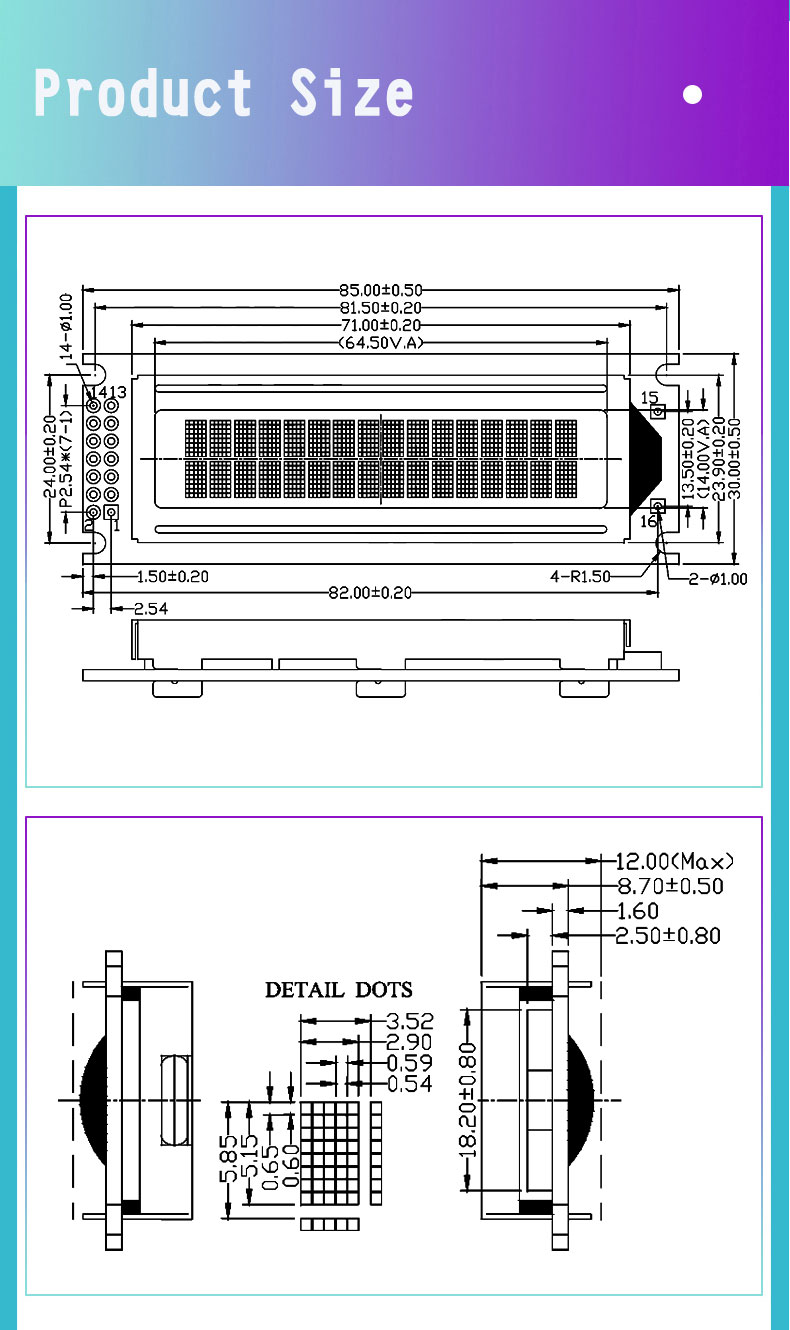

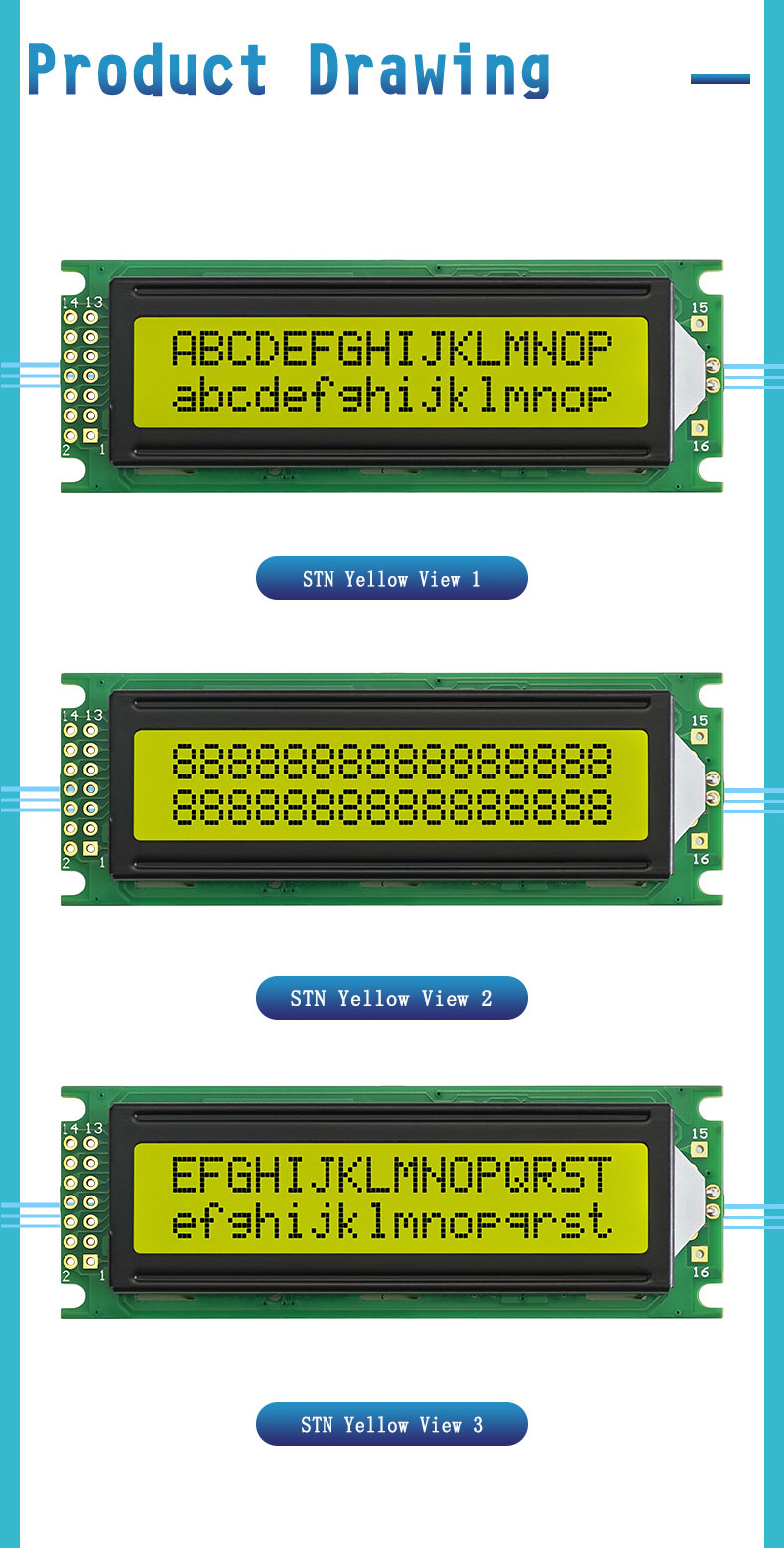

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: What is this screen used for？
A: Character LCD screens are widely used in home appliances, industrial controls, medical devices, consumer electronics, and DIY projects, suitable for displaying status information, menu options, and basic data.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
