Basic Information
The SJXD5034 7 Segment LCD Display Pinout is a technical reference and customized display solution designed to clearly define connection layouts and interface mapping for seven segment LCD modules. It is developed to assist engineers and designers in understanding pin configuration, improving circuit integration accuracy, and ensuring reliable display operation in electronic systems. This product is widely used in development, testing, and production environments where correct pin assignment is essential for stable display performance.

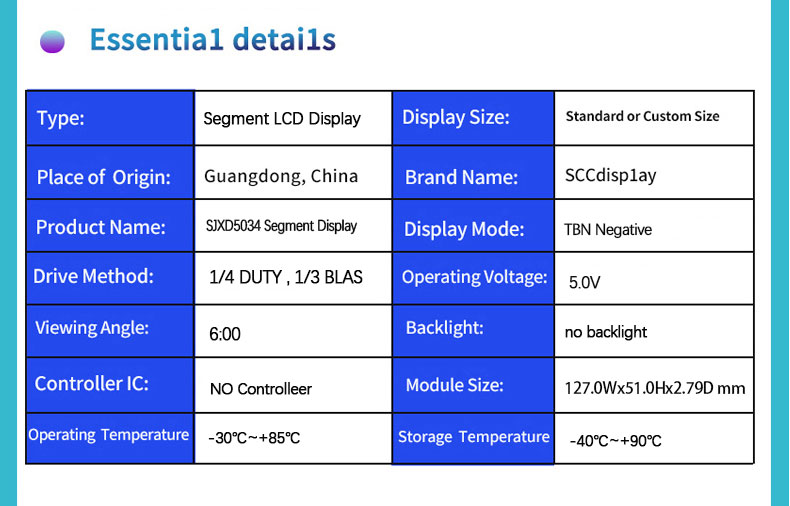

Parameters:
| Character Type | Customized |
| Model | SJXD5034 |
| Model Size | 127×51×2.79mm |
| VA Size | 118×48mm |
|
Connector
|
6PIN Metal pins |
|
LCD Type
|
TBN Negative |
|
Drive Conditions
|
1/4D 1/3B
|
|
Working Temperature
|
-30°C TO +85'C
|
| Storage Temperature |
-40'C TO +90'C
|
|
Working Voltage
|
5.0 V |

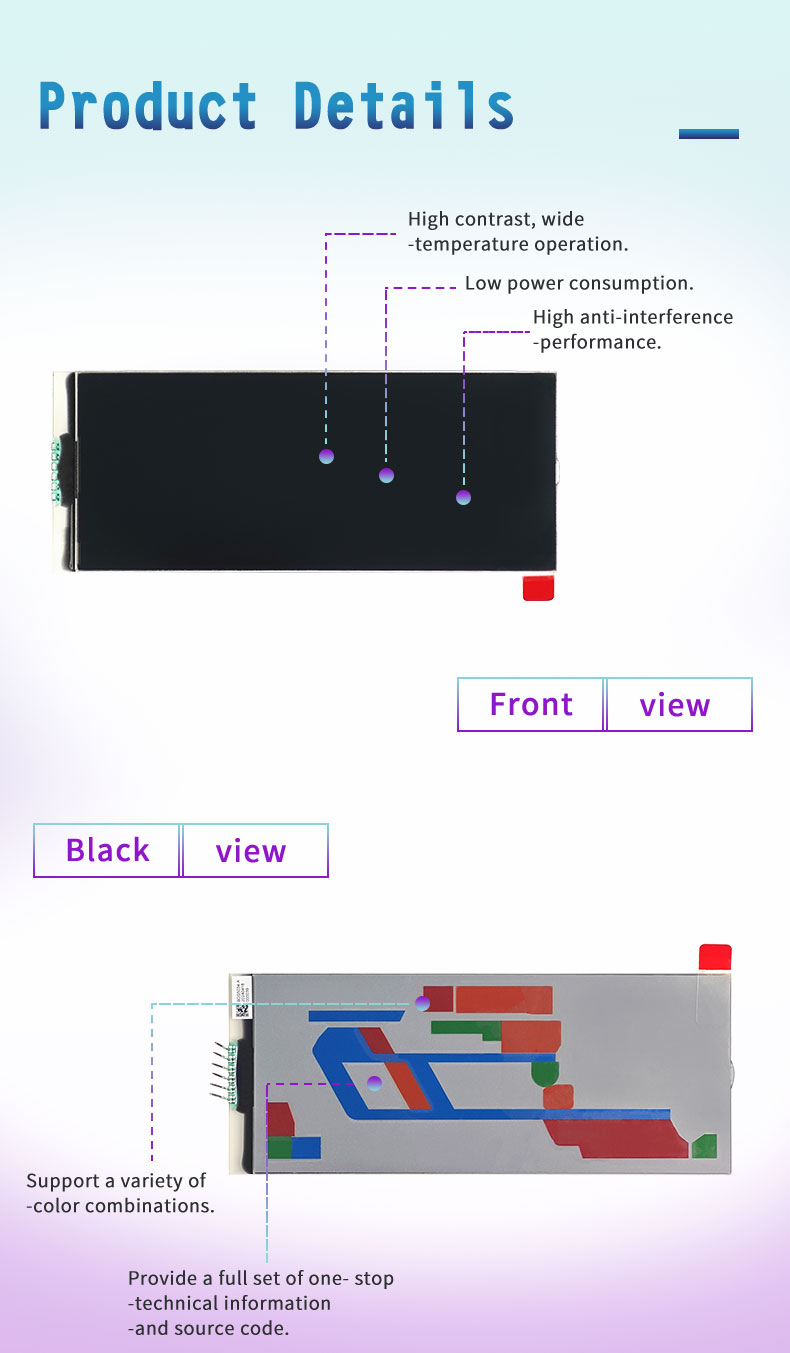

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- In stock, fast delivery
Key Specifications
The SJXD5034 7 Segment LCD Display Pinout provides a clearly defined connection structure for segment control, enabling accurate mapping between driving signals and display segments. It supports stable electrical characteristics, ensuring consistent signal transmission and reliable operation in electronic circuits. The pinout design is optimized for compatibility with standard driving systems, making it suitable for a wide range of LCD segment display applications. The layout ensures clear identification of each connection point, reducing the risk of wiring errors during assembly and testing. It is designed to support low power LCD operation, making it suitable for energy-efficient systems and embedded applications. The structure is compact and easy to integrate into circuit designs, supporting efficient development workflows.
Design Features
This 7 segment LCD display pinout solution is developed to improve clarity and accuracy in display circuit design. It provides a structured mapping system that simplifies integration between display modules and controller hardware. The design ensures stable connectivity and reduces complexity during development and debugging stages. Its standardized layout allows engineers to quickly understand signal assignments, improving design efficiency. The module supports reliable performance in both prototyping and mass production environments. It is optimized for long-term use, ensuring consistent electrical behavior across different applications.
Applications
The SJXD5034 7 Segment LCD Display Pinout is widely used in electronic development, circuit design, display module testing, industrial control systems, and embedded product engineering. It is suitable for engineers working on digital meters, measuring instruments, timers, counters, and custom LCD display projects. It is also commonly applied in educational environments for learning LCD interface design and signal mapping.

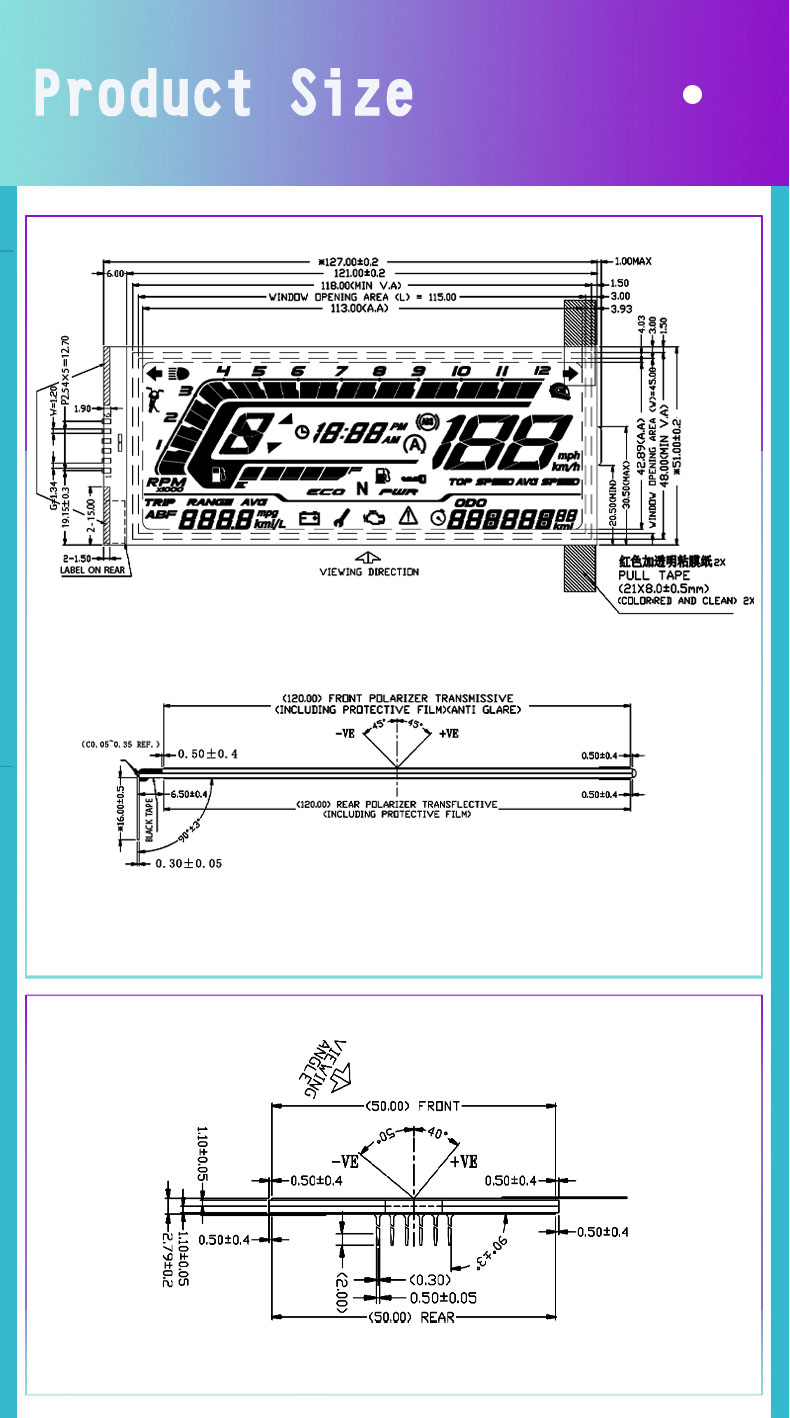

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
