Basic Information
320X240 LCD is a high-resolution display module capable of presenting text, icons, graphics, and images with excellent clarity. Featuring a 320×240 pixel resolution, it is widely used in Arduino projects, embedded systems, industrial automation, medical devices, and electronic instruments.

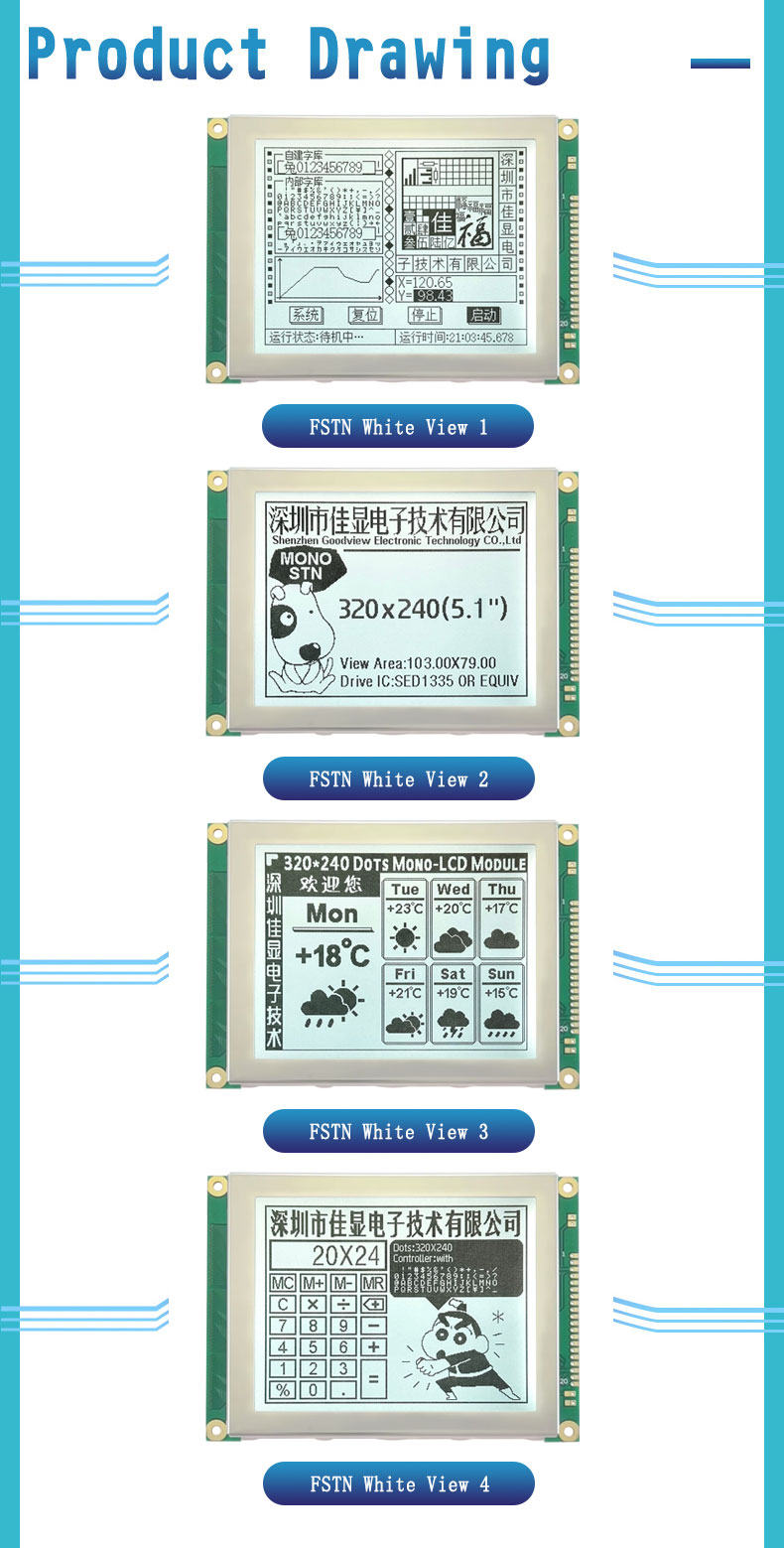

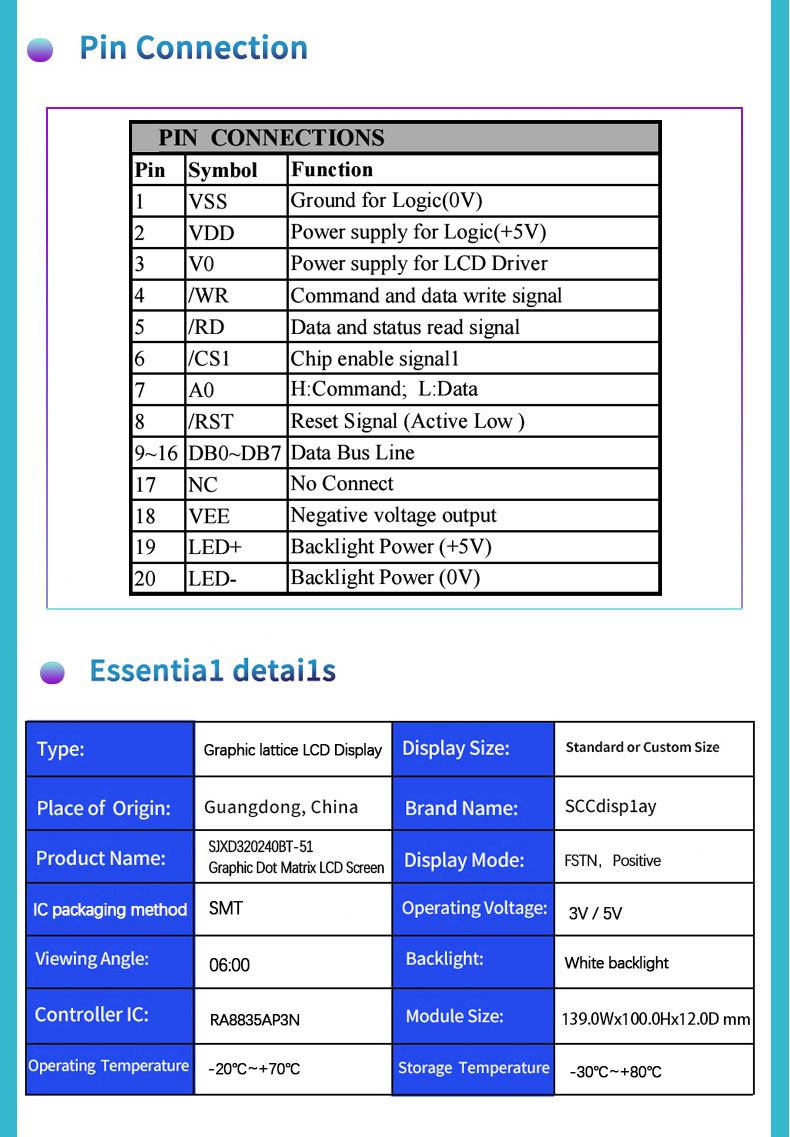

| Model | SJXD320240BT-51 |
| Model Size | 139.0×100.0×12.0 mm |
| Field of View Size | 103.0×79.0mm |
| Display Mode | FSTN positive |
| Viewing Angle | 6:00 |
| Drive Method | 1/240 duty, 1/16 bias |
| Top |
-20°C - +70°C
|
|
Tst
|
-30°C - +80°C |
|
Drive IC
|
RA8835AP3N |
|
Drive Voltage
|
5.0V |
Feature

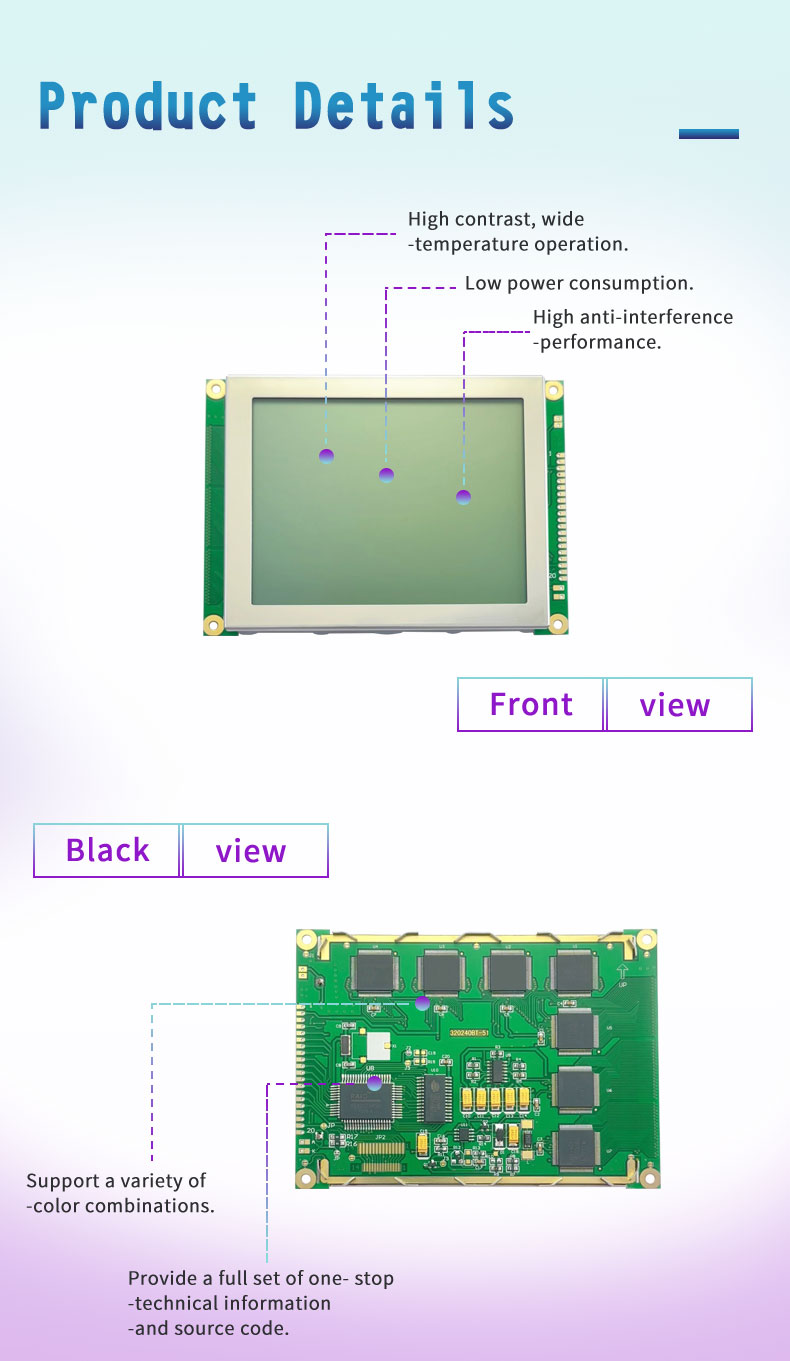

- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
This LCD Display Modules Graphic Square utilizes FSTN positive LCD technology to deliver improved contrast and clear image rendering. It supports standard operating voltages of 3.0V or 5.0V, enabling flexible integration with various embedded platforms. The display is driven by a stable controller architecture that ensures accurate data transmission and smooth graphical updates. LED backlight technology provides uniform brightness while maintaining energy efficiency. The module is designed to operate within industrial temperature ranges, ensuring stable performance in both normal and harsh environmental conditions. Its square layout enhances interface design flexibility for control panels and instrumentation systems.
Design Standards
The module is manufactured according to strict industrial-grade quality standards, focusing on durability, stability, and long-term reliability. The PCB design is optimized to reduce electromagnetic interference and ensure stable signal integrity during continuous operation. High-quality LCD materials are used to maintain consistent optical performance and extend service life. The mechanical structure is designed for secure installation and resistance to vibration, making it suitable for industrial environments. Low power design principles are applied to reduce energy consumption and improve overall system efficiency, especially in continuous-use applications.
Applications
The LCD Display Modules Graphic Square is widely used in industrial automation systems, medical devices, measurement instruments, communication equipment, and smart control panels. It is also commonly integrated into human-machine interface (HMI) systems, embedded controllers, and portable electronic devices. Its square format and clear graphical output make it ideal for applications requiring intuitive data visualization and reliable performance in professional and industrial environments.

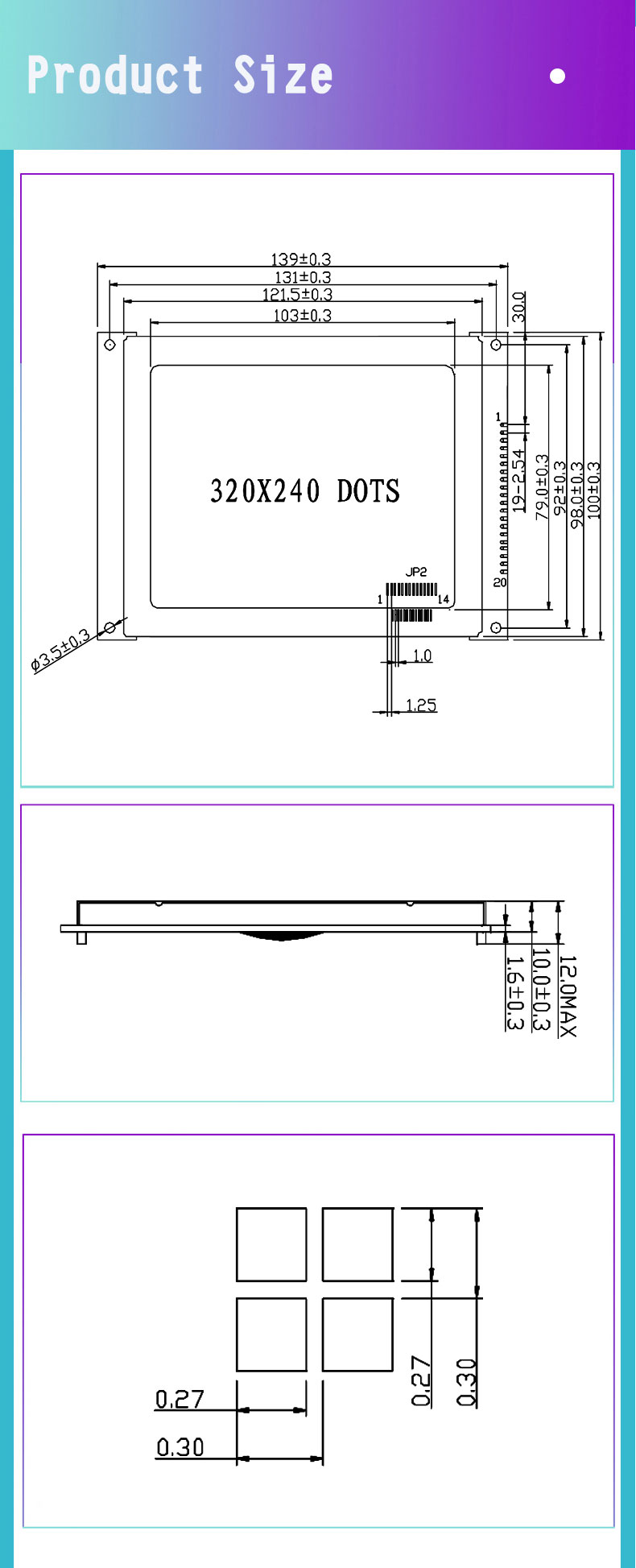

Product Size
FAQ
Q: What is the size of this screen?
A: The size of this screen is 5 inches.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
