Basic Information

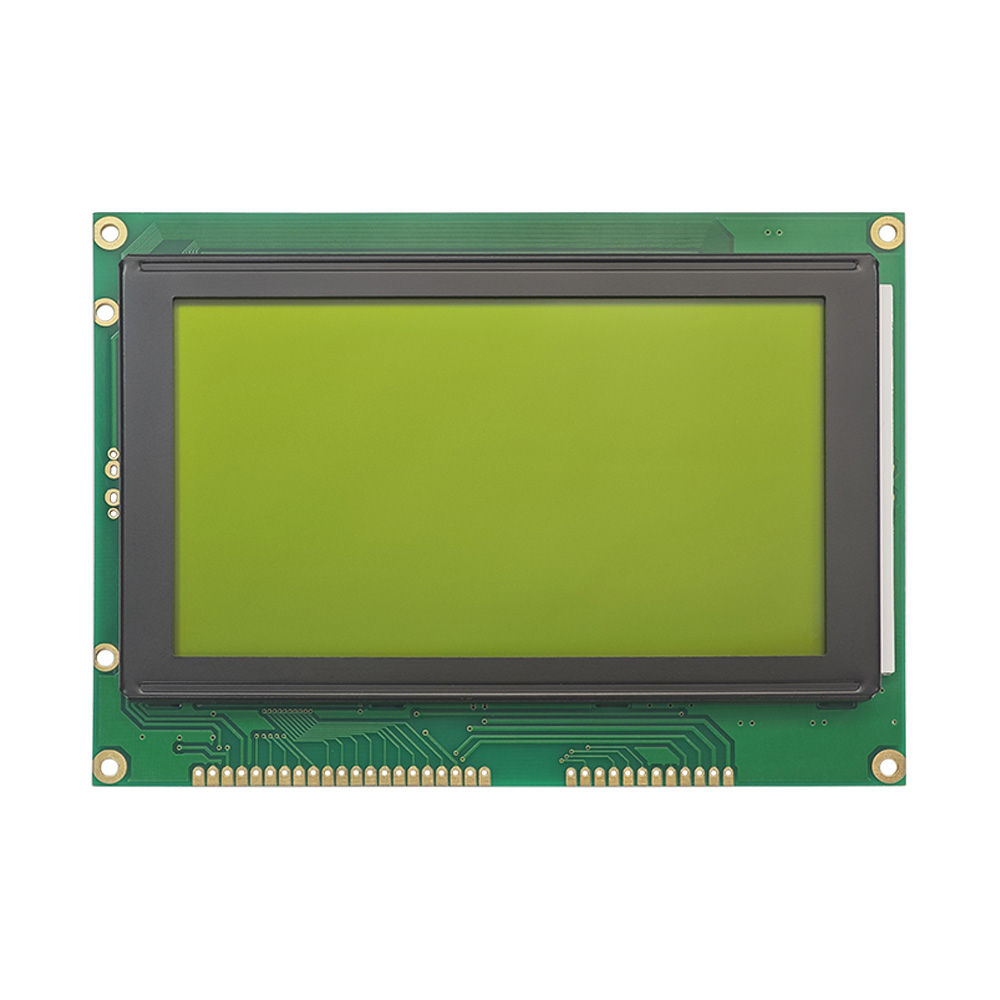

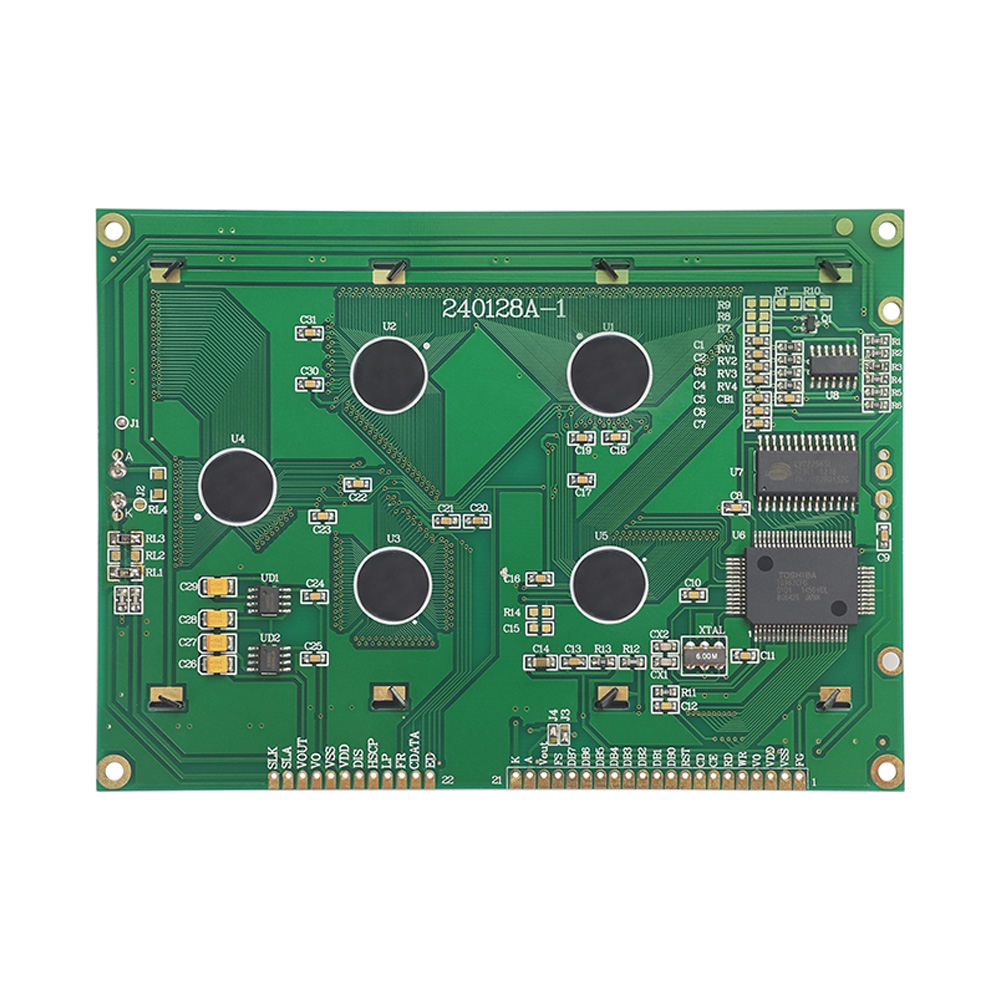

The 240x128 Dots Graphic LCD Display Module JXD240128A-1 is a reliable monochrome display solution designed for embedded and industrial electronic systems that require clear graphical visualization. With a 240x128 dot matrix resolution, it is capable of displaying detailed text, icons, and simple graphical interfaces with strong readability. The module is engineered for stable long-term operation, making it suitable for devices that demand continuous performance and consistent visual output. Its efficient design ensures low power consumption while maintaining high contrast and clear image rendering across various operating conditions.
Parameters:
| Character Type | Customized |
| Model | JXD240128A-1 Yellow Green |
| Model Size | 144×104×14mm |
| VA Size | 114×64mm |
|
Display Type
|
STN Yellow Positive |
|
Viewing Angle
|
6 o'clock |
|
Working Temp
|
-20~+70
|
|
Storage Temp
|
-30~+80
|
| Drive Method |
1/128 Duty Cycle,1/9 Bias
|
|
Working Voltage
|
+5.0V/+3.3V |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
This 240x128 Dots Graphic LCD Display Module is based on FSTN positive LCD technology, providing enhanced contrast and improved viewing clarity. It supports standard operating voltages of 3.0V or 5.0V, allowing flexible integration with a wide range of embedded systems. The display is driven by a compatible controller architecture that ensures stable data communication and accurate graphical rendering. LED backlight technology is used to deliver uniform illumination while minimizing energy consumption. The module is designed to operate reliably within industrial temperature ranges, ensuring consistent performance in both normal and harsh environments. Its compact structure supports easy installation in space-constrained applications.
Design Standards
The module is manufactured according to strict industrial-grade quality standards, focusing on reliability, durability, and efficiency. The PCB layout is optimized to reduce electromagnetic interference and ensure stable signal transmission during continuous operation. High-quality LCD materials and components are used to enhance durability and extend operational lifespan. The mechanical design supports secure mounting and resistance to vibration, making it suitable for demanding industrial environments. Low power design principles are implemented to reduce energy usage and improve overall system efficiency, especially in long-duration applications.
Applications
The 240x128 Dots Graphic LCD Display Module is widely used in industrial automation systems, medical devices, measurement instruments, communication equipment, and smart control panels. It is also commonly integrated into human-machine interface (HMI) systems, embedded controllers, and portable electronic devices. Its ability to deliver clear graphical and textual information makes it an excellent choice for applications requiring reliable data visualization and intuitive user interaction in professional and industrial environments.

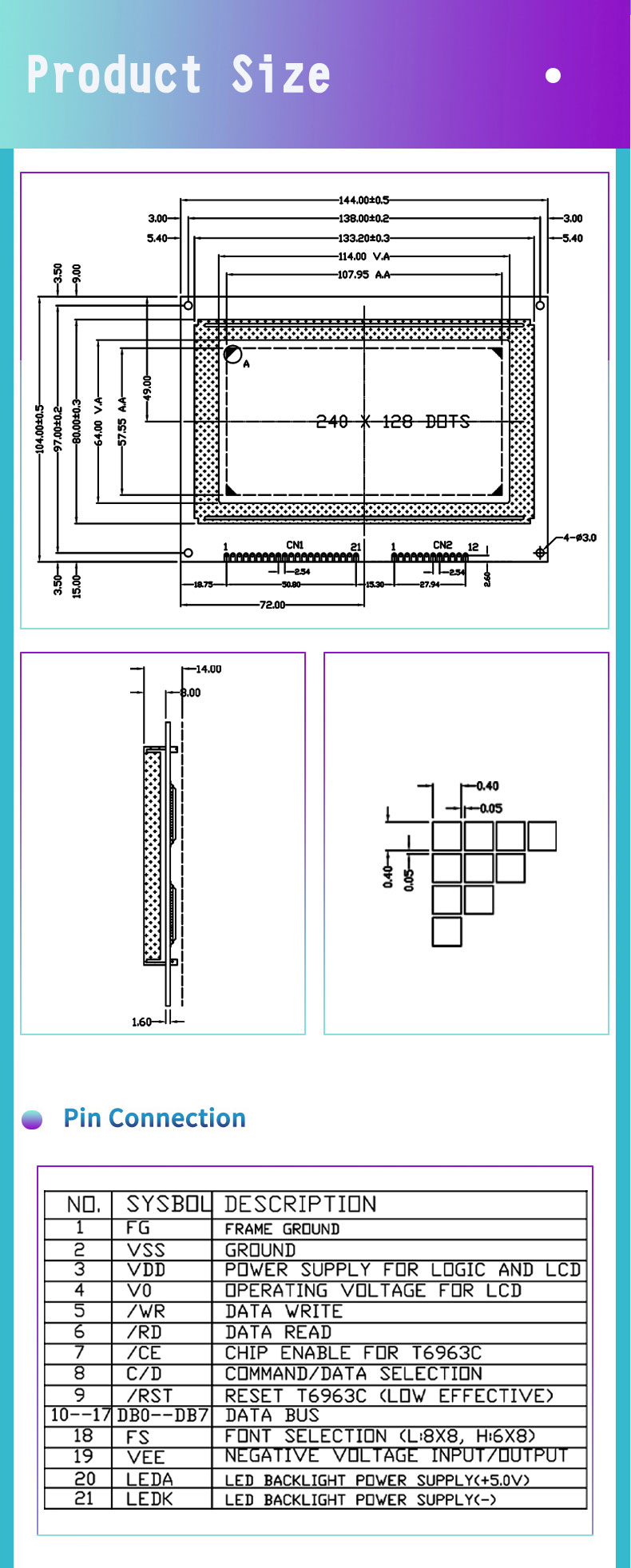

Product Size
