Basic Information

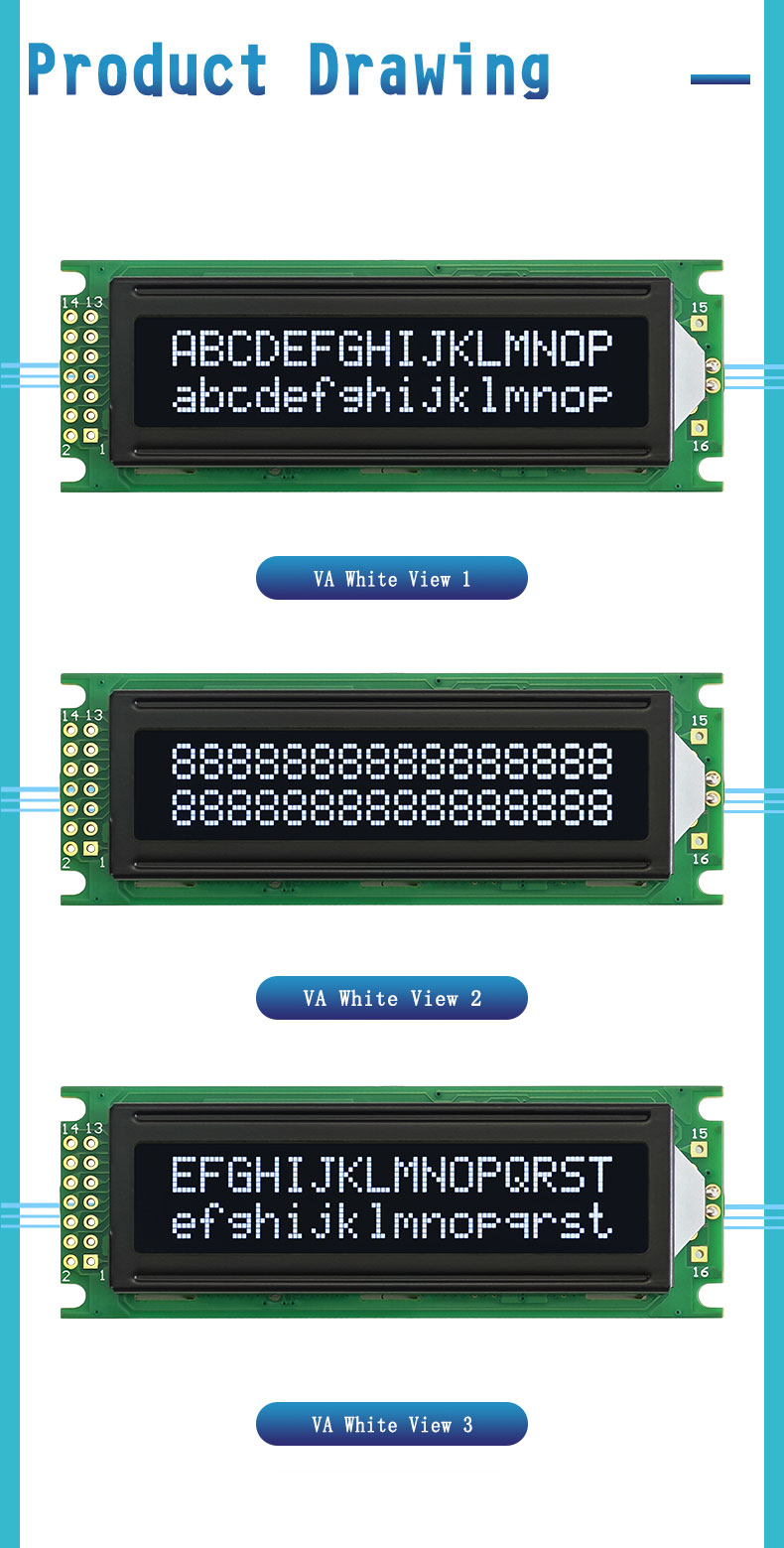

16X2 Display Screen is a compact 16x2 character LCD module designed for clear and stable text output in embedded electronic systems. It features a VA negative LCD mode, white LED backlight, 16PIN interface, and 3.3V or 5.0V operation. The high-contrast display improves readability in different lighting environments. It is widely used in industrial instruments, control panels, home appliances, medical devices, automation systems, and DIY electronic projects for reliable real-time information display.

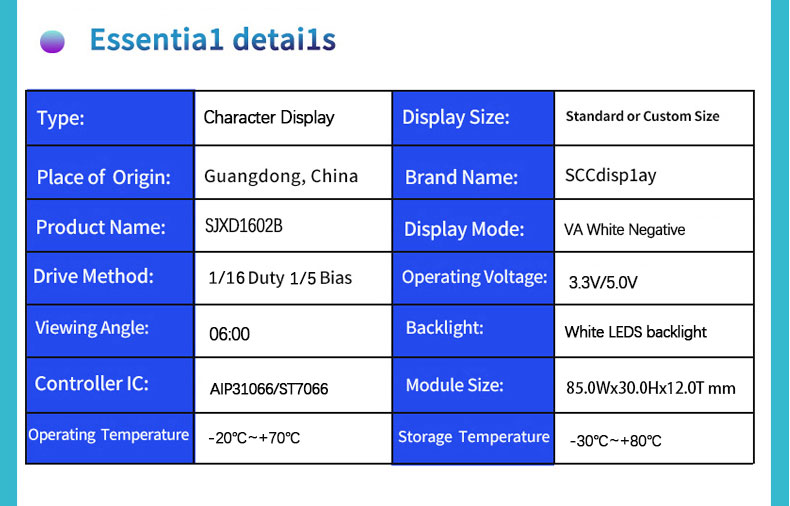

Parameters:
| Character Type | 16X2 |
| Model | SJXD1602B |
| Model Size | 85.0×30.0×12.0 MM |
| VA Size | 64.5×14.0 MM |
|
Drive Voltage
|
3.3V/5.0V
|
|
Drive IC
|
ST7066/AIP31066
|
|
Backlight
|
White LED backlight
|
|
LCD Type
|
VA Negative
|
|

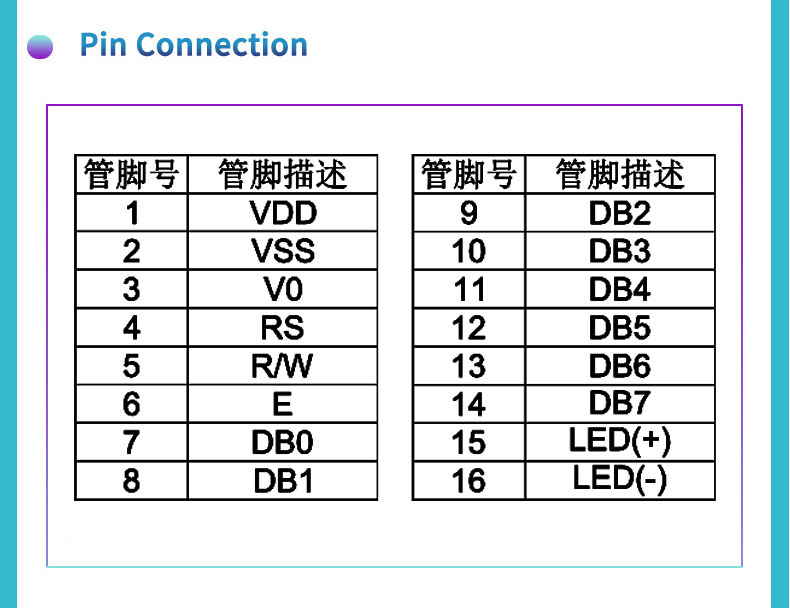

Interface
|
16PIN |
| Working Temperature |
-20°C - +70°C
|
|
Storage Temperature
|
-30°C - +80°C |

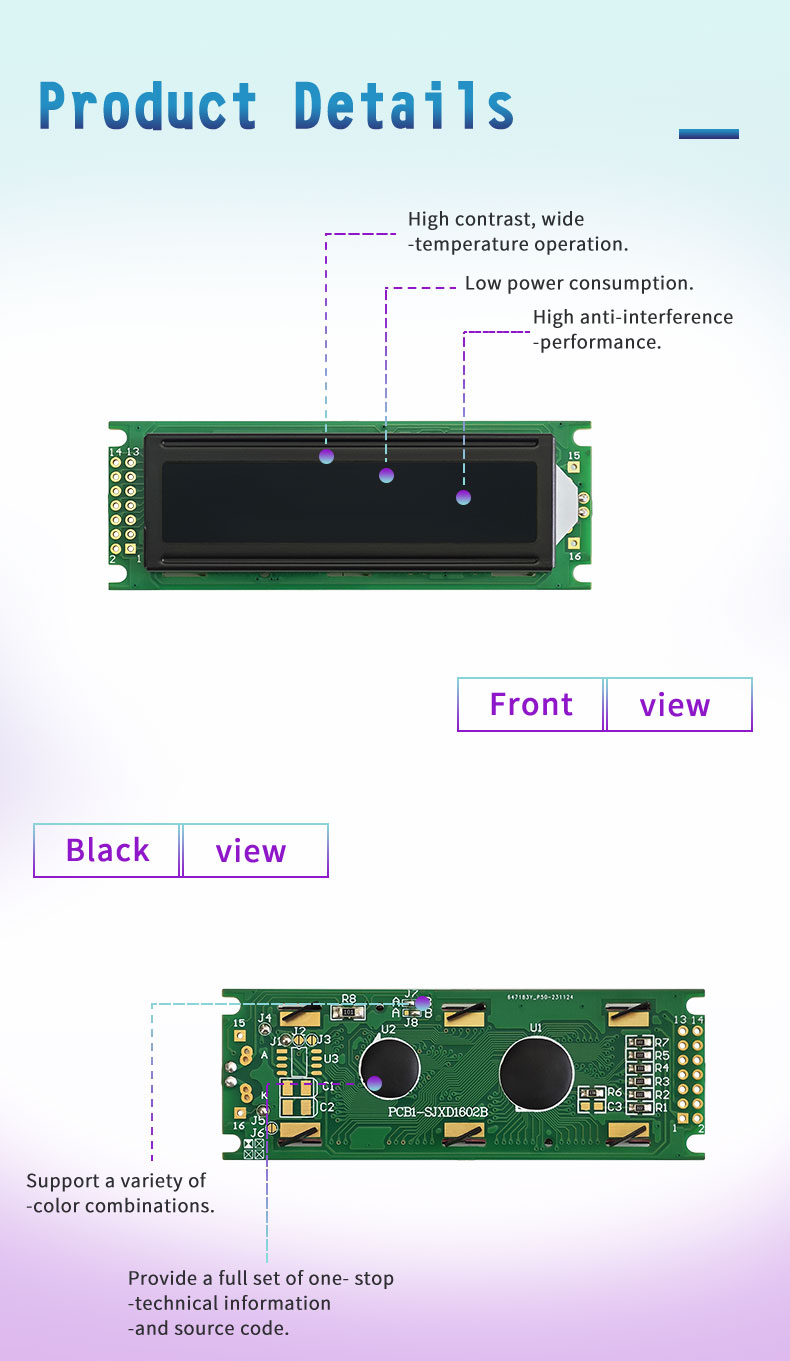

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- The fastest batch delivery can be achieved within 15 days
Key Specifications
16X2 Display Screen is a compact 16x2 character LCD module designed for stable text and numeric output in embedded electronic systems. The SJXD1602B model uses a VA negative LCD structure, providing high-contrast dark-background readability for improved visual clarity. It features an 84.0×44.0×14.0 mm module size, 64.5×14.0 mm viewing area, 3.3V/5.0V operating voltage, ST7066/AIP31066 compatible driver IC, 16PIN parallel interface, and white LED backlight. The module ensures consistent character display performance and reliable operation across industrial temperature conditions.
Design Standards
16X2 Display Screen is developed under industrial-grade electronic display standards, focusing on stability, durability, and long-term operational reliability. The 16PIN interface ensures compatibility with standard character LCD control systems, enabling straightforward integration into existing hardware designs. The VA negative display mode enhances contrast performance and improves readability in low-light environments. The module is optimized for low power consumption, anti-interference capability, and stable signal transmission. It also supports RoHS-compliant materials, customization options, and consistent batch production quality for industrial applications.
Applications
16X2 Display Screen is widely used in electronic products requiring simple and reliable text display without graphical complexity. It is suitable for industrial instruments, control panels, smart meters, home appliances, medical devices, automation systems, and consumer electronics. The module can display system status, numeric values, warnings, menus, and real-time operational data. Its compact structure, stable VA negative contrast, and standardized 16x2 format make it ideal for front-panel interfaces, embedded controllers, prototype development, and cost-sensitive electronic applications requiring long-term stable performance.

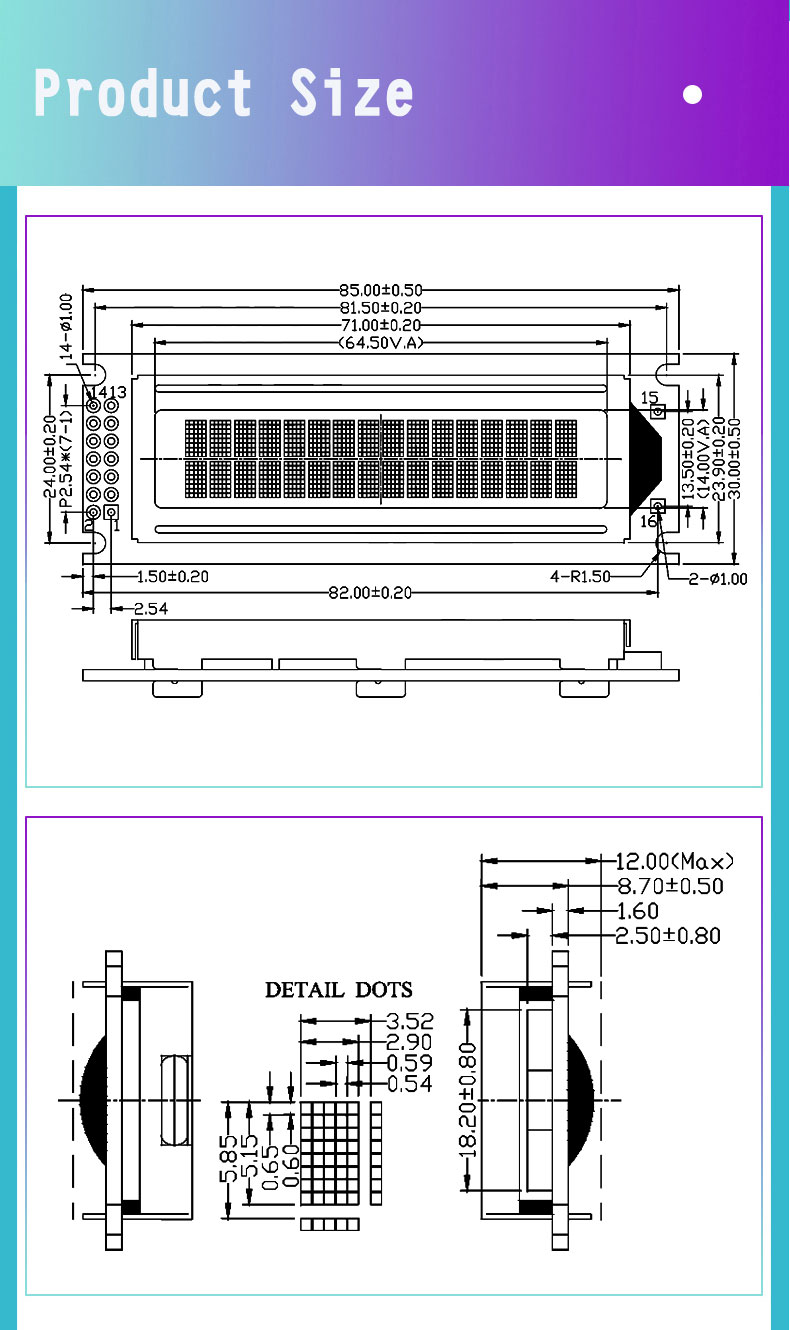

Product Size
