Basic Information
1602 LCD Display Datasheet JXD1602A outlines a 16×2 character LCD module for values, menus, labels, symbols, alerts, and status text. It provides 32 display positions and uses STN positive technology for readable dark characters on a light background. With 3.3V/5.0V drive compatibility, LED backlight options, low power use, wide temperature performance, technical support, and OEM customization, it helps engineers select displays for meters, instruments, panels, appliances, medical electronics, access terminals, and embedded systems.

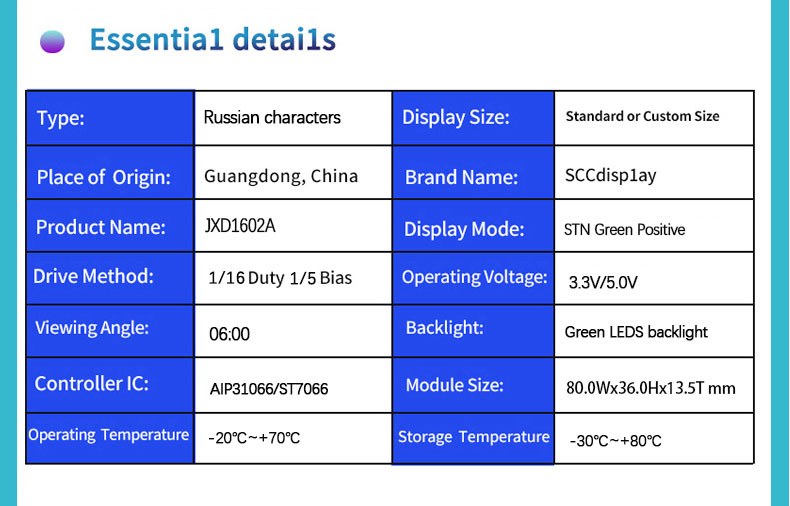

Parameters:
| Character Type | 16X2 |
| Model | JXD1602A |
| Model Size | 80.0×36.0×13.5 MM |
| VA Size | 64.5×14.5 MM |
|
Drive Voltage
|
3.3V/5.0V
|
|
Drive IC
|
ST7066/AIP31066
|
|
Backlight
|
Green LED backlight
|
|
LCD Type
|
STN Positive
|
|

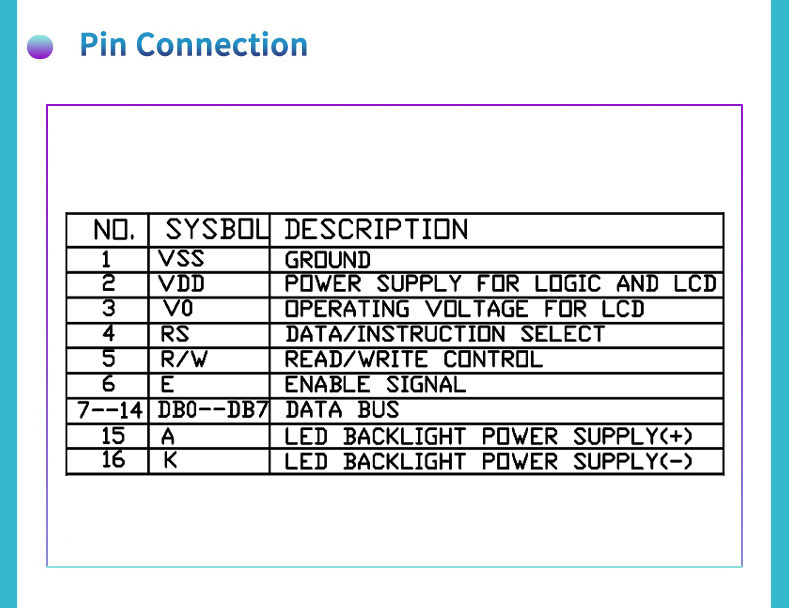

Interface
|
16PIN |
| Working Temperature |
-20°C - +70°C
|
|
Storage Temperature
|
-30°C - +80°C |

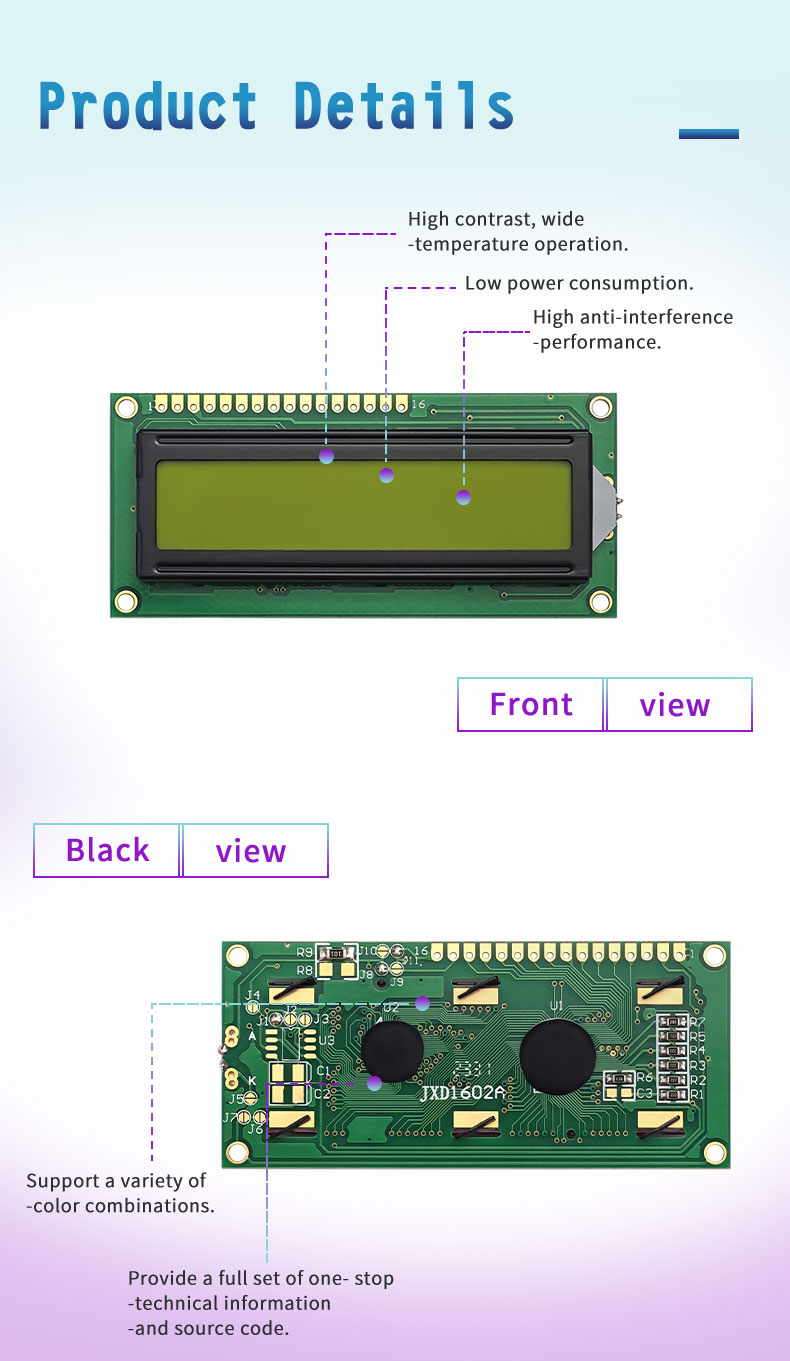

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- The fastest batch delivery can be achieved within 15 days
Key Specifications
1602 LCD Display Datasheet JXD1602A describes a 16×2 character LCD module designed for two-line text output, including numbers, symbols, unit labels, menu names, and short device prompts. It provides 16 characters per row with 32 total display positions. The module uses STN positive display technology for readable dark characters on a light background. It supports 3.3V/5.0V drive compatibility, LED backlight options, standard character LCD control, and customizable structure or interface requirements.
Design Standards
1602 LCD Display Datasheet focuses on electrical matching, display readability, and practical integration for embedded product design. The STN positive structure supports stable contrast, while the backlight improves visibility in indoor or controlled lighting environments. Its 16×2 format offers enough information space without increasing panel size. Low power consumption, anti-interference performance, wide-temperature capability, sample testing, technical documentation, and OEM customization help engineers evaluate the module before prototype assembly or batch production.
Applications
1602 LCD Display Datasheet is useful for selecting displays in products that need simple two-line information output. It can support measurement values, status text, menu prompts, alarm codes, timer data, setting labels, and operating instructions. Common application areas include meters, industrial instruments, control panels, power equipment, home appliances, medical electronics, access control terminals, communication devices, embedded boards, educational kits, and DIY electronics that require a dependable 16×2 character display.

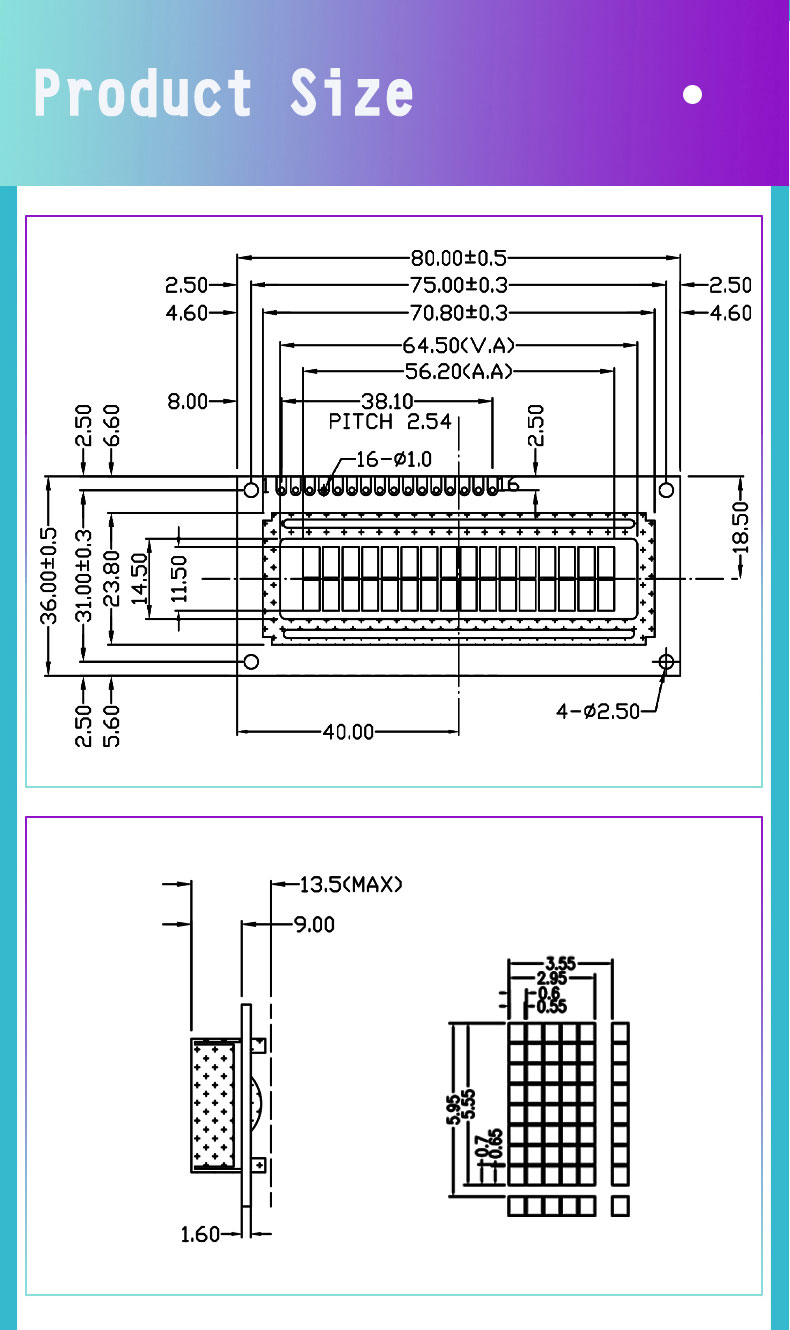

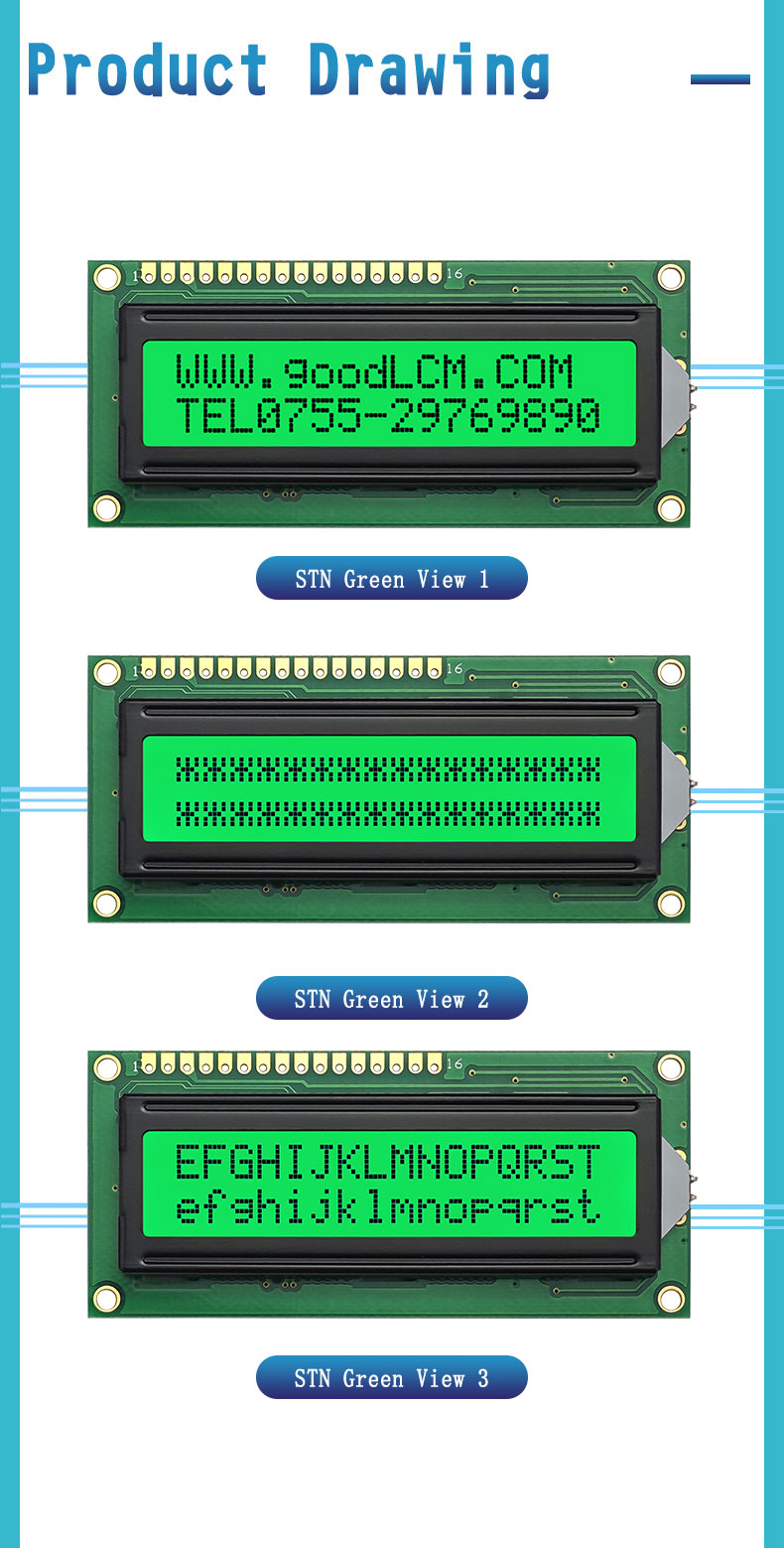

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: What is this screen used for？
A: Character LCD screens are widely used in home appliances, industrial controls, medical devices, consumer electronics, and DIY projects, suitable for displaying status information, menu options, and basic data.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
