1602 Character LCM - SJXD1602B （FSTN Positive）

1602 Character LCM is a slim 16x2 display unit designed for compact equipment requiring clear menu, status, and value readout. It uses FSTN positive technology, white LED backlight, 16PIN connection, and 3.3V or 5.0V driving voltage. The narrow module body supports efficient panel installation and dependable daily operation. It suits meters, controllers, appliances, medical equipment, industrial terminals, and DIY projects needing simple character visibility in varied product designs and testing.

Parameters:

• High contrast, wide-temperature operation
• Low power consumption, high anti-interference performance
• Support for multiple color combinations
• Provide a complete set of one-stop technical information and source code
• Supports customization
• Supports 1-3 day samples
• High quality and cost-effective
• The fastest batch delivery can be achieved within 15 days

Key Specifications

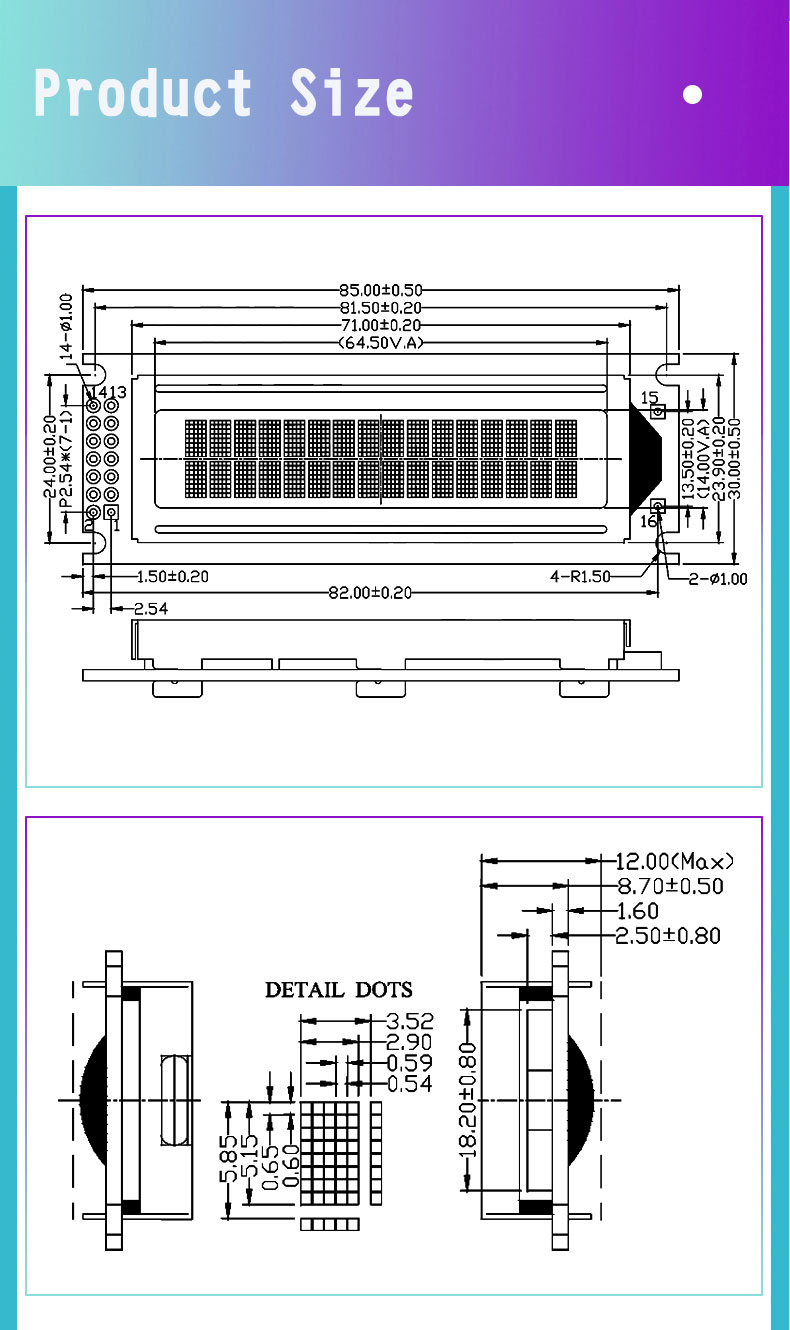

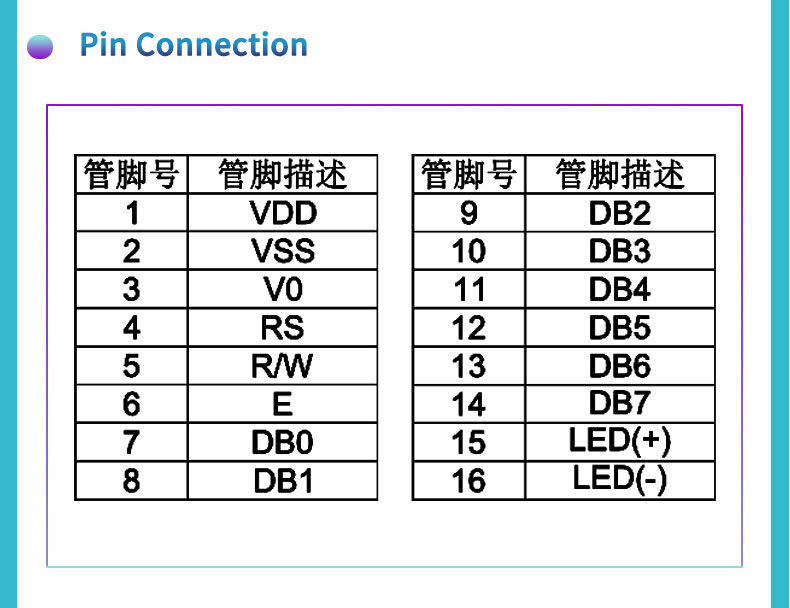

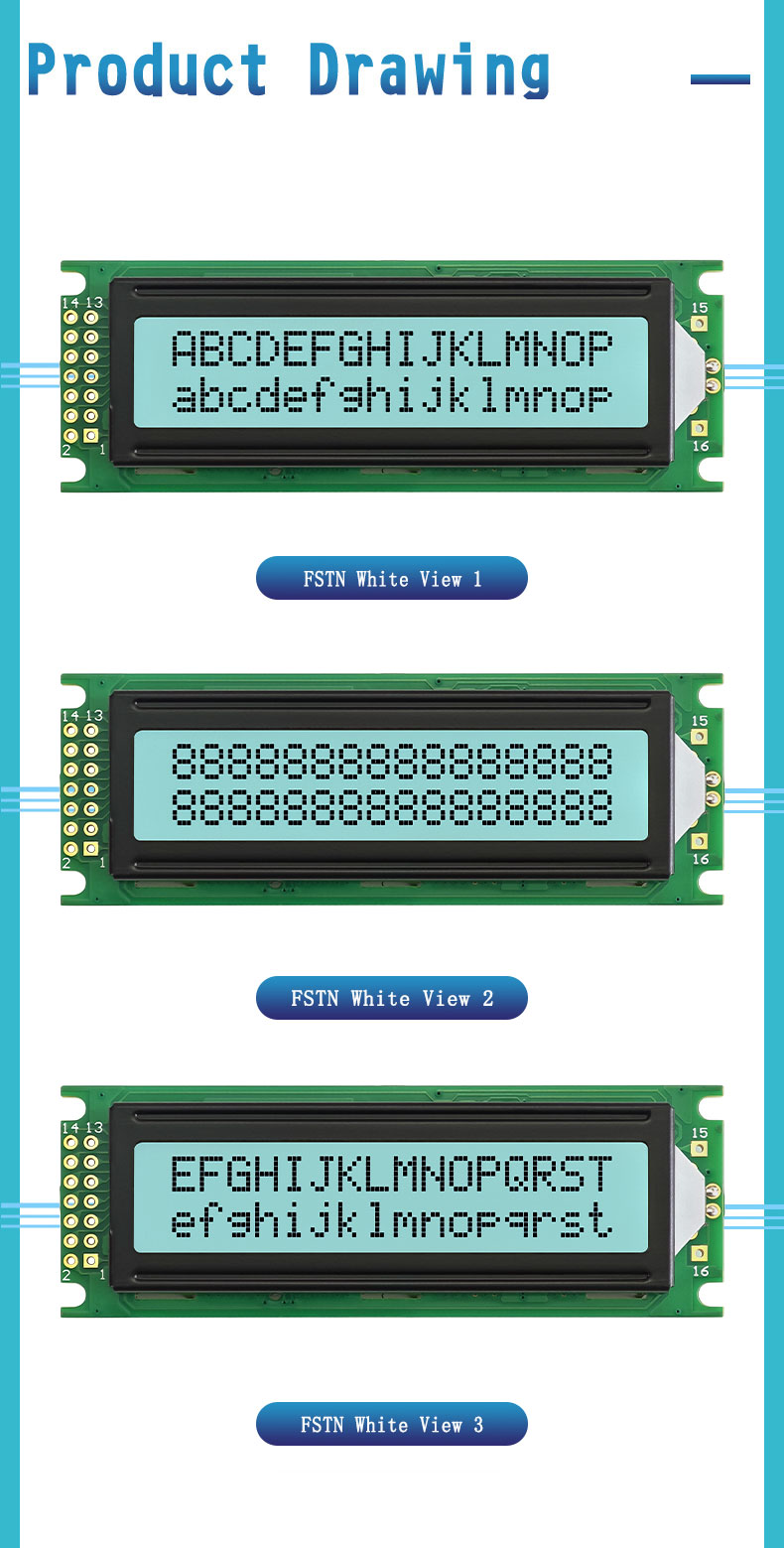

1602 Character LCM is a slim 16x2 alphanumeric display unit built for equipment that needs clean character readout in a narrow panel space. The SJXD1602B model uses an 85.0×30.0×12.0 mm outline with a 64.5×14.0 mm viewing area, making it different from many standard wider 1602 structures. It supports 3.3V/5.0V drive voltage, ST7066/AIP31066 driver IC, 16PIN interface, white LED backlight, and FSTN positive display mode. Its -20°C to +70°C working range helps maintain dependable operation in practical device environments.

Design Standards

1602 Character LCM is developed for compact installation, steady electrical connection, and improved front-view readability. The FSTN positive LCD structure offers stronger contrast than common basic character panels, helping letters and numbers appear sharper during daily use. Its 16PIN connection supports familiar LCD control design, allowing engineers to handle testing, replacement, and product integration with less redesign pressure. The module also supports low power consumption, anti-interference performance, multiple color options, customization service, technical data support, and fast sample preparation for project evaluation.

Applications

1602 Character LCM works well in products that need simple data presentation instead of complex graphic display functions. It can show menu items, operating states, setting values, alarm notices, counter readings, and basic measurement results. Typical application fields include meters, equipment control panels, information display systems, industrial controllers, medical devices, home appliances, consumer electronics, and DIY development projects. Its slim body, white backlight, and FSTN positive viewing effect make it suitable for compact instruments, embedded terminals, and customized control interfaces.

Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.

Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.

Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.

Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.

Q: What is this screen used for？
A: Character LCD screens are widely used in home appliances, industrial controls, medical devices, consumer electronics, and DIY projects, suitable for displaying status information, menu options, and basic data.

If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
